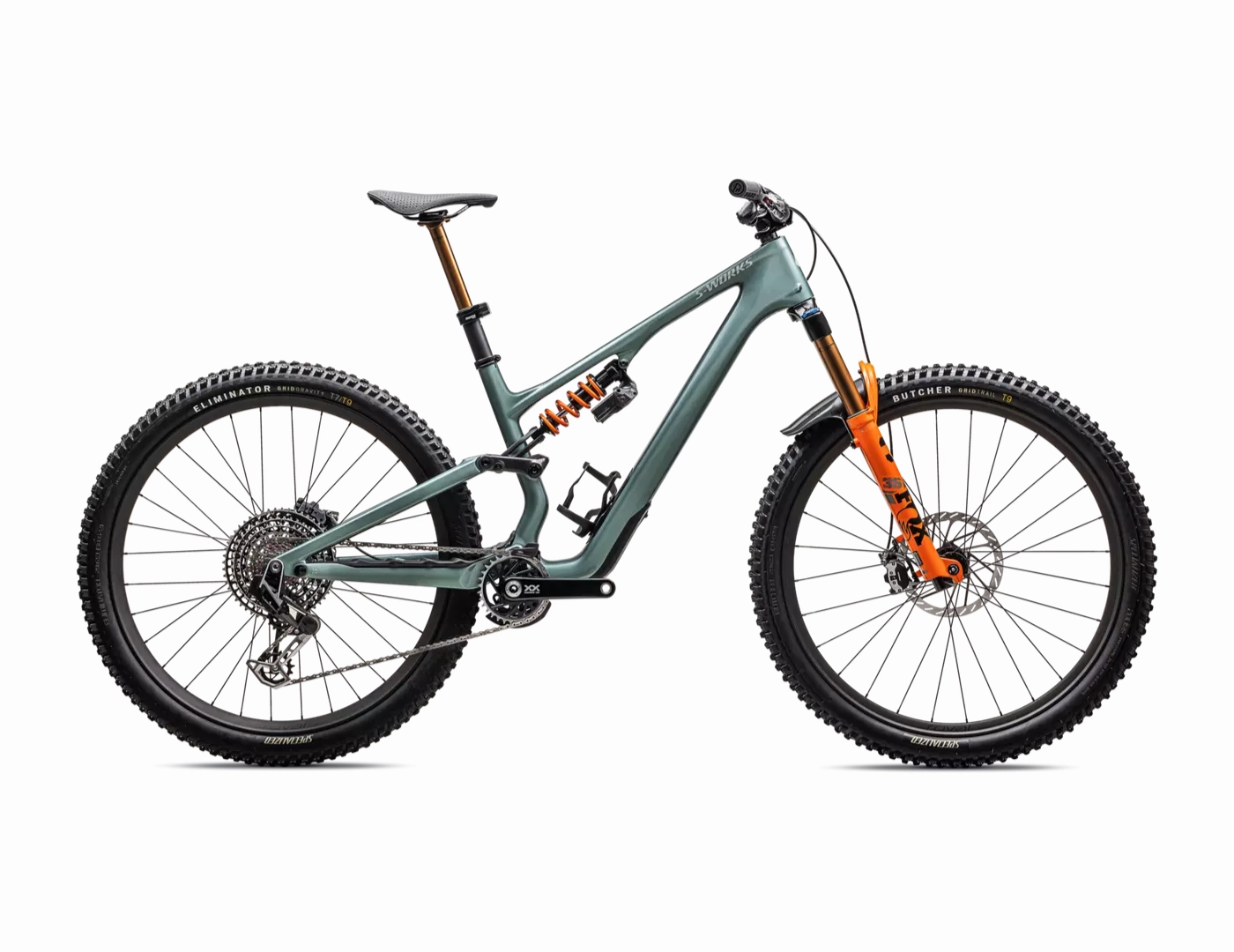

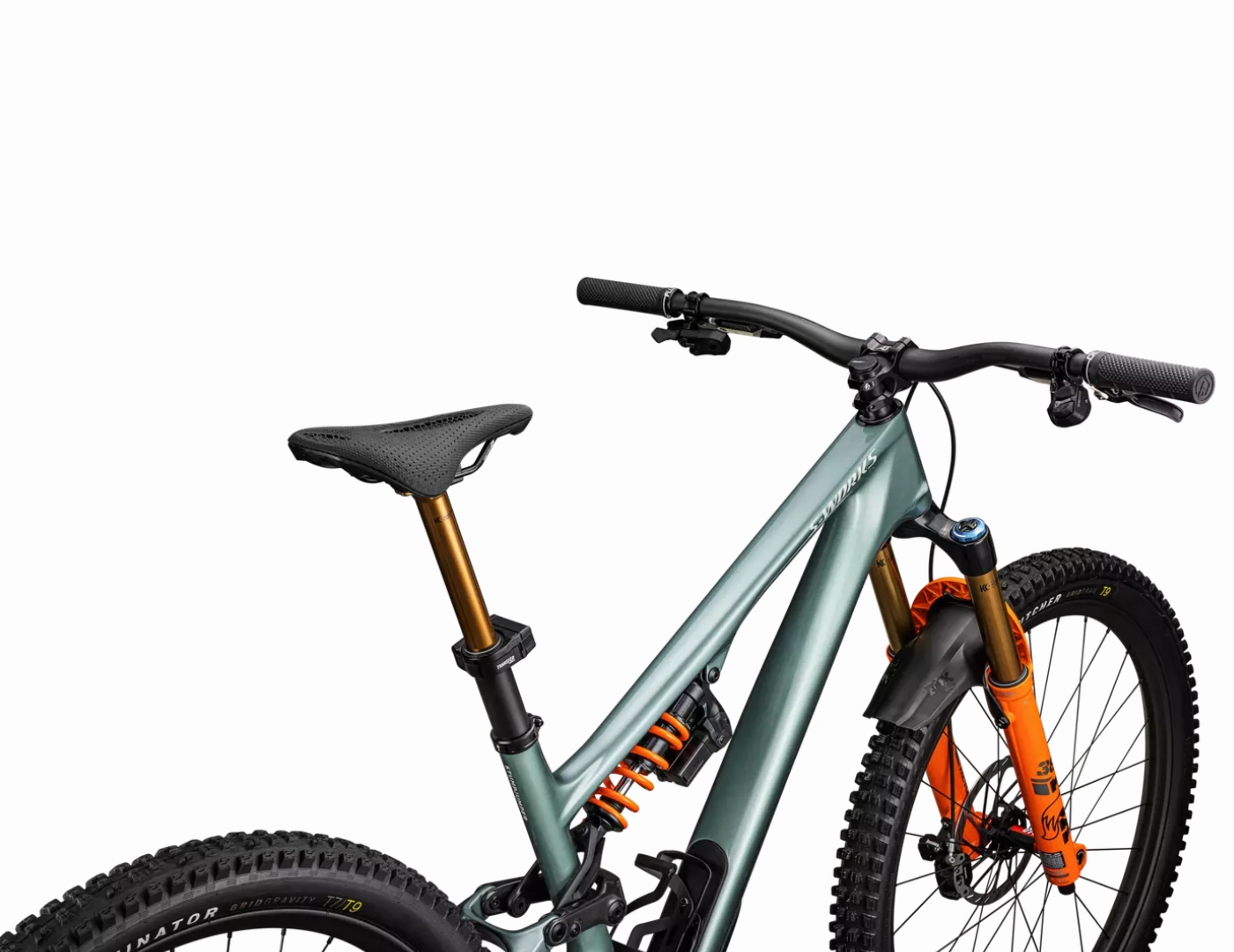

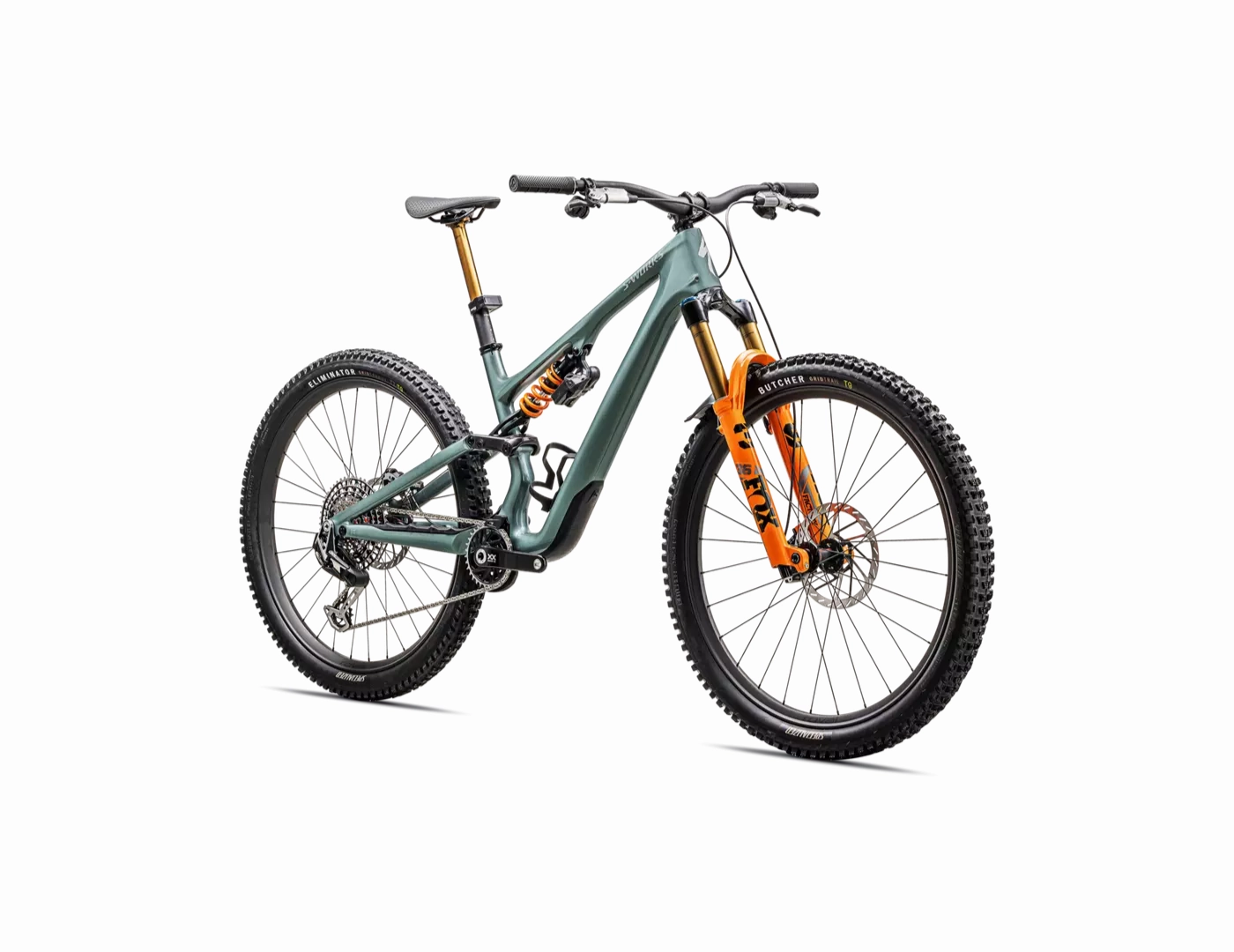

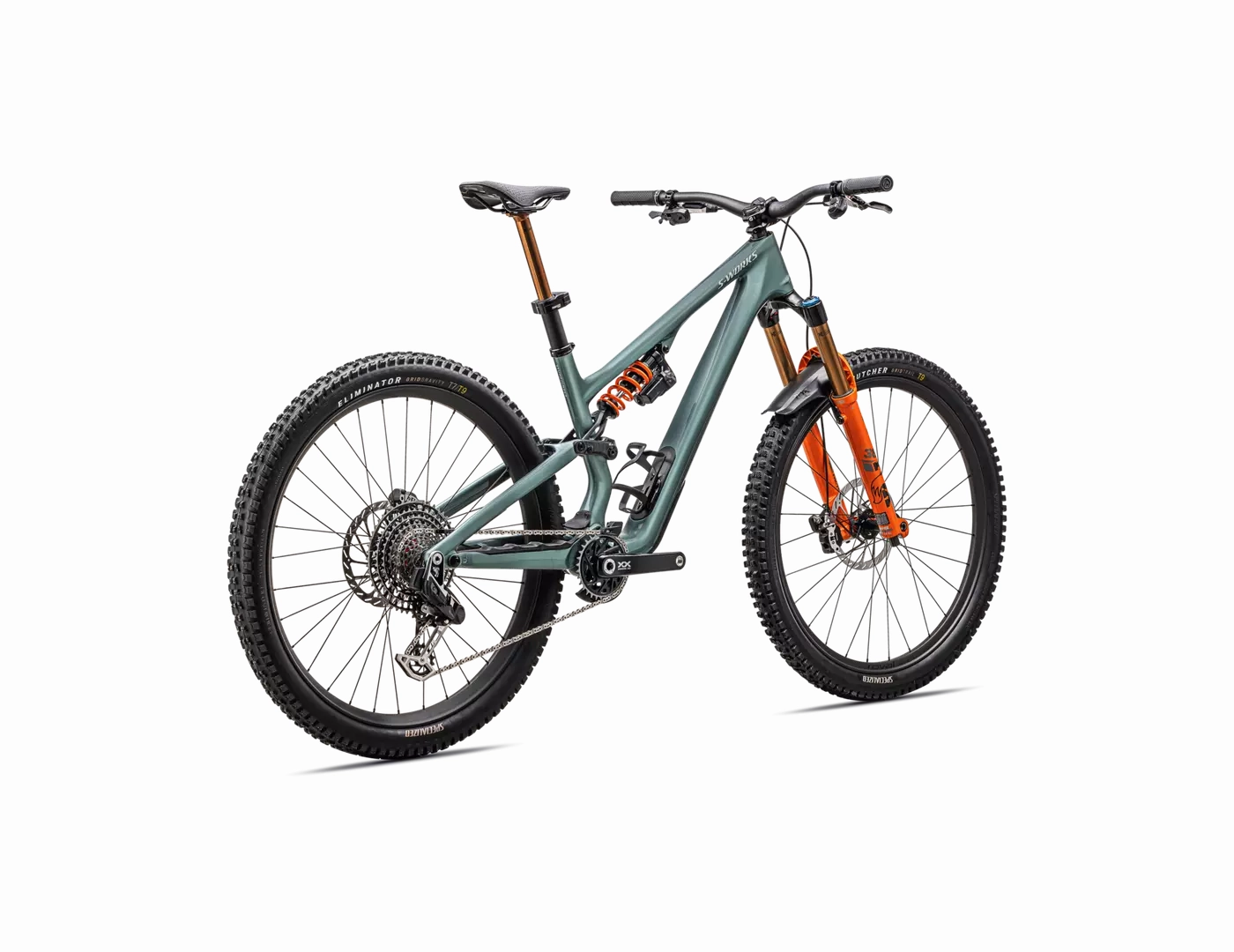

S-Works Stumpjumper 15 LTD 2025

S-Works Stumpjumper 15 LTD 2025

$ 58.00

$ 160.08

Unavailable
S-Works Stumpjumper 15 LTD 2025

S-Works Stumpjumper 15 LTD 2025

$ 58.00

$ 160.08

Size:
  • S2
  • S3
  • S4
  • S5
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

Description

The S-Works Stumpjumper 15 LTD trail bike is here to obliterate every trade-off in the trail game. Devour bumps like a big bike? Check. Short-travel control and optimal pedaling efficiency? Double check. Swapping between those two scenarios automatically without ever flipping a switch? Check, check, check. Meet the all-new S-Works Stumpjumper LTD with FOX Live Valve Neo.

KINEMATICS PERFECTED As the quintessential trail bike, Stumpjumper 15 balances efficiency and optimal bump force management. For the anti-squat on Stumpjumper 15, we struck a balance between the previous Stumpjumper and Stumpjumper EVO, as both had excellent pedaling characteristics.

ITS [A]LIVE No, we havent finally created a sentient bike Its FOXs brand new Live Valve Neo system equipped on S-Works Stumpjumper 15 LTD. A lightning-fast wireless rear suspension system that provides infinite tuning options through the FOX Bike app, and the best possible combination of XC pedaling efficiency and enduro descending capabilityfaster than the blink of an eye.

HONED GEOMETRY This bikes geometry delivers big bike capability when you need it, a nimble feel in tight sections, and lively, efficient climbing manners. The generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack head tube angle, and optimized fork offset keep things stable in the rough.

RIDE YOUR WAY The Stumpjumper 15 seamlessly integrates benchmark geo adjustability, making it the most personalizable trail bike ever. Six distinct geometry settings allow you to hone performance for any style, any terrain. Head angle and bottom bracket can be fine-tuned for stability or clearance.

FORM FOLLOWS FUN We can make a frame as stiff as we want, but theres such a thing as too stiff. To be one with the bike requires engineered compliance in the frame. We engineered the FACT 11M carbonfront end, rear end, and the link between themas a single unit that hits the stiffness target we established for trail riding.

WHEEL CHOICE With our aftermarket link shock links, you can choose between big wheels front and rear or mix things up with a 27.5 rear for a more responsive and playful ride. No matter what you choose, geometry is unaffected.

CARRY IT ALL SWAT 4.0 on Stumpjumper 15 elevates downtube storage, an innovation we pioneered. Its the smoothest operating, most weather-resistant, flush-mounted system ever.

MORE RELENTLESS THAN YOU Our full-suspension bikes are built to be relentless, designed to endure years of hard riding, and backed by the best support and policies to keep you on the trail. Our unbeatable lifetime, no-questions-asked replacement suspension pivot bearings to the original owner (one bearing set, per bike, per year) is just one way we've got you covered. See your local Specialized Retailer for details.

  • Lightweight FACT 11m carbon chassis, rear-end, and link
  • Total confidence from super tough Roval Traverse HD wheels, DT Swiss 240 hub
  • Tuneable and supportive Ride Dynamics Tuned FOX DHX Live Valve NEO Factory shock
  • Planted and tuneable FOX FLOAT 36 Factory fork with GRIP X2 damper
  • Superior shifting experience from SRAM XX Eagle T-Type AXS drivetrain
  • Top-tier braking power from SRAM Maven Ultimate 4-piston brakes
  • Incredibly smooth and reliable FOX Transfer NEO Factory dropper post
  • Lifetime replacement suspension pivot bearings to the original owner
  • Compatible with electronic drivetrains only
    Specification
    Frameset
    SWAT
    SWAT 4.0 internal downtube storage
    Frame
    FACT 11m carbon chassis, rear-end, and link, Trail Geometry, SWAT Door integration, head tube angle adjustment, threaded BB, internal brake and dropper cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel
    Seat Binder
    Alloy, 38.6mm
    Suspension
    Fork
    FOX FLOAT 36 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm QR axle, 44mm offset, 150mm of travel
    Rear Shock
    FOX DHX Live Valve NEO Factory, Ride Dynamics Trail Tune, 210x55mm, S2: 400lbs, S3: 450lbs, S4: 500bs, S5: 550lbs, S6: 600lbs
    Brakes
    Front Brake
    SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor
    Rear Brake
    SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, S2: 180mm, S3-S6: 200mm HS2 Rotor
    Drivetrain
    Cassette
    SRAM XX Eagle SL Transmission Cassette, 12spd, 10-52t
    Bottom Bracket
    SRAM DUB, BSA 73mm Wide, Threaded
    Shift Levers
    SRAM AXS POD Ultimate Controller
    Crankset
    SRAM XX Eagle Crankset, 32T ring, 55mm Chainline, S2-S3:165mm, S4-S6: 170mm
    Rear Derailleur
    SRAM XX Eagle Transmission Derailleur
    Chain
    SRAM XX Eagle SL Transmission Flattop Chain
    Wheels & tires
    Rims
    Roval Traverse HD, hookless carbon, 30mm inner width, tubeless ready, Front: 29, Rear: S2: 27.5, S3- S6: 29
    Front Hub
    DT Swiss 240, 15x110mm, 28h
    Front Tire
    Butcher, GRID TRAIL casing, GRIPTON T9 compound, 2Bliss Ready, 29x2.3"
    Rear Hub
    DT Swiss 240, 12x148mm, 32h
    Rear Tire
    Eliminator, GRID GRAVITY casing, GRIPTON T7/T9 compound, 2Bliss Ready, S2: 27.5x2.3, S3- S6: 29x2.3"
    Spokes
    DT Swiss Revolite
    Inner Tubes
    Standard, Presta valve
    Cockpit
    Grips
    Deity Lockjaw
    Handlebars
    Race Face ERA Carbon, 5-degree upsweep, 8-degree backsweep,S2: 780mm, 20mm rise: S3-S6: 800mm, 40mm rise
    Saddle
    Power Pro with Mirror, Hollow Ti rails, S2: 155mm, S3-S6: 143mm
    SeatPost
    FOX Transfer NEO Factory, 34.9, S2: 150mm, S3: 175mm, S4-S6: 200mm
    Stem
    Industry 9 Moutain stem, 35mm clamp, 40mm length
    Product details
    Product ID
    278252
    Weight
    Weight
    14.48 kg (31 lb, 14.8 oz)
    Weight Size
    S4

    Geometry

    S2S3S4S5S6
    Crank Length165165170170170
    Handlebar Width800800800800800
    Stem Length4040404040
    Saddle Width155143143143143
    Seatpost Length150175200200200
    Stack618627640654667
    Reach425450475500530
    Headtube Length100110125140155
    Headtube Angle64.564.564.564.564.5
    BB Height337337337337337
    BB Drop3838383838
    Trail130130130130130
    Fork Length (full)561561561561561
    Fork Rake/Offset4444444444
    Front Center751780812843879
    Chainstay Length432435435445445
    Wheelbase11811213124412851322
    Top-tube Length (horizontal)573595624647677
    Bike Standover Height751745745745751
    Seat Tube Length385405425445465
    Seat Tube Angle777776.576.576.5
    Saddle Height for Effective ST Angle690735780825870
    Max Seatpost Insertion245255255285285
    Min Seatpost Insertion8080808080
