Description
REAL SINGLETRACK RIDING
KEEPING UP WITH THE PARENTS
FUN!
Because young rippers need that Rifty Love too! Our take on the ultimate do-it-all trail bike, bringing big-bike performance for younger riders.

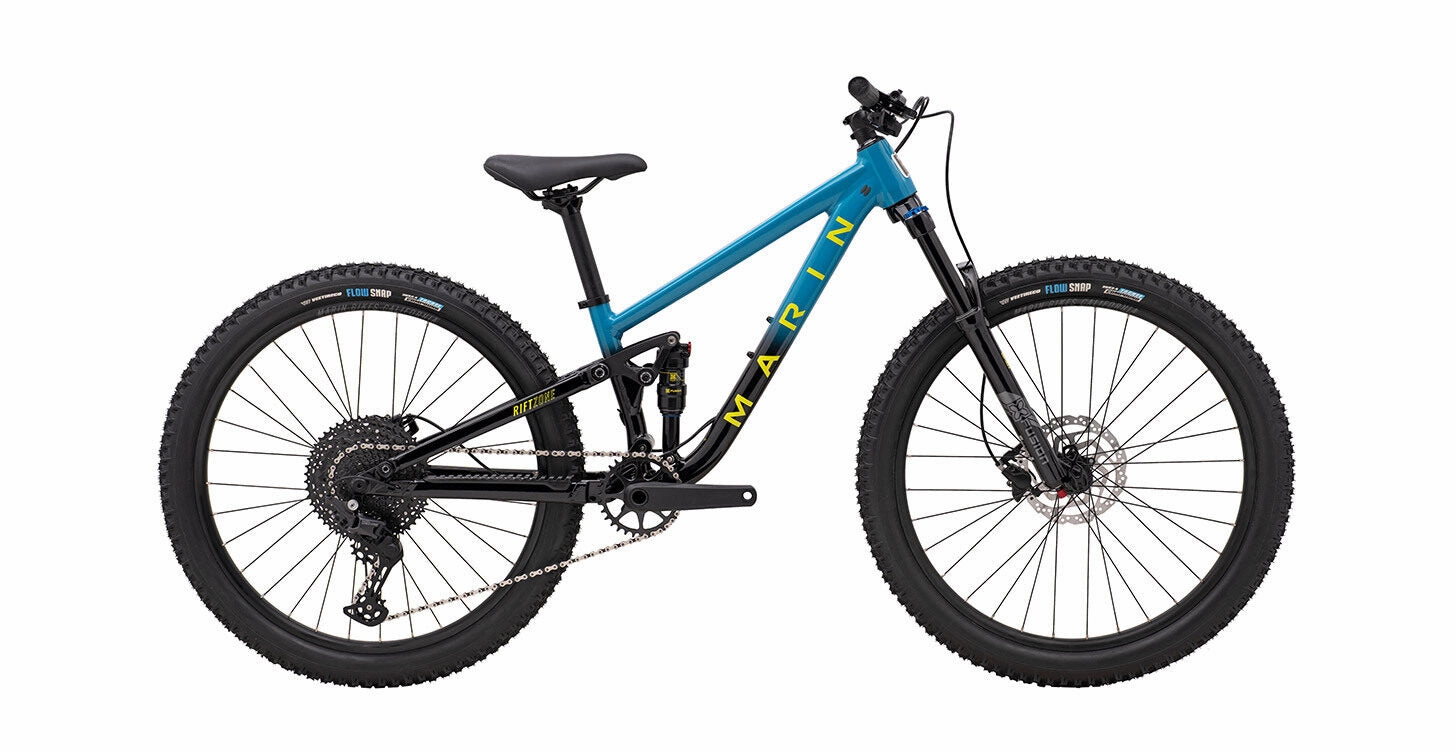

The Marin Rift Zone 26 is made to party, just like the full-sized Rifty. It has 26" wheels that are a little smaller than our full-sized bikes, making it the perfect gateway ride for tweeny riders. And just like the 'grown up' Rift Zone, it has 130mm rear travel, a lightweight aluminum frame and our super-plush MultiTrac suspension platform for endless good times on the trails.
Got another little shredder on the way? The Rift Zone 26 shares the same frame, fork and shock as the Rift Zone 24. Simply swap the wheels and cranks to downsize it to 24" as the perfect hand-me-down.
Specifications
| 01. FRAME | All New Series 3 6061 Aluminum Frame, 26" Wheels, 130mm Travel, MultiTrac Suspension Platform, 135mm Open Dropout (Upgradeable to 142x12mm Thru-Axle), 73mm Threaded BB |
| 02. FORK | X-Fusion Velvet RLC 26", 130mm Travel, Compression and Rebound Adjustment, 100x15mm Thru-Axle |

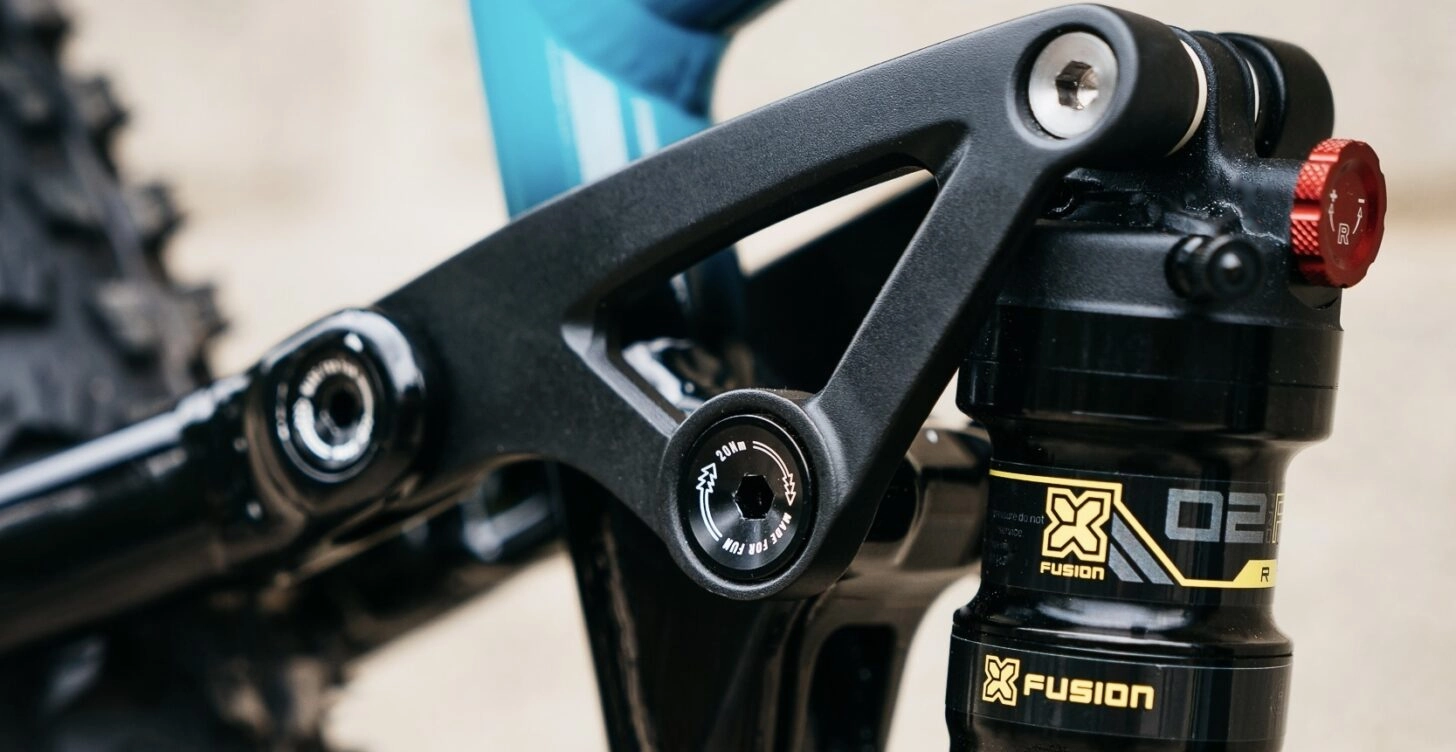

| 03. SHOCK | X-Fusion O2 Pro R, 190x51mm, Custom Tune, M8x22.2mm Hardware |
| 04. RIMS | Marin Double Wall Alloy, 27mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible |
| 05. HUB REAR | Forged Alloy, 135mm, Quad Sealed Bearings, Centerlock Disc, 32H |
| 06. HUB FRONT | Forged Alloy, 100x15mm, Centerlock Disc, 32H |
| 07. SPOKES | 14g Stainless Steel |
| 08. TIRES | Vee Tire Co, Flow Snap 26x2.4", Tackee Compound, Wire Bead |
| 09. DERAILLEUR REAR | Shimano Deore, 11 Speed, SGS |
| 10. SHIFT LEVER | Shimano Deore, 11-Speed, SL-5100R |
| 11. CRANKSET | Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing, 170mm Length |
| 12. BOTTOM BRACKET | External Sealed Cartridge Bearings |
| 13. CHAIN | KMC X-11 Silver and Black |
| 14. CASSETTE | SunRace, 11-Speed, 11-51T, ED Black |
| 15. BRAKES FRONT | Shimano MT-201 Hydraulic Disc, 180mm Rotor |
| 16. BRAKES REAR | Shimano MT-201 Hydraulic Disc, 160mm Rotor |
| 17. BRAKE LEVERS | Shimano BL-MT201 Hydraulic |
| 18. HANDLEBAR | Marin Mini-Riser, 6061 Double Butted Aluminum, 12mm Rise, 720mm Width, 4 Up, 9 Back |
| 19. STEM | Marin 3D Forged Alloy, 35mm |
| 20. GRIPS | Marin MTN, Closed End |
| 21. HEADSET | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2 |
| 22. SEATPOST | Marin Alloy, 30.9mm |
| 23. SADDLE | Marin Speed Concept |
| 24. EXTRAS | Closed 9-12 Thru-Axle QR System |
Geometry
| Stack | 537.57 |
| Reach | 380 |
| Headtube Angle | 65.5 |
| Headtube Length | 95 |
| Seattube Angle | 76 |
| Seattube Length | 315 |
| Toptube Effective | 515.17 |
| BB Height | 308.5 |
| BB Drop | 10 |
| Chainstay | 425 |
| Wheelbase | 1089 |
| Standover Height | 614 |
| Fork Offset | 42 |
| Seatpost Diameter | 30.9 |
| Handlebar Width | 720 |
| Stem Length | 45 |
| Crank Length | 170 |
