Description

REAL SINGLETRACK RIDING

KEEPING UP WITH THE PARENTS

FUN!

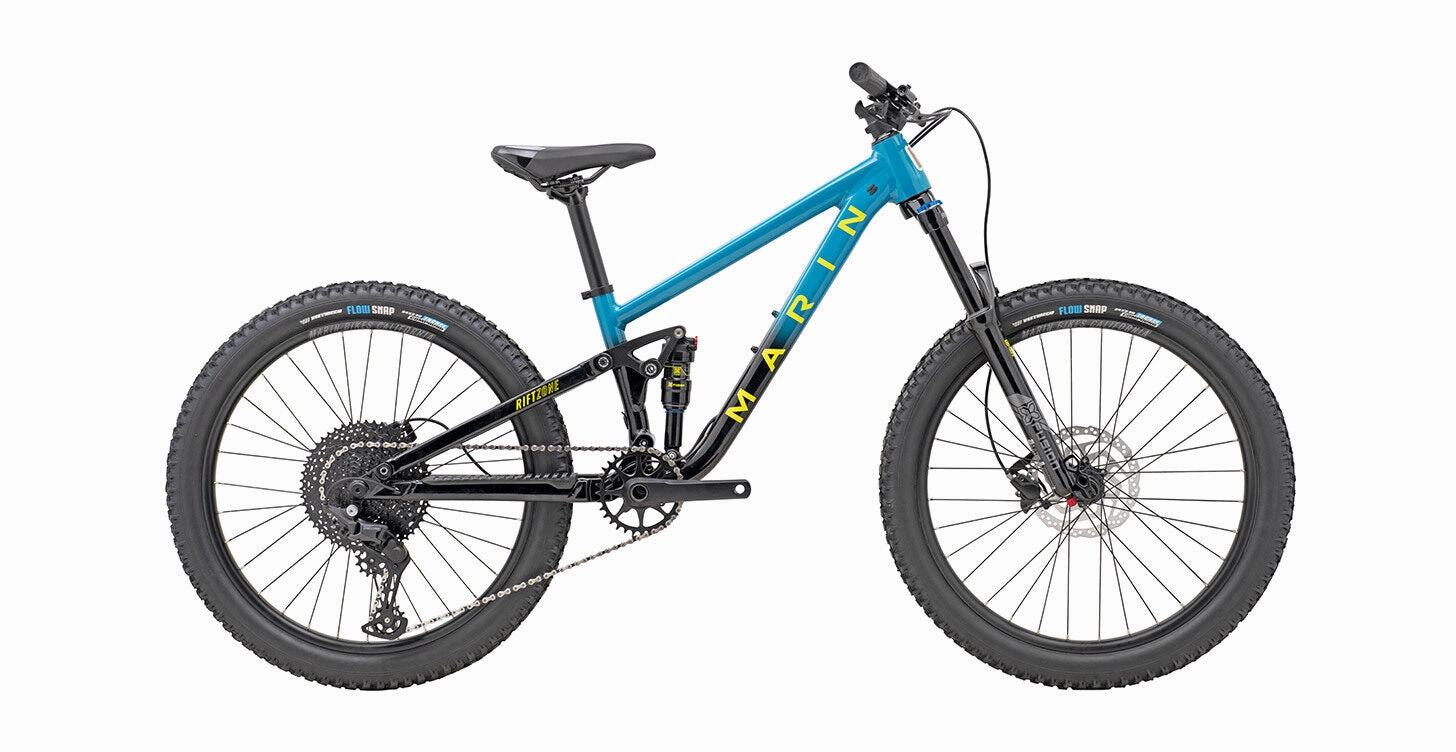

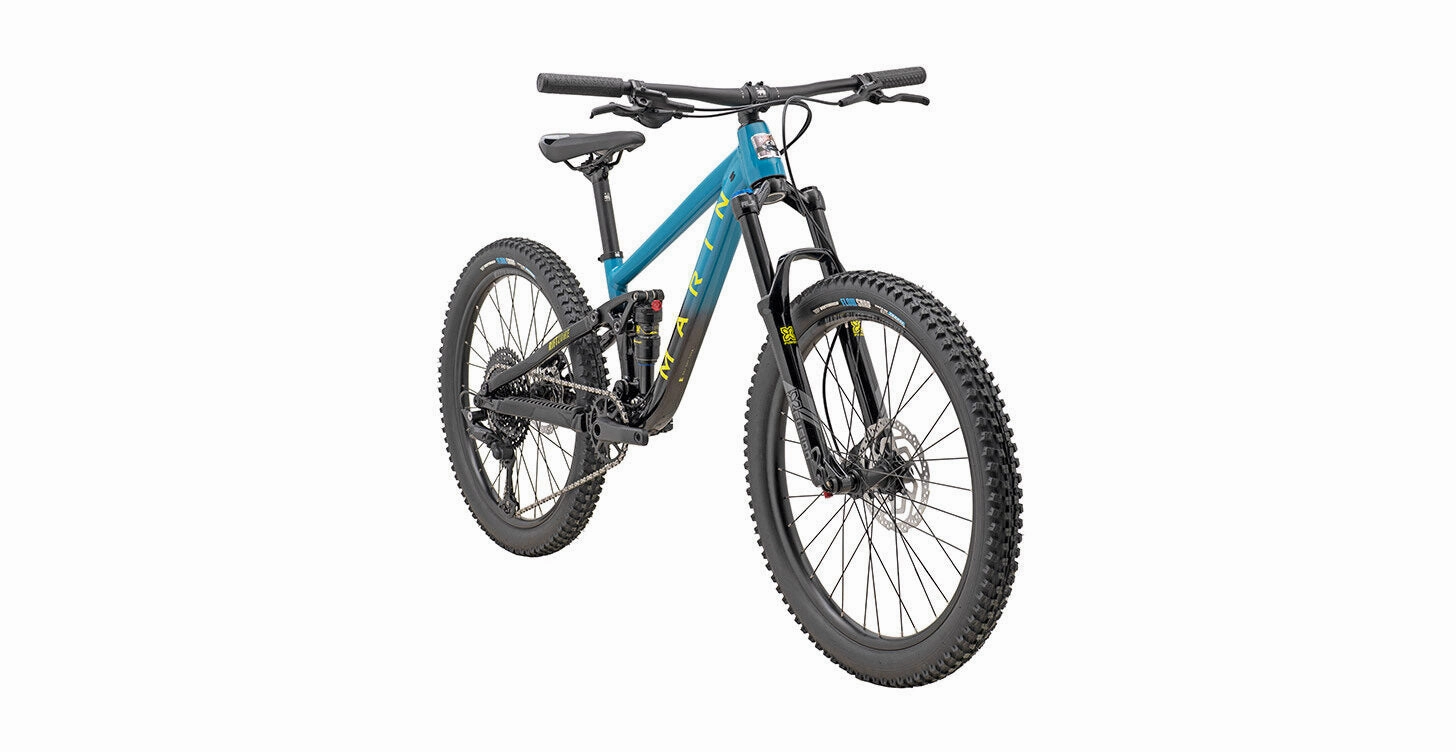

The Rift Zone Jr is for the ambitious kid looking to keep up with the adults and push the boundaries of the local bike park on a ride just as capable as its full size counterpart. Both Jr and 26 models utilize the same frame and fork, so a Rift Zone Jr is easily upgradable to 26" wheels and longer cranks as your little ripper grows. 26" wheels and longer cranks not included, but your local Marin dealer can source the parts.

Specifications

• FRAME

  All New Series 3 6061 Aluminum Frame, 24" Wheel w/ Clearance for 26", 130mm Travel, MultiTrac Suspension Platform, 135mm Open Dropout (Upgradeable to 142x12mm Thru-Axle), 73mm Threaded BB

• FRONT SUSPENSION

  X-Fusion Velvet RLC 26", 130mm Travel, Compression and Rebound Adjustment, 100x15mm Thru-Axle

• REAR SUSPENSION

  X-Fusion O2 Pro R, 190x51mm, Custom Tune, M8x22.2mm Hardware

• RIMS

  Marin, Double Wall Alloy, 27mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible

• HUB, REAR

  Forged Alloy, 135mm, Quad Sealed Bearings, Centerlock Disc, 32H

• HUB, FRONT

  Forged Alloy, 100x15mm, Centerlock Disc, 32H

• SPOKE, NIPPLES

  14g Stainless Steel

• TIRES

  Vee Tire Co, Flow Snap 24x2.4", Tackee Compound, Wire Bead

• DERAILLEUR, REAR

  Shimano Deore, 11 Speed, SGS

• DERAILLEUR, FRONT

  -

• SHIFT LEVER

  Shimano Deore, 11-Speed, SL-5100R

• CRANKSET

  Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 32T Chainring, Direct Mount Type

• BOTTOM BRACKET

  External Sealed Cartridge Bearings

• CHAIN

  KMC X-11 Silver and Black

• CASSETTE

  SunRace, 11-Speed, 11-51T, ED Black

• BRAKE, FRONT

  Shimano MT-201 Hydraulic Disc, 180mm Rotor

• BRAKE, REAR

  Shimano MT-201 Hydraulic Disc, 160mm Rotor

• BRAKE LEVERS

  Shimano BL-MT201 Hydraulic

• HANDLEBAR

  Marin Mini-Riser, 6061 Double Butted Aluminum, 15mm Rise, 720mm Width, 4 Up, 9 Back

• STEM

  Marin 3D Forged Alloy, 35mm

• GRIPS

  Marin Dual Density

• HEADSET

  FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2

• SEATPOST

  Marin Alloy, 30.9mm

• SADDLE

  Marin Speed Concept

Geometry
