Description
FAST PACED, EPIC RIDES
PUSHING THE ENVELOPE UP AND DOWN THE TRAIL
CHASING PERSONAL RECORDS

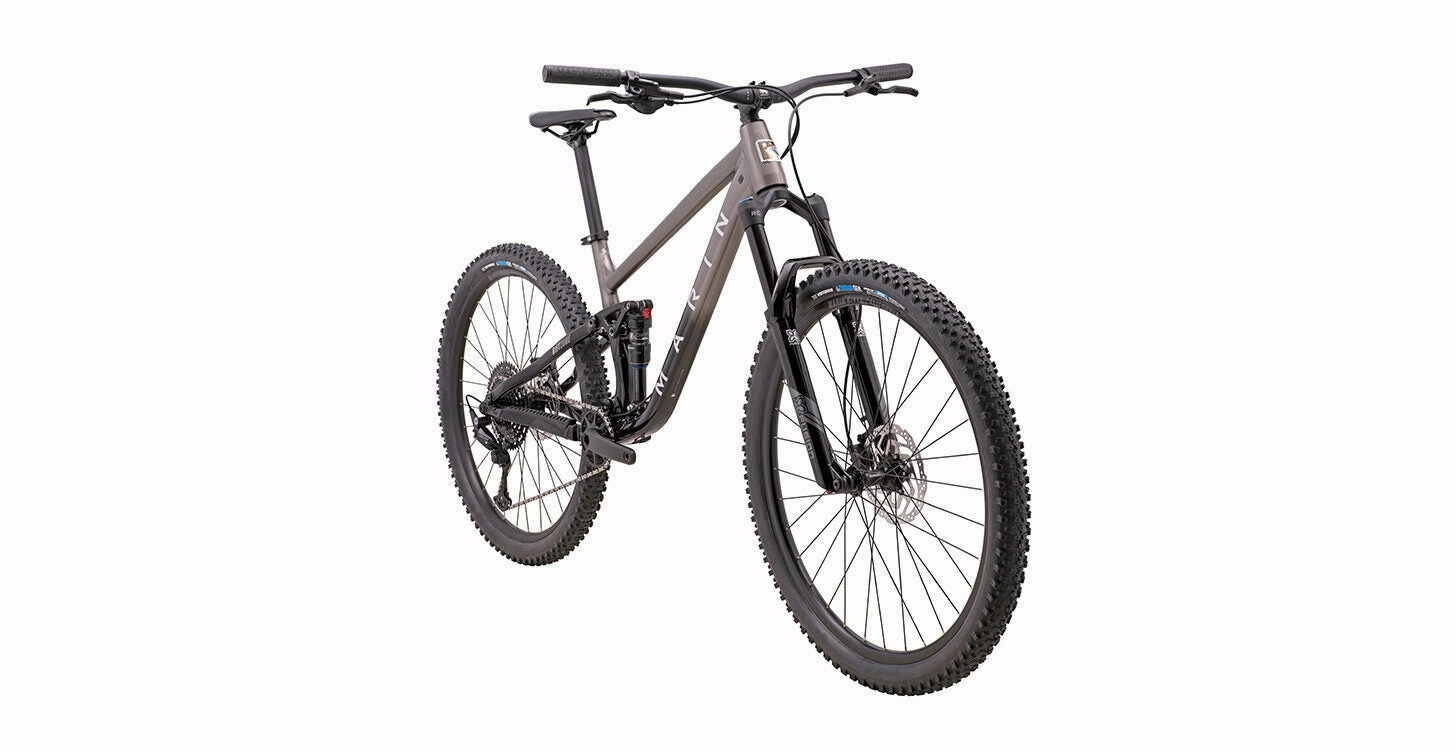

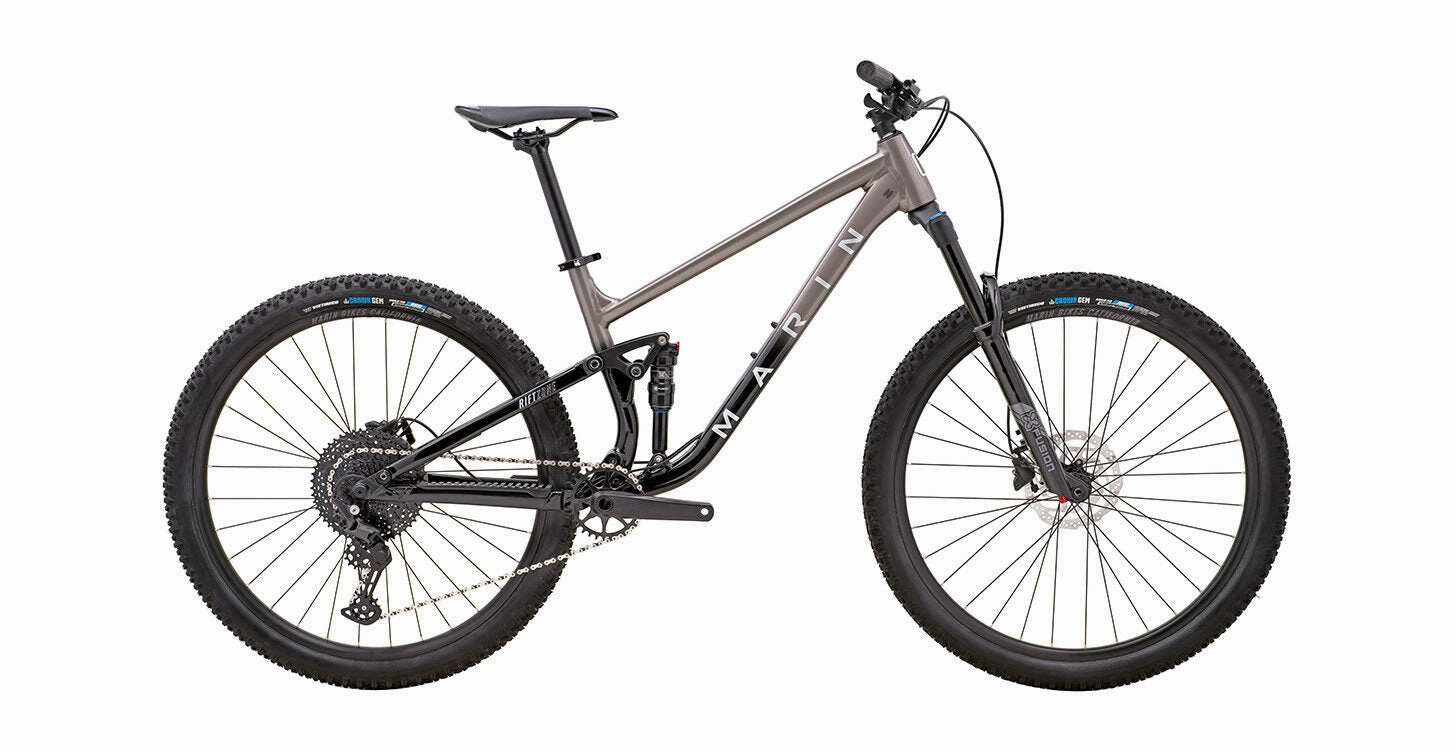

The Rift Zone is Marin's most speed oriented MultiTrac bike, created for the rider looking for the speed and roll over capabilities of 29 wheels in a trail capable package. Long, low, and slack trail geometry is more aggressive than an XC race bike for more control at top speed, and more fun while chasing seconds.
Specifications
FRAME
All New Series 3 6061 Aluminum Frame, 29 Wheels, 130mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs
FORK
X-Fusion Slide Boost RC, 29", 140mm Travel, Compression and Rebound Adjustment, 44mm Offset
SHOCK
X-Fusion O2 Pro R, Custom Tune, 210x55mm, M8x25mm Hardware Top and Bottom
RIMS
Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
HUB REAR
Shimano HB-MT200B, 141 QR, Centerlock, Standard Freehub Body
HUB FRONT
Shimano HF-MT400B, 110x15mm, Centerlock
SPOKES
14g Black Stainless Steel
TIRES
Vee Tire Crown Gem 29x2.35", Dual Control Compound, Tubeless Ready
DERAILLEUR REAR
Shimano Deore, 11-Speed, SGS
DERAILLEUR FRONT
-
SHIFT LEVER
Shimano Deore, 11-Speed, SL-5100R
CRANKSET
Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing
BOTTOM BRACKET
External Sealed Cartridge Bearing
CHAIN
KMC X-11 Silver and Black
CASSETTE
Sunrace, 11-Speed, 11-51T, ED Black
BRAKES FRONT
Shimano BR-MT200 Hydraulic Disc, 180mm Rotor
BRAKES REAR
Shimano BR-MT200 Hydraulic Disc, 180mm Rotor
BRAKE LEVERS
Shimano BL-MT201
HANDLEBAR
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5 Up, 9 Back
STEM
Marin 3D Forged Alloy, 35mm
GRIPS
Marin MTN, Closed End
HEADSET
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2
SEATPOST
Marin Alloy, 30.9mm
SADDLE
Marin Speed Concept
PEDALS
-
EXTRAS
Closed 9-12 Thru-Axle QR System
Geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| STACK | 623.6 | 628.2 | 637.3 | 641.8 |
| REACH | 435 | 460 | 485 | 515 |
| HEADTUBE ANGLE | 65.5 | 65.5 | 65.5 | 65.5 |
| HEADTUBE LENGTH | 110 | 115 | 125 | 130 |
| SEATTUBE ANGLE | 77 | 77 | 77 | 77 |
| SEATTUBE LENGTH | 390 | 400 | 425 | 430 |
| TOPTUBE EFFECTIVE | 579 | 605 | 632.1 | 663.2 |
| BB HEIGHT | 343 | 343 | 343 | 343 |
| BB DROP | 35 | 35 | 35 | 35 |
| CHAINSTAY | 430 | 430 | 430 | 430 |
| WHEELBASE | 1170 | 1205.1 | 1234.4 | 1266.3 |
| STANDOVER HEIGHT | 690.2 | 691.2 | 701.7 | 700.5 |
| FORK OFFSET | 44 | 44 | 44 | 44 |
| SEATPOST DIAMETER | 30.9 | 30.9 | 30.9 | 30.9 |
| HANDLEBAR WIDTH | 780 | 780 | 780 | 780 |
| STEM LENGTH | 35 | 35 | 35 | 35 |
| CRANK LENGTH | 170 | 170 | 170 | 170 |
