Description
Feel the Rifty Love! Our take on the ultimate do-it-all trail bike, the Marin Rift Zone is made to party, whatever your jam might be. Your ideal partner for everything from all-day epics, to local shred laps to big mountain adventures, the Rifty is Made For Fun.

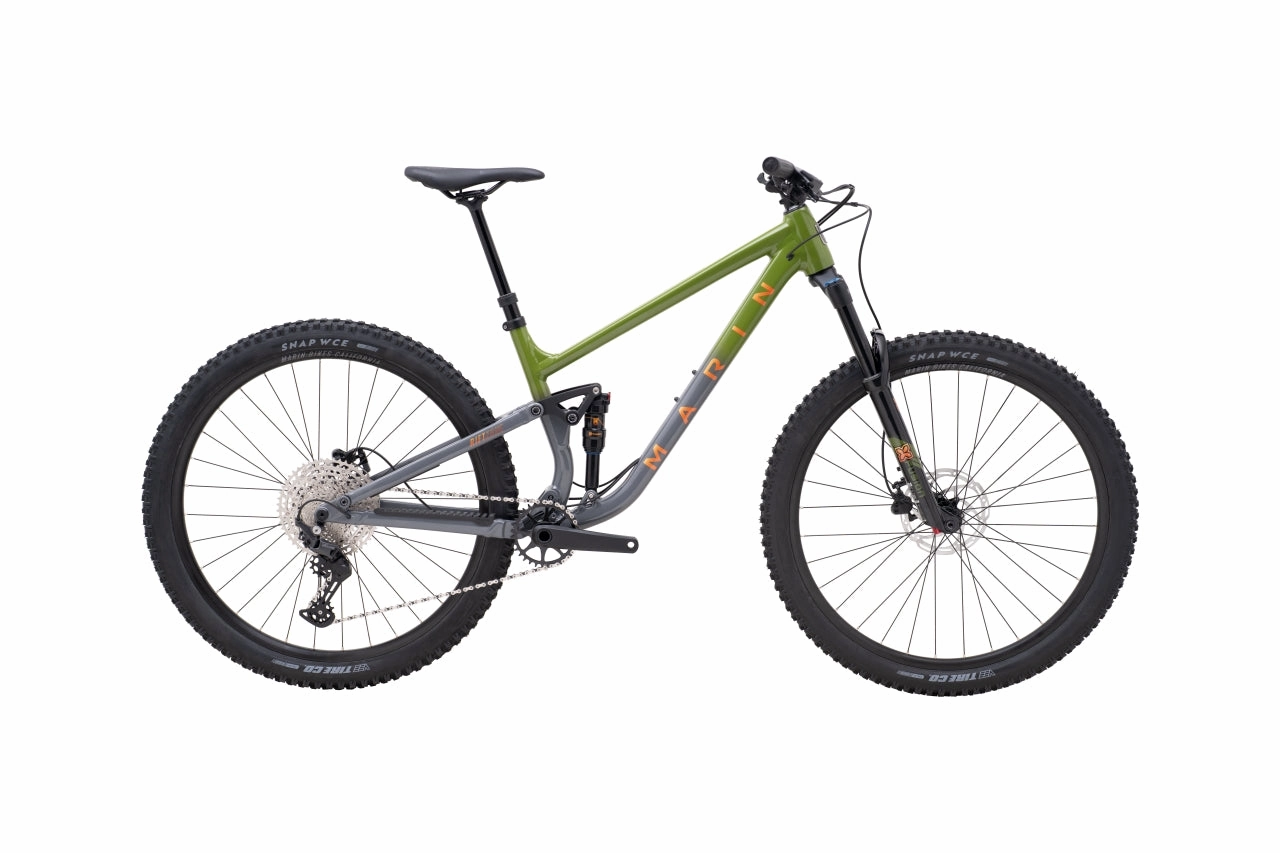

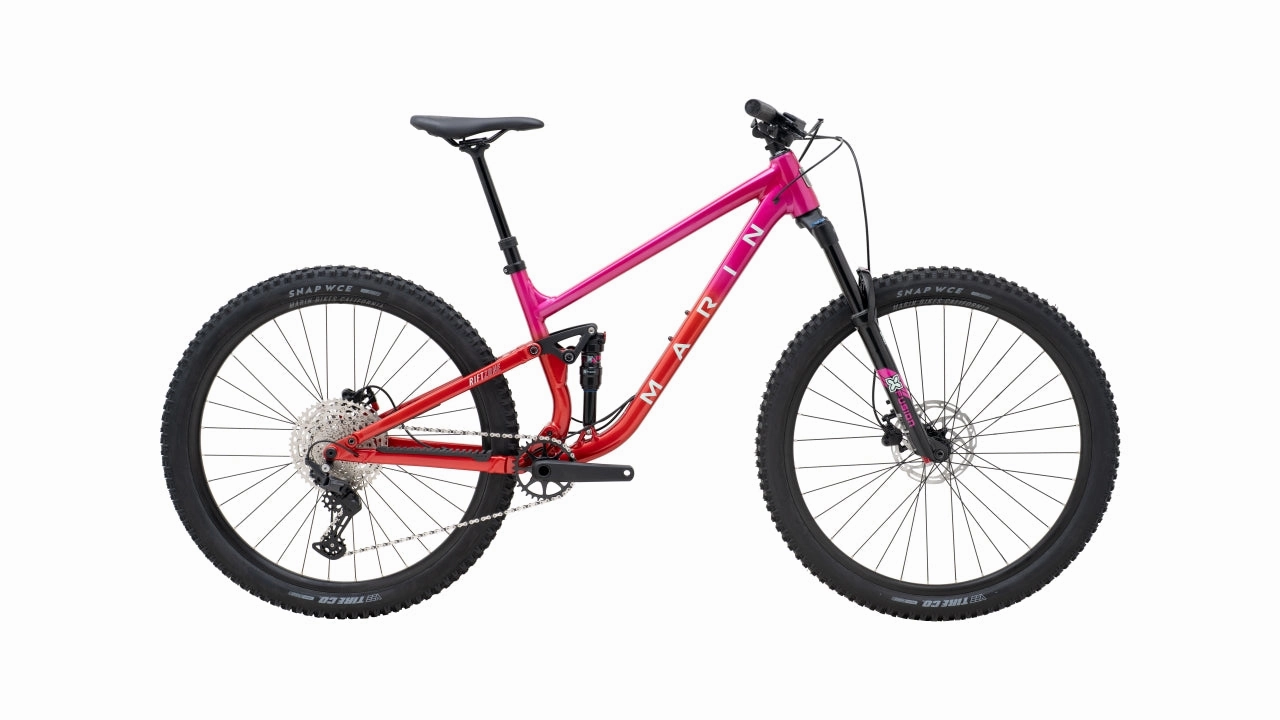

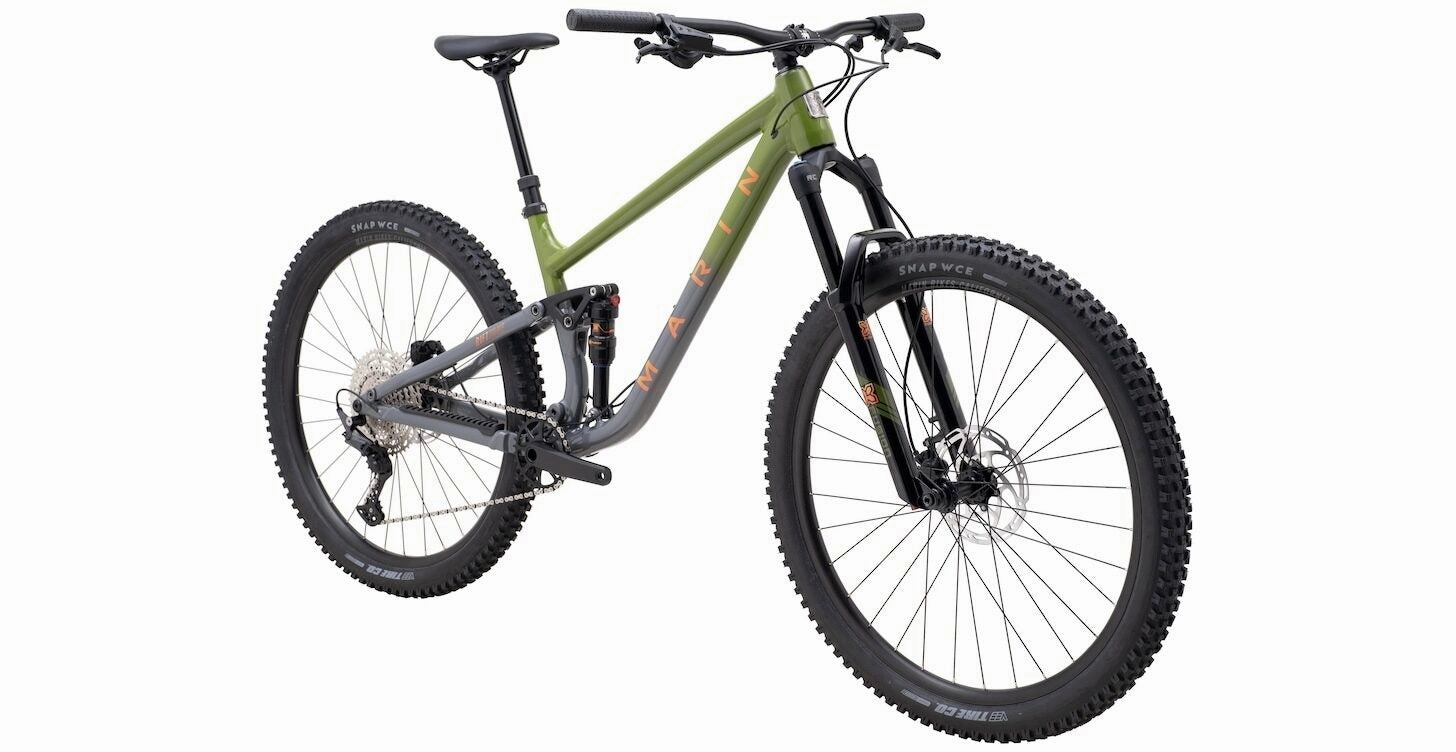

The Rift Zone 29 brings together trail-taming 29" wheels, 130mm of rear travel, a lightweight aluminum frame and our super-plush MultiTrac suspension platform for endless good times on the trails.
The Marin Rift Zone 29 1 is your gateway to the Rifty family, made to push the limits of your riding but not your bank balance. It's built with super reliable X-Fusion suspension, grippy Vee Crown Gem tires, plenty of Shimano and a hand-picked selection of our favorite Marin components.
Specifications
| FRAME | Series 3 6061 Aluminum, 130mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs |
| FORK | X-Fusion Slide (29") or Sweep (27.5") Boost RC, 140mm Travel, Compression and Rebound Adjustment, 44mm Offset |
| SHOCK | X-Fusion O2 Pro R, Custom Tune, 210x55mm, M8x25mm Hardware Top and Bottom |
| RIMS | Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible |
| HUB REAR | Shimano HB-MT200B, 141 QR, Centerlock, Standard Freehub Body |
| HUB FRONT | Shimano HF-MT400B, 110x15mm, Centerlock |
| SPOKES | 14g Black Stainless Steel |
| TIRES | Vee Tire Co. Snap WCE 2.35", Top 40 Compound, GXE Core, 90 TPI, Tubeless Compatible |
| DERAILLEUR REAR | Shimano Deore, 11-Speed, SGS |
| DERAILLEUR FRONT | - |
| SHIFT LEVER | Shimano Deore, 11-Speed, SL-5100R |
| CRANKSET | Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing |
| BOTTOM BRACKET | External Sealed Cartridge Bearing |
| CHAIN | KMC X-11 Silver and Black |
| CASSETTE | Sunrace, 11-Speed, 11-51T, ED Black |
| BRAKES FRONT | Tektro HD-M280 Hydraulic, 180mm Rotor |
| BRAKES REAR | Tektro HD-M280 Hydraulic, 180mm Rotor |
| BRAKE LEVERS | Tektro HD-M280 |
| HANDLEBAR | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5 Up, 9 Back |
| STEM | Marin 3D Forged Alloy, 35mm |
| GRIPS | Marin MTN, Closed End |
| HEADSET | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2 |
| SEATPOST | X-Fusion Manic, 1x Composite Remote, Size XS-S 150mm Travel, Size M-XL 170mm Travel, 30.9mm |
| SADDLE | Marin Speed Concept |
| PEDALS | - |
| EXTRAS | Closed 9-12 Thru-Axle Bolt On System |
Geometry
| XS | SM | MD | |
| STACK | 569.1 | 600.7 | 605.2 |
| REACH | 415 | 430 | 450 |
| HEADTUBE ANGLE | 65.5 | 65.5 | 65.5 |
| HEADTUBE LENGTH | 115 | 120 | 125 |
| TOPTUBE EFFECTIVE | 77 | 77 | 77 |
| SEATTUBE ANGLE | 330 | 390 | 400 |
| SEATTUBE LENGTH | 552.6 | 568.7 | 589.7 |
| BB HEIGHT | 339 | 339 | 339 |
| BB DROP (REAR/FRONT) | 35 | 35 | 35 |
| CHAINSTAY | 430 | 430 | 430 |
| WHEELBASE | 1147.8 | 1164.8 | 1186.9 |
| STANDOVER HEIGHT | 661.7 | 677.8 | 687.8 |
| FORK OFFSET | 44 | 44 | 44 |
