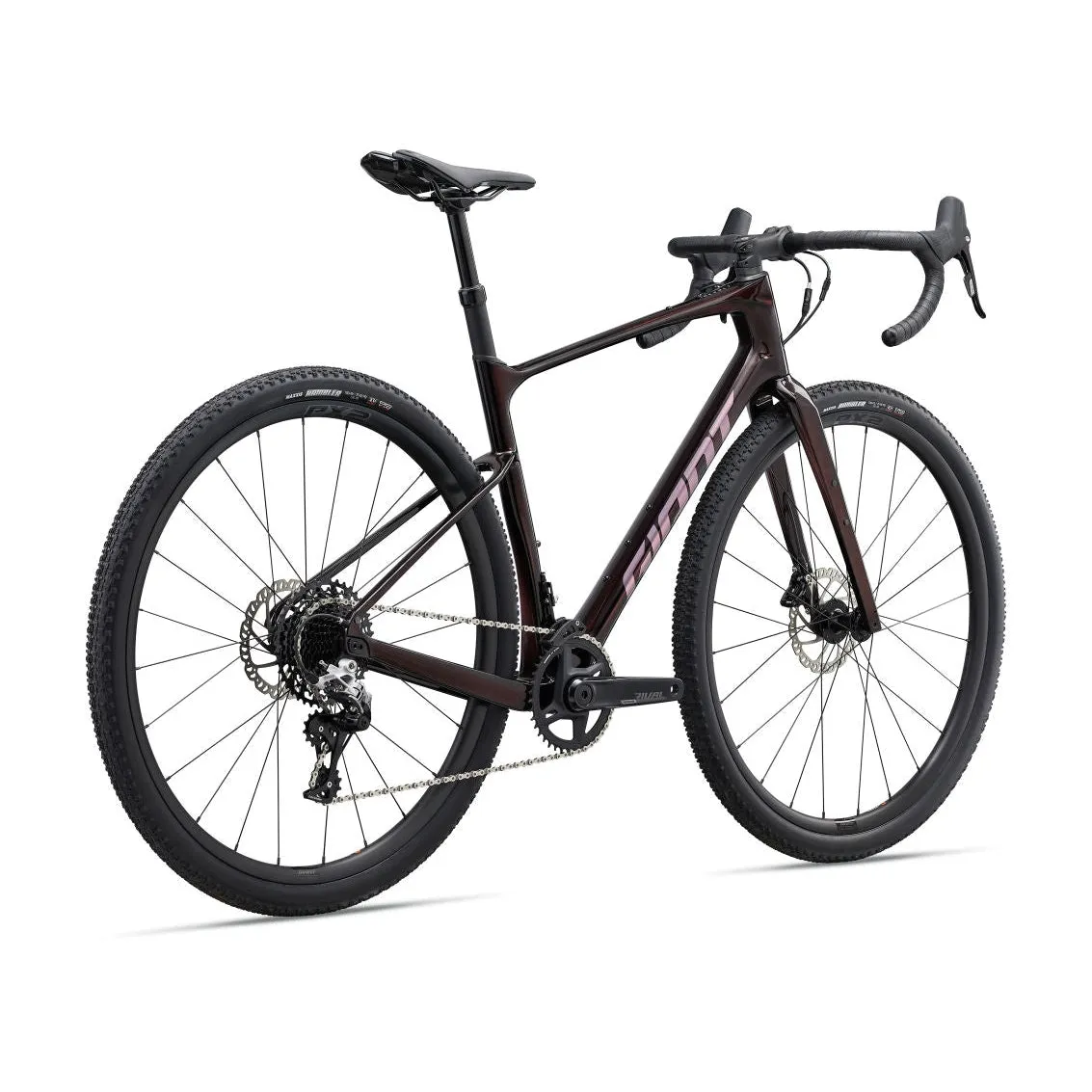

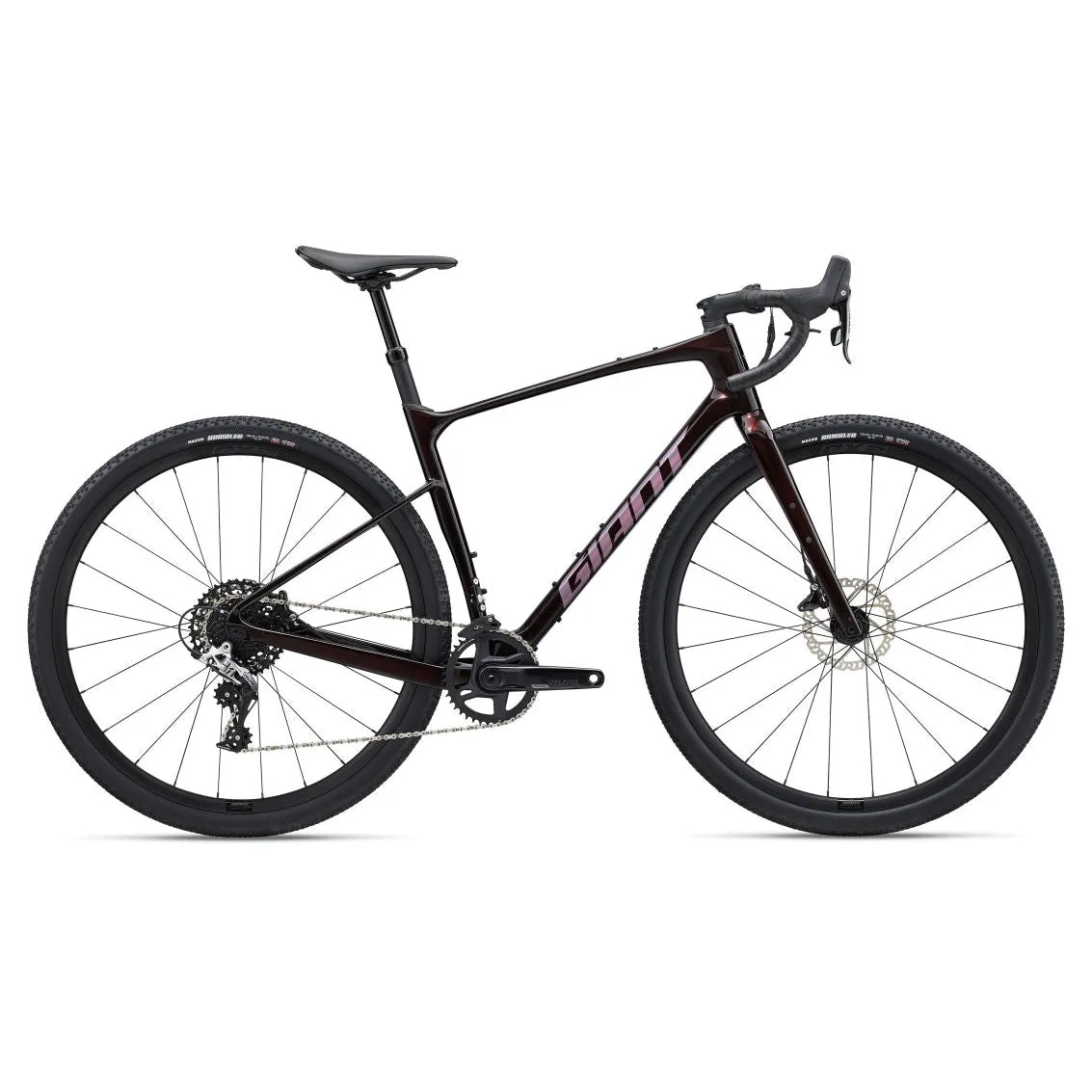

Introducing the Revolt Advanced 1 Gravel Bike - the ultimate ride for any terrain, whether you're cruising on smooth pavement or shredding through rough gravel! This bike is not just fast, it's lightning fast! With a new composite frame and adjustable wheelbase, it's more capable than ever before. And guess what? It's also lighter than its previous model, saving you a whopping 160 grams!
But wait, there's more! The Revolt Advanced 1 Gravel Bike features a tuned compliance system that absorbs road shocks and vibrations, giving you a smoother ride without sacrificing stiffness when you need it most. And if that's not enough, the flip chip on the rear dropout allows you to adjust the wheelbase for quicker handling or improved stability at speed. Plus, you can choose between the included D-Fuse seatpost or switch it up for a round or dropper post.
So, what are you waiting for? Get ready to conquer any terrain with the Revolt Advanced 1 Gravel Bike - it's a game changer!
Fast and light
New Advanced composite frame and fork save more than 160 grams compared to previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper headtube angle for improved acceleration and climbing.
Tuned compliance

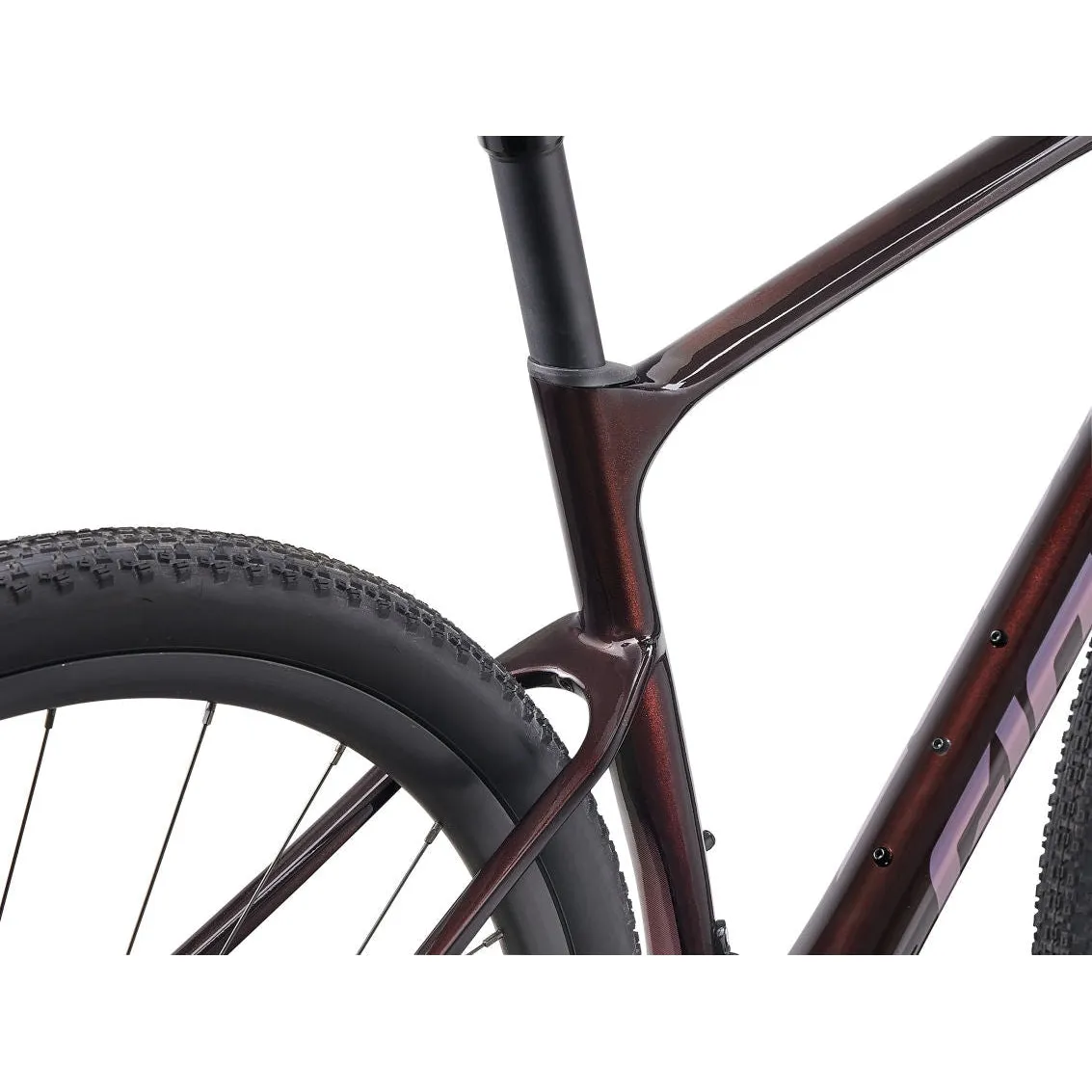

New frame features thinner, dropped seatstays to absorb road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable to the terrain

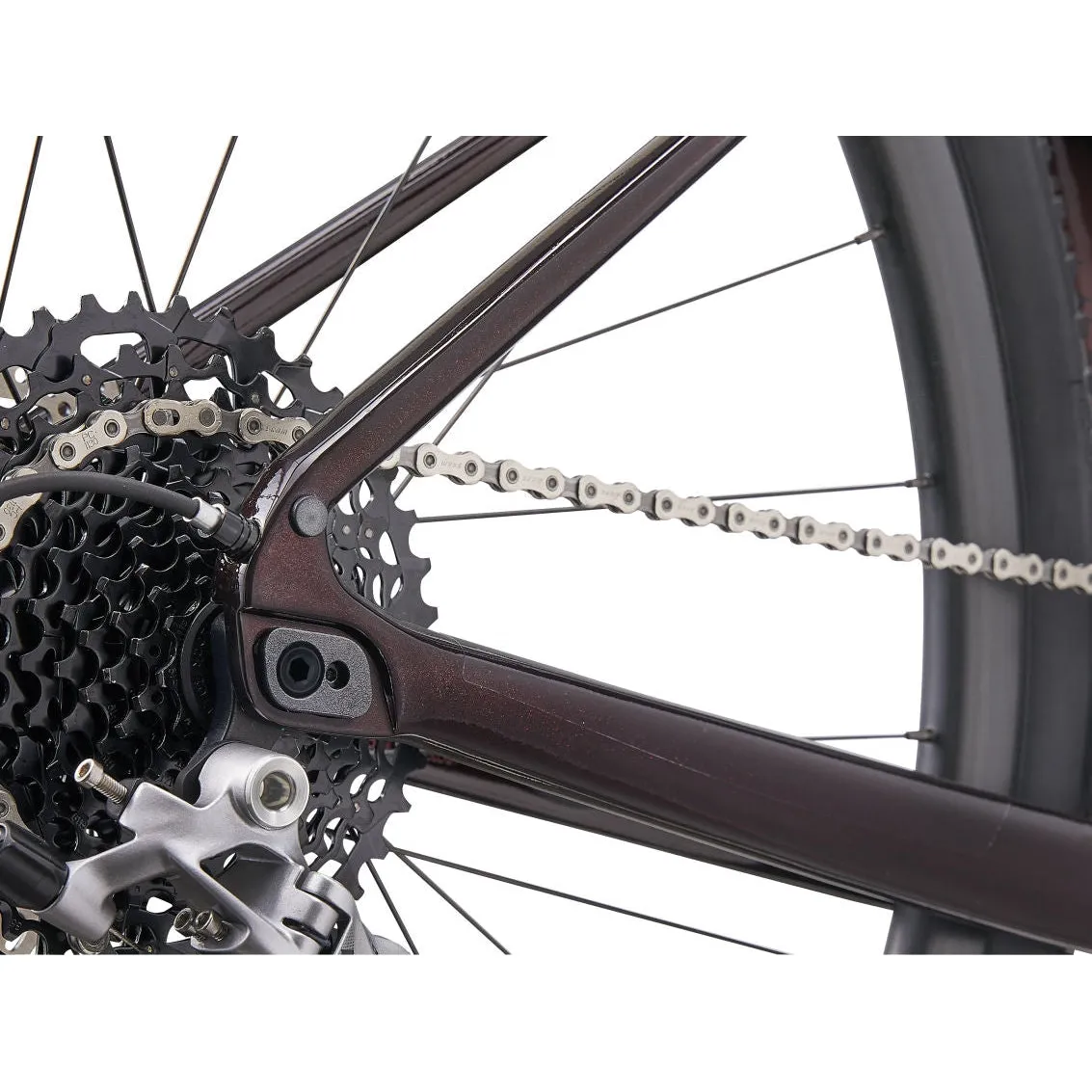

A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
| Attribute | Details |
|---|---|
| Sizes | XS, S, M, M/L, L, XL |
| Colors | Cordovan |
| Frame | Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout |

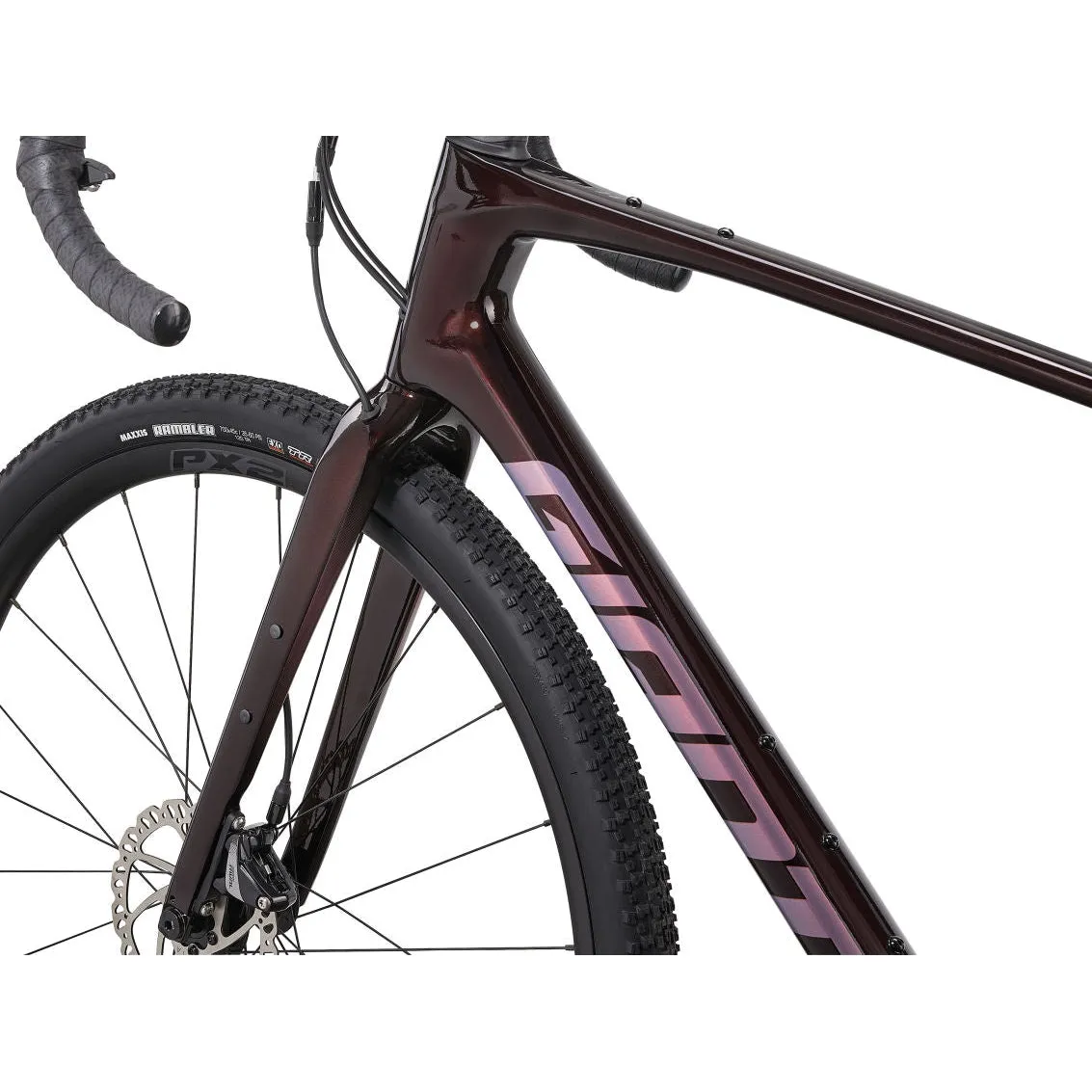

| Fork | Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
| Shock | N/A |
| Handlebar | Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm |
| Grips | Stratus Lite 3.0 |
| Stem | Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm |
| Seatpost | Giant Contact Switch, dropper, 30.9mm XS:295mm, S:345mm, M:345mm, M/L:345mm, L:395mm, XL:395mm |
| Saddle | Giant Approach |
| Pedals | |
| Shifters | SRAM Rival 1, 1x11 |
| Front Derailleur | N/A |
| Rear Derailleur | SRAM Rival 1 |
| Brakes | SRAM Rival 1 hydraulic, Giant MPH rotors [F]160mm, [R]160mm |
| Brake Levers | SRAM Rival 1, left lever dropper switch |
| Cassette | SRAM Rival, 11-speed, 11x42 |
| Chain | SRAM Rival D1 |

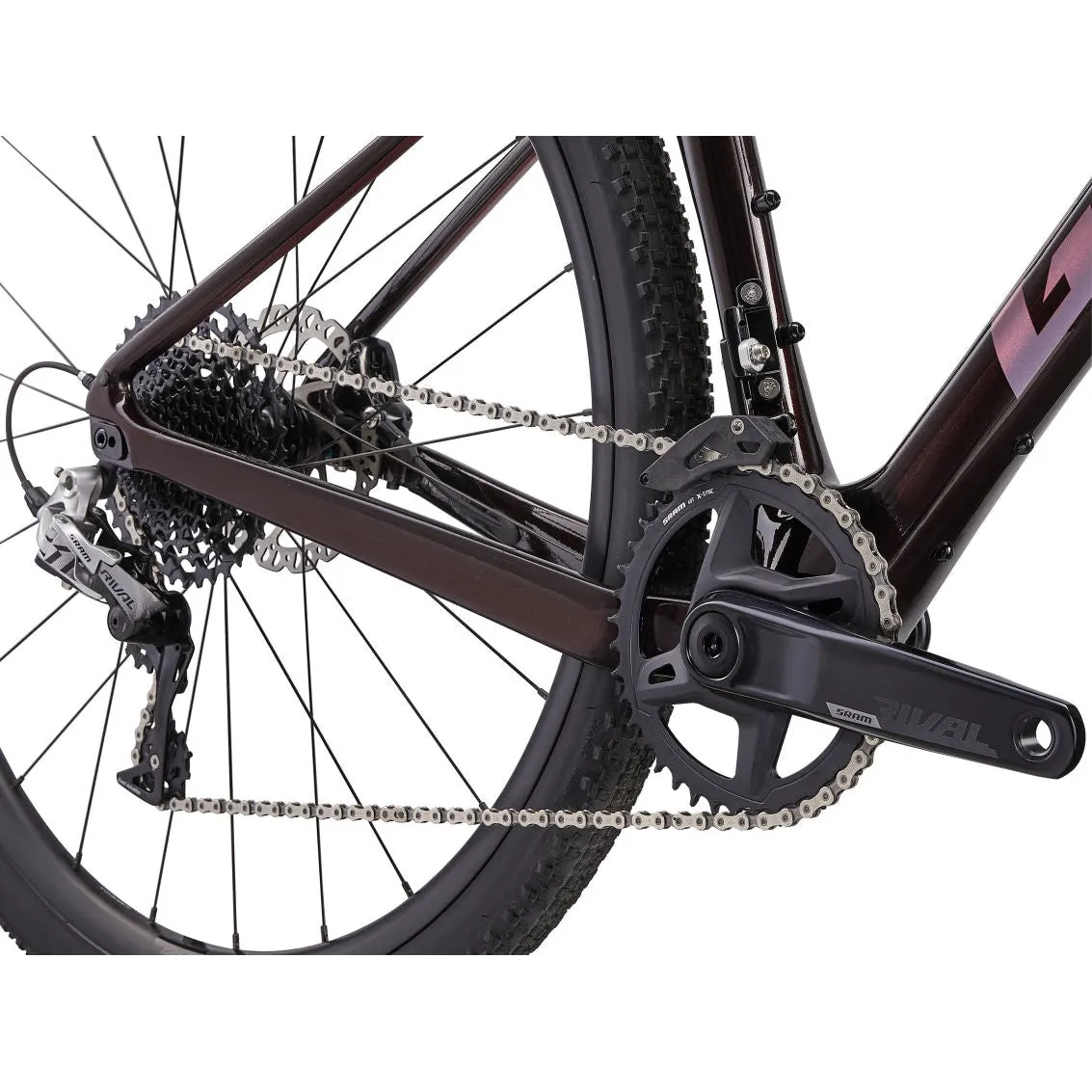

| Crankset | SRAM Rival D1 Wide DUB, 40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Bottom Bracket | SRAM DUB, press fit |
| Rims | Giant P-X2 Disc wheelset, alloy |
| Hubs | Giant alloy, 12mm thru-axle |
| Spokes | Sapim |
| Tires | Maxxis Rambler, 700x45c, tubeless |
| Extras | Giant 1x chain guide, tubeless prepared |
| Max Tire Clearance | 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position |
| Weight | The most accurate way to determine any bikes weight is to have your local weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware, and accessories. All our bikes are designed for best-in-class weight and ride quality. |
Geometry
| XS | S | M | ML | L | XL | |
|---|---|---|---|---|---|---|
| SHORT|LONG | SHORT|LONG | SHORT|LONG | SHORT|LONG | SHORT|LONG | SHORT|LONG | |
| SEAT TUBE LENGTH(inch) | 16.9 | 17.7 | 18.5 | 19.3 | 20.1 | 20.9 |
| SEAT TUBE ANGLE | 74.0 | 73.5 | 73.5 | 73.0 | 73.0 | 73.0 |
| TOP TUBE LENGTH(inch) | 21.3 | 21.7 | 22 | 22.6 | 23 | 23.6 |
| HEAD TUBE LENGTH(inch) | 4.9 | 5.3 | 5.9 | 6.5 | 7.1 | 7.7 |
| HEAD TUBE ANGLE | 70.0 | 71.0 | 71.5 | 72.0 | 72.0 | 72.0 |
| FORK RAKE(inch) | 2 | 2 | 2 | 2 | 2 | 2 |
| TRAIL(inch) | 3.1|3.2 | 2.8|3 | 2.7|2.8 | 2.6|2.7 | 2.6|2.7 | 2.6|2.7 |
| WHEELBASE(inch) | 40.3|40.7 | 40.2|40.6 | 40.4|40.8 | 40.6|41 | 41|41.4 | 41.6|42 |
| CHAIN STAY LENGTH(inch) | 16.7|17.1 | 16.7|17.1 | 16.7|17.1 | 16.7|17.1 | 16.7|17.1 | 16.7|17.1 |
| BOTTOM BRACKET DROP(inch) | 3.1|3.2 | 3.1|3.2 | 3.1|3.2 | 3.1|3.2 | 3.1|3.2 | 3.1|3.2 |
| STACK(inch) | 21.9 | 22.4 | 23.1 | 23.7 | 24.3 | 24.8 |
| REACH(inch) | 15 | 15 | 15.2 | 15.4 | 15.6 | 16 |
| STAND OVER HEIGHT(inch) | 28.5|28.8 | 29.1|29.4 | 29.8|30.1 | 30.5|30.7 | 31.1|31.4 | 31.8|32 |
| HANDLEBAR WIDTH(inch) | 16.5 | 16.5 | 17.3 | 17.3 | 18.1 | 18.1 |
| STEM LENGTH(inch) | 2 | 2.4 | 2.8 | 3.1 | 3.1 | 3.5 |
| CRANK LENGTH(inch) | 6.7 | 6.7 | 6.8 | 6.8 | 6.9 | 6.9 |
| WHEEL SIZE | 700C | 700C | 700C | 700C | 700C | 700C |
