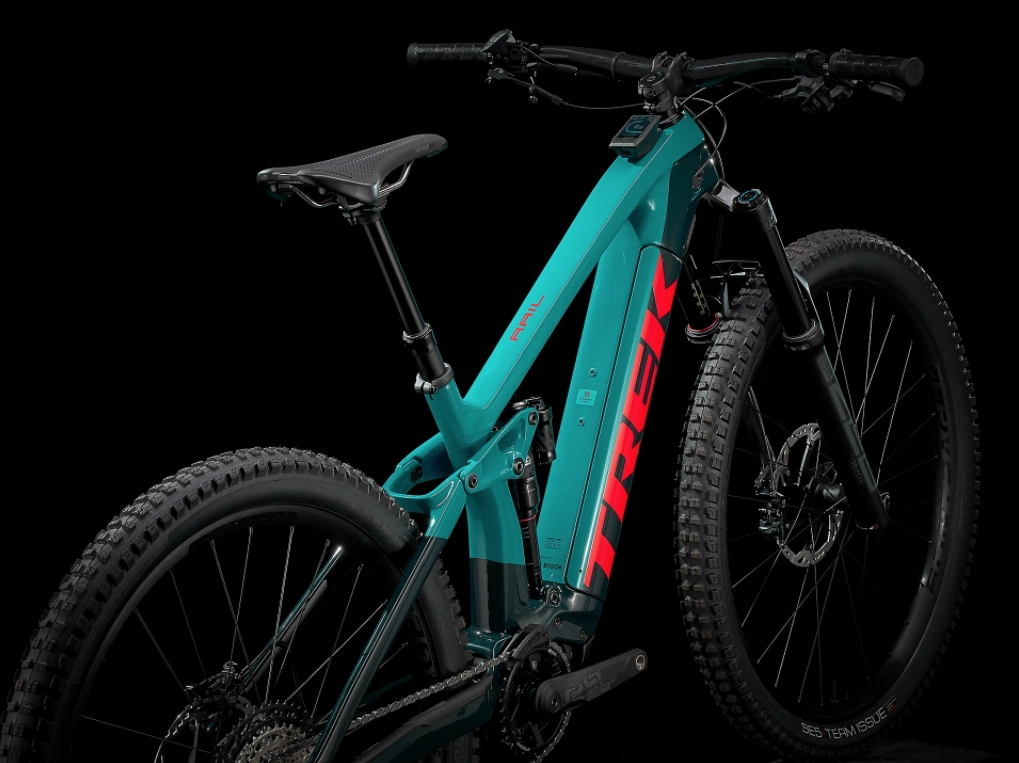

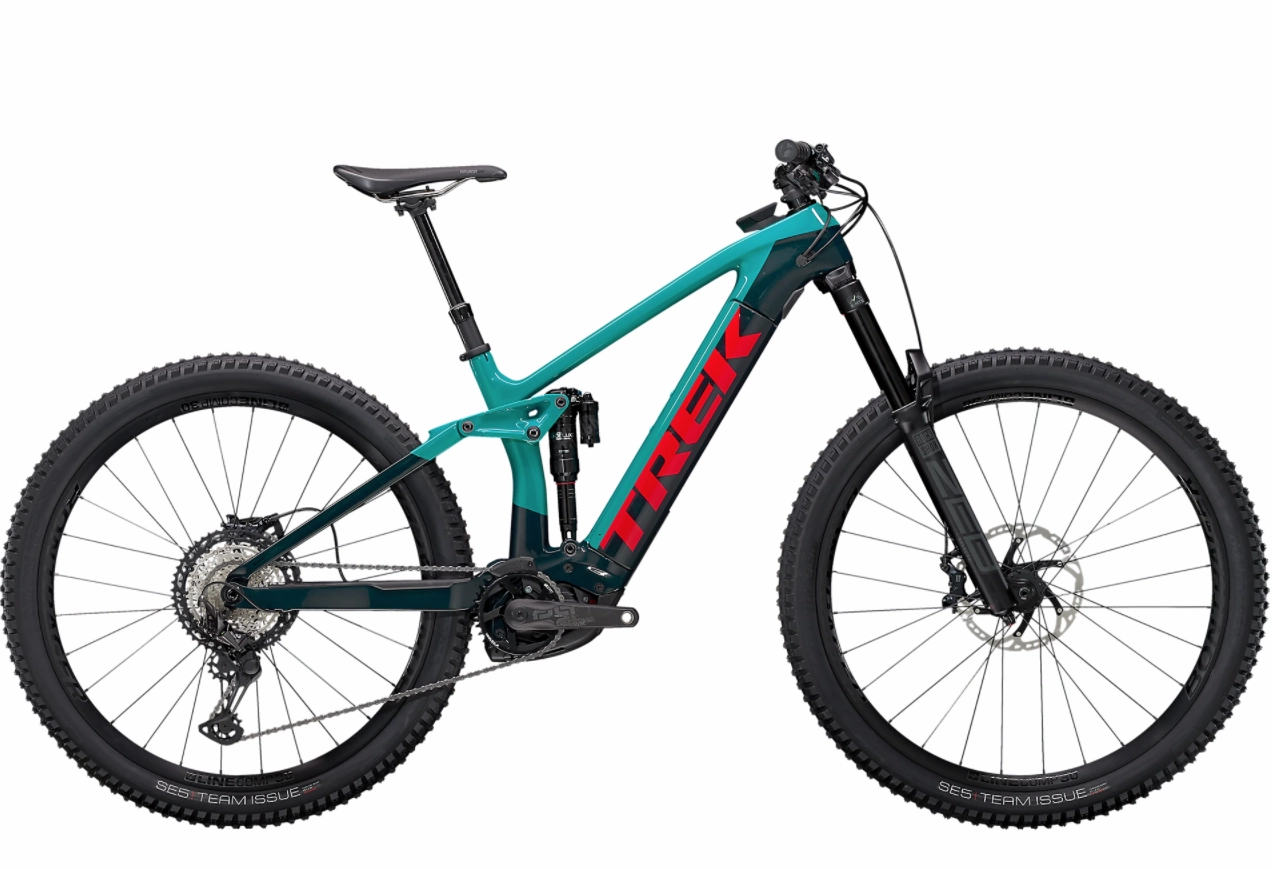

The Rail 9.8 is a long-travel carbon electric mountain bike that rips just as hard as our beefiest trail rigs and powers you straight back up the mountain. It features amazing upgrades to the suspension, drive train and brakes for exceptional performance on the gnarliest runs.
| Specification | |
| Features | |
| The new, better-than-ever Bosch motor is smaller, lighter and more efficient. It feels more natural while youre pedalling, and has less drag when youre not | |
| The full-colour Kiox controller displays ride info, connects with your Bluetooth enabled devices and has a built-in theft prevention feature | |
| RE:aktiv with Thru Shaft works faster than a normal shock, so it tracks the ground better and keeps you in control | |
| Made with the same exclusive frame tech as Remedy and Slash, like Mino Link adjustable geometry, a Straight Shot down tube for extra stiffness and Active Braking Pivot (ABP) | |
| Trek's Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy remove the battery without tools and lets you mount a water bottle cage | |
| Description | |
| Weight | M - 22.34 kg / 49.25 lbs (with tubes) |
| Frameset | |
| Frame | OCLV Mountain Carbon main frame & stays, Removable Integrated Battery (RIB), tapered head tube, Knock Block, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel |
| Fork | RockShox ZEB Select , DebonAir spring, Charger 2.1 RC damper, eMTB optimized crown, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 160mm travel |
| Rear suspension | NEW RockShox Super Deluxe Ultimate RT3, DebonAir spring, Thru Shaft 3-position damper, 230x57.5mm |
| Wheels | |
| Wheels | Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110 front, Boost148 rear |
| Tires | Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewall, aramid bead, 60 tpi, 29x2.60" |
| Drivetrain | |
| Shifters | Shimano XT M8100, 12 speed |
| Rear derailleur | Shimano XT M8100, long cage, 51T max cog |
| Crank | E*thirteen E*spec Plus, 34T |
| Cassette | Shimano XT M8100, 10-51, 12 speed |
| Chain | Shimano XT M8100, 12 speed |
| Pedals | VP-536 nylon platform |
| Components | |
| Saddle | Bontrager Arvada, austenite rails, 138mm width |
| Seatpost | Bontrager Line Elite Dropper, internal routing, 31.6mm |
| Handlebar | Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise |
| Stem | Bontrager Line Pro, 35mm, Knock Block, 0 degree |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Headset | Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom |
| Brakeset | Shimano SLX M7120 4-piston hydraulic disc |
| Accessories | |
| Battery | Bosch PowerTube 625 |
| Controller | Bosch Kiox with Anti-theft solution |
| Motor | Bosch Performance CX, magnesium motor body, 250 watt, 75 Nm, 25km/h |
