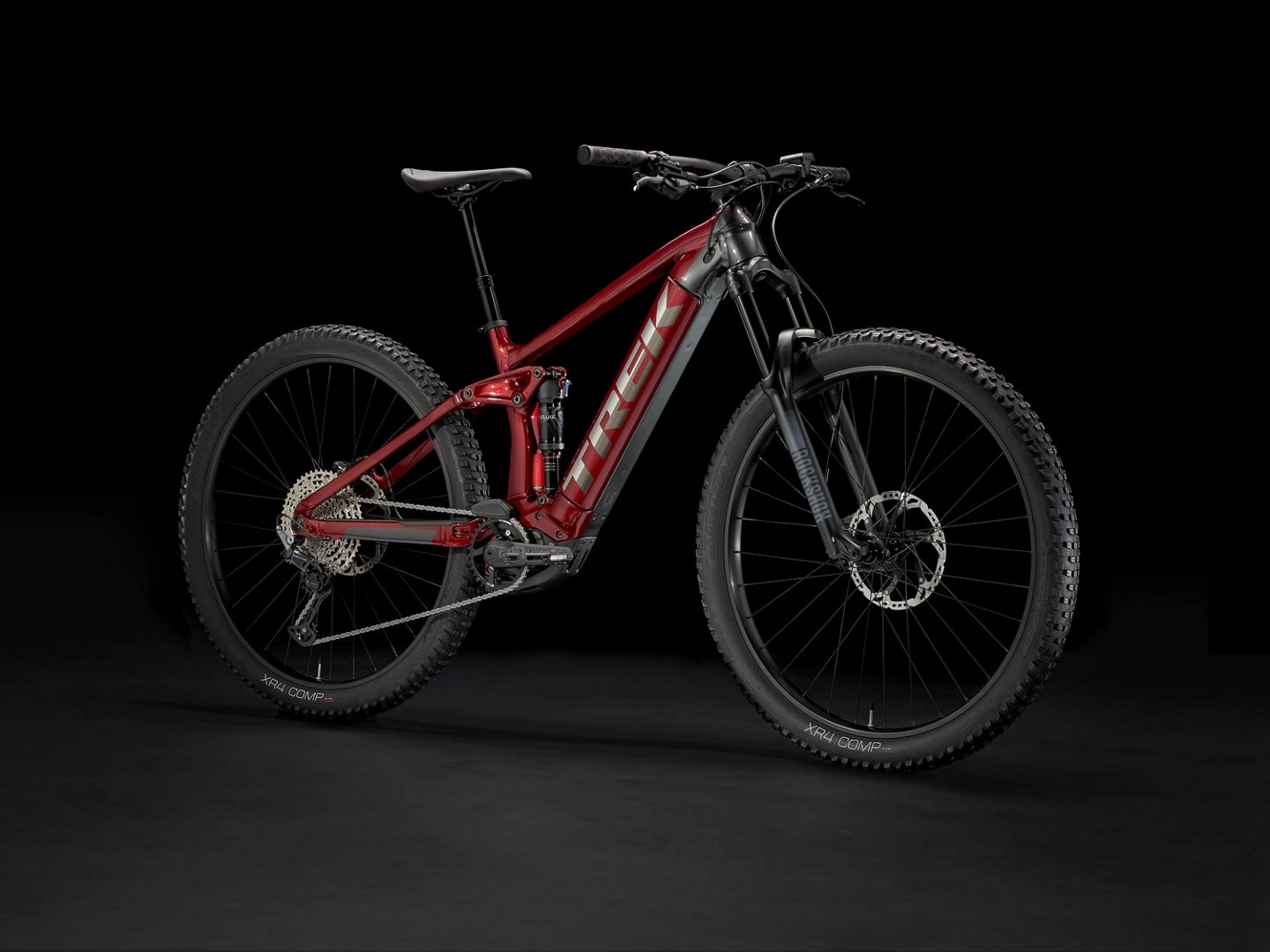

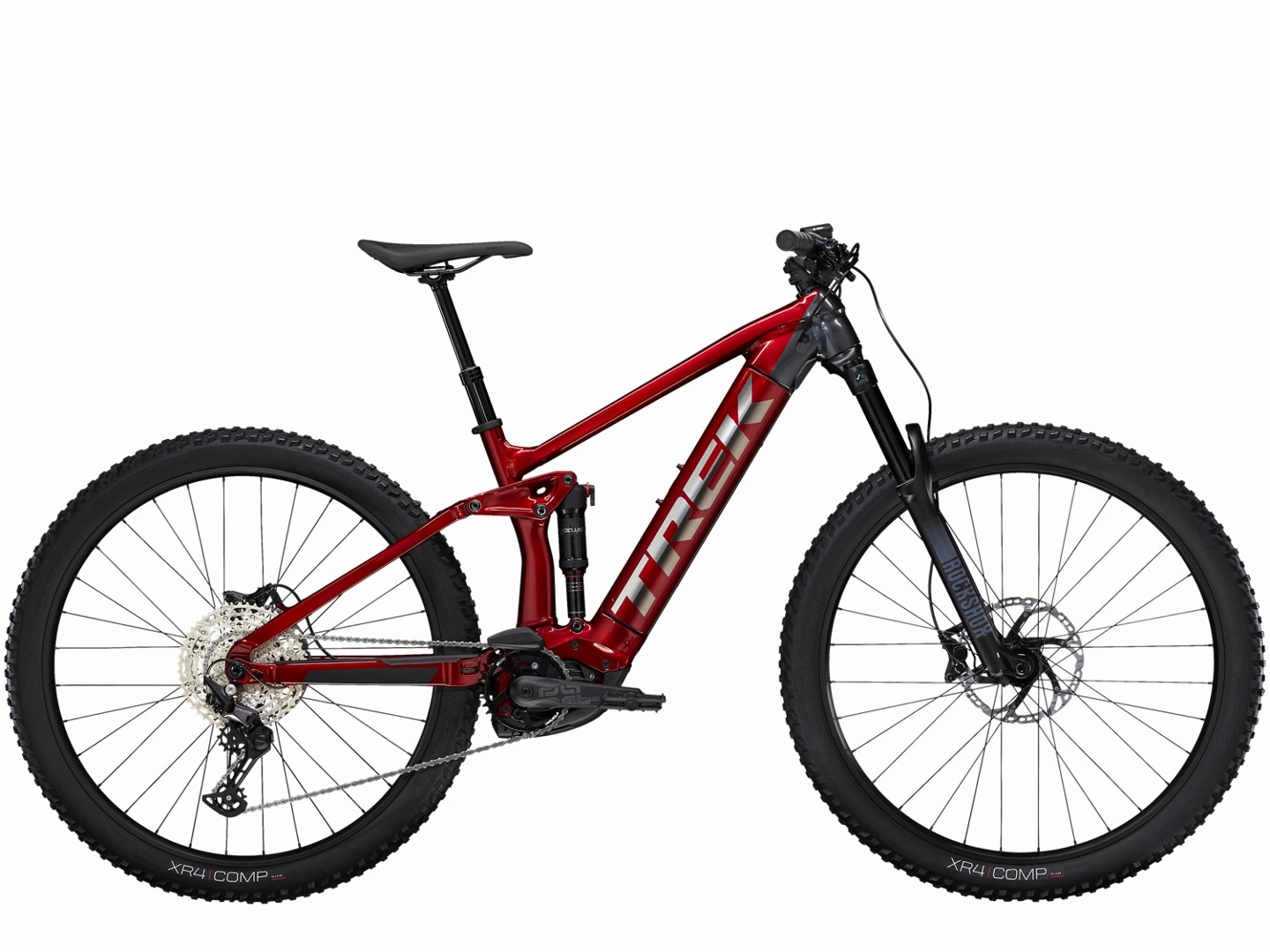

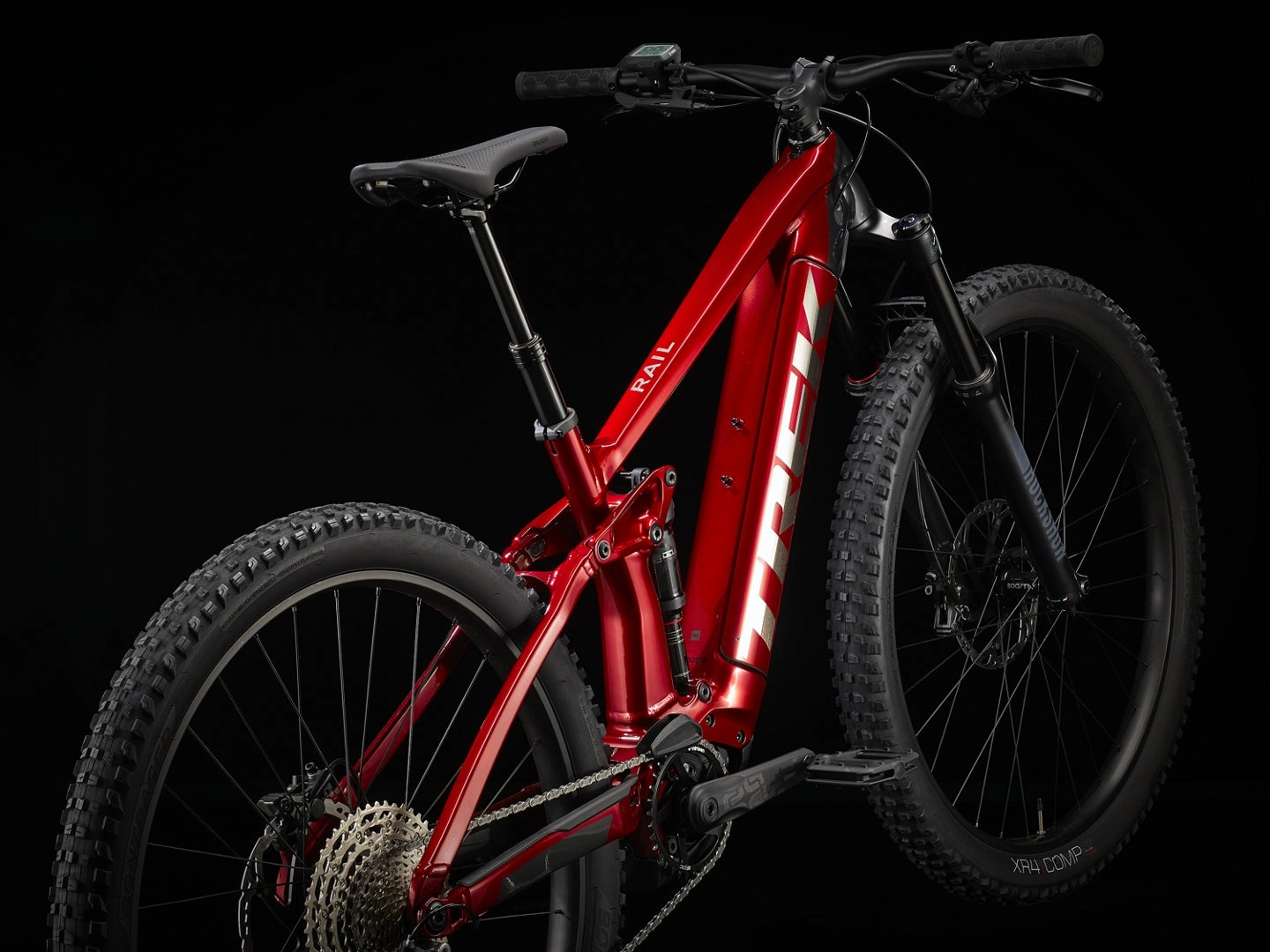

The Rail 5 is a full-suspension electric mountain bike built for ripping the big stuff. It features the same high-end trail tech as our analogue trail bikes, plus a powerful Bosch drive system that's basically like having your own shuttle.
It's right for you if...
Youre looking for an e-MTB thats just as ready to shred as non-electric trail bikes. You want a powerful Bosch drive system thatll propel you up climbs so you can hit lap after lap.
The tech you get
A burly alloy frame with 150 mm of rear travel that fully encases a 500 Wh battery, an e-MTB optimised 160 mm RockShox 35 Gold RL fork, a powerful Bosch Performance Line CX (250 W, 85 Nm) motor that assists up to 25 km/h and a Purion controller. Plus, a 1x12 drive train with a wide gear range so you can always find the ideal cadence for the motor, a dropper post, powerful 4-piston brakes for more downhill confidence and 29er wheels with nimble yet grippy 2.6" tyres.
The final word
Rail 5 is our best-value long-travel e-MTB. It's equally as capable as our regular long-travel trail bikes, it just gets you back to the top in a flash. The powerful Bosch drive systems and durable part spec make for long-lasting fun.
See it in action
Why you'll love it
- Rail shreds just as hard as its non-electric brethren, plus it powers you right back up the mountain no shuttle or lift necessary

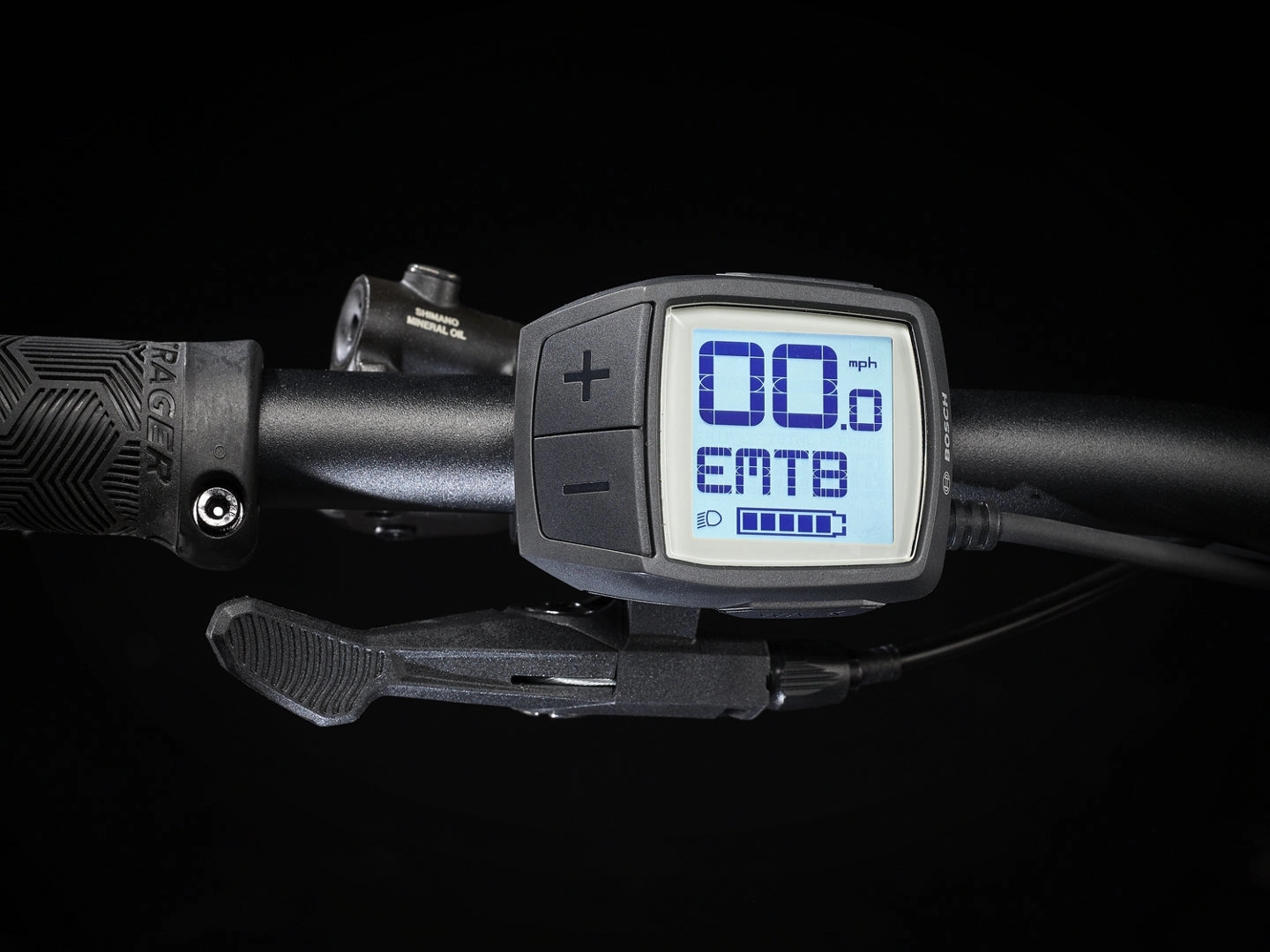

- The Purion controller has Walk Assist and an intelligent eMTB mode that automatically delivers the right amount of power based on your terrain
- Made with the same hard-charging frame tech as Remedy, like Mino Link adjustable geometry, a Straight Shot down tube for extra stiffness and Active Braking Pivot (ABP)
- The dropper post lets you lower your saddle on the fly so it's out of the way on descents

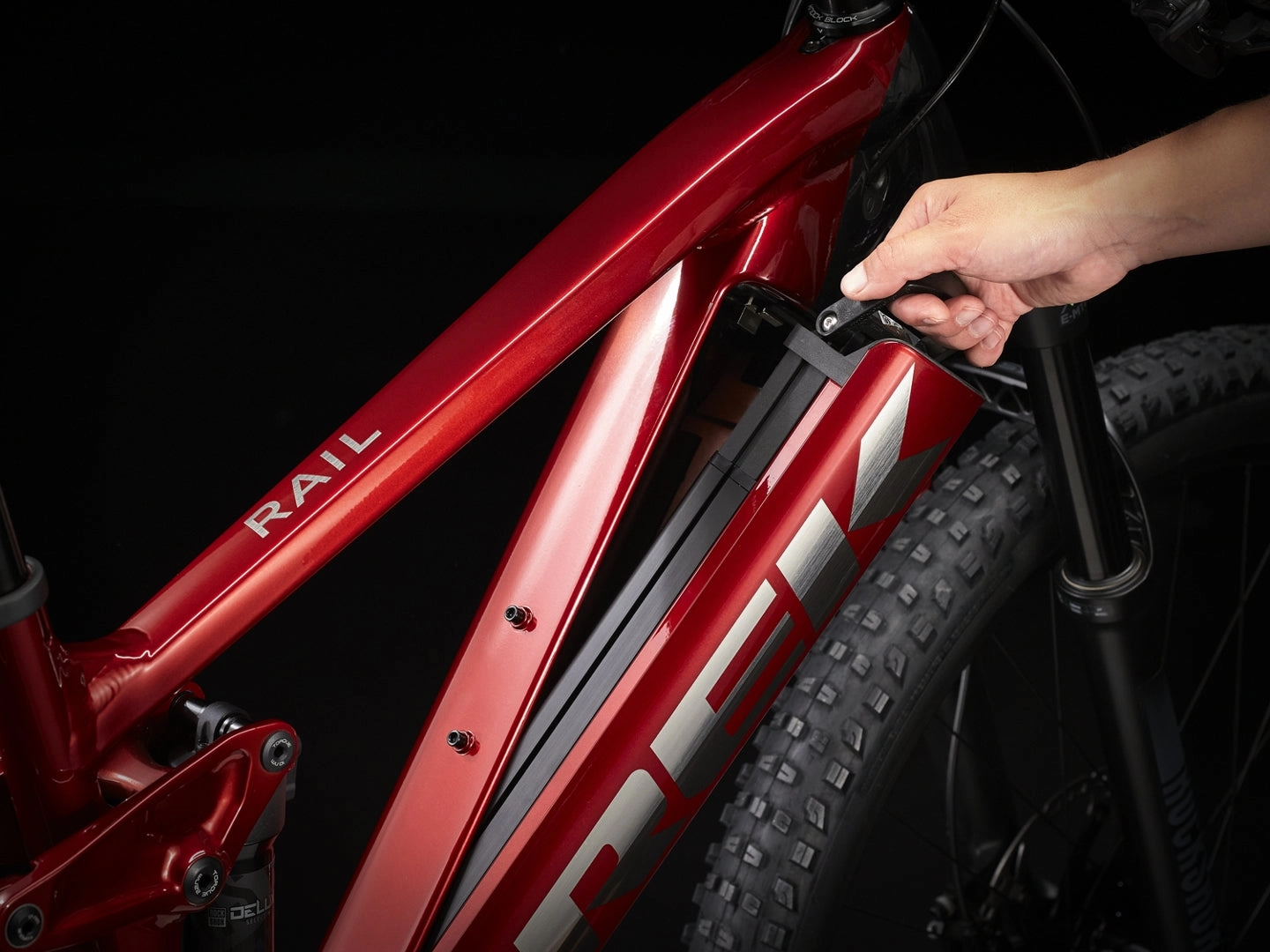

- Trek's Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy remove the battery without tools and lets you mount a water bottle cage
Specifications
*spec applies to all sizes unless otherwise noted
| Frame | Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel |
|---|---|
| Fork | RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel |

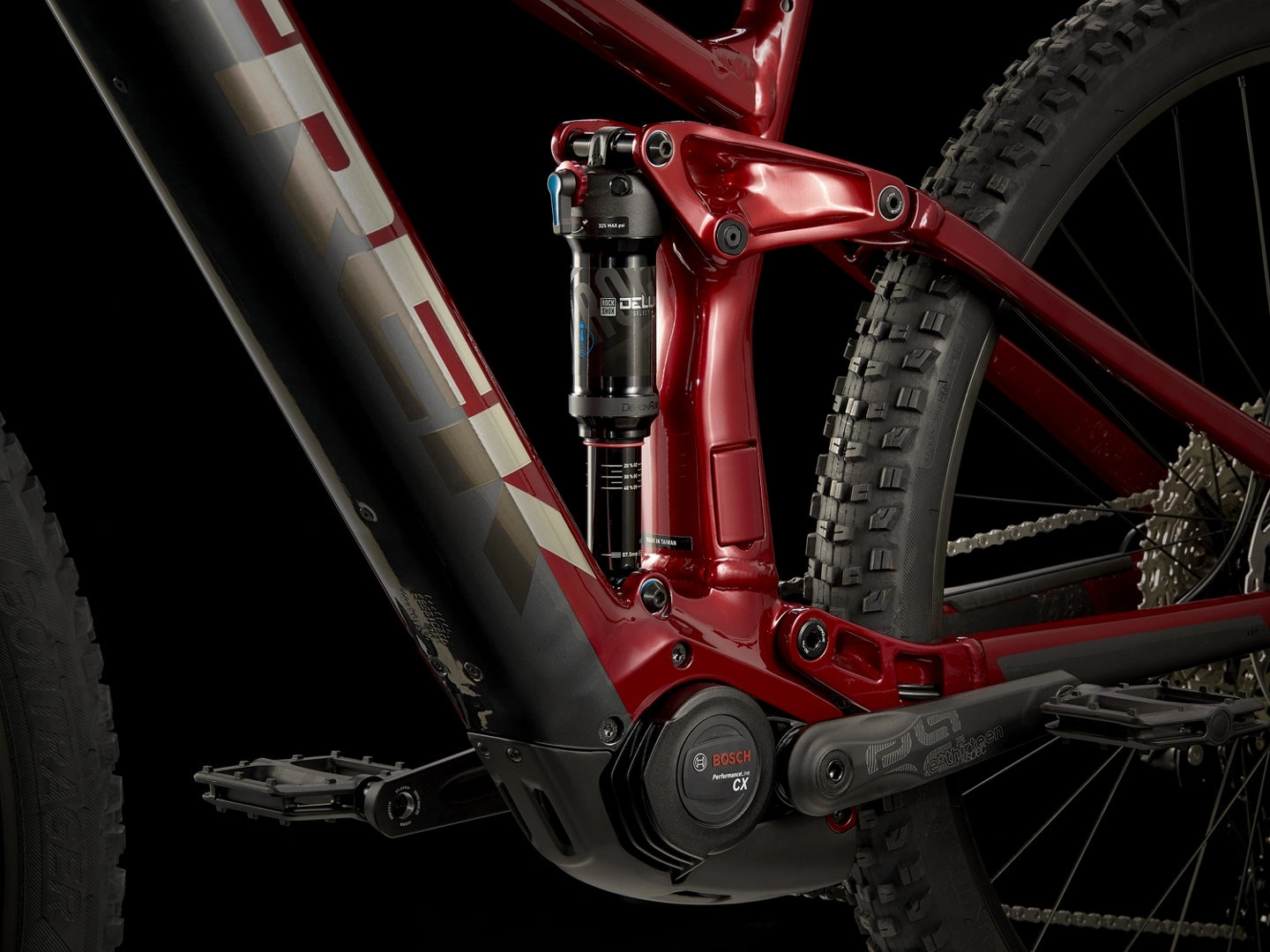

| Shock | RockShox Deluxe Select , 230 mm x 57.5 mm |
| Max compatible fork travel | 170mm (580mm axle-to-crown) |
| Hub front | Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
|---|---|
| Hub rear | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle |
| Skewer rear | |
| Rim | |
| Spokes | 14 g stainless steel |
| Tyre | Maxxis Rekon EXO, wire bead, 60 tpi, 29x2.60'' |
| Max tyre size | Frame: 29x2.60" Fork: See manufacturer |
| Shifter | Shimano Deore M6100, 12-speed |
|---|---|

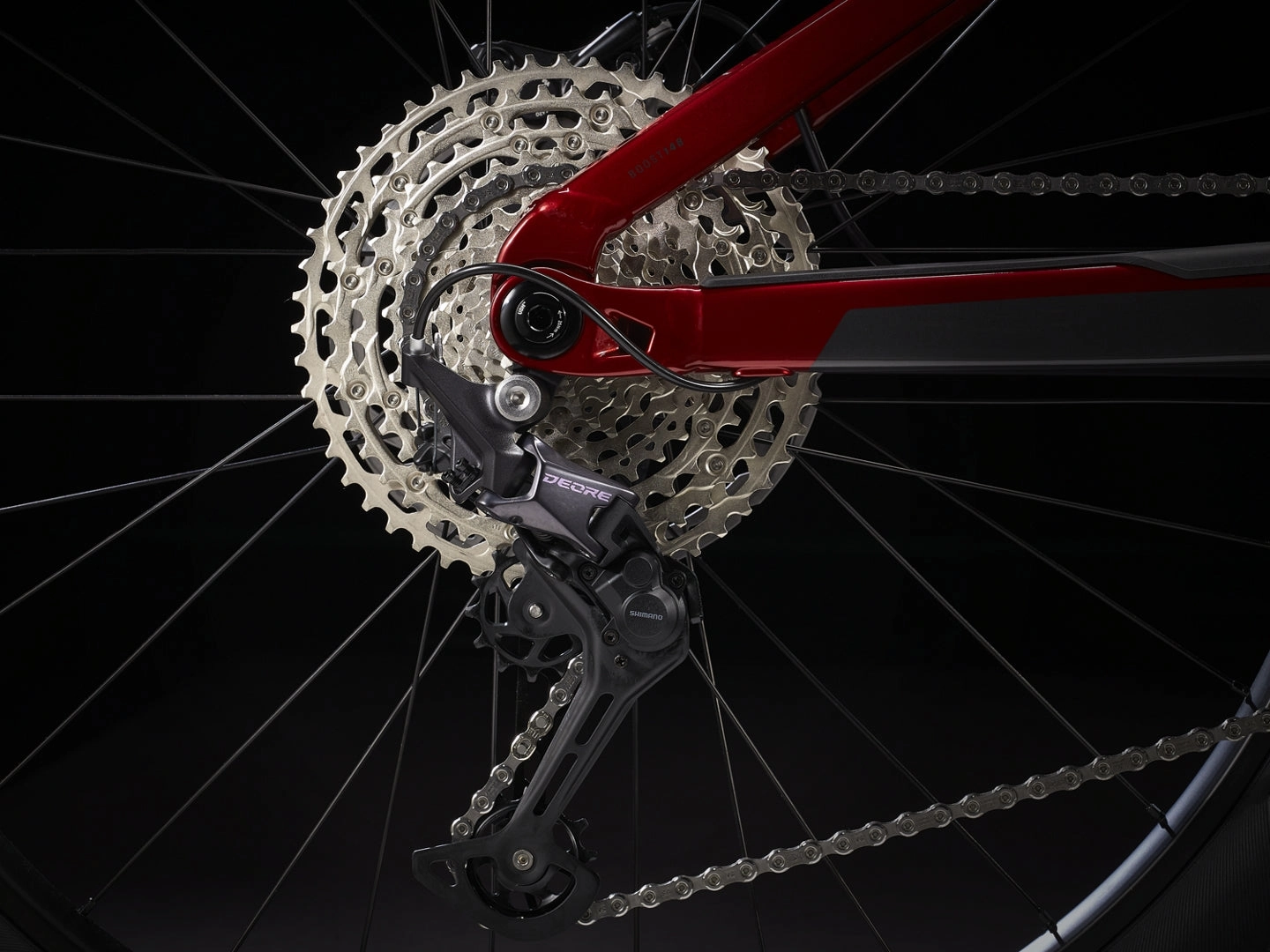

| Rear derailleur | Shimano Deore M6100, long cage |
| Crank | E*thirteen E*spec Plus, 34T, 165 mm length |
| Cassette | Shimano Deore M6100, 10-51, 12-speed |
| Chain | Shimano Deore M6100, 12-speed |
| Pedal | |
| Max. chainring size | 34T |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
|---|---|
| *Seatpost | Size: S TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length |
| Size: M, L, XL TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length | |
| Handlebar | Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
| Grips | |
| Stem | |
| Head set | |
| Brake | Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper |
| Brake rotor | Shimano RT76, 6-bolt, 203 mm |
| Battery | Bosch PowerTube, vertical, 500 wh |
|---|---|

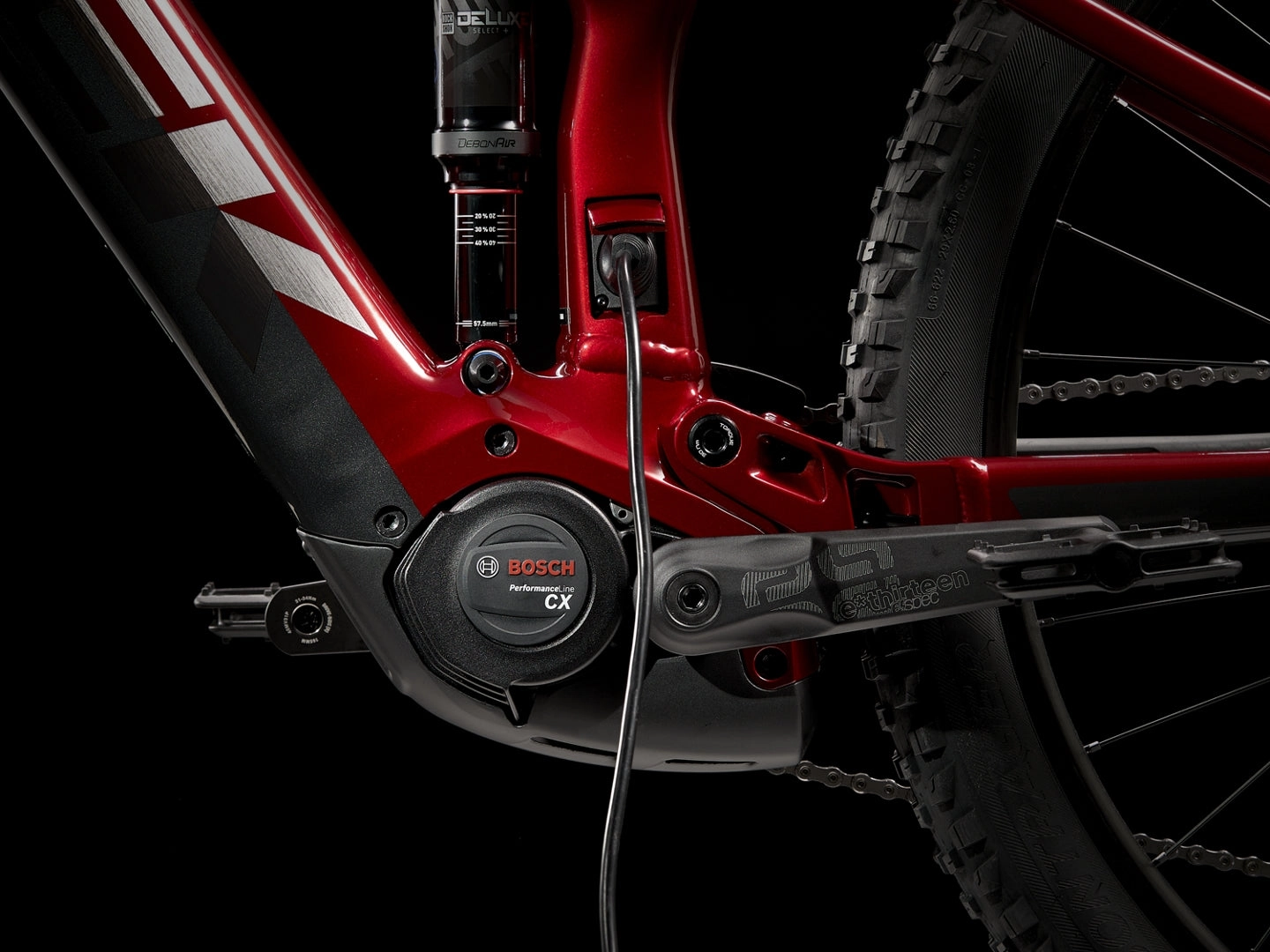

| Charger | Bosch compact 2A, 100240V, smart system |
| Controller | Bosch Purion |

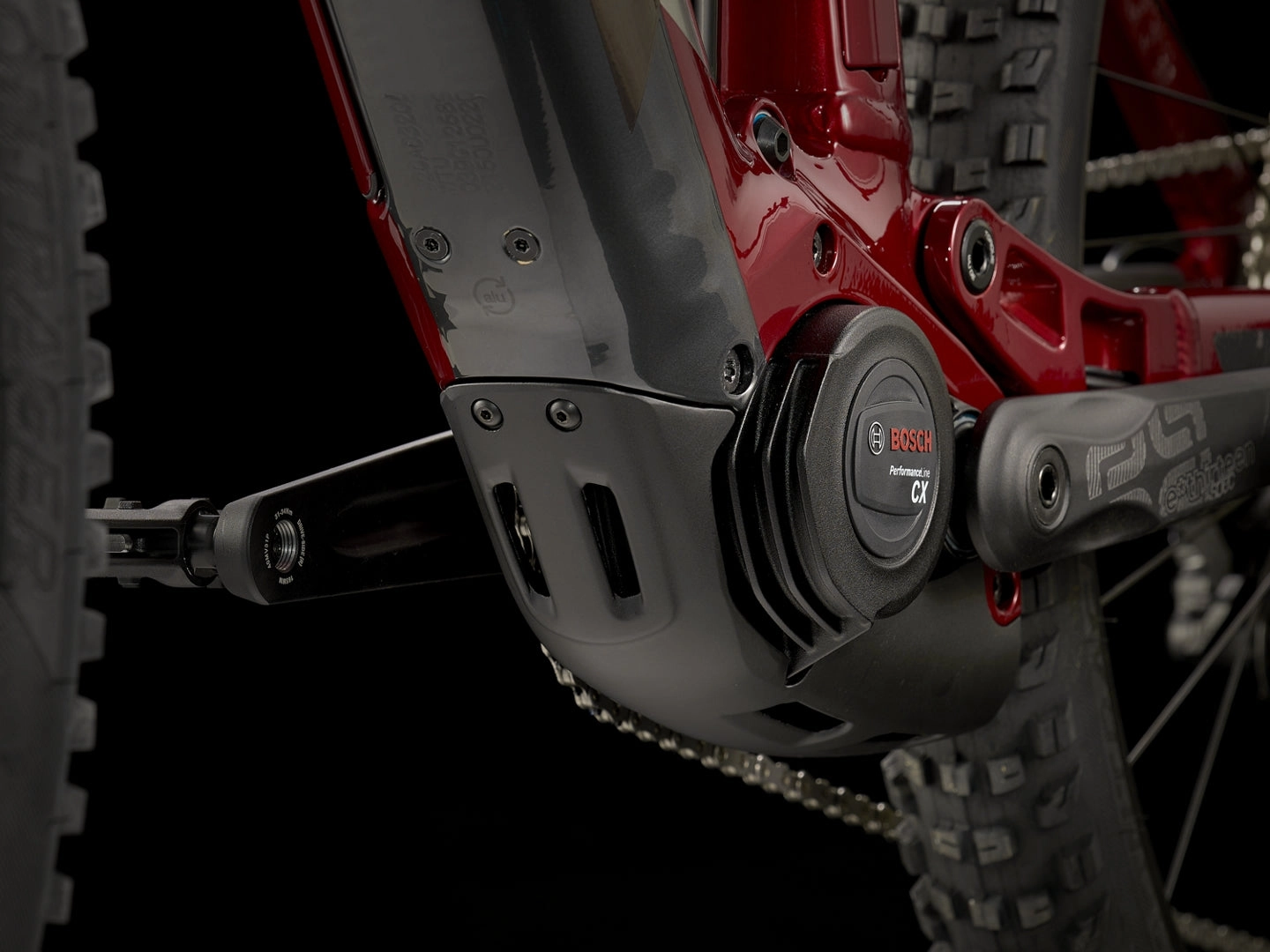

| Motor | Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand |
| Weight | M - 23.88 kg / 52.65 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
Sizing & Tech
Proper bike fit is essential for best performance and comfort. Any size and geometry measurements shown on trekbikes.com are for general comparison purposes only. To find your perfect fit, visit an authorised retailer, where an expert skilled at sizing will help you find the appropriate bike and size for your individual needs.
