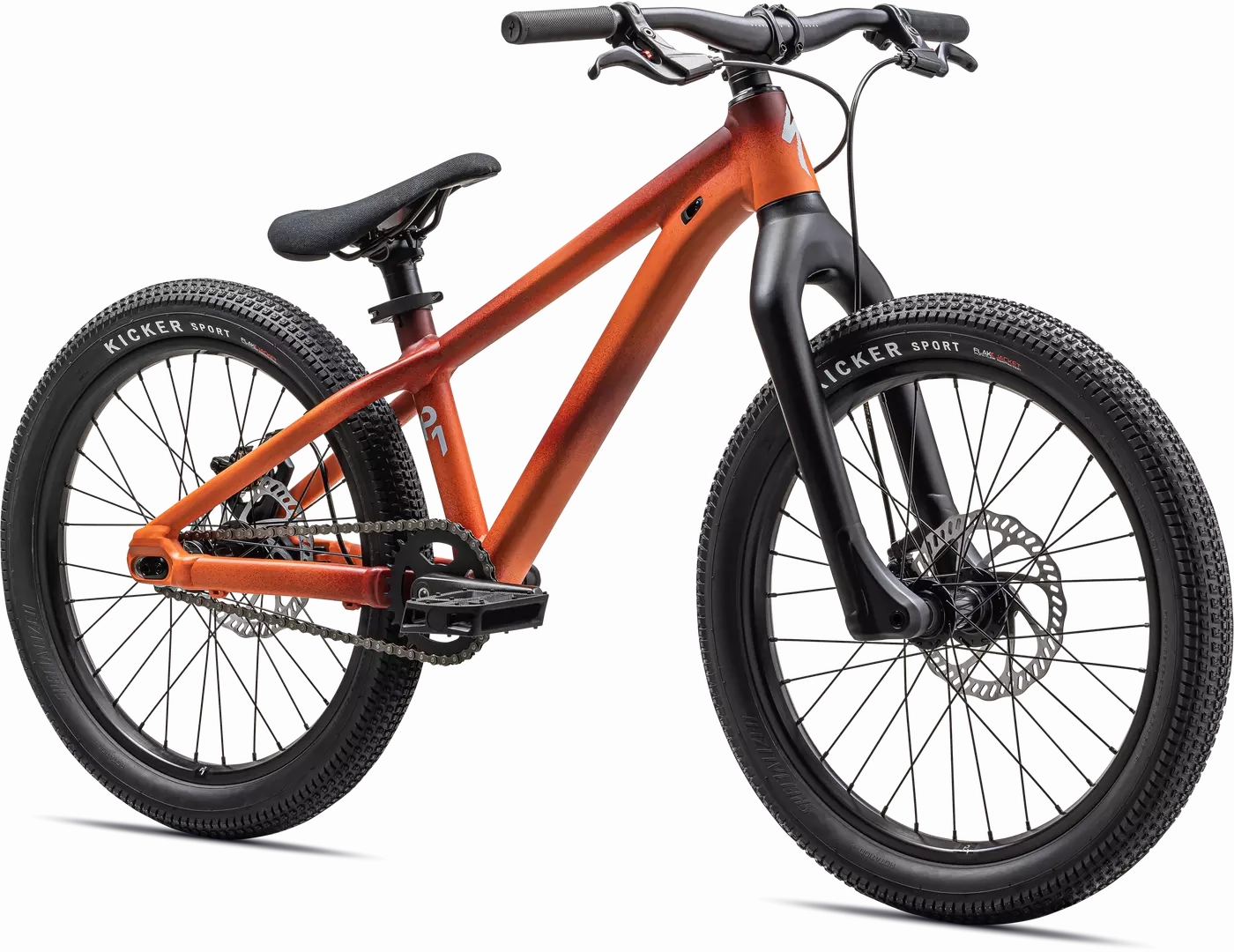

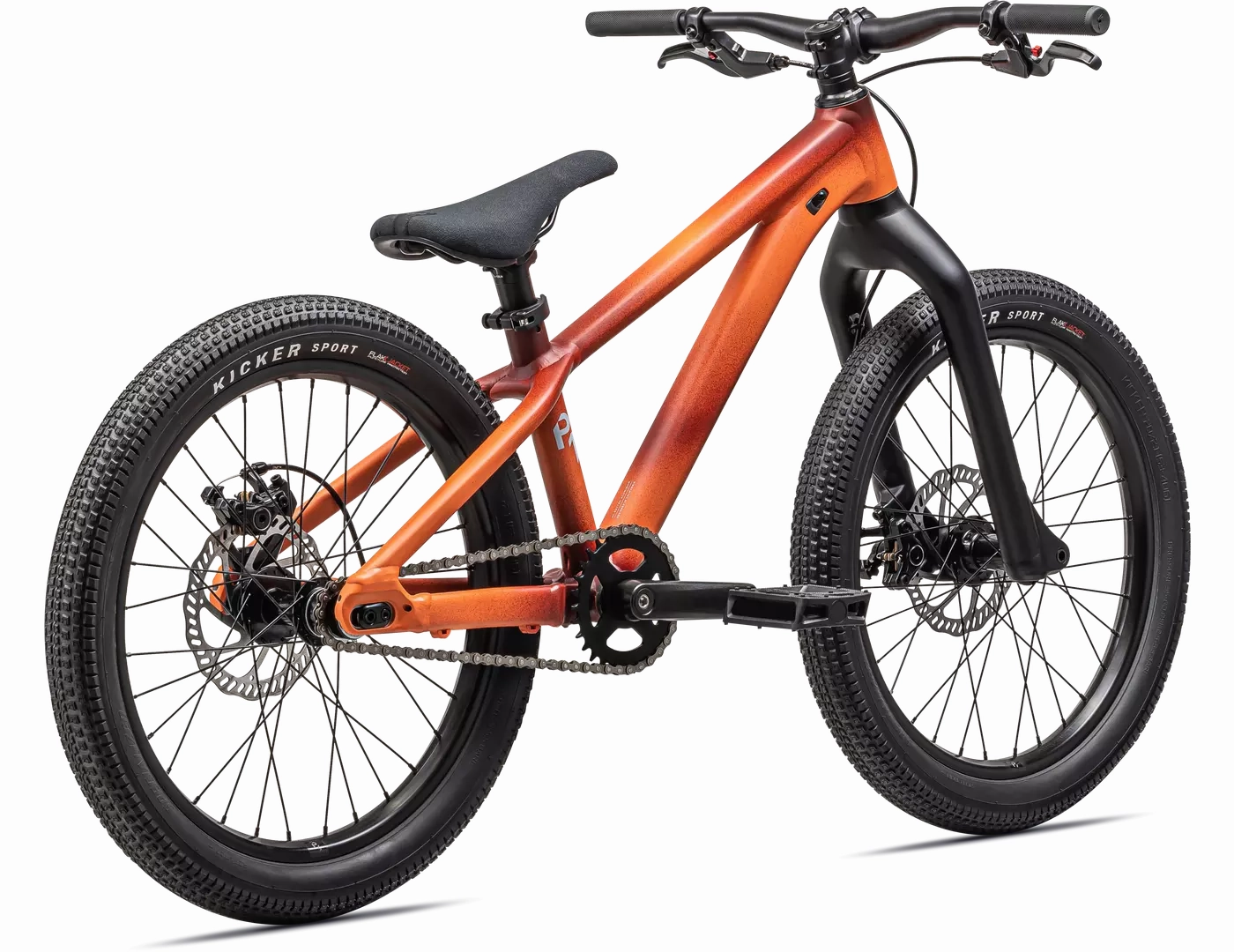

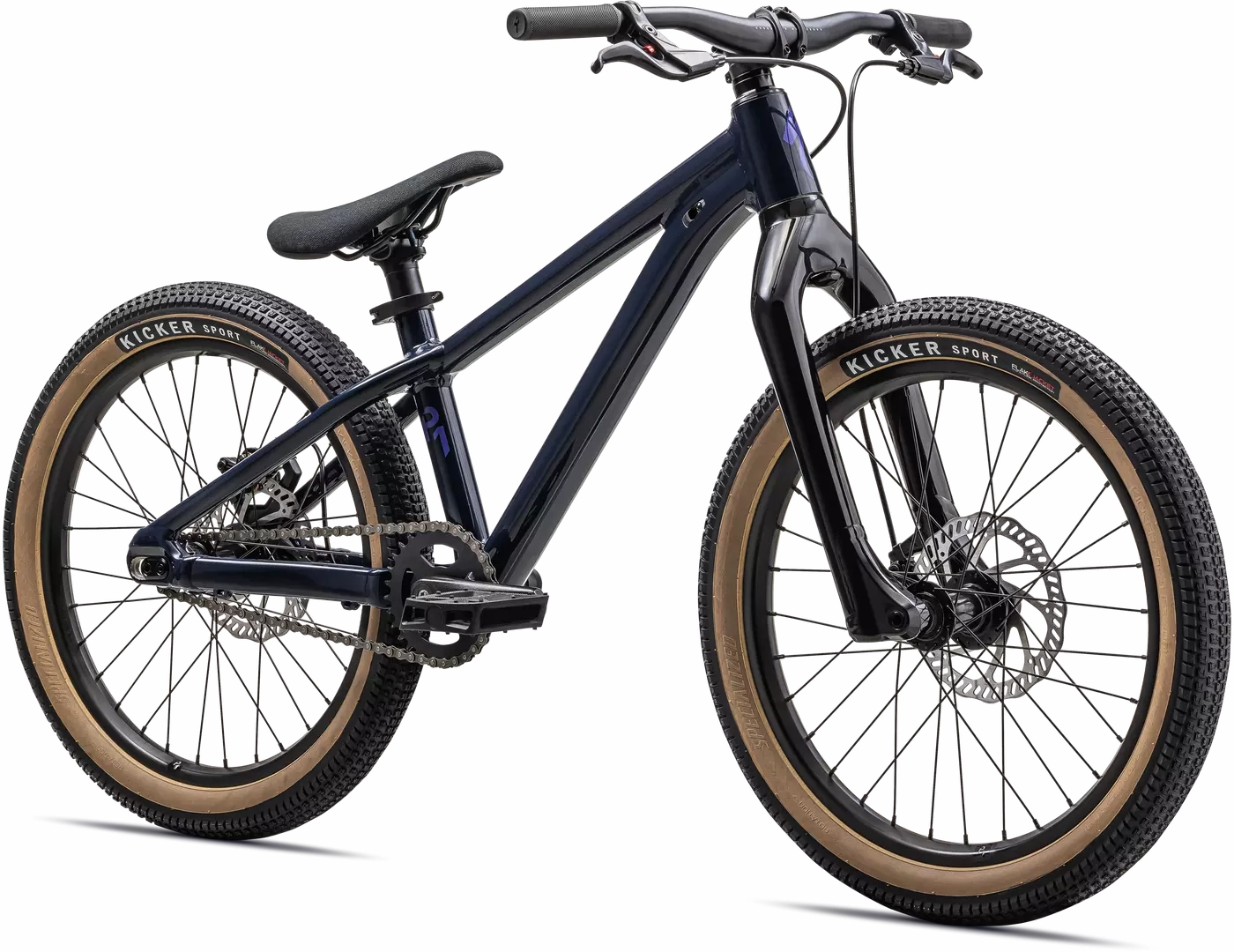

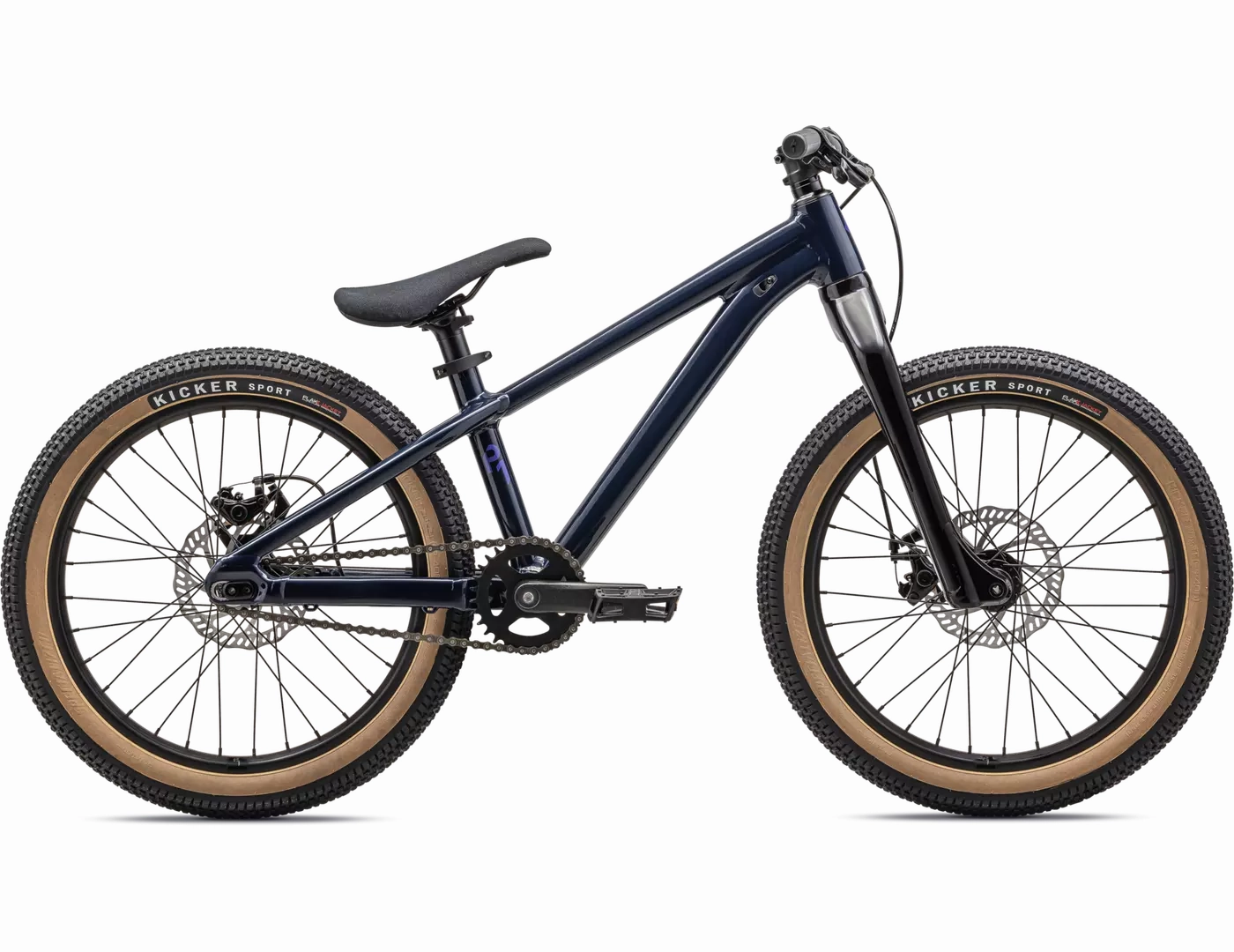

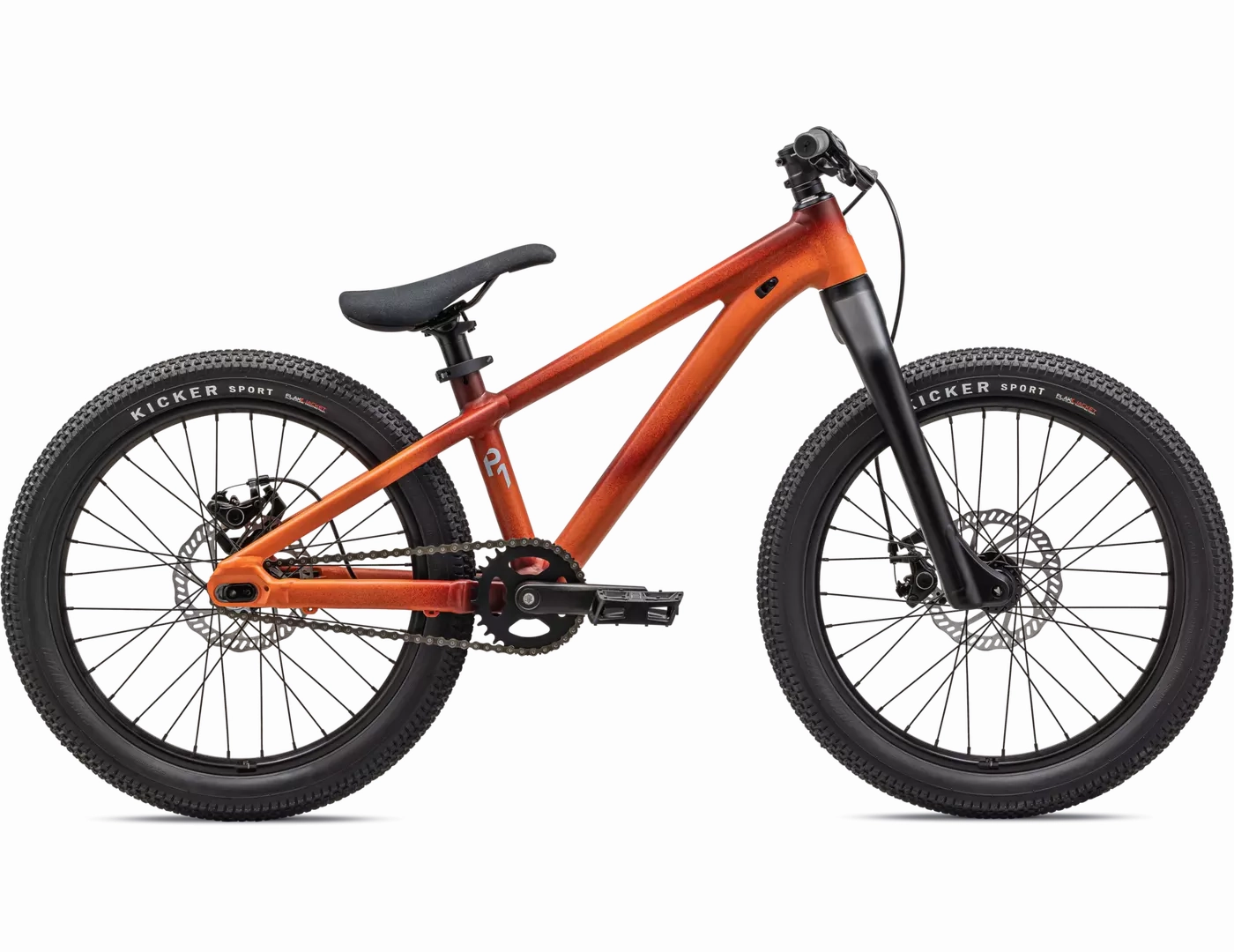

P.1 20" 2023

P.1 20" 2023

$ 40.58

$ 162.32

Unavailable
P.1 20" 2023

P.1 20" 2023

$ 40.58

$ 162.32

Colour:
  • Red
  • Blue
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

Description

This totally redesigned P.Series gives riders of all sizes a jumping off point to a life on bikes. The lightweight, but tough alloy frame is designed to take all the hits and keep rollingacross all frame and wheel size options. Our approach to these robust bikes centers around delivering a simple, high-quality platform that's versatile for all riders, and packs in category-first features that make a difference to the rider.

SLEEK SIMPLICITY The latest and greatest levers, adjustment switches, and complex cabling have their placebut not here. For the rider focusing on progression, eliminating every other variable is paramount. Starting with the durable lightweight alloy frame, P.Series stands up to unique demands of a bike that only dirt jump riders know. Its going to hit the ground. A lot.

SIZED FOR ALL In such a niche corner of the cycling world, a purpose-built bike like the P.Series used to be available in minimal size options. Thats why we took a step back to design a new range of inclusive sizes. From a 20-inch tire legit dirt jumper to a 27.5-inch category-crossing trail cruiser that can be backflipped.

REIMAGINE YOUR RIDE Instead of compromising on its heart and soul (flipping and whipping through the air), we expanded its capability. Its dropper ready, derailleur compatible, and uses adjustable dropouts. You can ride it out your door all the way to the bike parkand make a pitstop to session along the way.

TOUGH TECH Built with a boost spaced rear end for added stiffness, this burly wheel setup along with tapered headtube, and threaded bottom-bracket make P.Series extremely resilient and easy to maintain. Wrapped in its new 2.1 Kicker tirebut accepting up to a 2.35 trail tireyoull find grip and make speed anywhere.

  • Lightweight, Specialized engineered rigid fork, geo corrected to 80mm of travel makes fork upgrades easy.
  • 19mm OD handlebars, plus short reach brake levers and grips sized for smaller hands helps young riders stay in control.
  • Specialized Kicker tires find grip anywhere, street, dirt, or at the skatepark.
Specification

DRIVETRAIN

Cassette

13T SS Cog

Chain

KMC Z1, 1/2x3/32", Single Speed

Crankset

Specialized P.series, 52mm CL, 115mm Length

Chainrings

30T

Bottom Bracket

BSA 73mm

WHEELS

Front Hub

Alloy, 6-Bolt, 28H, 15x110 Boost

Rims

Specialized P.Series, 20", 32h, 26mm ID, Disc Brake Only

Rear Hub

Alloy, 6-Bolt, 28H, 12x148 Boost, 11-speed compatiable

Front Tire

Specialzied Kicker Sport, 20x2.1"

Rear Tire

Specialzied Kicker Sport, 20x2.1"

Inner Tubes

20" Inner Tube, SV

COCKPIT

Saddle

Specialized P.series, Steel Rails

SeatPost

Specialized, 6061 alloy, 2-bolt clamp, 0mm setback, 30.9mm

Handlebars

Mini Rise, Alloy Double Butted, 6-degree Backsweep, 600mm Width, 31.8mm , 19mm Bar End Diameter

Stem

3D-forged alloy, 31.8mm, 6-degree rise

Grips

Specialized Trail Grips, 19mm bar end diameter, lock-on

FRAMESET

Frame

Specialized P.1, A1 Premium Alloy, 20", Fully Butted Tubing, Tapered Head Tube, BSA 73mm BB Shell, 12x148TA Sliding Dropouts, Single Speed or Geared Compatible, 52mm CL, Internal cable routing, 30.9 Seat Tube, Dropper Post Compatible

Seat Binder

Quick Release, 34.9mm ID Clamp

BRAKES

Front Brake

Radius CX7, Mechanical Disc, 160mm Rotor

Rear Brake

Radius CX7, Mechanical Disc, 160mm Rotor

SUSPENSION

Fork

Specialized A1 Alloy, 20" Rigid, Tapered Alloy Steer Tube, 15x110TA, 372mm Axle to Crown

ACCESSORIES

Pedals

Specialized Platform Pedal

WHEELS & TIRES

Spokes

Stainless, 14g

WEIGHT

Weight

9.37kg (20 lb, 10.5 oz)

Weight Size

Geometry
20"
Crank Length115
Handlebar Width600
Stem Length35
Saddle Width110
Seatpost Length200
Stack429
Reach310
Head-Tube Length90
Head-Tube Angle68.5
B-B Height259
B-B Drop5
Trail61
Fork Length (full)380
Fork Rake/Offset40
Front-Center520
Chain-Stay Length320
Wheelbase840
Top-Tube Length (horizontal)449
Bike Stand-Over Height561
Seat-Tube Length265
Seat-Tube Angle72
Wheel Size20
