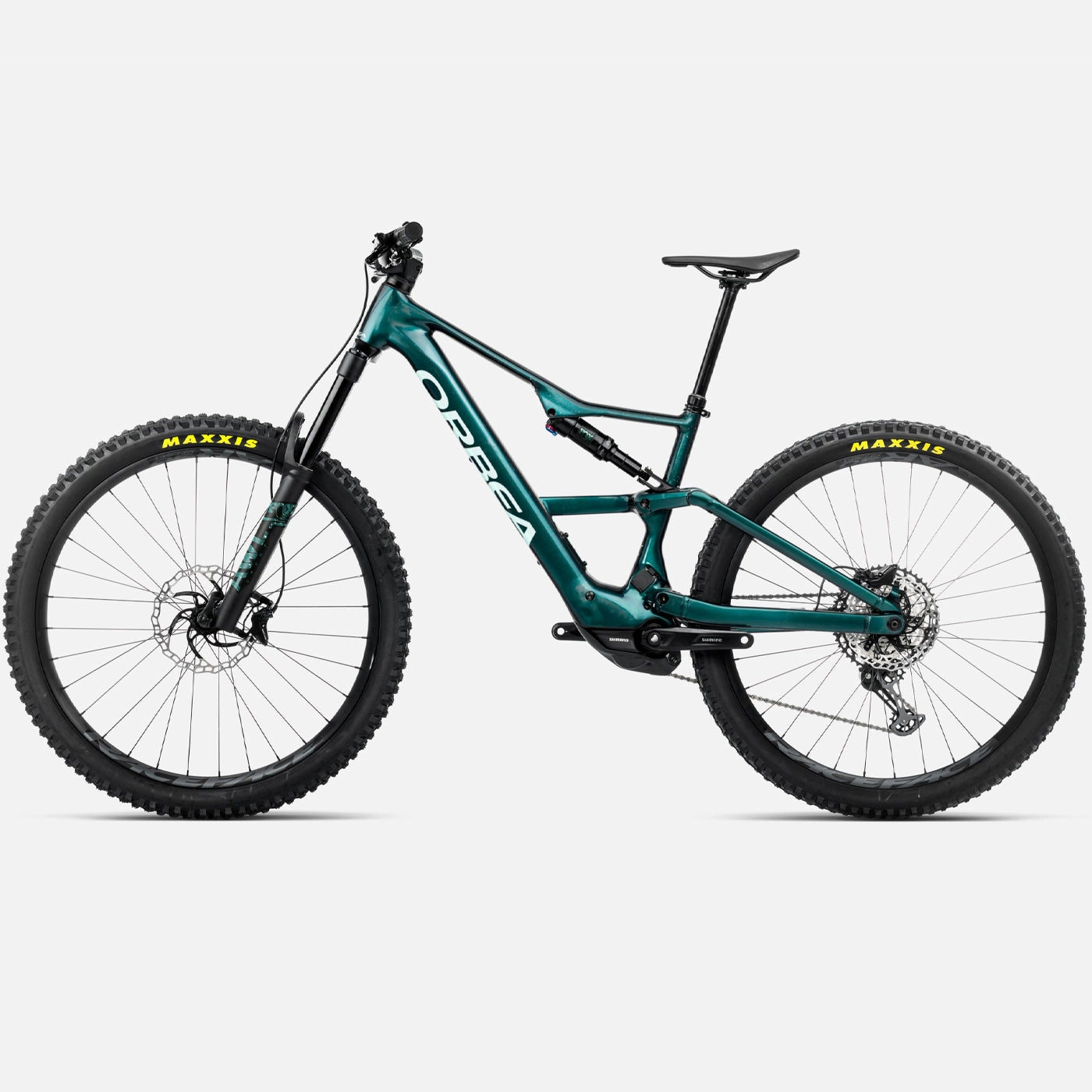

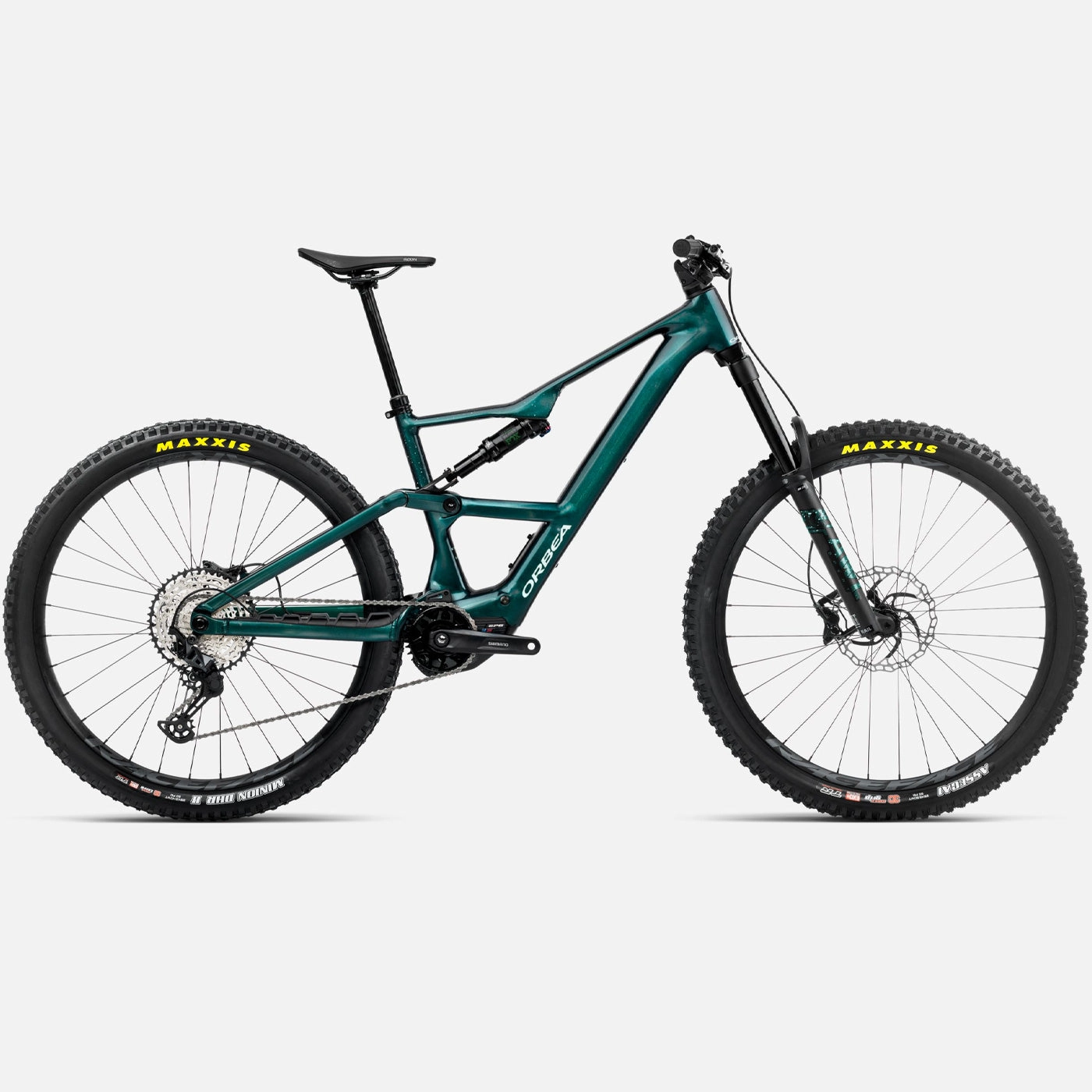

The trail-devouring eMTB. The Rise LT features a 160mm / 150mm soft ride with progressive trail geometry. Our 630 Wh battery is standard, while the 420 Wh battery is optional. The Shimano EP motor features our latest RS GEN2 MC firmware, which provides a more natural ride.
- Frame: Orbea Rise LT Hydro 2025, 150mm travel, 29" wheels, Concentric Boost 12x148.
- Shock absorber: Fox Float Performance 2-Pos Evol LV custom tune 210x55mm
- Fork: Fox 36 Float AWL HD Sport 160 Rail QR15x110.
- Headset: Alloy 1-1/2", Black Oxidated Bearing.
- Battery: Orbea Internal 630Wh.
- Motor: Shimano EP600 RS Gen2 MC.
- Display: N/A.
- Charger: Orbea 2.Generation eBike Smart charger 42V/2-4A
- Remote: EN600-L.
- Crank: Shimano Steps EM600.
- Levers: Shimano Deore M6100 I-Spec EV.
- Sprockets: Shimano CS-M7100 10-51t 12-Speed
- Shifters: Shimano SLX M7100 SGS Shadow Plus
- Chain: Shimano M6100
- Chain tensioner: Orbea Rise chainguide
- Handlebar: OC Mountain Control MC31, Rise20, Width 800.
- Stem: OC Mountain Control MC20, 0.
- Computer Mount: OC Computer Mount CM-05, Garmin/Sigma
- Brakes: Shimano MT420 Hydraulic Disc.
- Brake Discs: 203mm Front /180mm Rear.Crankset: e*thirteen Helix Core e*spec Direct Mount 32T 55mm ChainLine.
- Wheels: Race Face AR 30c Tubeless Ready.
- Tire: Maxxis Assegai 2.50" 60TPI 3CG/EXO /TR MaxxGrip tire.
- Tire: Maxxis Minion DHR II 2.40" WT FB 120 TPI 3C MaxxTerra Exo TR.
- Seatpost: OC Mountain Control MC22, 31.6mm, Dropper.
- Remote Seatpost: Shimano SL-MT500 I-Spec EV.
- Saddle: Fizik Terra Ridon X5 145mm.
- Grips: OC Lock On.
- Color: Green.
