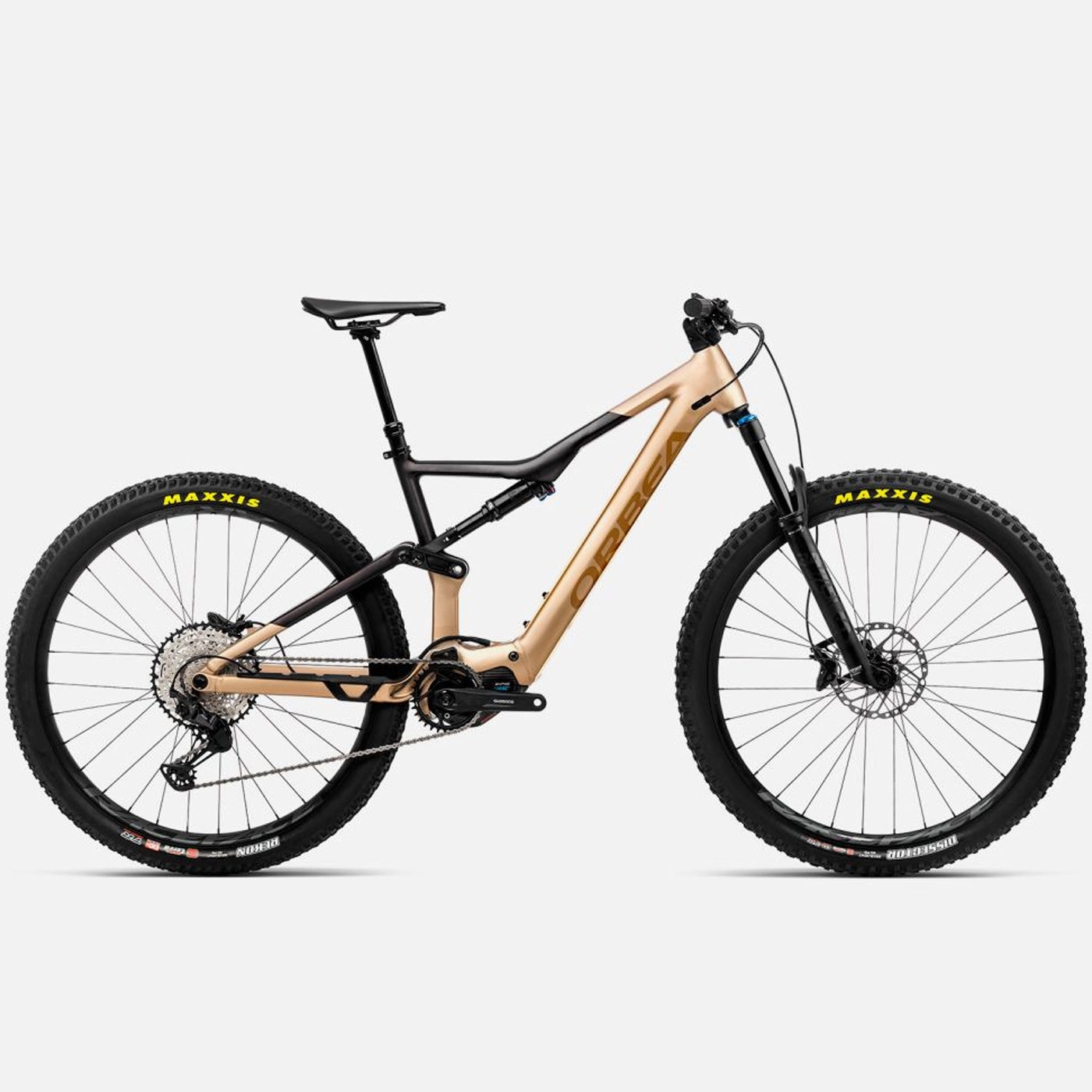

Orbea Rise h20 2023, the same experience as Rise, but in aluminium. The Rise H is equipped with the innovative and highly optimized MAIN 540WH battery. It is the lightest e-bike in its category, which means that no other aluminum e-bike with the same range and power reaches its level. This aspect is fundamental for us, as we would not have accepted anything other than the fun driving sensation and natural pedaling of our Rise family, so loved by users. It's the most advanced aluminum frame, using a hydroforming process and triple butted tubing, we've refined the wall dimensions to save weight and strengthen stress zones. Highly smooth finishes look like a carbon frame and increase fatigue resistance on welds.
- Frame: Orbea Rise Hydro 140mm travel 29" Boost 12x148.
- Shock absorber: Fox Float DPS Performance 3-Position Evol custom tune 210x55mm.
- Fork: Fox 34 Float Performance 140 3-Position QR15x110.
- Headset: Acros Alloy 1-1/8 - 1-1/2" Integrated.
- Crankset: e*thirteen e*spec Direct Mount 32T Boost.
- Crank: Shimano Steps EM600.
- Levers: Shimano SLX M7100 I-Spec EV.
- Sprockets: Shimano CS-M7100 10-51t 12-Speed.
- Gear: Shimano XT M8100 SGS Shadow Plus.
- Chain: Shimano M6100.
- Chain tensioner: Orbea Rise chainguide.
- Handlebar: OC Mountain Control MC31, Rise20, Width 800.
- Stem: OC Mountain Control MC20, 0.
- Brakes: Shimano M6120 Hydraulic Disc.
- Brake Discs: 180mm Front /180mm Rear.
- Wheels: Race Face AR 30c Tubeless Ready.
- Tires: Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR/Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo TLR.
- Seatpost: OC Mountain Control MC20, 31.6mm, Dropper.
- Remote Seatpost: Shimano SL-MT500 I-Spec EV.
- Saddle: Fizik Taiga S-alloy rail.
- Engine: Shimano EP600-RS.
- Battery: Orbea Internal 540Wh (Optional 250 Wh Range Extender).
- Charger: Orbea 2.Generation eBike Smart charger 42V/2-4A.
- Remote: EN600-L.
- Colour: Brown (Baobab Brown/Cosmic brown matte).
