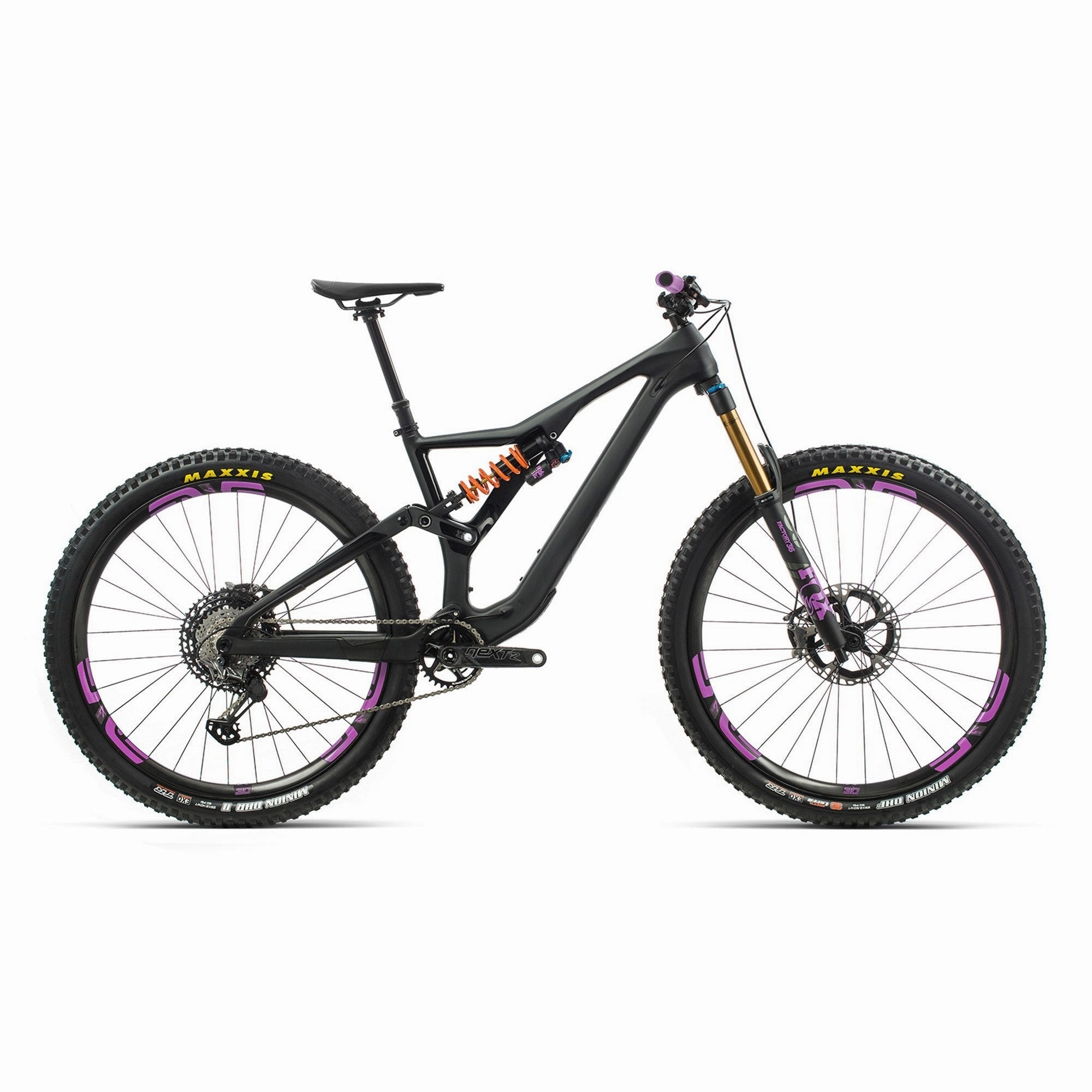

The Orbea Rallon has swiftly become one of the most popular endurance bikes on the market. The 2020 Rallon M-LTD improves on an already thriving mountain bike. The Rallon is known for its world-class endurance racing capabilities but it is more than just a specialists bike. It can keep up with top of the line cross-country bikes through high-speed loops as well. This bike is known for its top-notch suspension along with its responsiveness and lightweight carbon frame. Any rider who loves bombing the most technical descents but does not want any restrictions on flat ground or climbs will love the new Rallon.

The suspension of the Orbea Rallon M-LTD is next to none. Its Fox DHX2 Factory shock contributes 160mm of rear travel. This version of the Rallon is more responsive than ever with an improved progressive rate and reacts to push the bike forward rather than just down. That feature keeps riders from bottoming out on those rocky sections. The front of the Rallon uses a Fox 36 Float Fork for 170mm of front travel and housing for 29-inch wheels. This combination of rear and front suspension provides amazing compliance, making this one of the most all-terrain ready bikes in the world.

A stable geometry keeps the Rallon balanced on any surface. A slack head angle of this bike sits at 64.5 degrees. This is paired with a long cockpit and wheelbase to keep riders confident and balanced, especially on descents. You will also find a steep seat angle, low bottom bracket, and short chainstays to combine efficient pedaling power with its acclaimed stability. The new Rallon uses a redesigned linkage assembly. Connected link design kinematics balance outstanding pedaling efficiency with the bump sensitivity and control with an excellent rear stiffness to weight ratio. The seatstay and linkage position ensures that grip and control will always be in your favor.

Despite the focus on stability and endurance riding, Orbea still chose to use their lightest OMR carbon to create the frame. This stands for Orbea Monocoque Race carbon which is a blend of high-modulus and high-strength fibers. These fibers are laser cut into sheets to minimize overlap or the use of excess material which results in the lowest possible weight. Full EPS (expanded polystyrene) is used as will in the mold to eliminate the chance of wrinkles or voids. This version of the Rallon is equipped with the new Shimano XTR 12-speed groupset which is made for some of the smoothest shifting on the road. The most aggressive riders who want to push their limits will quickly fall in love with the Orbea Rallon M-LTD.

FRAME SPECIFICATIONS

• Frame: Orbea Monocoque Race Carbon, Advanced Dynamics, 160mm suspension technology, 29-inch wheels, concentric boost 12x148 rear axle, internal cable routing
• Fork: Fox 36 Float Fork Factory 170 Grip2 RC2 QR 15x110 Kashima
• Shock: Fox DHX2 Factory 2-Position Adjust SLS Spring TiN 230x60mm
• Headset: Acros Alloy 1 1/8 1 1/2 integrated
• Seatpost: Crank Brothers Highline (125mm dropper)
