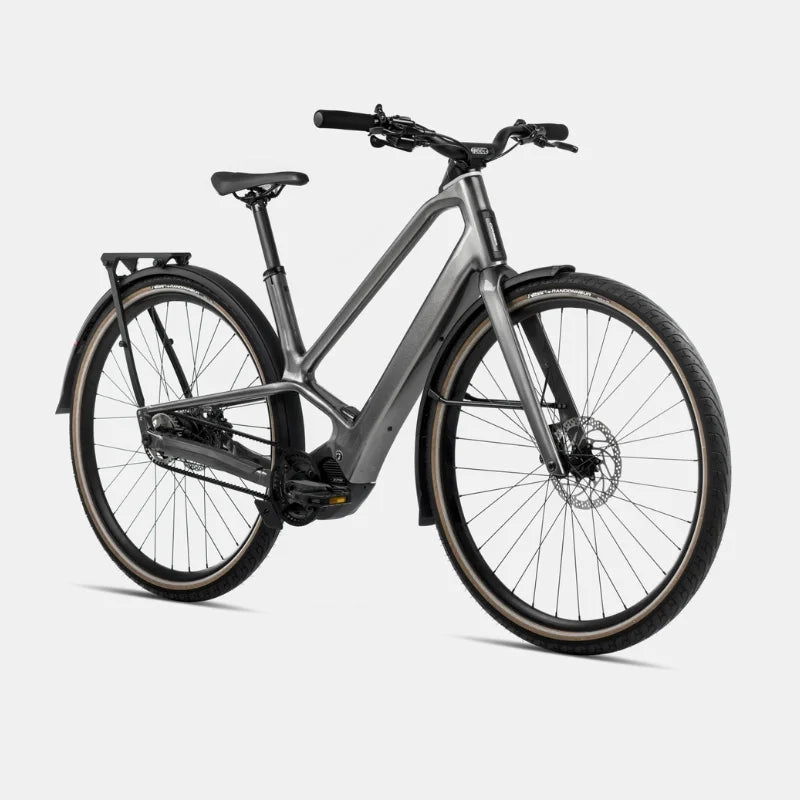

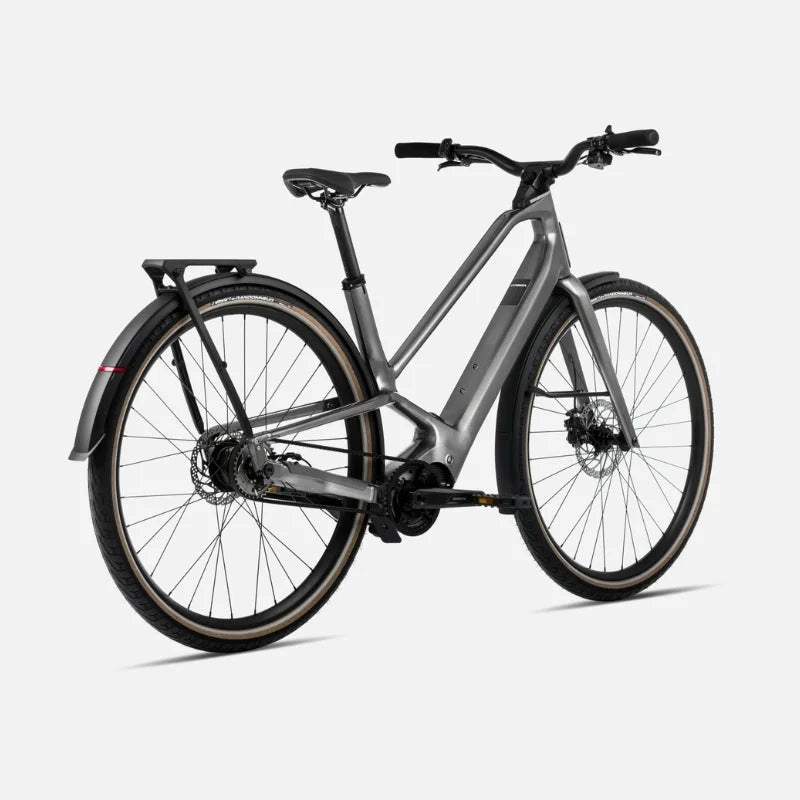

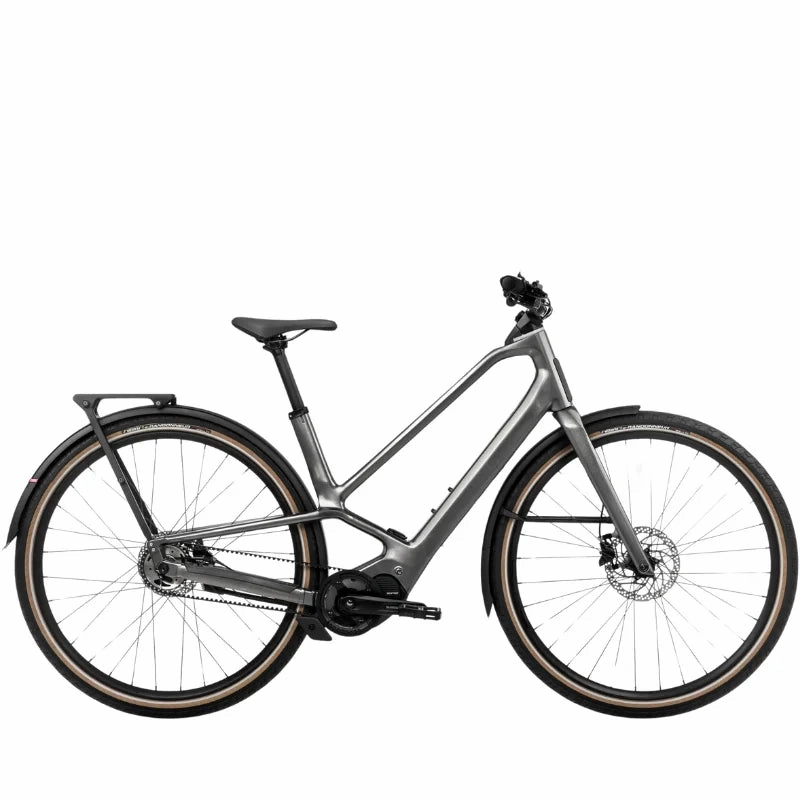

Diem 20, the powerful urban e-bike, effortlessly integrates into your routine, bringing excitement to your commute with 5 internal gears and a belt drive.
Hubs Gears and Belt Drive
Shimano's Inter-5 hub provides a simple and efficient 5-gear system, perfectly complemented by the Gates belt drive for a whisper-quiet and low-maintenance drivetrain.
Endless Power. Intelligent Control
Our Shimano EP motor paired with a 630Wh battery effortlessly conquers the steepest streets and heaviest loads.
The Smoothest Ride
The combination of the carbon fork wider tyres and our patent Diamond Glides frame design helps absorb bumps, giving a controlled ride on rougher streets.
Intelligent Lighting System
The high-tech lighting system switches on automatically to keep you safe and light the way ahead. The wrap around lights make sure you are always visible, day or night, even from the side.
Packed with Clever Features
Unique, customer accessories designed to work perfectly with Diem to make your day to day a little better.
Specifications
FRAMESET
| Frame | Orbea Diem Hydro High Polished 2024, Flex Tech, 135x9 / 142x12, Headset Routing, Custom Kickstand, Orbea Urban Cockpit and equipment compatible |
| Fork | Orbea Diem carbon fork, full carbon, 1" 1/8 - 1" 1/5, thru axle 12x1, post mount disc mount, Thrue Axle 12x100mm, Long mudguards compatible |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
EBIKE
| Battery | Orbea Internal 630Wh |
| Motor | Shimano EP600 |
| Remote | EN600-L |
| Range Extender | N/A |
| Charger | Orbea 2 Generation eBike Smart charger 42V/2-4A |
DRIVETRAIN
| Chainring | Gates CDX 42t w/chainguard |
| Shifters | Microshift TN71 for Nexus Inter 5 |
| Rear Derailleur | Shimano Nexus Inter-5 |
| Crank | Shimano Steps EM600 |
| Cassette | Gates CDX 34t for Shimano Inter 5e |
| Chain | Gates CDX Belt |
COCKPIT
| Handlebar | Orbea Urban, Integrated Light, Rise 54, Width 700 |
BRAKES
| Brakes | Shimano MT201 Hydraulic Disc |
WHEELS
| Wheels | Alloy, Tubeless, 25c, 32H |
| Tyres | Vittoria e-Randoneur 50-622, Reflective band |
ACCESSORIES
| Pedals | VP-537 Black |
| Rear Carrier | Orbea RR-01 Alloy, w/Mik & Mik Side and Ortlieb QL3.1 system. Max. 20kg |
| Front Position Light | Orbea Integrated, USB-C charging point |
| Rear Light | Orbea Fender integrated, with alert light |
| Bell | Knog OI Classic |
| Front Carrier | N/A |
| Mudguard | Curana Apollo Orbit 60mm |
| Front Light | Supernova Starstream Pure, Low Beam |
| Chainguard | Gates CDS |
| Quick Stand | Orbea Diem Integrated |
COMPONENTS
| Seatpost | Alloy 31.6x300mm Offset 0 |
| Saddle | Selle Royal Vivo Ergo |
Geometry
| S | M | L | XL | |
| Seat Tube (C-T) | 442 | 468 | 490 | 540 |
| Top Tube (EFF) | 586 | 610 | 634 | 659 |
| Head Tube | 164,1 | 187,4 | 210,6 | 233,7 |
| Chainstay | 435 | 435 | 435 | 435 |
| BB Height (25-622) | 279 | 279 | 279 | 279 |
