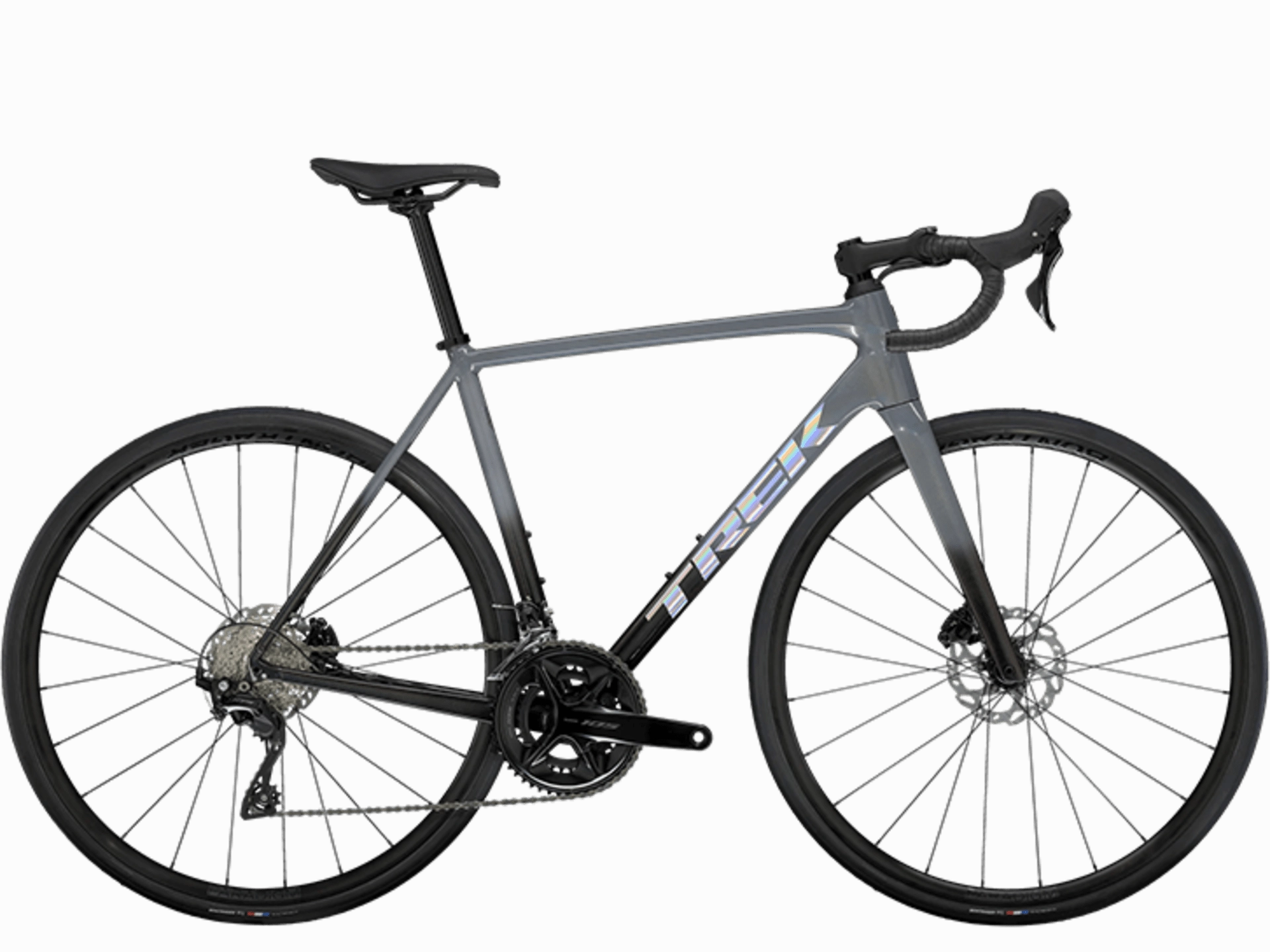

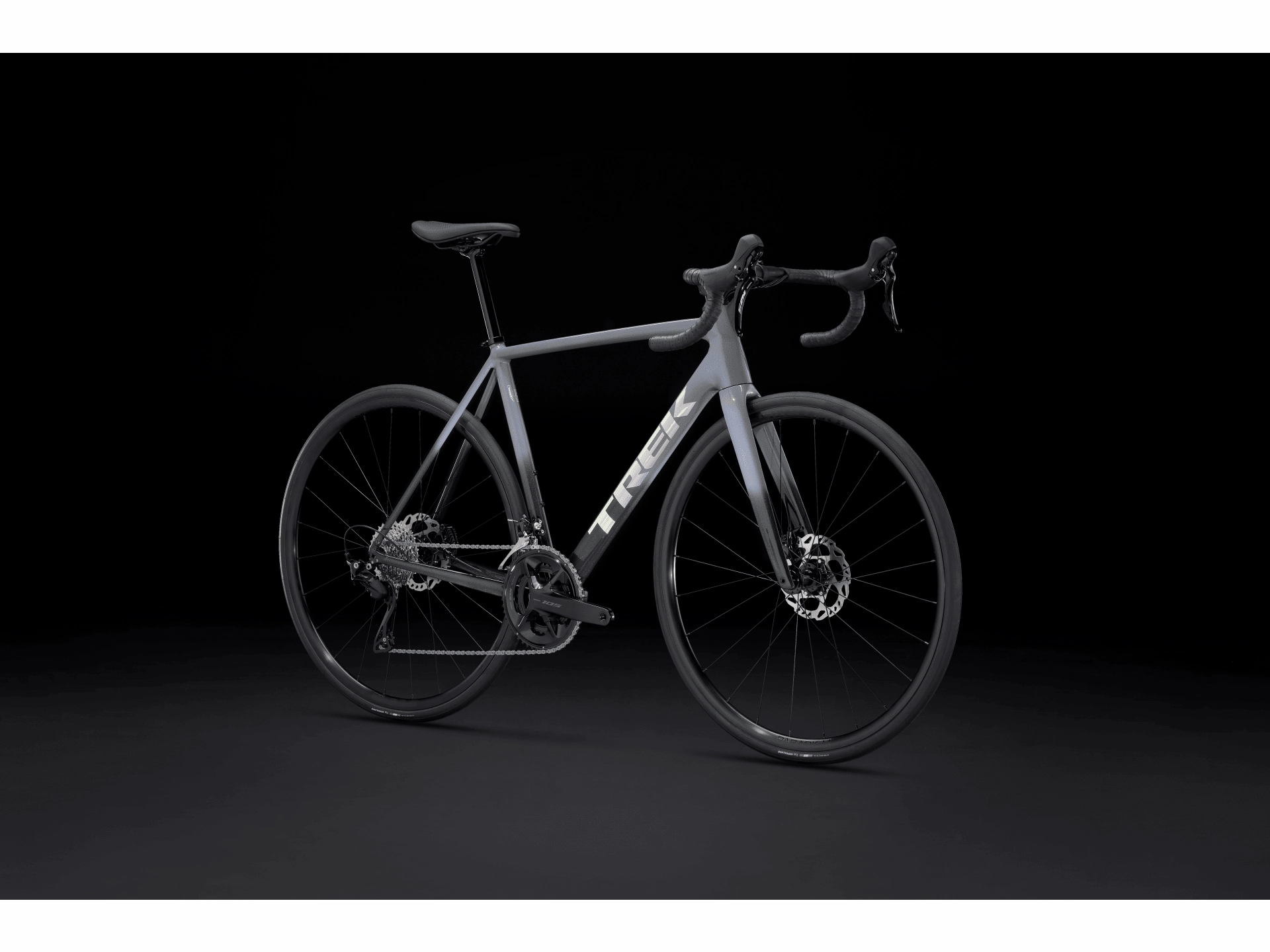

monda ALR 5 Disc

The monda ALR 5 Disc is a super light and responsive alloy road race bike. Its advanced Kammtail alloy tube shapes and H1.5 race geometry give it the sleek looks and handling of a carbon bike while keeping it at an alloy price point. Paired with big upgrades on parts, like a dependable Shimano 105 drivetrain and powerful hydraulic disc brakes that stop in any weather, this bike is built to perform on club rides and races alike.

Frameset

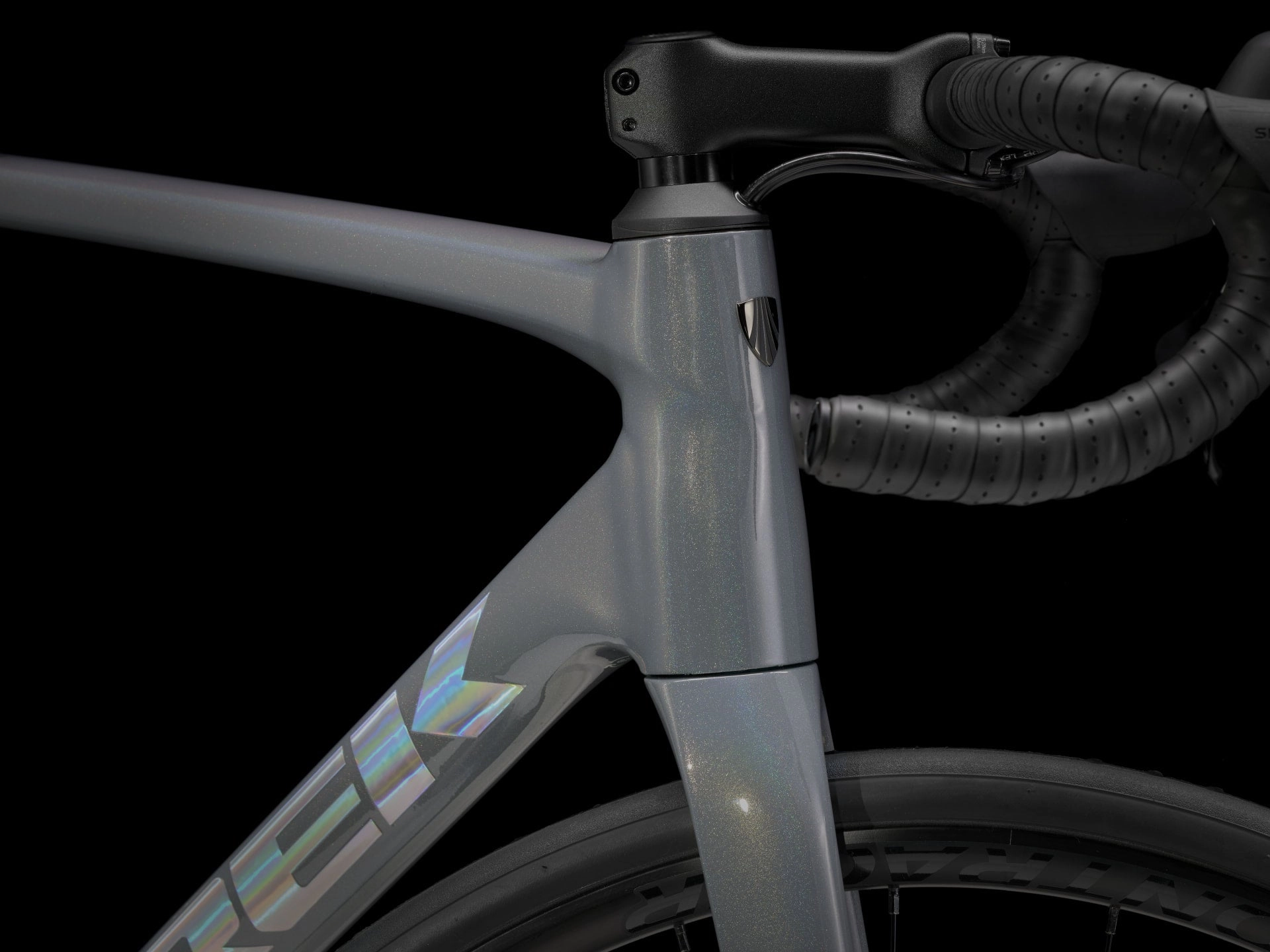

• Frame: Ultralight 300 Series Alpha Aluminium, Invisible Weld technology, tapered head tube, internal cable routing, flat mount disc, 142x12 mm thru axle
• Fork: monda ALR full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm thru axle

Weight

• Weight (56cm): 9.17 kg / 20.22 lbs (with tubes)
• Weight limit: Maximum total weight (bicycle, rider, and cargo) of 125 kg (275 lbs)

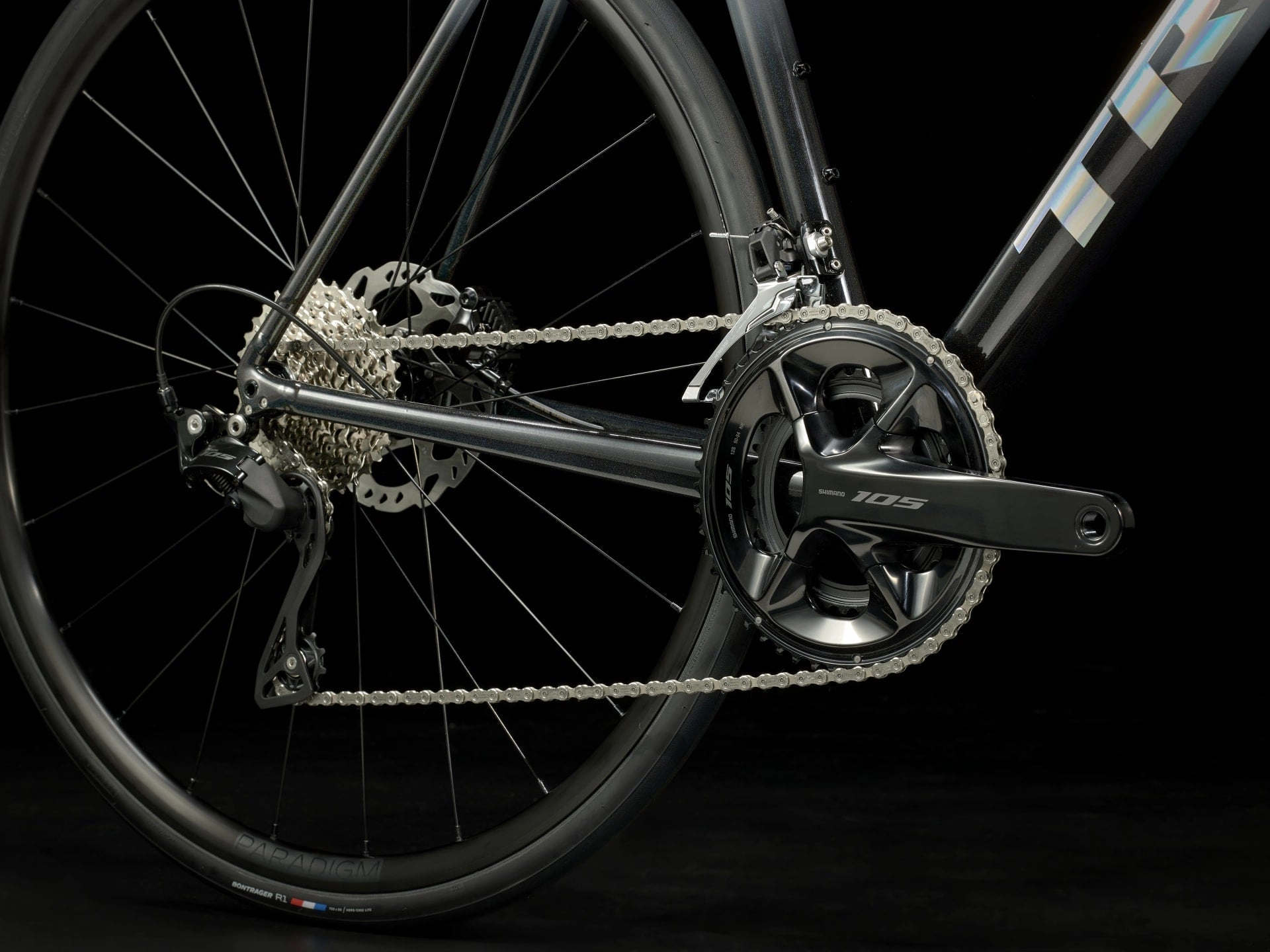

Drivetrain

• Shifter: Shimano 105 R7120, 12-speed
• Front Derailleur: Shimano 105 R7100, braze-on, down swing
• Rear Derailleur: Shimano 105 R7100, 36T max cog
• Crank: Shimano 105 R7100, 50/34 (size dependent: 170mm, 172.5mm, 175mm)
• Bottom Bracket: Praxis, T47 threaded, internal bearing
• Cassette: Shimano 105 7101, 11-34, 12-speed
• Chain: Shimano SLX M7100, 12-speed

Wheels

• Hubs: Bontrager alloy, sealed bearing, CenterLock disc
• Rims: Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width
• Tyres: Bontrager R1 Hard-Case Lite, 700x28 mm

Components

• Saddle: Verse Short Comp, steel rails
• Seatpost: Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset

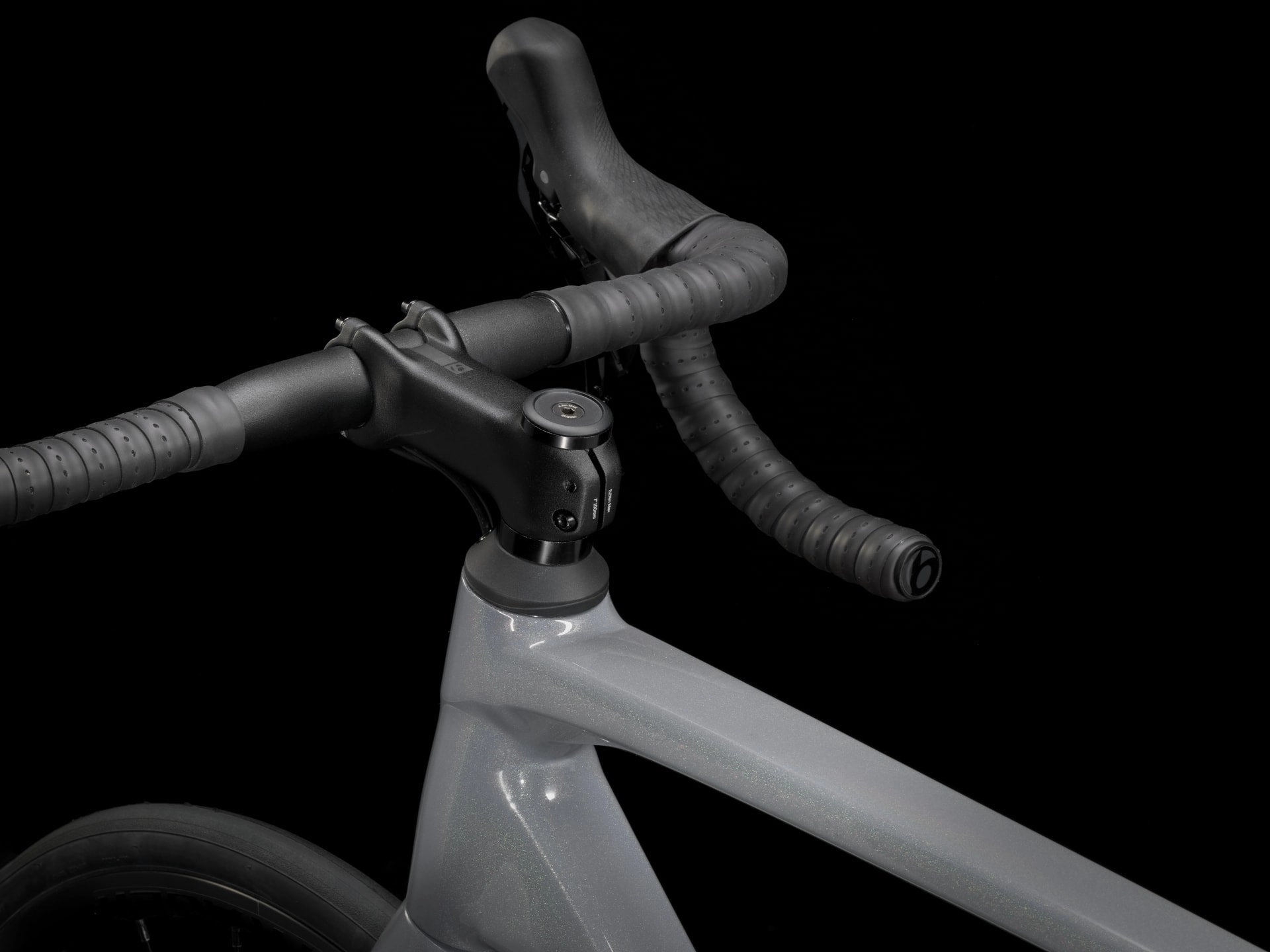

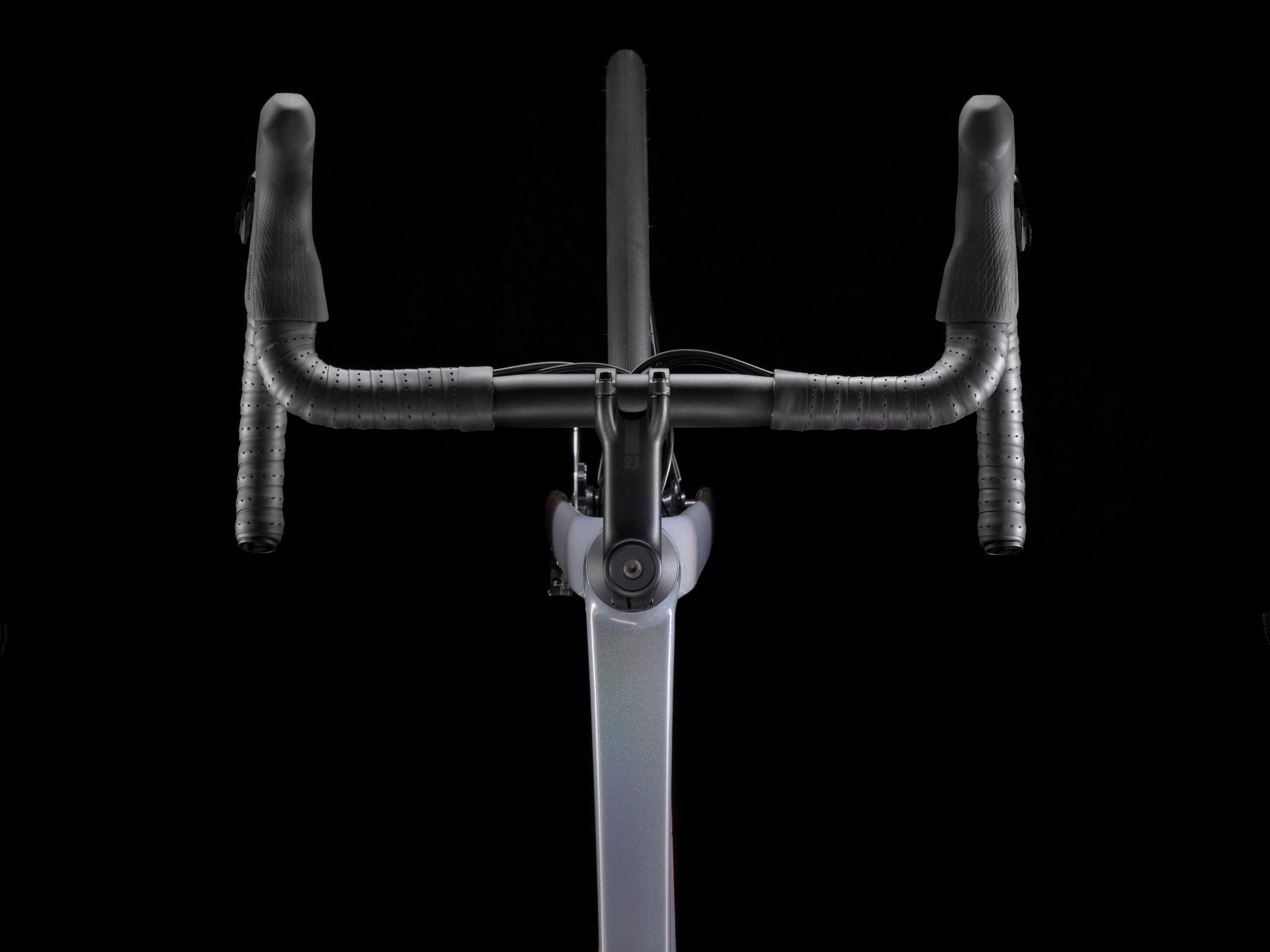

• Handlebar: Bontrager Comp, alloy, varied sizes
• Stem: Bontrager Elite, Blendr-compatible, 7-degree, size dependent

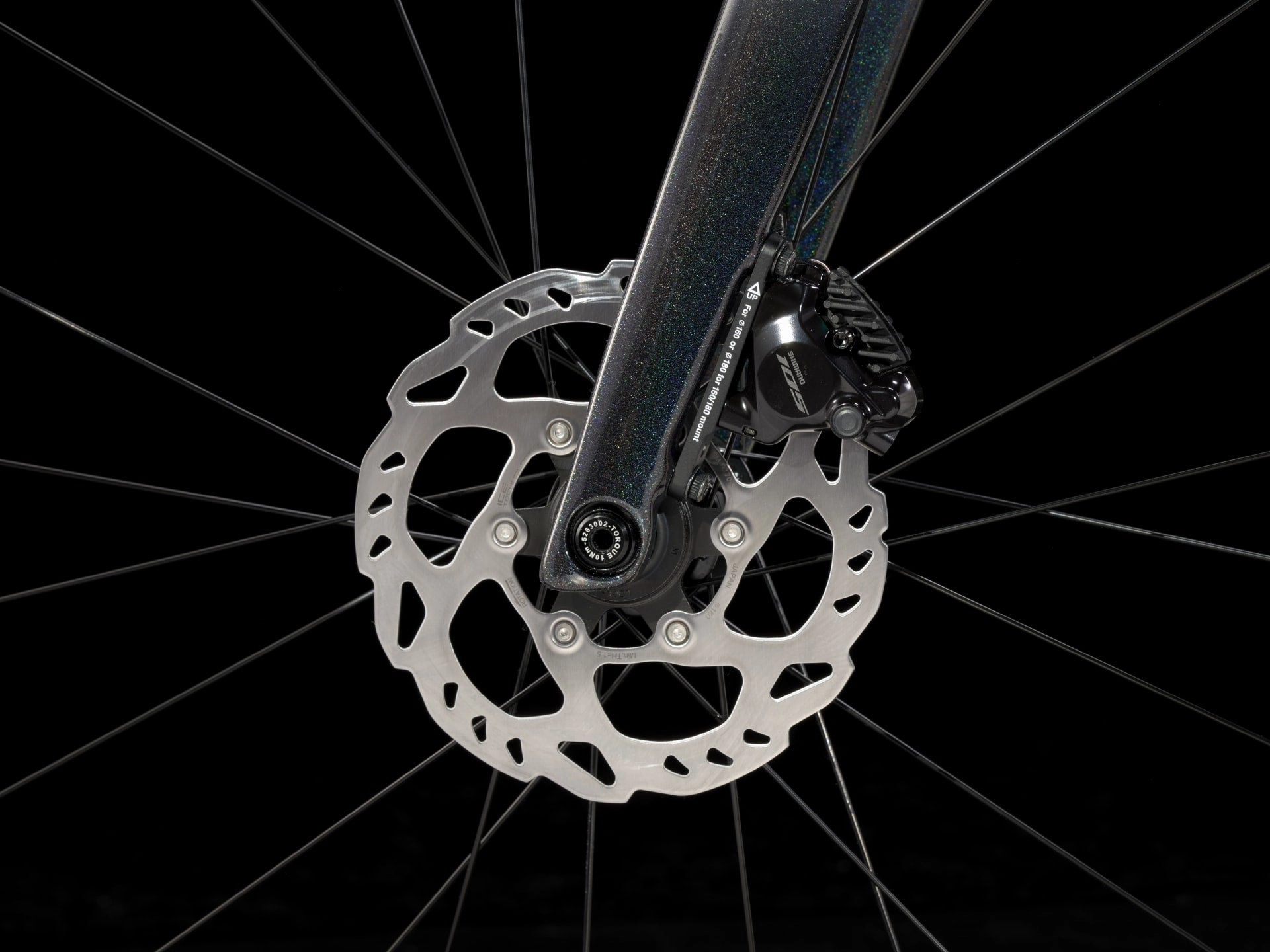

• Brakes: Shimano 105 hydraulic disc, flat mount
• Brake Rotors: Shimano RT70, CentreLock, 160 mm
