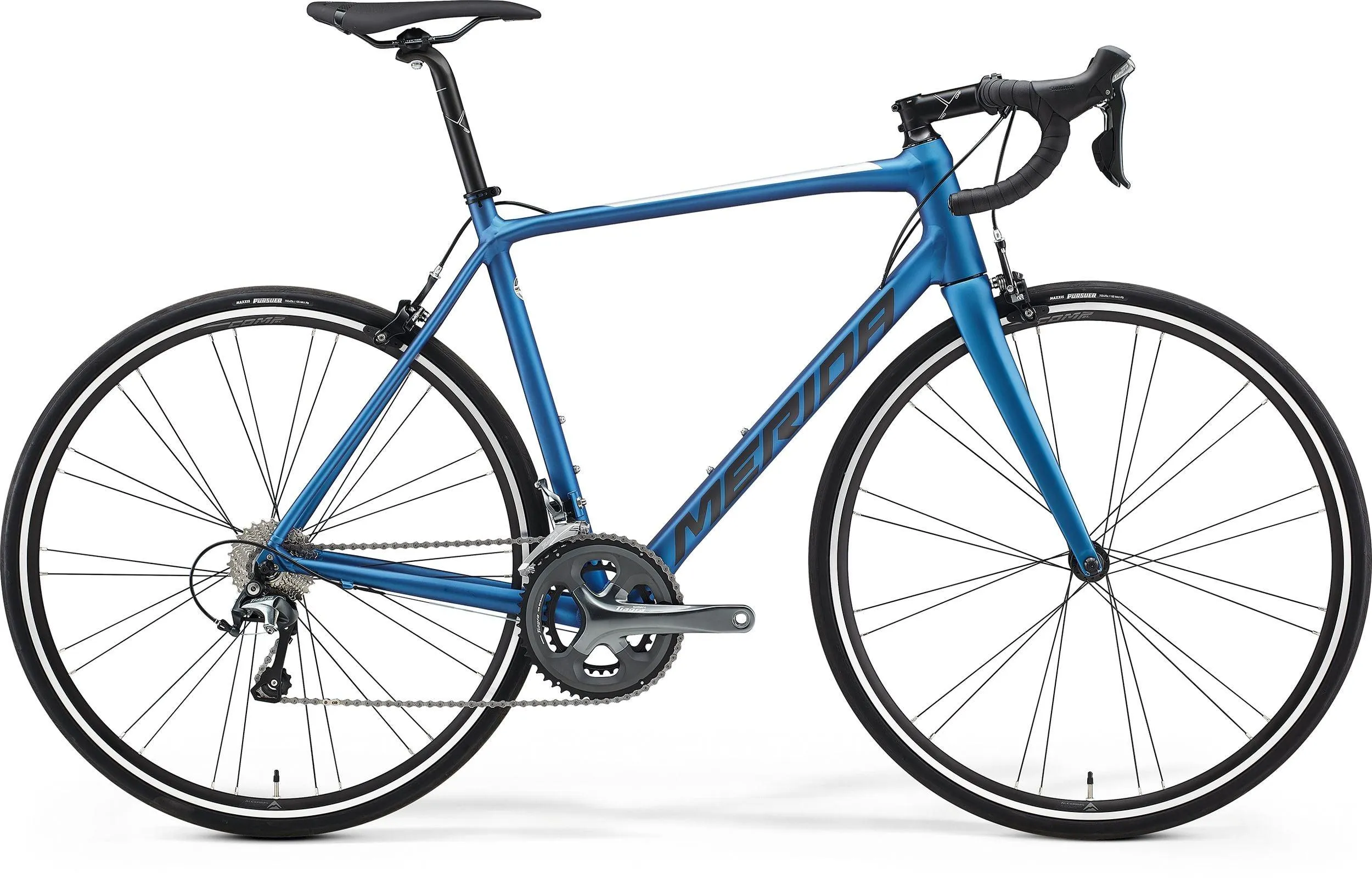

Triple butted aluminium frame with full carbon tapered fork and classic rim brakes. Only very few bikes offer this frame package at the entry-level of their road range. A solid ride with reliable components for long-lasting road riding fun.

Features

• Less aggressive geometry than the SCULTURA CF5 and CF3 models
• Shimano Tiagra 10-speed drivetrain and rim brakes
• Lightweight 6066 triple butted aluminium frame


Specifications

• Intended Use- Race
• Wheel Size- 700c
• Braking System- Rim
• Frame Material- Aluminium
• Fork Material- Carbon

Components

• Frame- SCULTURA LITE BSA material: aluminium 700x25C max. wheelsize 100x9/ 135x9mm axle standard BSA bottom bracket standard
• Fork- SCULTURA RIM CF2 700x25C max. wheelsize
• Bottom Bracket- Shimano BB-RS500 BSA
• Chain- KMC X10
• Crank- Shimano Tiagra 50-34 teeth 165 mm-4S/3S/XXS, 170 mm-XS/S, 172.5 mm-SM/ML, 175 mm-L/XL
• Shift Levers- Shimano Tiagra
• Cassette- Shimano CS-HG500 12-28 teeth 10 speed
• Front Derailleur- Shimano Tiagra
• Rear Derailleur- Shimano Tiagra
• Grips/Bartape- MERIDA ROAD Expert
• Handlebar- MERIDA EXPERT SL material: aluminium 380mm(XXS) 400mm (XS-S) 420mm (S/M-M/L) 440mm (L-XL)
• Stem- MERIDA COMP CC 31.8mm diameter material: aluminium -6 stem angle 70 mm-4S/3S, 80 mm-XXS/XS, 90 mm-S, 100 mm-SM/ML, 110 mm-L/XL
• Saddle- MERIDA COMP SL V-mount
• Seatpost- MERIDA COMP CC material: aluminium 27.2mm diameter 5mm setback
• Front Brake- MERIDA ROAD Comp
• Rear Brake- MERIDA ROAD Comp
• Front Wheel- MERIDA COMP SL, Road seal bearing 100x9mm width front hub 24 spoke holes
• Rear Wheel- MERIDA COMP SL,Road seal bearing 130x9mm width rear hub 28 spoke holes
• Tire- Maxxis Pursuer 700x25C fold
