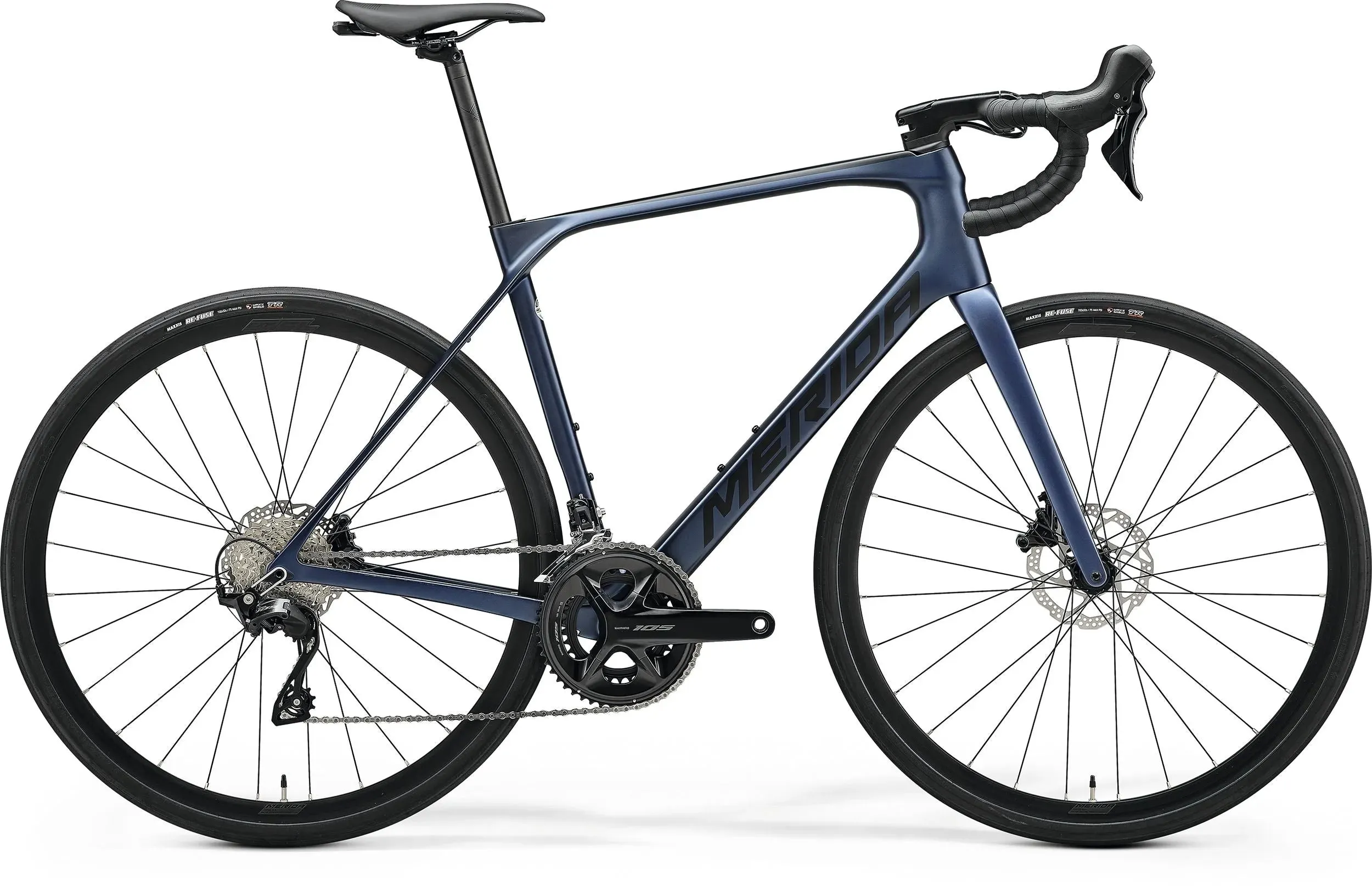

Our entry model into the SCULTURA frame family. Based on our lightweight CF3 frame featuring the same race-proven geometry as our REACTO and a solid componentry package. Our 4000 is light, aerodynamically efficient and super comfortable

Features

• Lightweight CF3 carbon frame with comfort orientated geometry and confidence inspiring handling
• Shimano 105 12-speed groupset
• Under-saddle pouch with MERIDA multitool

Specifications

• Intended Use- Endurance
• Wheel Size- 700c
• Braking System- Hydraulic Disc
• Frame Material- Carbon
• Fork Material- Carbon

Components

• Frame- SCULTURA ENDURANCE CF3 II material: carbon 700x35C max./ 700x32C (with fender) max. wheelsize 100x12/ 142x12mm axle standard BB86 bottom bracket standard
• Fork- SCULTURA ENDURANCE CF3 DISC material: carbon 700x35C max. wheelsize
• Bottom Bracket- Shimano SM-BB72-41B Pressfit 86.5
• Chain- Shimano M6100-12
• Crank- Shimano 105 R7100 50-34 teeth 165 mm-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm-XL
• Shift Levers- Shimano 105 GS
• Cassette- Shimano 105 R7101 11-34 teeth 12 speed
• Front Derailleur- Shimano 105
• Rear Derailleur- Shimano 105 GS
• Grips/Bartape- MERIDA ROAD Expert
• Handlebar- MERIDA EXPERT SLII material: aluminum 380mm (XXS-XS) 400mm (S-M), 420mm (L-XL)
• Stem- MERIDA EXPERT SL 2PII material: aluminum -9 degree stem angle 90 mm-XXS/XS/S, 100 mm-M, 110 mm-L/XL
• Saddle- MERIDA COMP SL 28% recycled material V-mount incl. MERIDA minitool
• Seatpost- MERIDA EXPERT CC 27.2mm diameter 15mm setback Carbon
• Front Brake- Shimano 105 Hydraulic disc
• Rear Brake- Shimano 105 Hydraulic disc
• Front Wheel- MERIDA EXPERT SLII 23mm inner width 25mm height material: aluminum Tubeless ready ; Shimano HB-TC500 100x12mm width front hub 28 spoke holes Centerlock
• Rear Wheel- MERIDA EXPERT SLII 23mm inner width 25mm height material: aluminum Tubeless ready ; Shimano HB-TC500-HL 12-142mm width rear hub 28 spoke holes Centerlock
• Tire- Maxxis RE-FUSE 700x32C fold

Additional Info

• Country of Origin: Taiwan
• Imported By: Extreme Adventure Sports , Gat No. 399 , Milkat , 2289 , Nagar Rd , Sai Satyam Park , Wagholi , Lonikand , Pune - 412207 , Maharashtra , India.
• Net Quantity: 1N
• Customer Care Address: 291, 10 Main, 5 Block, Jayanagar, Bangalore - 560041. Ph: (080)47183232, Email: [email protected]
• Commodity: Bicycles
