KEY FEATURES
- Lightweight 6066 triple butted aluminium frame
- Full carbon tapered fork
- Less aggressive geometry for lasting ride comfort
- Shimano Sora 9-speed shifters and derailleurs
- FSA Omega chainset
- Promax mechanical disc brakes
- Merida Comp SL wheels, 700 x 25c Maxxis tyres

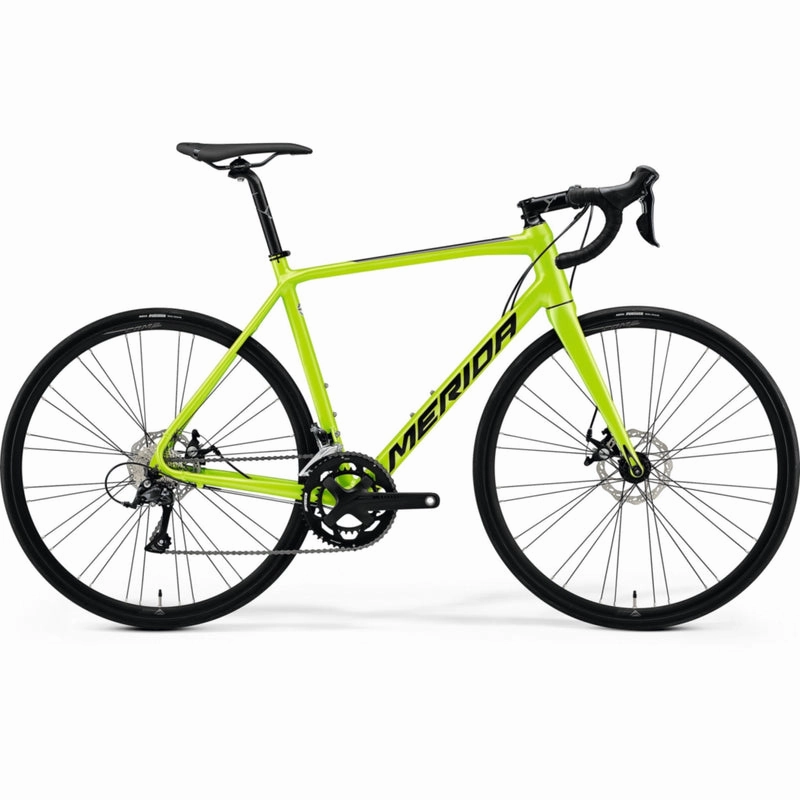

The perfect marriage of lightweight, endurance enhancing comfort and aerodynamic performance, the new Scultura is Meridas most rounded road bike ever. While building on its heritage as a lightweight climbing bike, design details from the award-winning Reacto aero bike have broadened its abilities even further. It combines outstanding comfort with whippet-like acceleration and class-leading climbing pedigree. The Scultura 200 model is ideal for riders who are getting into the sport as well as for those who prefer a slightly more upright position. Built around a lightweight triple butted aluminium frame that features a less aggressive geometry and seating position compared to the high-end Scultura models, for long and efficient miles on the road. Powerful and easy to modulate disc brakes deliver constant braking power even in wetter conditions, while the reliable Shimano/FSA drivetrain and proven Merida parts ensure the 200 will be your trusted companion for years to come.
Specifications
| Axles: | FRONT: MERIDA EXPERT SL / REAR: MERIDA EXPERT SL, including removable lever, 6/4mm allen key |
|---|---|
| Bottom bracket: | FSA BB-AL86/19 |
| Brakes: | Promax DSK-330R, Mechanical disc |
| Chain: | KMC M99 |
| Crankset: | FSA Omega, 50-34T / 165 mm-XXS, 170 mm-XS/S, 172.5 mm-SM/ML, 175 mm-L/XL |
| Derailleur rear: | Shimano Sora, GS |
| Fork: | SCULTURA CF2 disc, 700x28C Max Tyre Width |
| Frame: | SCULTURA DISC LITE, Aluminium, 700x28C Max Tyre Width, 100x12/142x12, Pressfit Bottom Bracket |
| Freewheel: | Microshift CS-9S, 11-28T, 9-speed Cassette |
| Grip: | MERIDA ROAD Comp |
| Handlebar: | MERIDA EXPERT SL, Aluminium, 380mm(XXS) , 400mm (XS-S) , 420mm (S/M-M/L) , 440mm (L-XL) |
| Handlebar stem: | MERIDA COMP CC, 31.8, Aluminium, -6 Rise / 80 mm-XXS/XS, 90 mm-S, 100 mm-SM/ML, 110 mm-L/XL |
| Headset: | MERIDA M2339 Neck |
| Hubs: | FRONT: Joytech D981-12, 100x12, 28H, 6 SBD / REAR: Joytech D982TSE-R, 142x12, 28H, 6 SBD |
| Rim: | MERIDA COMP SL, 17mm Inner Width, 22mm Rim Height, Aluminium, Tubeless ready (tubeless tape and valves not included) |
| Rotor front: | Promax 160G, 160mm |
| Rotor rear: | Promax 160G, 160mm |
| Saddle: | MERIDA COMP SL, V-mount |
| Season: | 2022 |
| Seat clamp: | MERIDA EXPERT |
| Seat post: | MERIDA COMP CC, MAT aluminium, 27.2mm, 5 Setback |
| Spokes: | Black stainless |
| Tyre front: | Maxxis Pursuer, 700x25C, fold |
| Tyre rear: | Maxxis Pursuer, 700x25C, fold |
| Weight: | 9.92kg / Max Load Weight: 120kg |
| Wheel size: | 700c |
Geometry
| Frame Size | XXS | XS | S | S/M | M/L | L | XL |
| Tyre Sizes | 28" | 28" | 28" | 28" | 28" | 28" | 28" |
| ST seat tube [mm] | 440 | 470 | 500 | 520 | 540 | 560 | 590 |
| TT top tube [mm] | 515 | 520 | 530 | 545 | 560 | 575 | 590 |
| CS chain stay length [mm] | 408 | 408 | 408 | 408 | 408 | 408 | 408 |
| HTA head tube angle [] | 71 | 71 | 72 | 73 | 73 | 73 | 73.5 |
| STA seat tube angle [] | 75 | 74.5 | 74 | 74 | 73.5 | 73 | 73 |
| BD bottom bracked drop [mm] | 66 | 66 | 66 | 66 | 66 | 66 | 66 |
| HT head tube [mm] | 120 | 130 | 140 | 150 | 170 | 190 | 215 |
| FL fork length [mm] | 374 | 374 | 374 | 374 | 374 | 374 | 374 |
| R reach [mm] | 376 | 373 | 375 | 386 | 390 | 394 | 401 |
| S stack [mm] | 519 | 529 | 542 | 555 | 574 | 593 | 619 |
| WB wheel base [mm] | 982 | 983 | 979 | 985 | 995 | 1005 | 1014 |
| SH stand over height [mm] | 697 | 720 | 744 | 762 | 779 | 798 | 826 |
