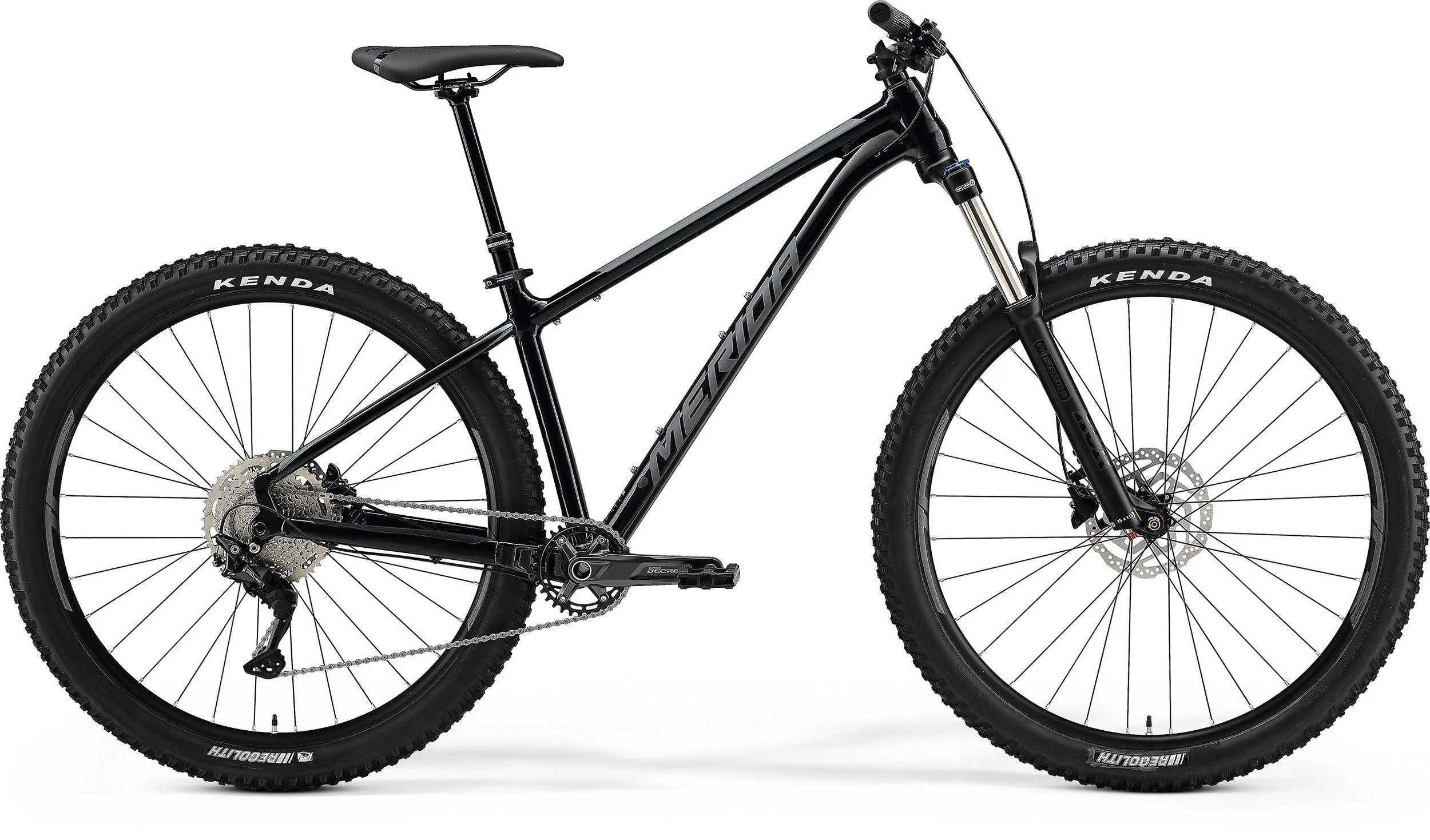

Featuring the same proven and praised frame as its bigger brothers but with a more wallet-friendly spec package. Long travel fork, modern geometry, dropper post and 29" wheels give this bike the edge.
Features
- Modern trail bike geometry with long reach, slack head angle and steep seat angle
- 29er wheels specced with 2.4" trail tyres and clearance for 2.5"
- Extremely low standover height paired with long travel dropper posts
Specifications
- Intended Use- Trail
- Wheel Size- 29"
- Braking System- Hydraulic Disc
- Frame Material- Aluminium
- Fork Material- Aluminium
Components
- Frame- BIG.TRAIL TFS material: aluminium 29x2.5" max. wheelsize 148x12mm axle standard BSA bottom bracket standard
- Fork- SR Suntour XCR34 LOR Air 140mm suspension travel Tapered lockout 51mm fork offset
- Chain- KMC X10
- Crank- Shimano Deore M5100 32 teeth 170 mm-S, 175 mm-M up
- Shift Levers- Shimano SL -MT500-L / Shimano Deore M4100
- Cassette- Shimano Deore M4100 11-46 teeth 10 speed
- Rear Derailleur- Shimano Deore M5120 Shadow SGS
- Handlebar- MERIDA EXPERT CC material: aluminium 740mm width 10mm rise
- Stem- MERIDA COMP CC material: aluminium 31.8mm diameter 7 stem angle 50 mm
- Saddle- MERIDA COMP SL V-mount
- Seatpost- MERIDA COMP TR 30.9mm diameter 0mm setback S: 125mm travel seatpost - M/L: 150mm travel seatpost - XL/XXL 175mm travel seatpost
- Front Brake- Tektro M275 2 piston
- Rear Brake- Tektro M275 2 piston
- Front Wheel- MERIDA COMP TR, Shimano MT400-B 110x15mm width front hub 32 spoke holes Centerlock
- Rear Wheel- MERIDA COMP TR, Shimano MT400-B 148x12mm width rear hub 32 spoke holes Centerlock
- Tire- Kenda Regolith 29x2.4" wire
- Pedal- VP VPE-891
Additional Info
- Country of Origin: Taiwan
- Imported By: Extreme Adventure Sports , Gat No. 399 , Milkat , 2289 , Nagar Rd , Sai Satyam Park , Wagholi , Lonikand , Pune - 412207 , Maharashtra , India.
- Net Quantity: 1N
- Customer Care Address: 291, 10 Main, 5 Block, Jayanagar, Bangalore - 560041. Ph: (080)47183232, Email: [email protected]
- Commodity: Bicycles
