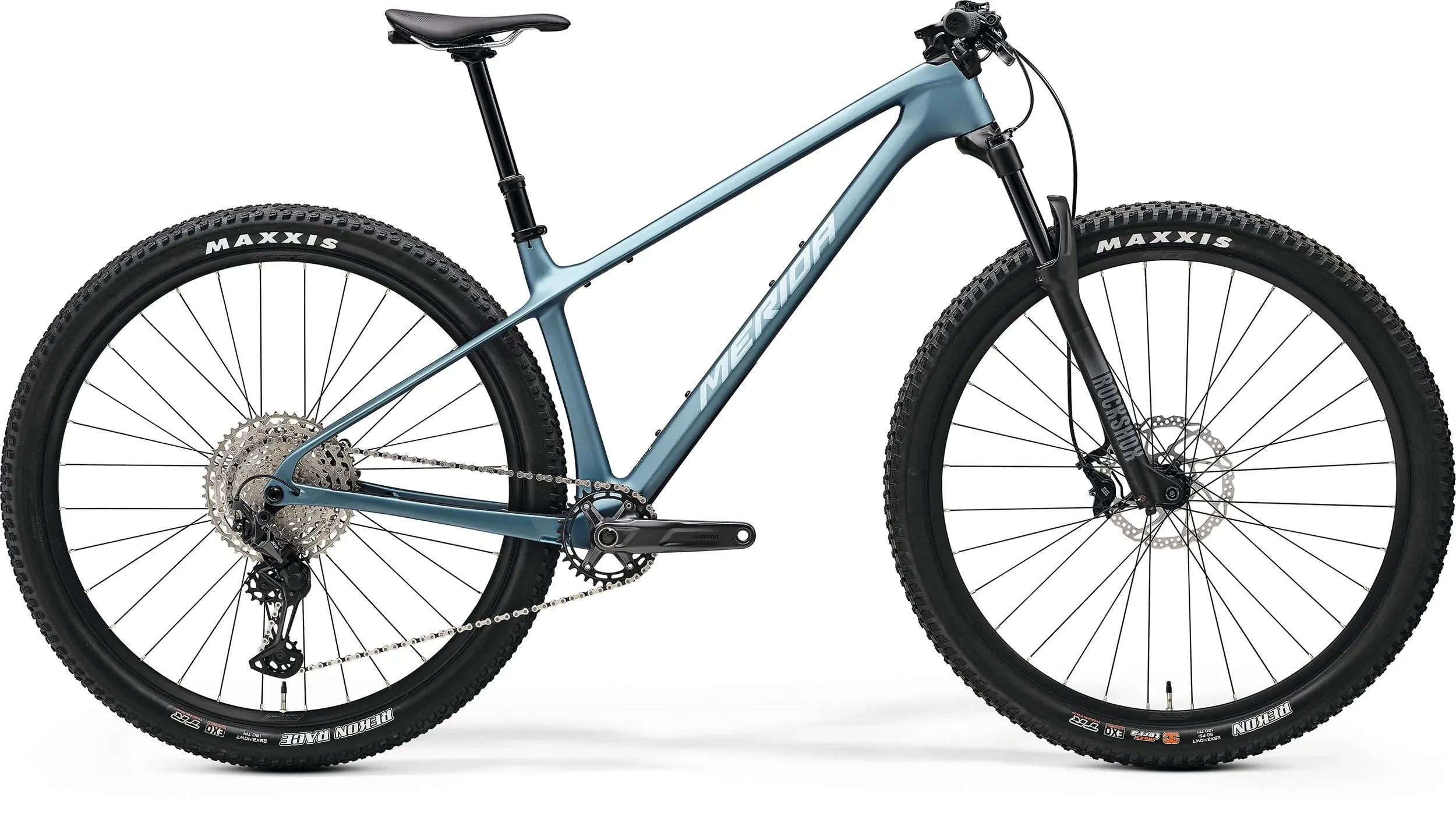

Relentless speed and low weight uphill, paired with trail-hardtail swagger on the descents. Add a 120 mm fork, aggressive tyres and a dropper post to our lightweight carbon frame and you've got a recipe for fun.
Features
- Lightweight CF3 carbon fibre frame with 2.4" tyre clearance
- Progressive geometry with AGILOMETER sizing for confident handling
- RockShox Judy fork with 120 mm travel for improved descending ability
- Wide range Shimano 12-speed drivetrain
- Lightweight MERIDA dropper seatpost with remote lever
Specifications
- Intended Use- Trail
- Wheel Size- 29"
- Braking System- Hydraulic Disc
- Frame Material- Carbon
Components
- Frame- BIG.NINE TR CF3 III material: carbon 29x2.4" max wheelsize 148x12mm axle standard BSA bottom bracket standard
- Fork- Rock Shox Judy Gold Air 120mm suspension travel Tapered Remote lockout 51 mm fork offset
- Bottom Bracket- Shimano BB-MT-501 24mm
- Chain- KMC X12
- Crank- Shimano Deore MT512 32 teeth 170 mm-S, 175 mm-M up
- Shift Levers- JD-FL lever / Shimano Deore M6100
- Cassette- Shimano Deore M6100 10-51 teeth 12 speed
- Rear Derailleur- Shimano XT SGS
- Grips/Bartape- MERIDA EXPERT EC
- Handlebar- MERIDA EXPERT CC material: aluminum 760mm width flat
- Stem- MERIDA TEAM CC III material: aluminum 31.8mm diameter -6 stem angle incl. MERIDA SMART MOUNT S, M, L: 60 mm, XL, XXL 70 mm
- Saddle- MERIDA EXPERT SL 6% recycled and 23% nature material V-mount incl. MERIDA minitool
- Seatpost- MERIDA TEAM TR SL 30.9mm diameter 0mm setback S/M: 150mm travel seatpost - L/XL/XXL: 170mm travel seatpost
- Front Brake- Shimano SLX M7100 2 piston
- Rear Brake- Shimano SLX M7100 2 piston
- Front Wheel- MERIDA EXPERT CC II 25mm inner width material: aluminum Tubeless ready ; Shimano TC500-B 110x15mm width front hub 32 spoke holes Centerlock
- Rear Wheel- MERIDA EXPERT CC II 25mm inner width material: aluminum Tubeless ready ; Shimano TC500-MS-B 148x12mm width rear hub 32 spoke holes Centerlock
- Tire- Maxxis Rekon 29x2.4" WT tubeless ready 3C EXO / Maxxis Rekon Race 29x2.4" WT tubeless ready 3C MaxxTerra EXO
Additional Info
- Country of Origin: Taiwan
- Imported By: Extreme Adventure Sports , Gat No. 399 , Milkat , 2289 , Nagar Rd , Sai Satyam Park , Wagholi , Lonikand , Pune - 412207 , Maharashtra , India.
- Net Quantity: 1N
- Customer Care Address: 291, 10 Main, 5 Block, Jayanagar, Bangalore - 560041. Ph: (080)47183232, Email: [email protected]
- Commodity: Bicycles
