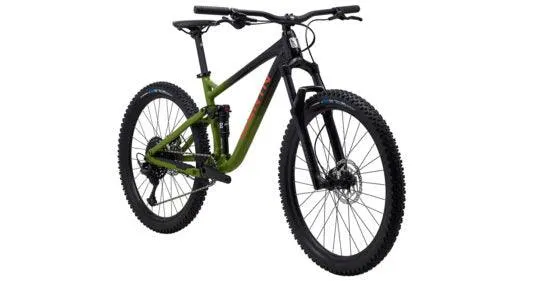

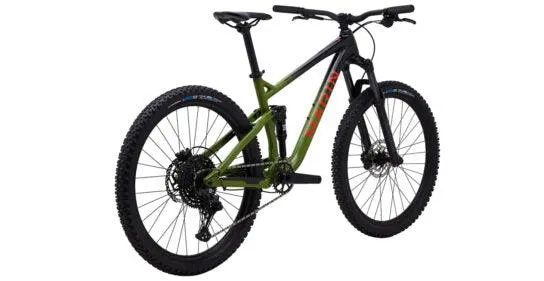

The Rift Zone 27.5 is our most playful trail bike, made for the rider that catches a bit of air off of every root in the trail, is always looking for an alternate line, and ends every ride with a smile. This is an all-around suspension bike with trail performance far out stretching the asking price.
Specifications
- Intended Use- Trail
- Wheel Size- 27.5"
- Braking System- Hydraulic Disc
- Frame Material- Aluminium
- Fork Material- Aluminium
Components
- Frame- Series 3 6061 Aluminum Frame, 27.5 Wheels, 120mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs
- Fork- RockShox Recon Silver RL 27.5", 130mm Travel, Solo Air, Compression and Rebound Adjustment, Alloy Tapered Steerer, Fast Black Uppers, 110x15mm Boost Spacing, Maxle Stealth, 37mm Offset
- Bottom Bracket- External Sealed Cartridge Bearing
- Chain- KMC X-11 Silver and Black
- Crank- Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing
- Shift Levers- Shimano Deore, 11-Speed, SL-5100R
- Cassette- SunRace, 11-Speed, 11-51T, ED Black
- Rear Derailleur- Shimano Deore, 11 Speed, SGS
- Grips/Bartape- Marin MTN, Closed End
- Handlebar- Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5 Up, 9 Back
- Stem- Marin 3D Forged Alloy, 35mm
- Saddle- Marin Speed Concept
- Seatpost- Marin Alloy, 30.9mm
- Front Brake- Shimano BR-MT200 Hydraulic Disc, 180mm Rotor
- Rear Brake- Shimano BR-MT200 Hydraulic Disc, 180mm Rotor
- Front Wheel- Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible
- Rear Wheel- Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible
- Tire- Vee Tire Crown Gem 27.5x2.3", Dual Control Compound, Tubeless Ready
Geometry
| S | M | L | XL | |
| A STACK | 602.6 | 607.15 | 611.7 | 616.25 |
| B REACH | 430 | 455 | 480 | 505 |
| C HEADTUBE ANGLE | 65.5 | 65.5 | 65.5 | 65.5 |
| D HEADTUBE LENGTH | 100 | 105 | 110 | 115 |
| E SEATTUBE ANGLE | 76 | 76 | 76 | 76 |
| F SEATTUBE LENGTH | 390 | 400 | 425 | 430 |
| G TOPTUBE EFFECTIVE | 580.24 | 606.36 | 632.51 | 658.6 |
| H BB HEIGHT | 344 | 344 | 344 | 344 |
| I BB DROP | 34 | 34 | 34 | 34 |
| J CHAINSTAY | 425 | 425 | 425 | 425 |
| K WHEELBASE | 1158.92 | 1186 | 1213 | 1240.1 |
| L STANDOVER HEIGHT | 691.84 | 697.1 | 717.83 | 721.97 |
| M FORK OFFSET | 37 | 37 | 37 | 37 |
| SEATPOST DIAMETER | 30.9 | 30.9 | 30.9 | 30.9 |
| HANDLEBAR WIDTH | 780 | 780 | 780 | 780 |
| STEM LENGTH | 35 | 35 | 35 | 35 |
| CRANK LENGTH | 170 | 175 | 175 | 175 |
Additional Info
- Country of Origin: Indonesia
- Imported By: Ciclo Essentials Private Limited , B-55A , Sahakar Marg , Jaipur - 302005 , India.
- Net Quantity: 1N
- Customer Care Address: 291, 10 Main, 5 Block, Jayanagar, Bangalore - 560041. Ph: (080)47183232, Email: [email protected]
- Commodity: Bicycles
