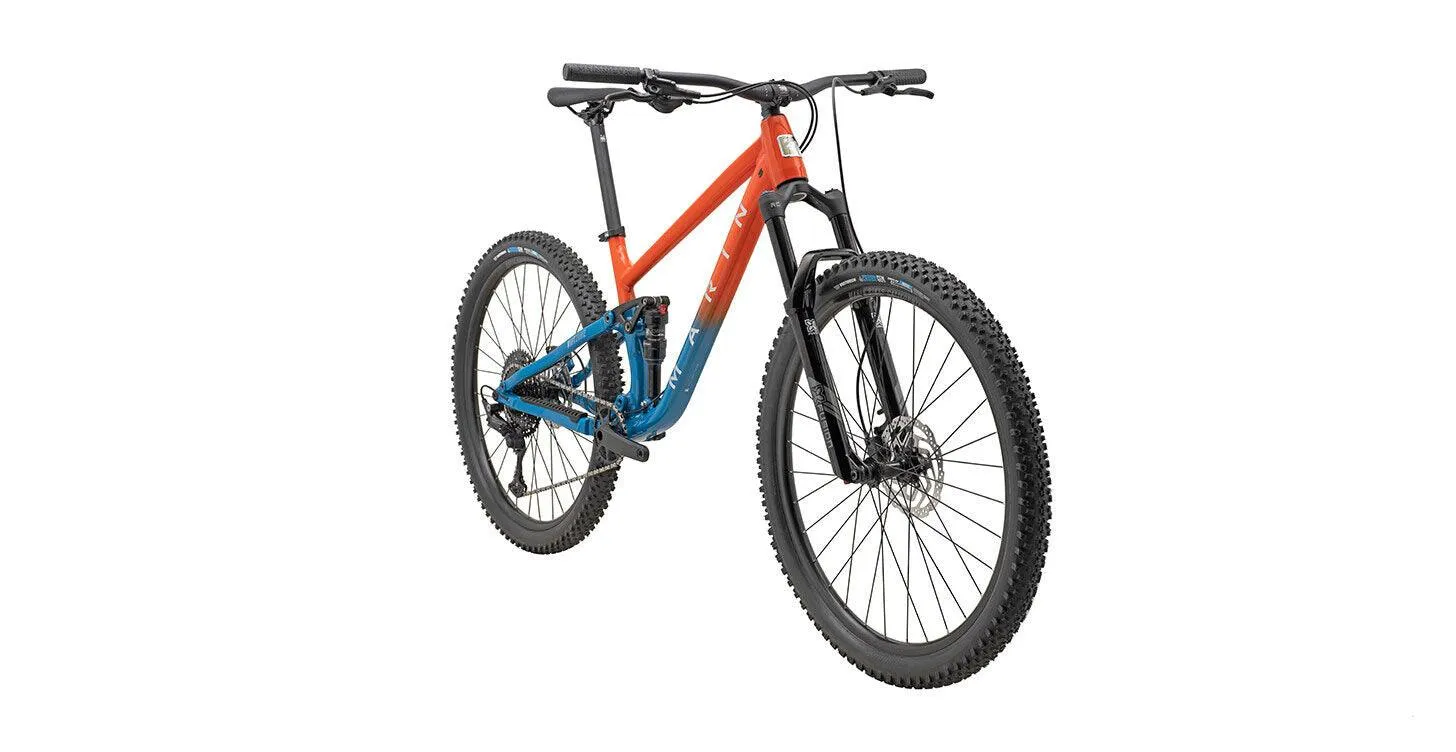

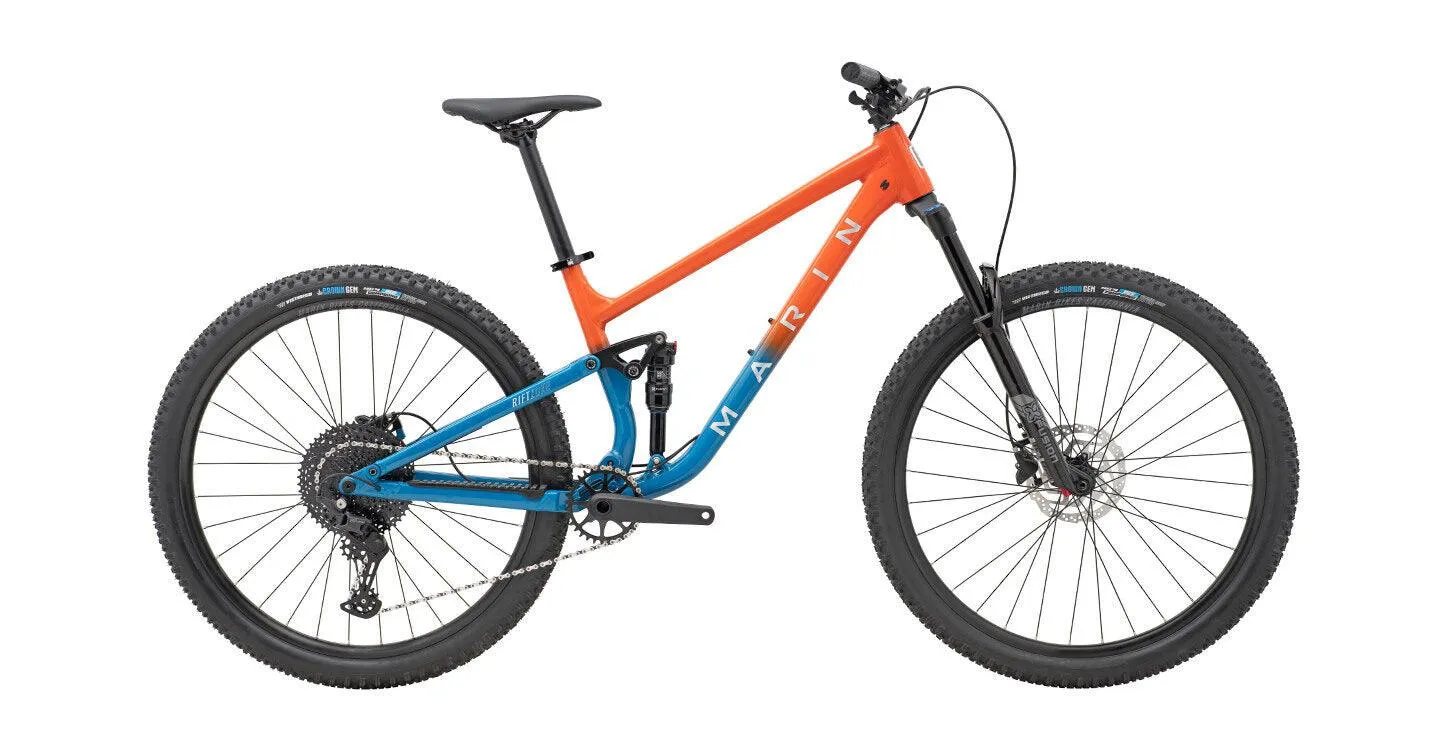

The Rift Zone 29 brings together trail-taming 29" wheels, 130mm of rear travel, a lightweight aluminum frame and our super-plush MultiTrac suspension platform for endless good times on the trails. The Marin Rift Zone 29 1 is your gateway to the Rifty family, made to push the limits of your riding but not your bank balance. It's built with super reliable X-Fusion suspension, grippy Vee Crown Gem tires, plenty of Shimano and a hand-picked selection of our favorite Marin components.

Features

• UNIDIRECTIONAL CARBON FIBER FRAME The Rift Zone Carbon models feature high modulus carbon fiber and monocoque construction to deliver the lightest, most capable, Rift Zone that Marin has ever made.
• SERIES 3 ALUMINUM FRAME Rift Zone alloy models feature Series 3 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing with new braze-in ports, giving the rider a high feature and high-performing upgrade-worthy platform.
• MULTITRAC SUSPENSION TECHNOLOGY MultiTrac is an acclaimed suspension system, fine-tuned to have a balanced ride capable of absorbing big hits with an efficient pedaling platform. The rocker link provides a progressive leverage ratio for the rear shock for small bump sensitivity and the feeling of a long travel system on large drops and rocks. Carbon models feature 125mm rear travel, while alloy models now boast 130mm.
• INTERNAL ROUTING Both carbon and alloy frames sport full internal cable/hose routing in the front triangle, and alloy models feature all-new brazed-in cable ports, providing a clean and rattle free cable set up.
• NEW CHAINSTAY/SEATSTAY PROTECTORS & UDH ON ALLOY MODELS 2023 Rift Zone Alloy models have enhanced chainstay and seat stay protectors for a quiet ride, and utilize SRAM's Universal Derailleur Hanger (UDH) to help future-proof the frame.

Specifications

• Intended Use- Trail
• Wheel Size- 29"
• Braking System- Hydraulic Disc
• Frame Material- Aluminium
• Fork Material- Aluminium

Components

• Frame- New Series 3 6061 Aluminum, 29 Wheels, 130mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs
• Fork- X-Fusion Slide Boost RC, 29", 140mm Travel, Compression and Rebound Adjustment, 44mm Offset
• Bottom Bracket- External Sealed Cartridge Bearing
• Chain- KMC X-11 Silver and Black
• Crank- Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing
• Shift Levers- Shimano Deore, 11-Speed, SL-5100R
• Cassette- Sunrace, 11-Speed, 11-51T, ED Black
• Rear Derailleur- Shimano Deore, 11-Speed, SGS
• Grips/Bartape- Marin MTN, Closed End
• Handlebar- Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5 Up, 9 Back
• Stem- Marin 3D Forged Alloy, 35mm
• Saddle- Marin Speed Concept
• Seatpost- Marin Alloy, 30.9mm
• Front Brake- Tektro HDM-280 Hydraulic Disc, 180mm Rotor
• Rear Brake- Tektro HDM-280 Hydraulic Disc, 180mm Rotor
• Front Wheel- Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible, Forged Alloy hub , 110x15mm, Disc, 32H
• Rear Wheel- Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible, Forged Alloy hub, 141QR, Disc, 32H, HG Freehub Body
• Tire- Vee Tire Co. Crown Gem 29x2.35", Dual Control Compound, Tubeless Ready
