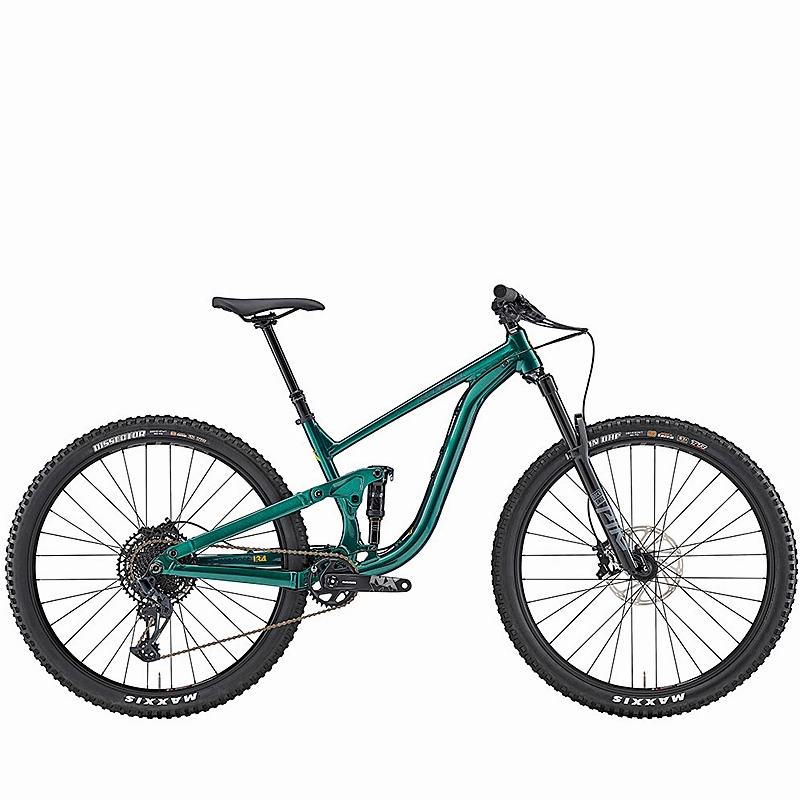

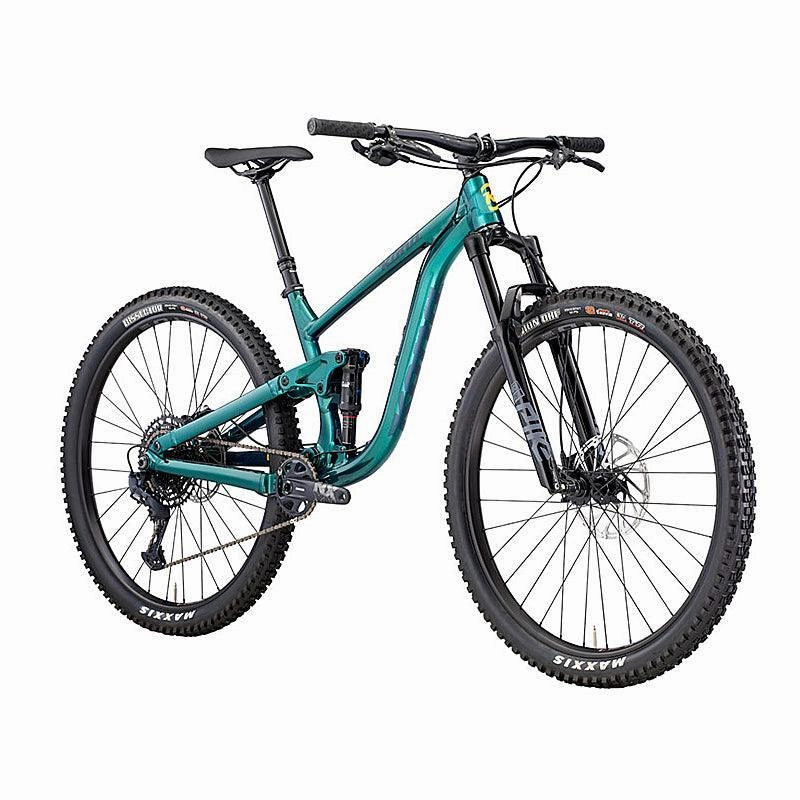

The Kona Process 134 DL 29 is a high-performance full suspension mountain bike designed for tackling the most challenging trails. With a 6061 aluminum frame and RockShox Pike Select RC rear shock, it offers 134mm of smooth travel to absorb the toughest terrain. The bike is equipped with a SRAM GX-Eagle 12-speed drivetrain, providing reliable and precise shifting in any conditions. The SRAM G2 RS hydraulic disc brakes deliver excellent stopping power and control on steep descents. The Maxxis tires provide excellent traction and stability, even in the most challenging terrain. Whether you're hitting the local trails or taking on a rugged mountain adventure, the Kona Process 134 DL 29 is up for the challenge.
Specifications
| FRAME MATERIAL | Kona 6061 Aluminum Butted 134mm Travel |
| SIZES | S, M, L, XL |
| REAR SHOCK | RockShox Deluxe Ultimate Trunnion |
| FORK | RockShox Pike Select RC Charger DebonAir 140mm Tapered 110mm Spacing |
| CRANKARMS | SRAM NX Eagle DUB |
| CHAINRINGS | 32t X-Sync Eagle |
| B/B | SRAM DUB PF92 |
| PEDALS | n/a |
| CHAIN | SRAM SX-Eagle |
| CASSETTE | SRAM NX-Eagle 11-50t 12spd |
| CHAINGUIDE | n/a |
| F/D | n/a |
| R/D | SRAM GX-Eagle |
| SHIFTERS | SRAM NX-Eagle |
| BRAKE CALIPERS | SRAM G2 RS |
| FRONT BRAKE ROTOR | SRAM Centerline 200mm |
| REAR BRAKE ROTOR | SRAM Centerline 180mm |
| BRAKE LEVERS | SRAM G2 RS |
| HEADSET | FSA Orbit 1.5 EP ZS |
| HANDLEBAR | Kona XC/BC 35 |
| STEM | Kona XC/BC 35 |
| SEATPOST | TranzX Dropper RAD Internal 31.6mm |
| SEAT CLAMP | Kona Clamp |
| GRIPS | Kona Key Grip |
| SADDLE | WTB Volt |
| FRONT HUB | Formula 110x15mm |
| REAR HUB | Formula 148x12mm |
| SPOKES | Stainless Black 14g |
| RIMS | WTB KOM Team i30 TCS |
| FRONT TIRE | Maxxis Minion DHF EXO TR 3C 29x2.5" WT |
| REAR TIRE | Maxxis Dissector EXO TR 3C 29x2.4" WT |
| PAINT COLOR | Gloss Metallic Green w/ Matte Black Forest & Indicator Decals |
Size Guide
| SIZE | S | M | L | XL |
| 1 | ST LENGTH | 385 | 410 | 450 | 485 |
| 2 | TT LENGTH | 569 | 596 | 625 | 664 |
| 3 | REACH | 425 | 450 | 475 | 510 |
| 4 | STACK | 601 | 605 | 615 | 625 |
| 5 | STANDOVER | 715 | 725 | 725 | 725 |
| 6 | HT ANGLE | 66 | 66 | 66 | 66 |
| 7 | HT LENGTH | 93 | 98 | 109 | 120 |
| 8 | ST ANGLE | 76.5 | 76.5 | 76.3 | 76.2 |
| 9 | CS LENGTH | 427 | 427 | 427 | 427 |
| 10 | BB DROP | 33 | 33 | 33 | 33 |
| 11 | BB HEIGHT | 342 | 342 | 342 | 342 |
| 12 | WHEELBASE | 1159 | 1186 | 1216 | 1255 |
| 13 | FRONT CENTER | 734 | 761 | 791 | 830 |
| 14 | FORK LENGTH | 551 | 551 | 551 | 551 |
| 15 | FORK OFFSET | 51 | 51 | 51 | 51 |
