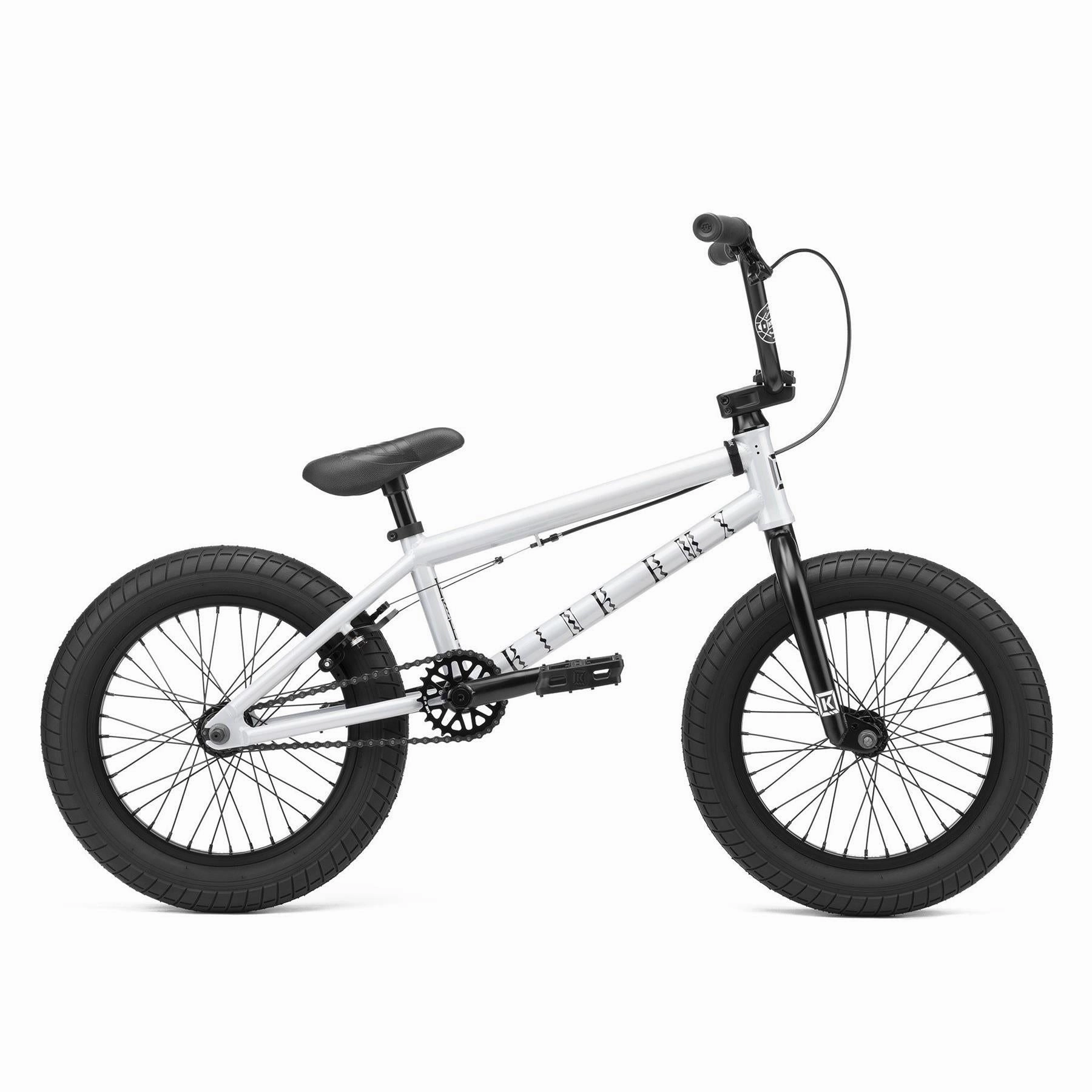

The Kink Carve 16" BMX is designed with properly proportioned geometry and components to create a modern, yet comfortable ride suited for the younger rider before they make the step to an 18" BMX.

Hi-ten steel construction gives the frame, fork and bars the level of strength and durability that'll hold up to any and all abuse thrown at it.

For a smaller complete the Carve is loaded with high-quality parts from Kink and Mission like the Stryker fork, Rank sprocket, topload stem to Mission's semi-sealed cassette, single wall rims and Mission Tracker 2.4" tires.

###section###

Product Specs

1. FRAME MATERIAL: 100% Hi-Ten Steel
2. WHEEL SIZE: 16"
3. TOP TUBE LENGTH: 16.5"
4. CHAIN STAY LENGTH: 11.25"
5. HEADTUBE ANGLE: 74.5
6. SEAT TUBE ANGLE: 71
7. FORKS: Chromoly Steerer Tube and Tapered Hi-Ten Legs
8. BARS:
   - MATERIAL: Hi-Ten
   - TYPE: 2-Piece
   - RISE: 7" Rise
   - WIDTH:
9. STEM: Alloy Top Load
10. HEADSET: Integrated
11. BRAKE MOUNTS: Welded Mount
12. BRAKES: V-Brake
13. FRONT HUB: 10mm Loose Ball
14. FRONT RIM: Single Wall
15. REAR HUB: 14mm Sealed Cassette
16. REAR RIM: Single Wall
17. TYRES: 2.4"
18. SPROCKET: 25t
19. CRANKS:
    - MATERIAL: Chromoly
    - TYPE: 3-Piece
    - ARM LENGTH: 140mm
20. BB: 19mm Mid
21. PEDALS: Plastic
22. SEAT: Combo Seat/Post
23. GEARING: 25/9
24. WEIGHT: 21lbs (9.5kg)

###section###

Product Highlights

• Smaller 16" Wheels - The Perfect fit for for 5-8 years olds (3ft - 3ft 6 / 90cm - 105cm)
• Specifically designed for the smaller rider, just starting out in BMX
• Strong Hi-Ten steel construction
• BMX style geometry
• Strong and durable crankset
