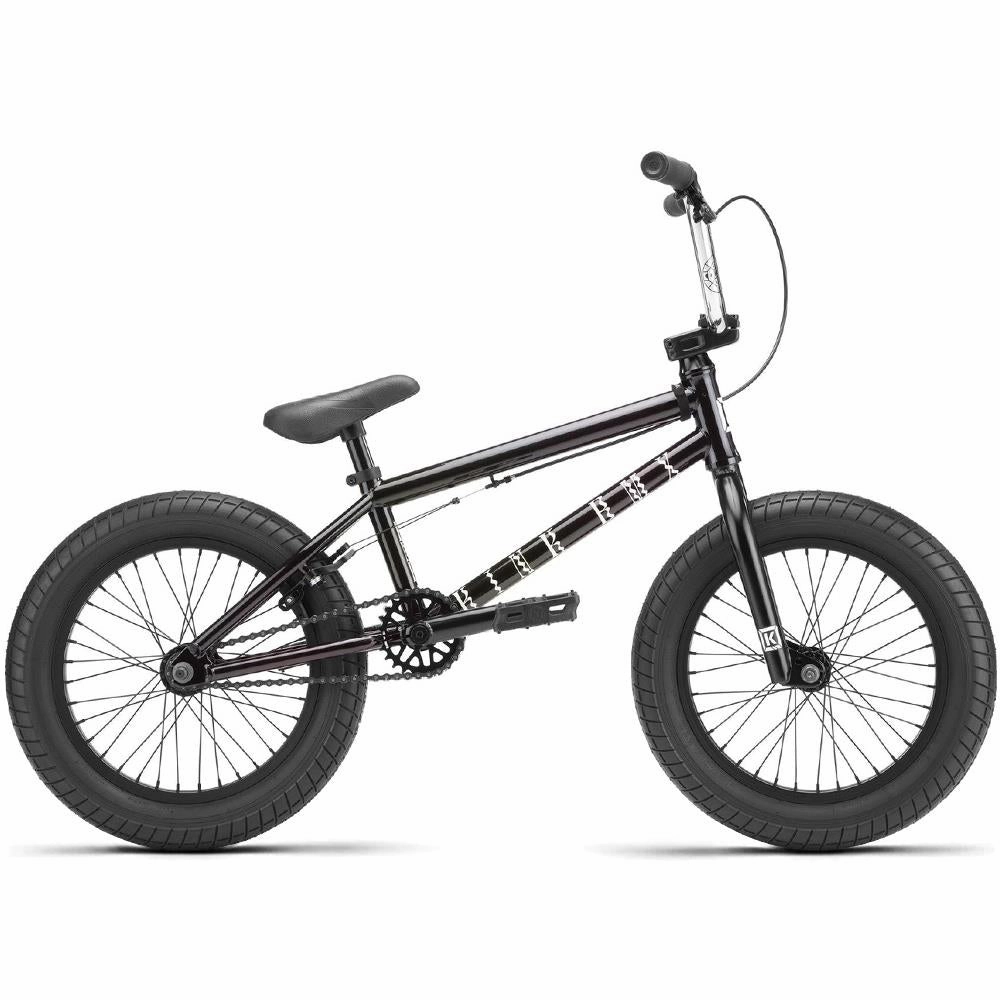

The Kink Carve 16" BMX has properly proportioned geometry and components to create a modern, yet comfortable ride for younger riders.
Designed for those riders who aren't quite ready for the bump up to a larger 18" bike yet, the Carve fills that void to keep you riding until you need to size up.
The 2022 version of the Carve comes fully equipped with Kink T700 7" bars, a short reach 40 Mission topload stem, rock solid 3-piece tubular chromoly cranks with sealed Mid bottom bracket, a sealed integrated headset and 2.4" tyres with a modern tread design.
###section###
Product Specs
- FRAME MATERIAL: Steel
- WHEEL SIZE: 16"
- TOP TUBE LENGTH: 16.5"
- CHAIN STAY LENGTH: 11.25"
- HEADTUBE ANGLE: 74.5
- SEAT TUBE ANGLE:
- FORKS: Kink 16" Stryker Fork 4130 Chromoly Steerer Tapered Fork Legs
- BARS: Kink T700 Bar 7" 100% Hi-Ten Steel

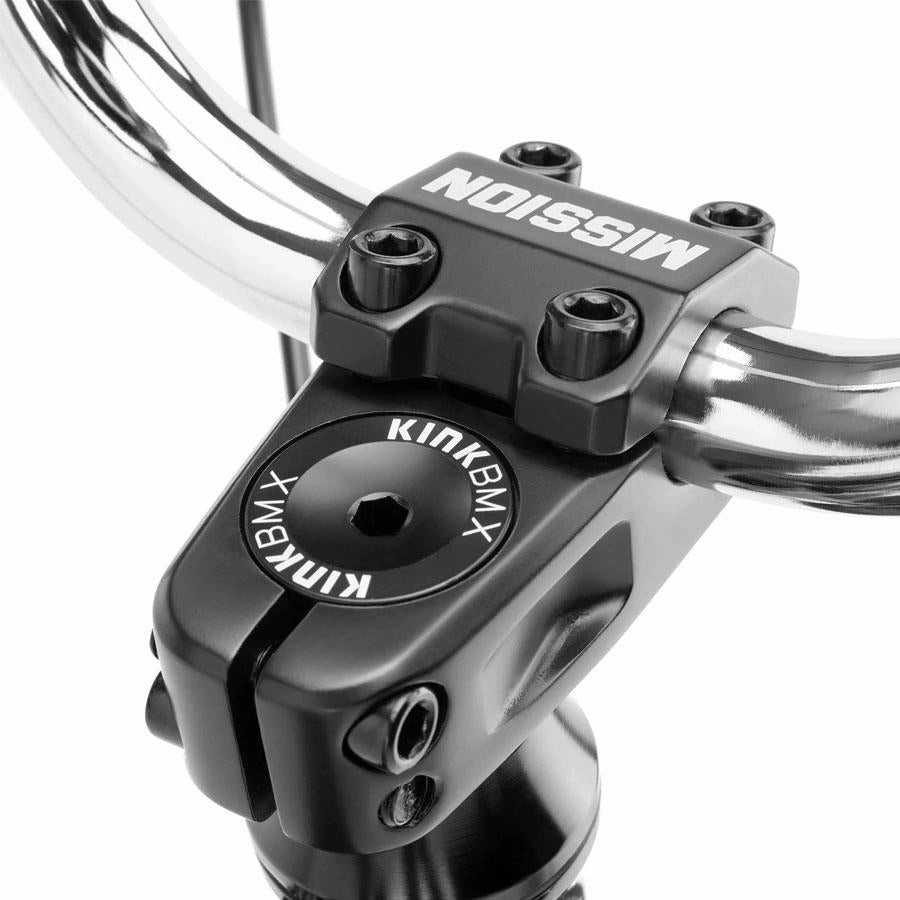

- STEM: Mission Topload 40mm
- HEADSET: Mission Sealed Integrated (41.8 x 45)
- BRAKE MOUNTS: Welded
- BRAKES: Mission Cease V2
- FRONT HUB: Mission Covert Unsealed 3/8" Axle
- FRONT RIM: Mission X7
- REAR HUB: Mission Function Semi-Sealed Cassette 14mm
- REAR RIM: Mission X7

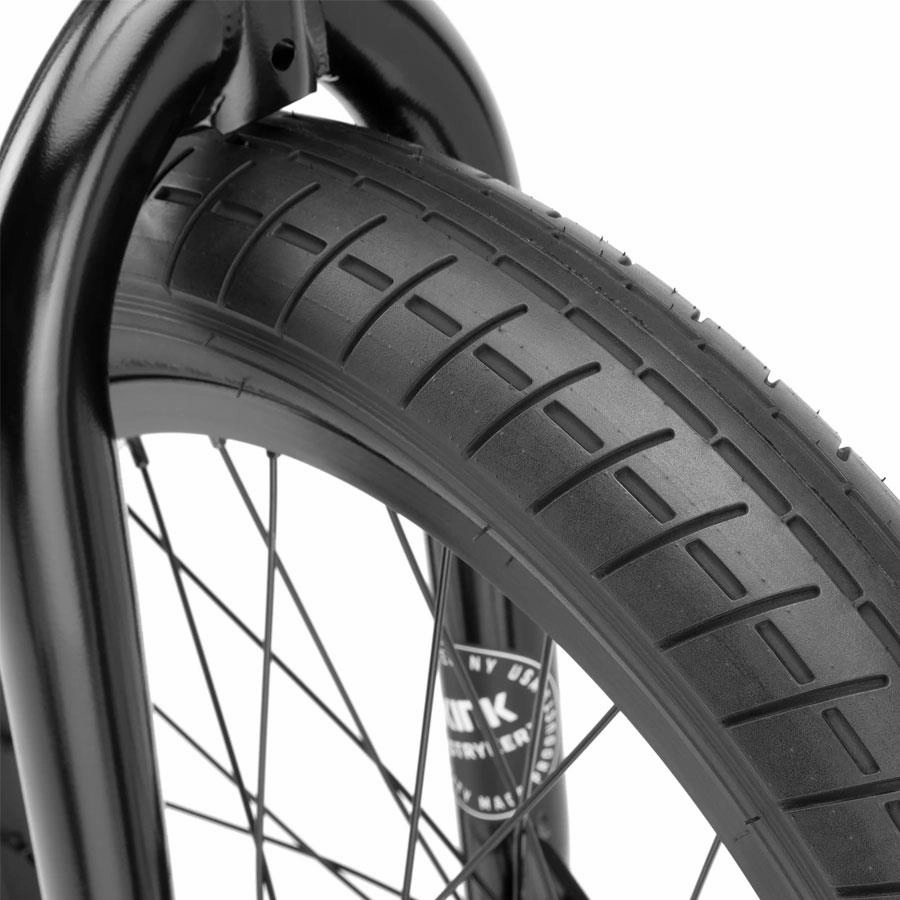

- TYRES: Mission Tracker 16 x 2.4"
- SPROCKET: Mission Rank 25T

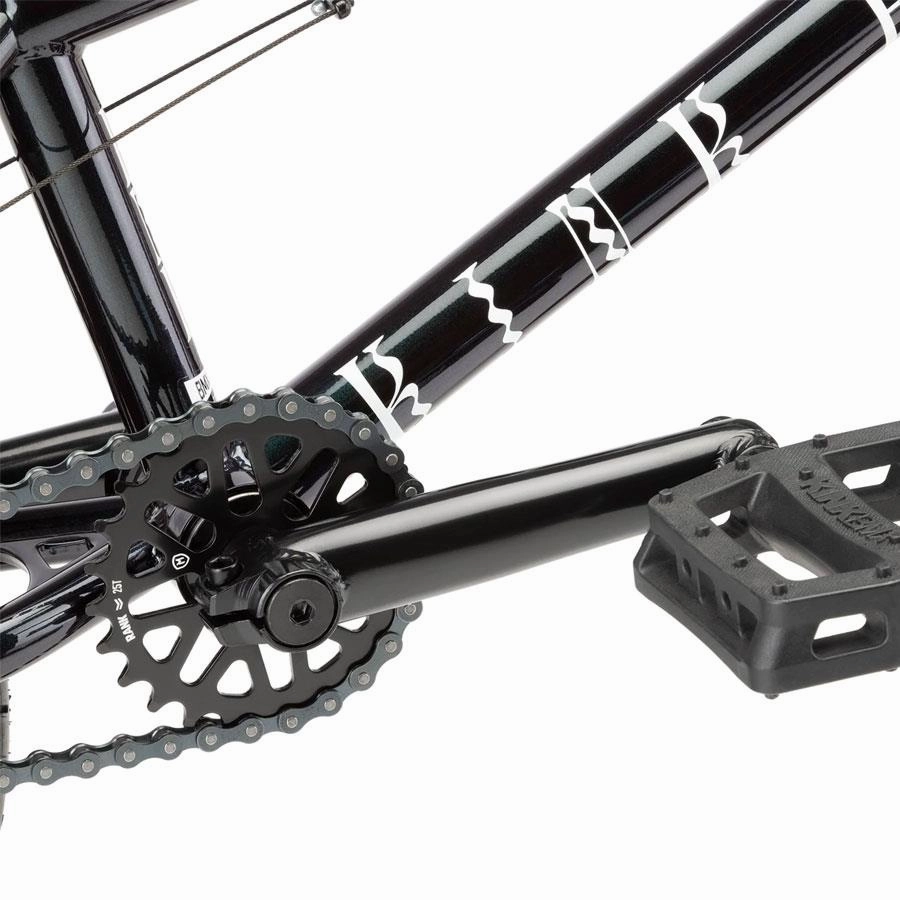

- CRANKS: Mission Triumph 3-piece Tubular Chromoly 140mm - 8 Spline
- BB: Sealed Mid 19mm
- PEDALS: Kink Hemlock Pedals

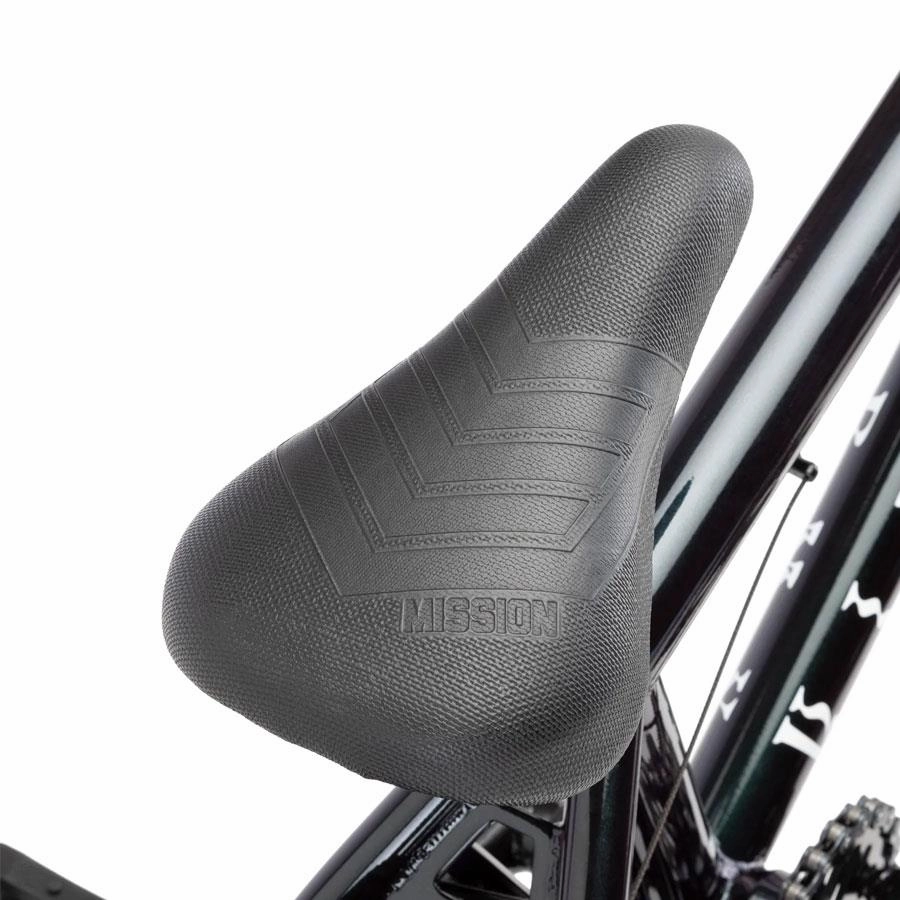

- SEAT: Mission Cypress Mini Combo
- GEARING: 25/9
- WEIGHT: 22lb 9oz
###section###
Product Highlights
- Smaller 16" wheels - The perfect fit for for 5-8 years olds (3ft - 3ft 6"/90cm - 105cm)
- Specifically designed for the smaller rider, just starting out in BMX
- Strong steel construction
- Wider tires
- Traditional BMX Geometry
