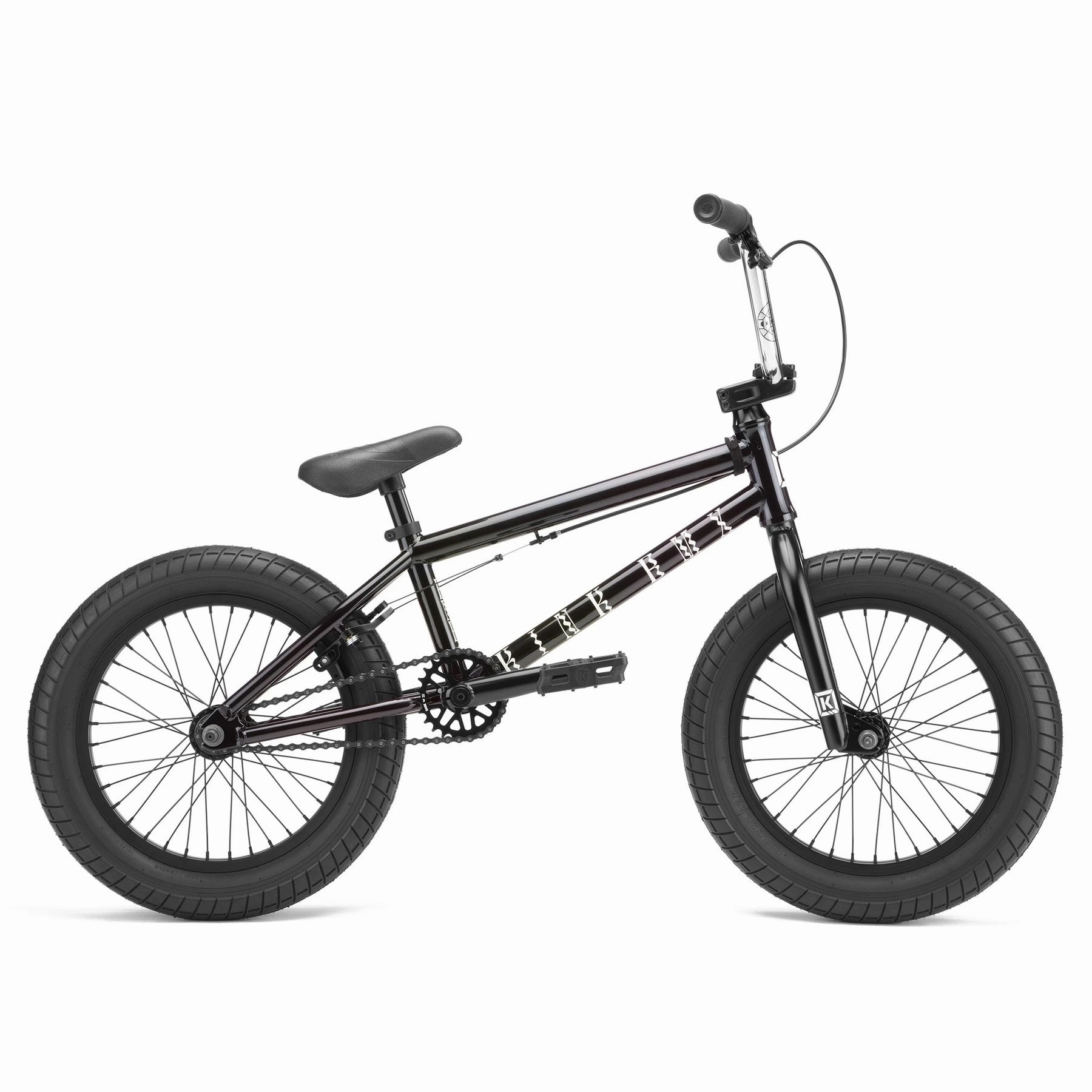

The Kink Carve 16 bike is the younger sibling of our Kicker 18, and it ensures every age and every height rider can find a perfect fitting Kink bike. Kids are getting into BMX younger and younger, and we love it. The 2022 Carve comes in a great Gloss Iridescent Black color, which is complimented by black components throughout and chrome handlebars.
Properly proportioned geometry and components create a modern, yet comfortable ride, suited for the rider who isnt ready for the bump up to a larger 18 bike yet. Still stacked with great parts, the 2022 Carve comes with 7 Kink T700 bars, a short reach 40mm Mission topload stem, rock solid 3-piece tubular chromoly cranks with sealed Mid bottom bracket, a sealed integrated headset, and modern tread design 2.4 tires.
Features:
- Frame : Kink Carve 100% Hi-Ten Steel
- Fork : Kink Stryker 4130 Chromoly Steerer Tapered Fork Legs
- Bars : Kink T700 7 100% Hi-Ten Steel

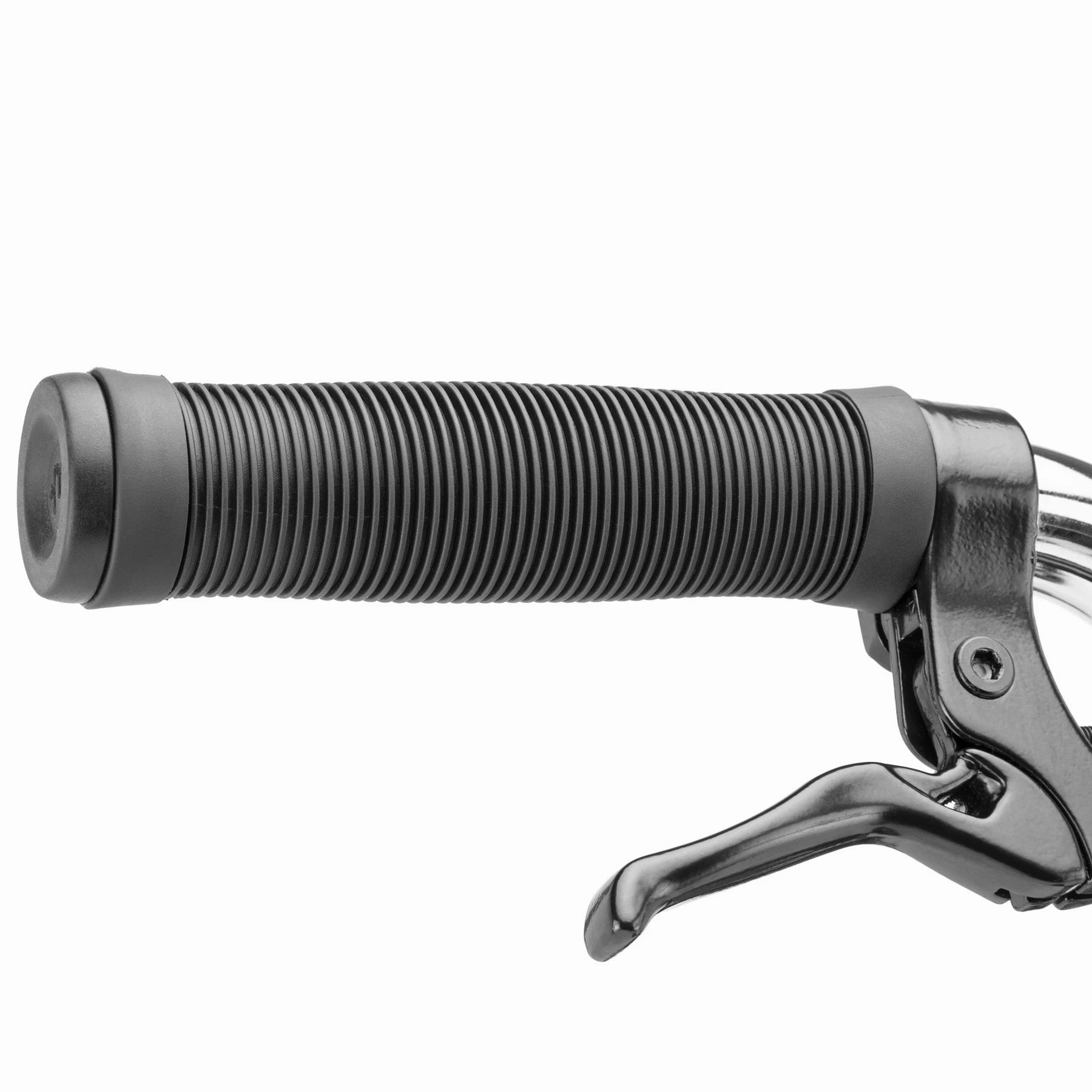

- Grips : Mission Helix Mini
- Stem : Mission Topload 40mm
- Headset : Mission Sealed Integrated (41.8 X 45)
- Brake Lever : Mission Mini
- Brake Cable : Mission L1 Linear
- Brakes : Mission Cease V2

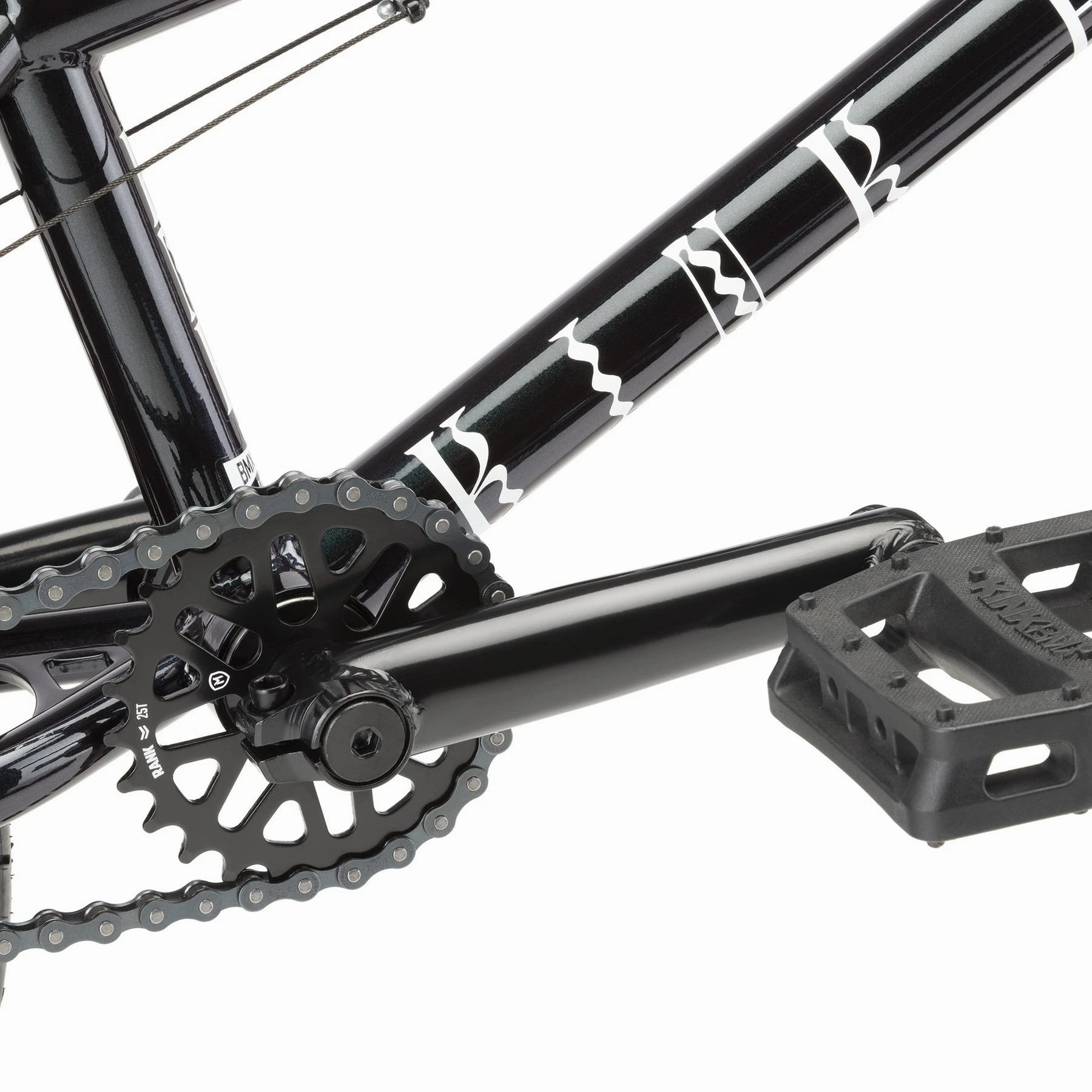

- Cranks : Mission Triumph 3pc Tubular Chromoly 140mm 8 Spline
- Bottom Bracket : Sealed Mid 19mm
- Pegs : N/A
- Pedals : Kink Hemlock
- Chain : Mission 410
- Sprocket : Mission Rank 25T

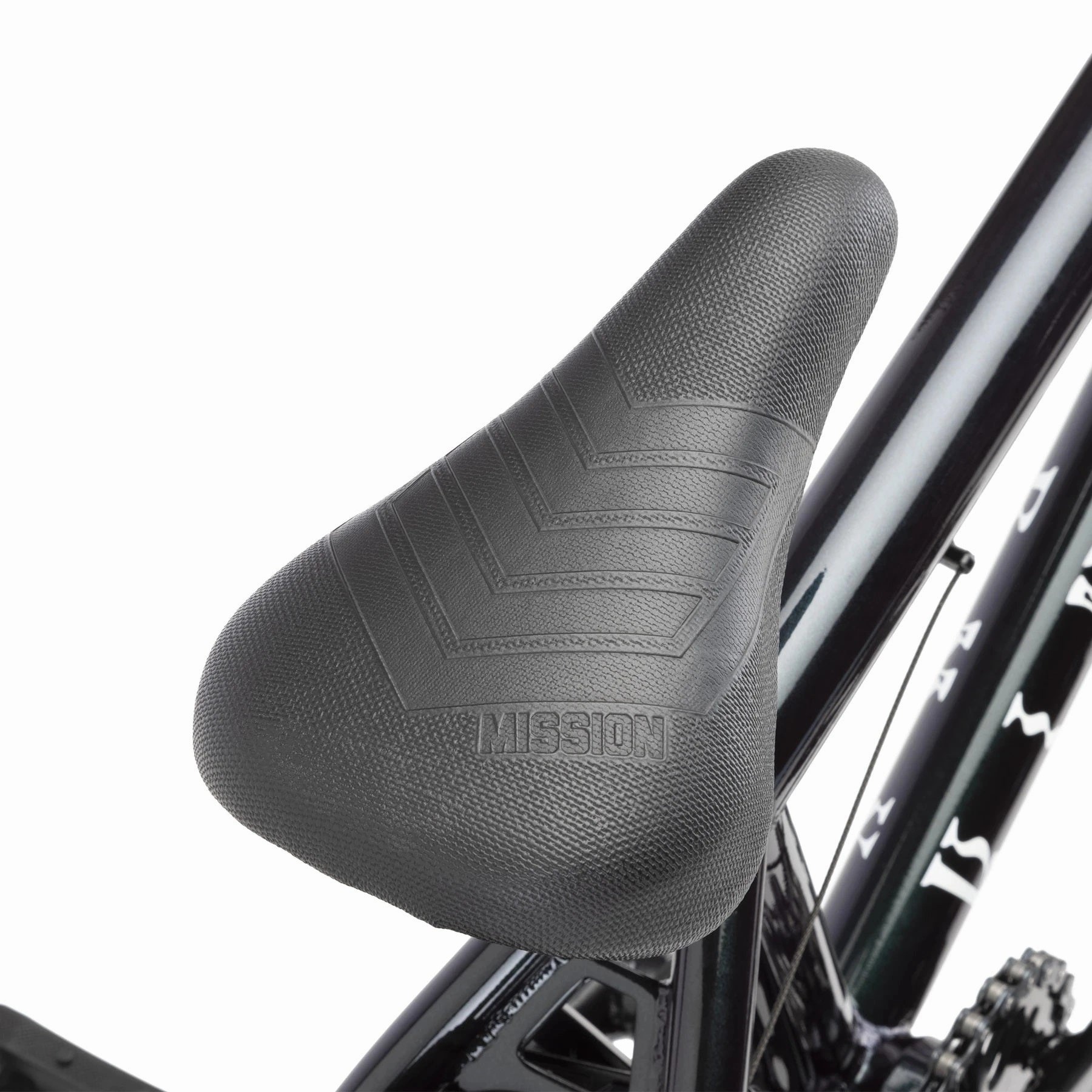

- Seat : Mission Cypress Mini Combo
- Seat Post : Mission Combo Steel Post
- Seat Clamp : Mission Slim Clamp
- Front Hub : Mission Covert Unsealed 3/8" Axle
- Rear Hub : Mission Function Semi-sealed Cassette 14mm
- Driver : 9T
- Rims : Mission X7
- Tires : Mission Tracker 16x2.4"
- Weight : 22lb 9oz
Geometry:
- Toptube Length: 16.5"
- Chainstay Length: 11.25"
- Headtube Angle: 74.5
- Seattube Angle: 71
- Standover Height: 6.75"
- Bottom Bracket Height: 9.75"
- Fork Offset: 32mm
