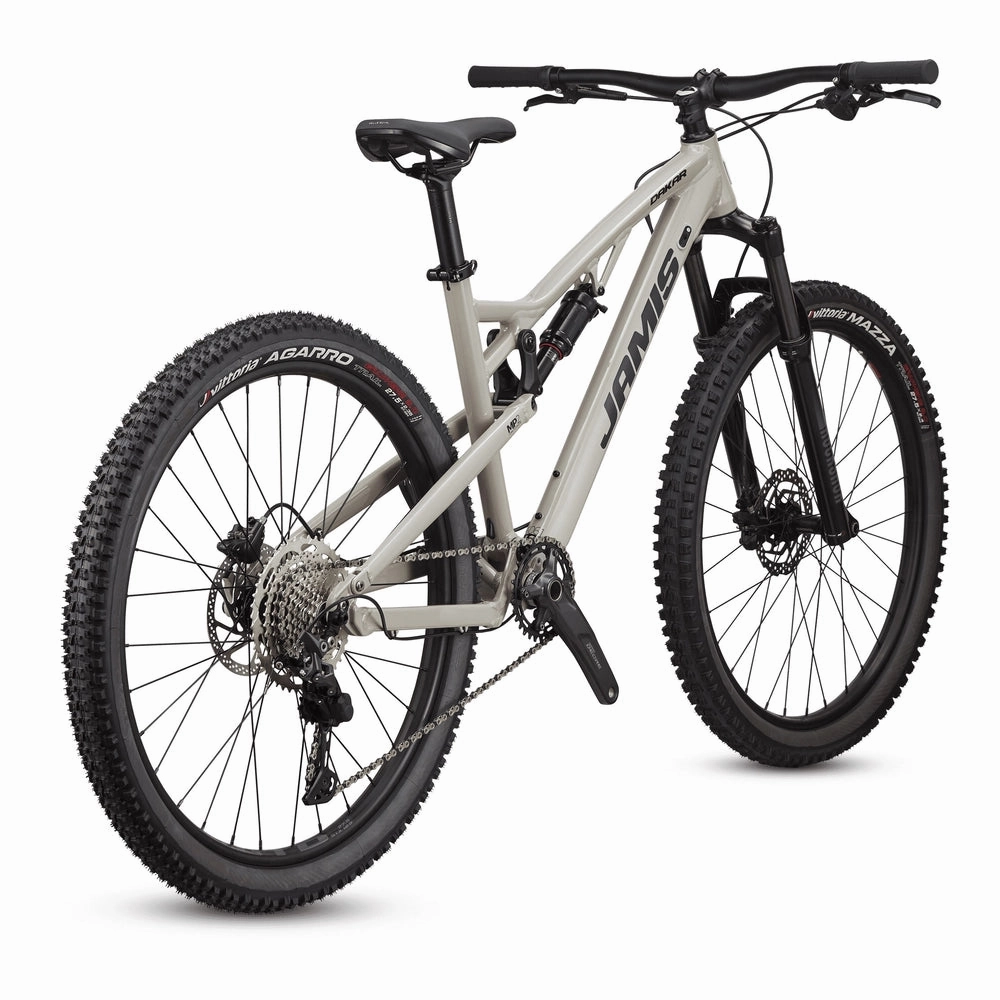

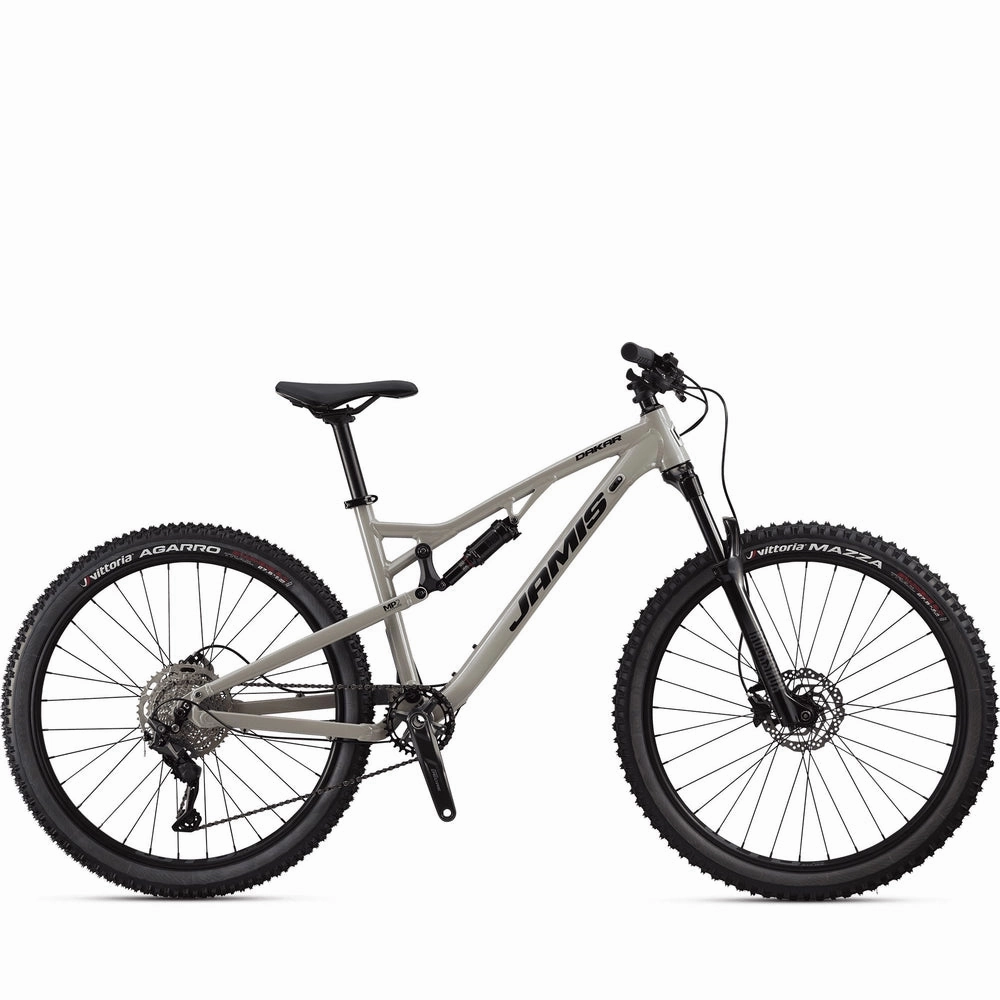

Jamis Dakar Dual Suspension Mountain Bike Thunder Grey 2022
Experience the thrill of the trail with the Jamis Dakar, a high-performance dual suspension mountain bike. This robust dual suspension mountain bike is built to conquer challenging terrain, offering a smooth and controlled ride. The Dakar's responsive suspension system soaks up bumps and keeps you in control, making technical descents and demanding climbs easier to manage. Whether you're tackling demanding single track or exploring epic trails, this dual suspension mountain bike delivers the performance and confidence you need to push your limits. The Jamis Dakar: your ultimate dual suspension mountain bike adventure awaits.
Features
- Tripe-butted 6061 alloy
- 120 mm travel mp2 suspension
- Rock Shox Monarch R air shock with rebound adjust
- Rock Shox Judy Silver TK 27.5, Solo Air compression, external rebound
- Shimano Deore, 10-speed
- Shimano Deore, 32T crank
- Shimano MT200 hydraulic disc brakes
Specification
| Frame | Triple-butted 6061 alloy, 120mm travel mp2 suspension, 1.5 1 1/8 tapered head tube, asymmetrical chainstays w/12x142mm thru-axle dropouts, internal dropper post routing, ISCG05 chainguide mount, Rock Shox Monarch R air shock with rebound adjust, replaceable derailleur hanger |
| Fork | Rock Shox Judy Silver TK 27.5, Solo Air compression, external rebound, Turn Key lockout, 30mm steel stanchions, magnesium lowers, 15x110mm axle, 120mm travel |
| Headset | FSA Orbit 1.5 Zero-Stack internal cup, 8mm cone spacer |
| Wheels | WTB STX i25 TCS 27.5 tubeless rims, 32H, Shimano MT400 15x110mm front & 12x142mm rear hubs, stainless spokes |
| Tires | Vittoria Mazza 27.5 x 2.4 Front & Agarro 27.5 x 2.35 Rear, Tubeless |
| Derailleurs | Shimano Deore, 10-speed |
| Shift levers | Shimano Deore, 110-speed |
| Chain | KMC X10, 10-speed |
| Cassette | Shimano M4100, 10-speed, 11-46T |
| Crankset | Shimano Deore, 32T |
| BB Set | Shimano BSA |
| Pedals | N/A |
| Brakeset | Shimano MT200 hydraulic disc, 180mm front & 160mm rear RT10 rotors |
| Handlebar | Race Face Ride, 35 x 760mm |
| Stem | Race Face Ride, 50mm |
| Grips | Jamis Lock-On |
| Seat Post | Race Face Ride, 31.6 x 400mm |
| Saddle | Selle Royal Vivo Ergo |
| Sizes | XS (14.5), S (15.5), M (17), L (19), XL (21) |
| Color | Thunder Grey |
| Weight | 32 lbs |
Geometry
| MODEL | SIZE | TT EFFECTIVE | HT ANGLE | ST ANGLE | CHAINSTAY | WHEELBASE | BB DROP | HEADTUBE | STANDOVER | STACK | REACH |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DAKAR | XS/14.5 | 21.4 / 545 | 68 | 75 | 17.3 / 440 | 43.3 / 1100 | 0.71 / 18 | 3.9 / 100 | 28.6 / 727 | 21.7 / 550 | 15.5 / 393 |
| DAKAR | S/15.5 | 22.4 / 570 | 68 | 75 | 17.3 / 440 | 44.3 / 1125 | 0.71 / 18 | 3.9 / 100 | 29.2 / 742 | 21.7 / 550 | 16.5 / 418 |
| DAKAR | M/17 | 23.4 / 595 | 68 | 75 | 17.3 / 440 | 45.3 / 1150 | 0.71 / 18 | 4.3 / 110 | 29.8 / 757 | 22.0 / 559 | 17.3 / 440 |
| DAKAR | L/19 | 24.4 / 620 | 68 | 75 | 17.3 / 440 | 46.3 / 1175 | 0.71 / 18 | 4.7 / 120 | 30.5 / 775 | 22.4 / 568 | 18.2 / 463 |
| DAKAR | XL/21 | 25.4 / 645 | 68 | 75 | 17.3 / 440 | 47.2 / 1200 | 0.71 / 18 | 5.1 / 130 | 31.1 / 791 | 22.8 / 578 | 19.1 / 485 |
