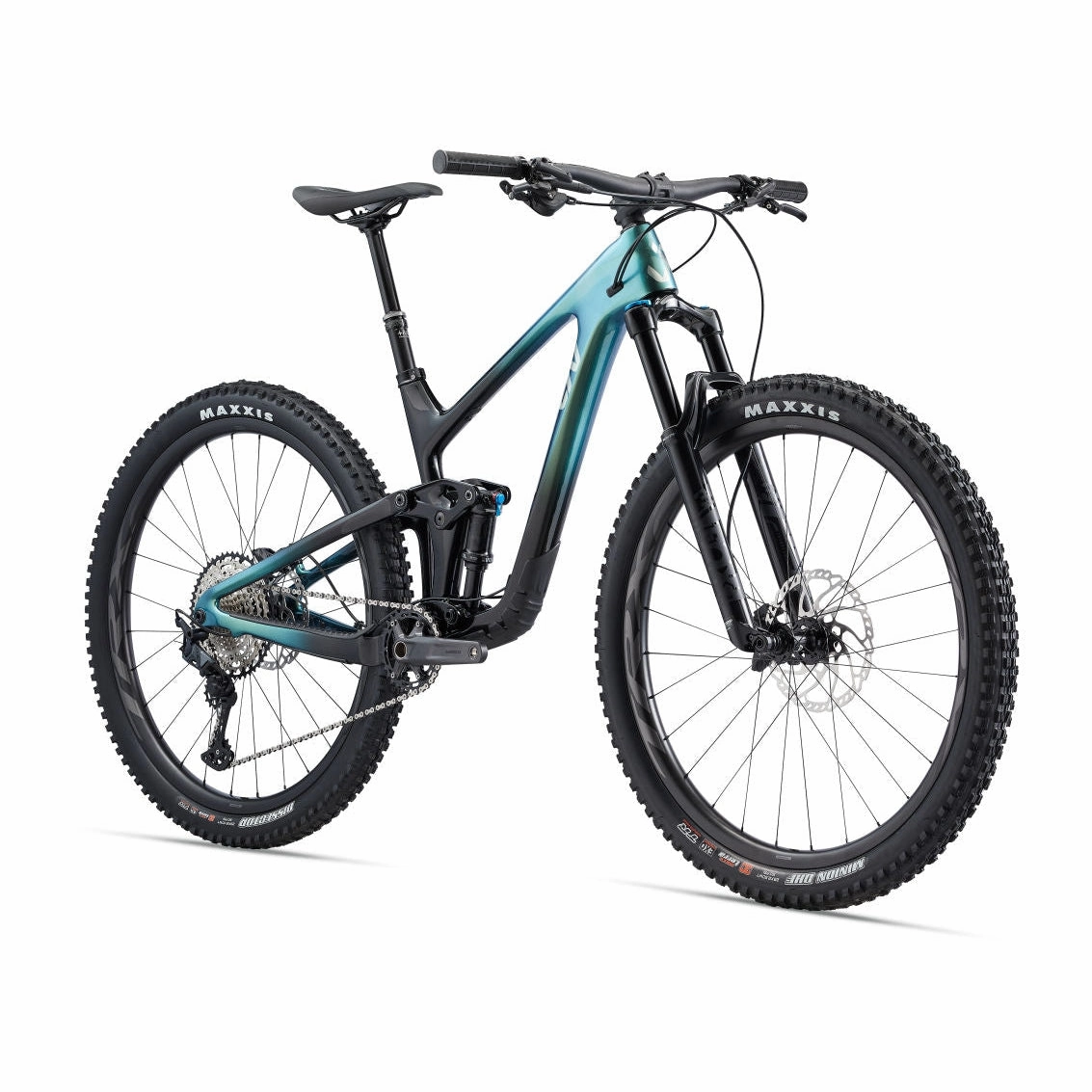

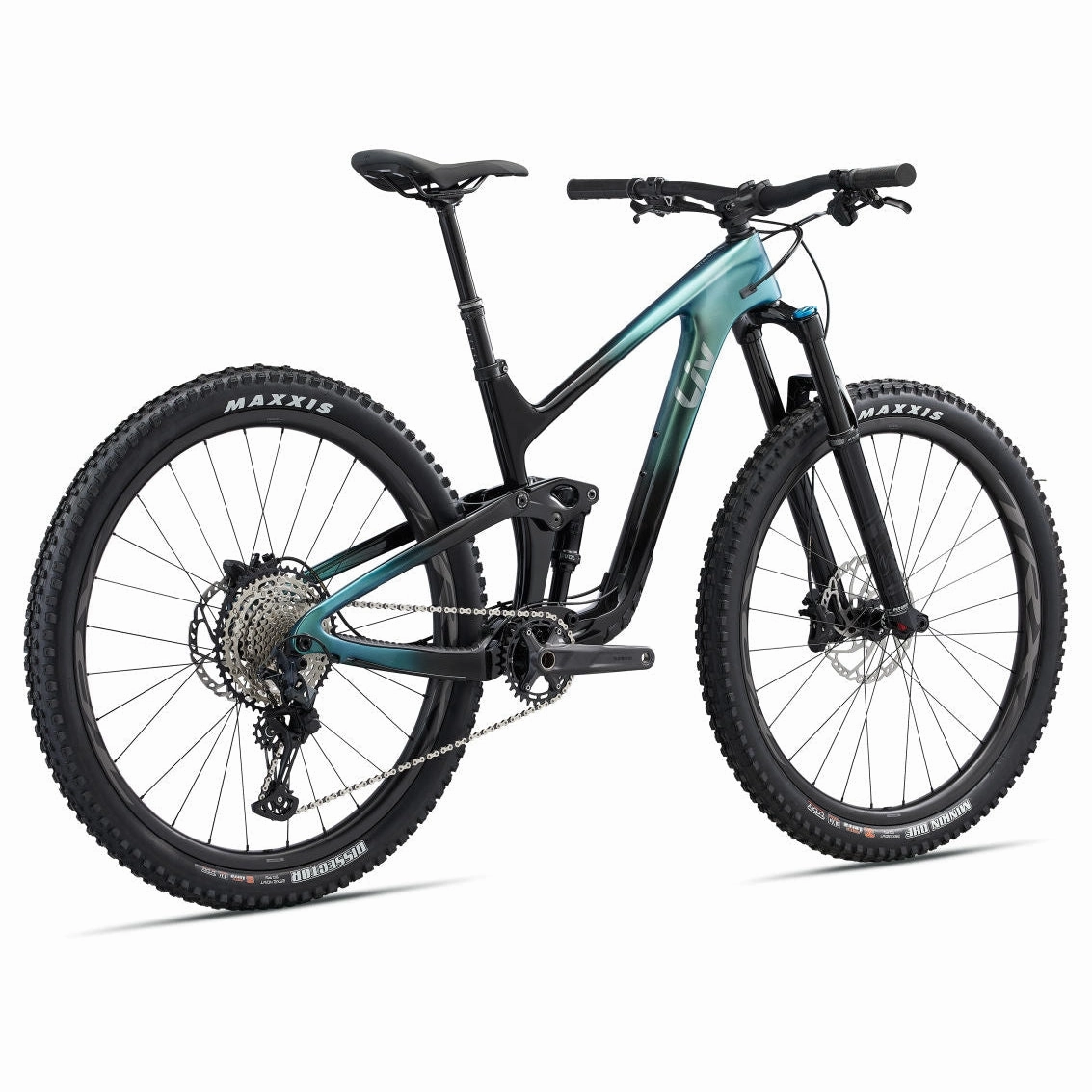

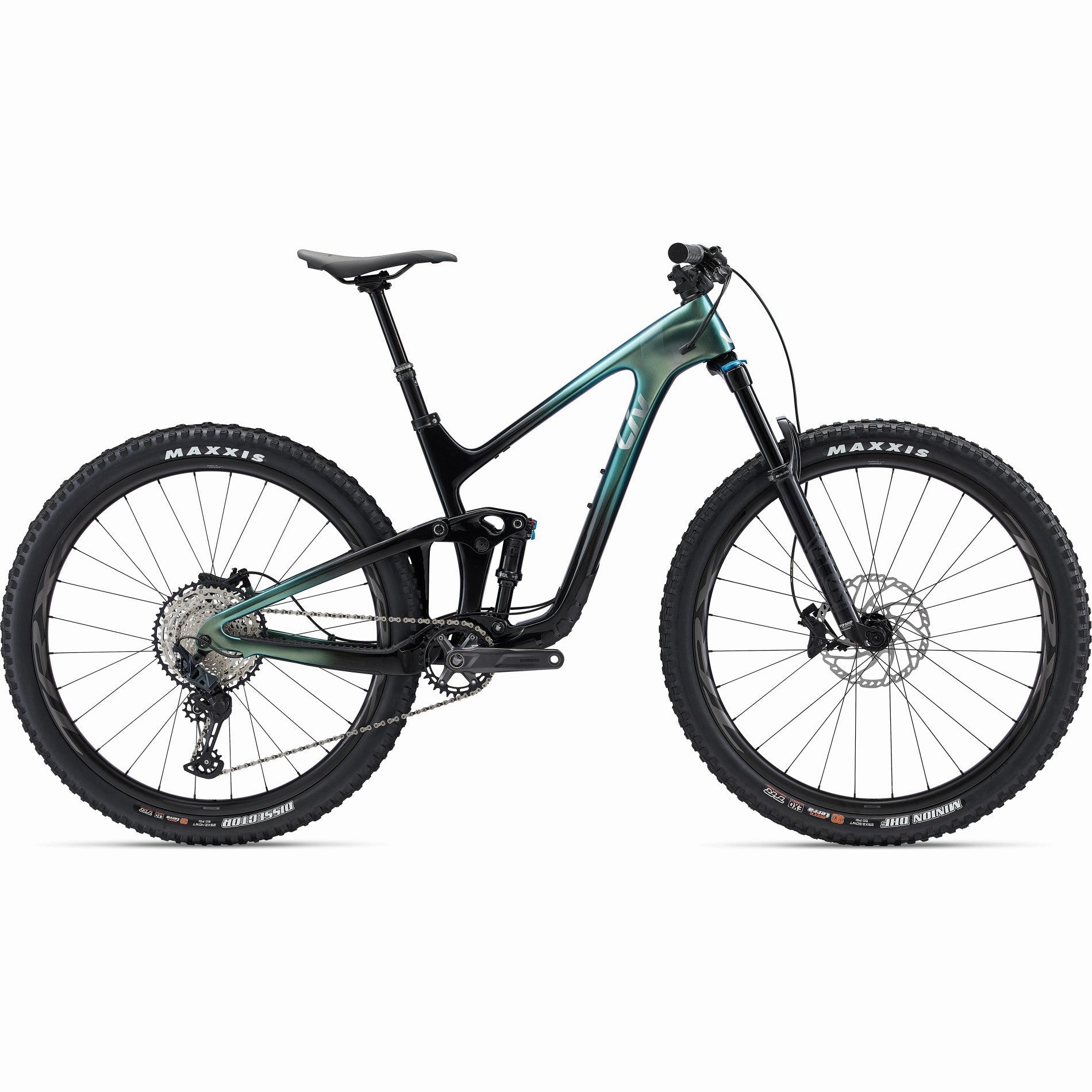

Adventurous rides are cherished with the Liv Intrigue Advanced Pro 29 women's mountain bike, designed with capability to meet the demands of challenging singletracks and steep inclines, as well as aggressive descents.
Top Performance Trail
Advanced-Grade Composite frame, Maestro Suspension and flip chip adjustable frame geometry equip you with a lightweight, versatile trail bike.
Balanced Agility
Obstacle-eating 29-inch wheels offer smooth handling and roll easily over small roots and rocks.
Custom Tuned Suspension
The 125 mm of Maestro Suspension has been custom tuned by women, for women to provide optimal performance for the rider and the bikes intended use, resulting in improved traction and control.
Specifications
| Sizes | S, M, L |
| Colors | Fanatic Teal / Carbon / Chrome |
| Frame | Advanced-Grade Composite front and rear triangles, 125mm Maestro Suspension, flip chip |
| Fork | Fox 34 Float Rhythm, 140mm, GRIP damper, Boost, 15x110, Kabolt, tapered, 44mm offset, custom tuned for Liv |
| Shock | Fox Float DPS Performance 185/50, custom tuned for Liv |
| Handlebar | Giant Contact TR35, alloy, 35mm S:760mm, M:760mm, L:780mm |
| Grips | Liv Supera, single lock ring |
| Stem | Giant Contact SL, 35mm S:50mm, M:50mm, L:50mm |
| Seatpost | TranzX travel-adjustable dropper, remote S: 95-125mm travel / 30.9 x 409mm M: 120-150mm travel / 30.9 x 459mm L: 140-170mm travel / 30.9 x 499mm |
| Saddle | Liv Sylvia SL |
| Pedals | Sold separately |
| Shifters | Shimano SLX M7100, 1x12 |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano SLX M7100 |
| Brakes | Shimano M6120, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm |
| Brake Levers | Shimano Deore BL-M6100 |
| Cassette | Shimano SLX M7100, 10x51 |
| Chain | KMC X-12 |
| Crankset | Shimano MT511, 30t S:170mm, M:170mm, L:170mm |
| Bottom Bracket | Shimano, press fit |
| Rims | Giant TRX-2 Carbon 29 WheelSystem |
| Hubs | Giant TRX-2 Carbon 29 WheelSystem |
| Spokes | Giant TRX-2 Carbon 29 WheelSystem |
| Tires | [F] Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless [R] Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless |
| Extras | tubeless prepared, max tire size 2.5", max chainring size 32t |
| Weight | The most accurate way to determine any bikes weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
Geometry
| S | M | L | ||
|---|---|---|---|---|
| LOW|HIGH | LOW|HIGH | LOW|HIGH | ||
| A | SEAT TUBE LENGTH(inch) | 16.7 | 17.1 | 18.1 |
| B | SEAT TUBE ANGLE | 77.0|77.8 | 77.0|77.8 | 77.0|77.8 |
| C | TOP TUBE LENGTH(inch) | 22|21.9 | 22.6|22.6 | 23.6|23.5 |
| D | HEAD TUBE LENGTH(inch) | 4.1 | 4.3 | 4.9 |
| E | HEAD TUBE ANGLE | 65.8|66.5 | 65.8|66.5 | 65.8|66.5 |
| F | FORK RAKE(inch) | 1.7 | 1.7 | 1.7 |
| G | TRAIL(inch) | 4.8|4.6 | 4.8|4.6 | 4.8|4.6 |
| H | WHEELBASE(inch) | 45.7|45.7 | 46.3|46.3 | 47.4|47.4 |
| I | CHAIN STAY LENGTH(inch) | 17.2|17.1 | 17.2|17.1 | 17.2|17.1 |
| J | BOTTOM BRACKET DROP(inch) | 1.6|1.2 | 1.6|1.2 | 1.6|1.2 |
| K | STACK(inch) | 24.4|24.2 | 24.6|24.3 | 25.2|24.9 |
| L | REACH(inch) | 16.3|16.7 | 16.9|17.2 | 17.8|18.1 |
| M | STAND OVER HEIGHT(inch) | 28.8|29.1 | 29|29.4 | 29.8|30.1 |
| N | HANDLEBAR WIDTH(inch) | 29.9 | 29.9 | 30.7 |
| O | STEM LENGTH(inch) | 2 | 2 | 2 |
| P | CRANK LENGTH(inch) | 6.7 | 6.7 | 6.9 |
| Q | WHEEL SIZE | 29" | 29" | 29" |
