Focus Sam2 6.8 - Urban Green

Focus Sam2 6.8 - Urban Green

$ 62.82

$ 251.28

Unavailable
Focus Sam2 6.8 - Urban Green

Focus Sam2 6.8 - Urban Green

$ 62.82

$ 251.28

Size:
  • S
  • M
  • L
  • XL
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details


Demo bike now in store to take out on the trails. 2 Day hire $200 and we will take this off the price of a new one when you return the bike!

Conquer the Trails with Unmatched Power

Unleash the Power of Bosch Performance Line CX E-Drive

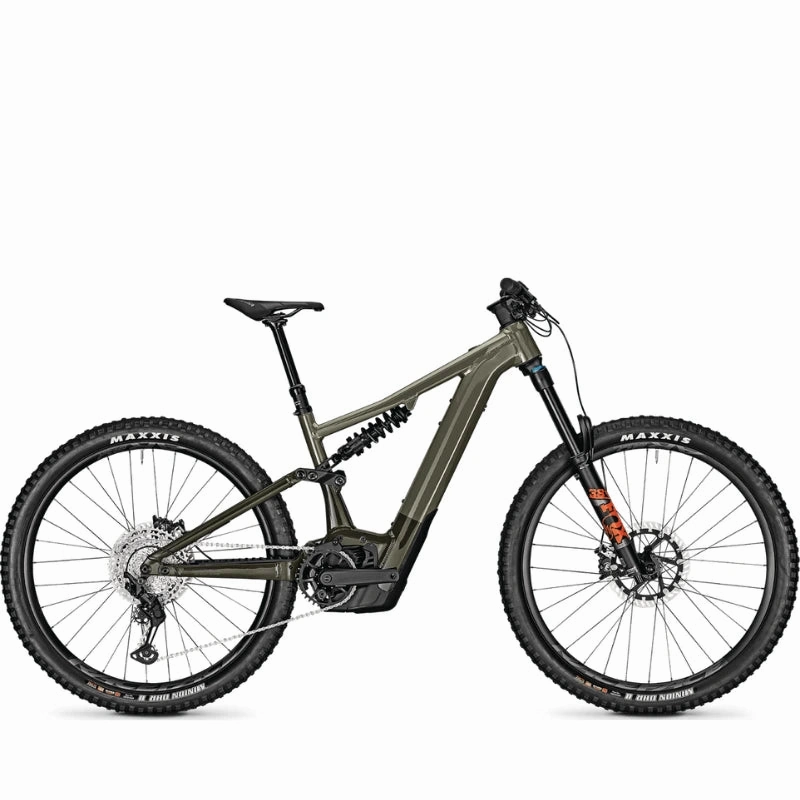

Introducing the FOCUS SAM 6.8 in Urban Green, designed to dominate the trails with unparalleled power and performance. The efficient Bosch Performance Line CX system provides a powerful e-drive with up to 85 Nm of torque, ensuring that climbing becomes as enjoyable as descending. The 750 Wh slide-out battery, conveniently placed in the down tube, can be charged in place or easily removed for fast charging.

Key Features Overview

  • BOSCH CX E-DRIVE & 750 WH BATTERY: The dynamic Bosch Performance Line CX E-Drive with 750 Wh battery offers superior power and endurance for conquering challenging trails.

  • FOX 38 RHYTHM FORK & ROCKSHOX SUPER DELUXE SELECT COIL SHOCK: Enjoy a smooth and controlled ride with the 180 mm FOX 38 Rhythm Fork and 170 mm RockShox Super Deluxe Select Coil Shock.

  • SHIMANO XT 1X12 DRIVETRAIN: Shift effortlessly through 12 gears with the Shimano XT drivetrain, providing a wide range for tackling various terrains.

  • MADE FOR THE ROUGHEST TRAILS: The FOCUS SAM 6.8 is built for rough rides with upgraded F.O.L.D. (FOCUS Optimised Linkage Design), integrated coil shock, 180/170 mm travel, and 29" wheels.

  • MAGURA BRAKES WITH 220 MM ROTORS: Rely on the stopping power of Magura brakes with large 220 mm rotors for precise control in all trail conditions.

Designed for Optimal Performance in Any Situation

The FOCUS SAM 6.8 boasts a long wheelbase and slack head angle, providing super stability even at high speeds in the roughest terrain. The frame's perfect stiffness-to-weight ratio, with the minimal cut-out required for the slide-out battery, ensures optimal performance. The low stand-over height allows generous space for movement, enabling perfect handling in technical terrain. Customize your riding experience by adjusting the head angle from 64.5 to 63.5 with ease.

Made for the Roughest Trails

With its purpose-built kinematics and upgraded F.O.L.D., the FOCUS SAM 6.8 excels on the roughest trails. The integrated coil shock, 180/170 mm travel, 38 mm stanchions on the suspension fork, and fast-rolling 29" wheels make this e-MTB ready to shred. Equipped with reliable Magura brakes featuring large 220 mm rotors, the SAM 6.8 ensures confidence and control in the most demanding trail conditions.

Urban Green DominanceThe FOCUS SAM 6.8 in Urban Green is not just a mountain bike; it's a statement of power and style. Conquer the trails with confidence, navigate technical descents, and experience the thrill of off-road adventures with the unmatched performance of the FOCUS SAM 6.8 Urban Green.

SUPER POWERFUL AND DYNAMIC E-MOTOR

The efficient Bosch Performance CX e-drive (Gen. 4) supports your ride up to 25 km/h with powerful 85 Nm. The strongest e-motor of Bosch is perfectly integrated, the JAM rides agile and nimble. In eMTB mode, the motor support adjusts automatically to your riding power. The Bosch Powertube battery is perfectly integrated into the down tube, yet it can also be removed at any time for charging. For sure, you can also charge it directly on the bike.

Specifications



FRAME MATERIALAluminium
FRAME7005 hydroformed aluminium, 3D forging, 170 mm F.O.L.D. Gen2, 148x12 mm thru axle, internal cable routing, USB-C port, post mount 203 mm
FORKFOX 38 Rhythm Float 29, Grip, E-Bike optimized, 15x110 mm, 44mm rake
TRAVEL OF SUSPENSION FORK180 mm
SHOCKRock Shox Super Deluxe Coil Select, 230/65 mm, hardware: 25,0 x 8.0 mm, no Bushing
MOTORBosch Performance Line CX Smart System, 36 V / 250 W / 85 Nm
BATTERY WATT-HOURS750 Wh
BATTERY AMPERE HOURS20.8 Ah
DISPLAYBosch LED Remote Kiox 300
SHIFTERShimano Deore XT M8100, 12-speed
REAR DERAILLEURShimano Deore XT M8100, 12-speed
SPROCKETShimano Deore CS-M6100, 12-speed
CHAINShimano Deore CN-M6100, 12-speed
CRANKSETSamox EC40 ISIS
TRANSMISSION OF DRIVEfront: 36; rear: 10-51
BOTTOM BRACKETIntegrated in Drive Unit
HANDLEBARAluminium, 800 mm, rise: 30 mm, backsweep: 9
STEMFOCUS C.I.S. 2.0 MTB integrated, 35 mm, aluminium
HEADSETACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated, 1.5/1.8" angle headset
SADDLESelle Italia X3
SEATPOSTPost Moderne dropper post PM-214, 34.9 mm
BRAKE CALIPERMagura MT5
BRAKE LEVERMagura MT5 HC-1
BRAKEDisc
RIMSRaceFace AR30 Offset
REAR HUBNovatec D462, 12x148 mm
FRONT HUBNovatec D041, 15x110 mm
TIRESMaxxis Minion DHR II, 2.6, 66-622, EXO
GEARS12
BIKE WEIGHT INCL. BATTERY IN KG26.7 kg
SIZE39, 42, 44, 46


SIZE GUIDE



SMLXL
SIZE (MM)
39424446
SIZE390420440460
HANDLEBAR WIDTH (MM)800800800800
STEM LENGTH50505050
CRANKARM LENGTH (MM)165165165165
SEAT POST LENGTH390440480480
ASEAT TUBE LENGTH390420440460
BEFFECTIVE TOP TUBE678608637672
CHEAD TUBE ANGLE (MM)65.565.565.565.5
DEFFECTIVE SEAT ANGLE (MM)77.5
77.577.577.5
ECHAINSTAY LENGTH450450450450
FBOTTOM BRACKET DROP25252525
GHEAD TUBE LENGTH450450450450
HFORK CONSTRUCTION HEIGHT571571571571
IPRE-RAKED FORK44444444
JWHEELBASE LENGTH1229
1259
1293
1332
KSTACK623
623
641
659
LREACH440
470
495
525
