Name: Focus Raven 8.9 Carbon Hardtail Mountain Bike - Carbon Raw - Save 50%
SKU: 287815

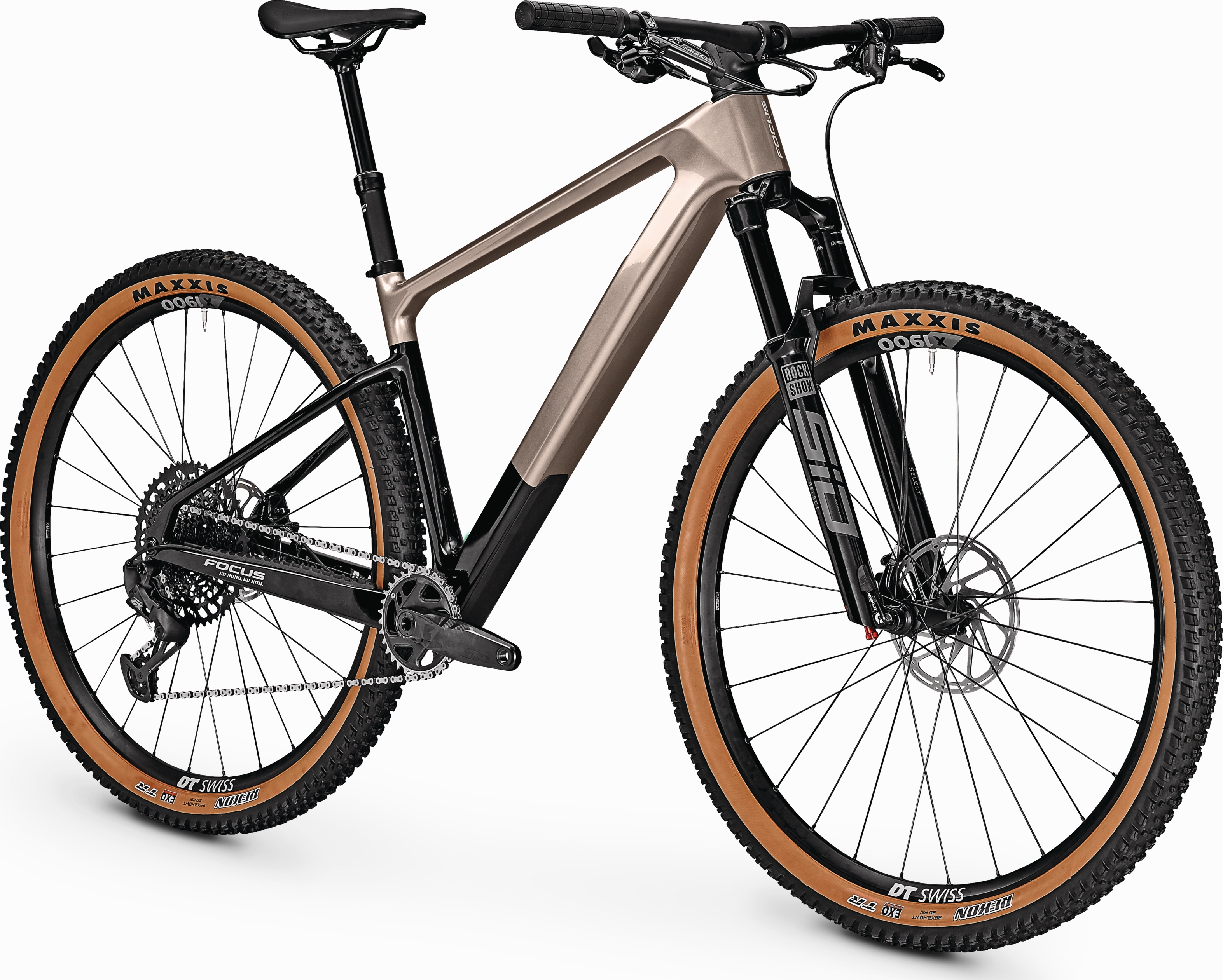

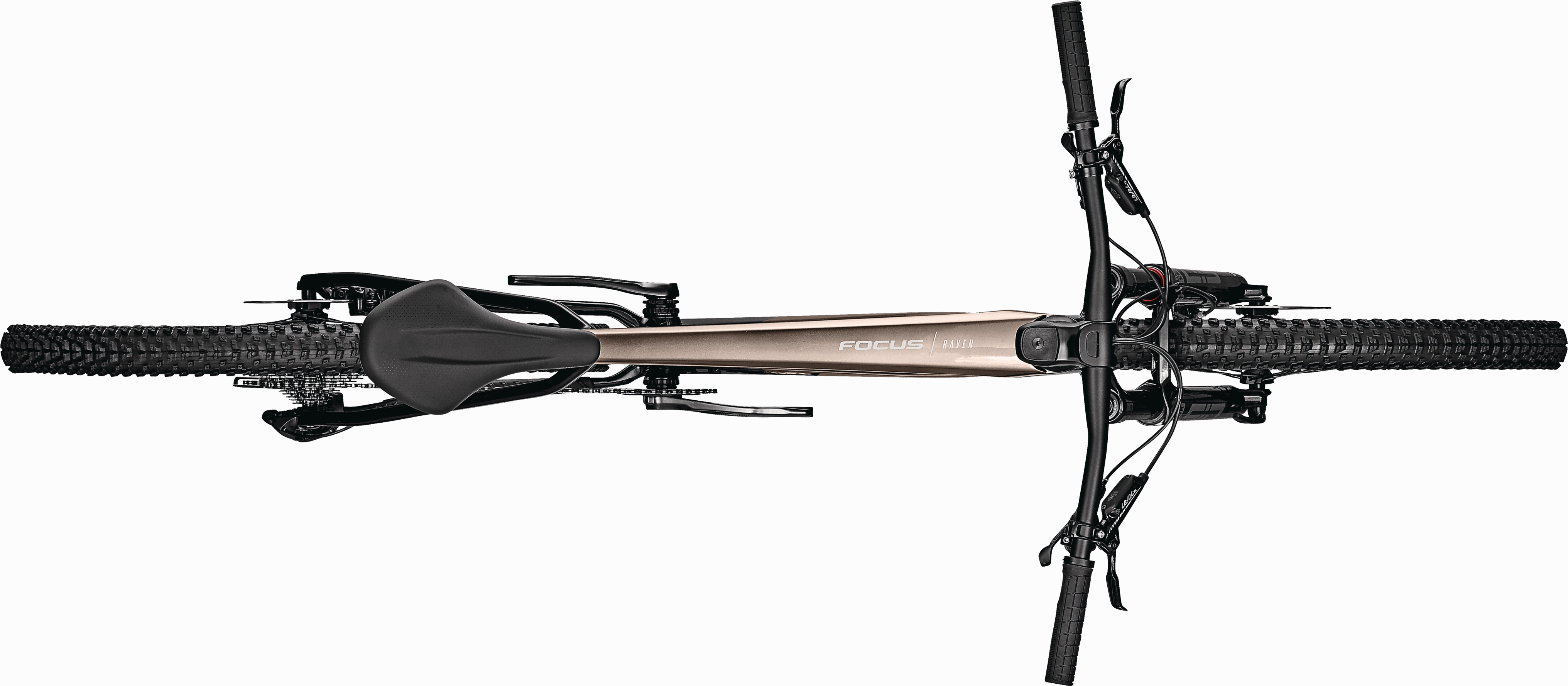

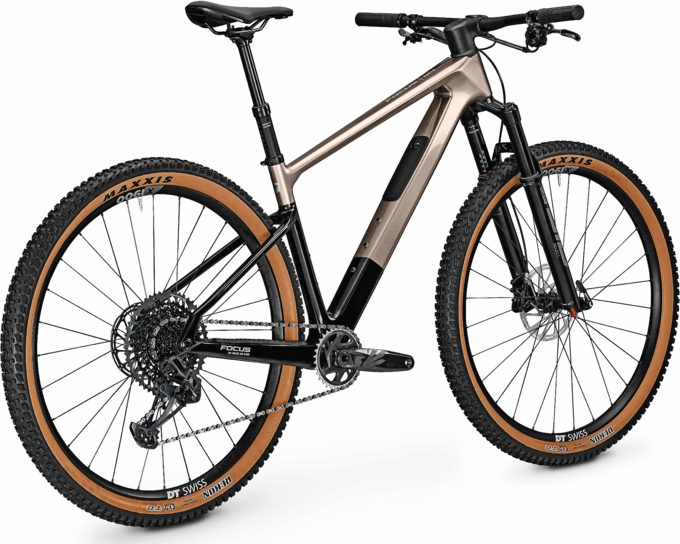

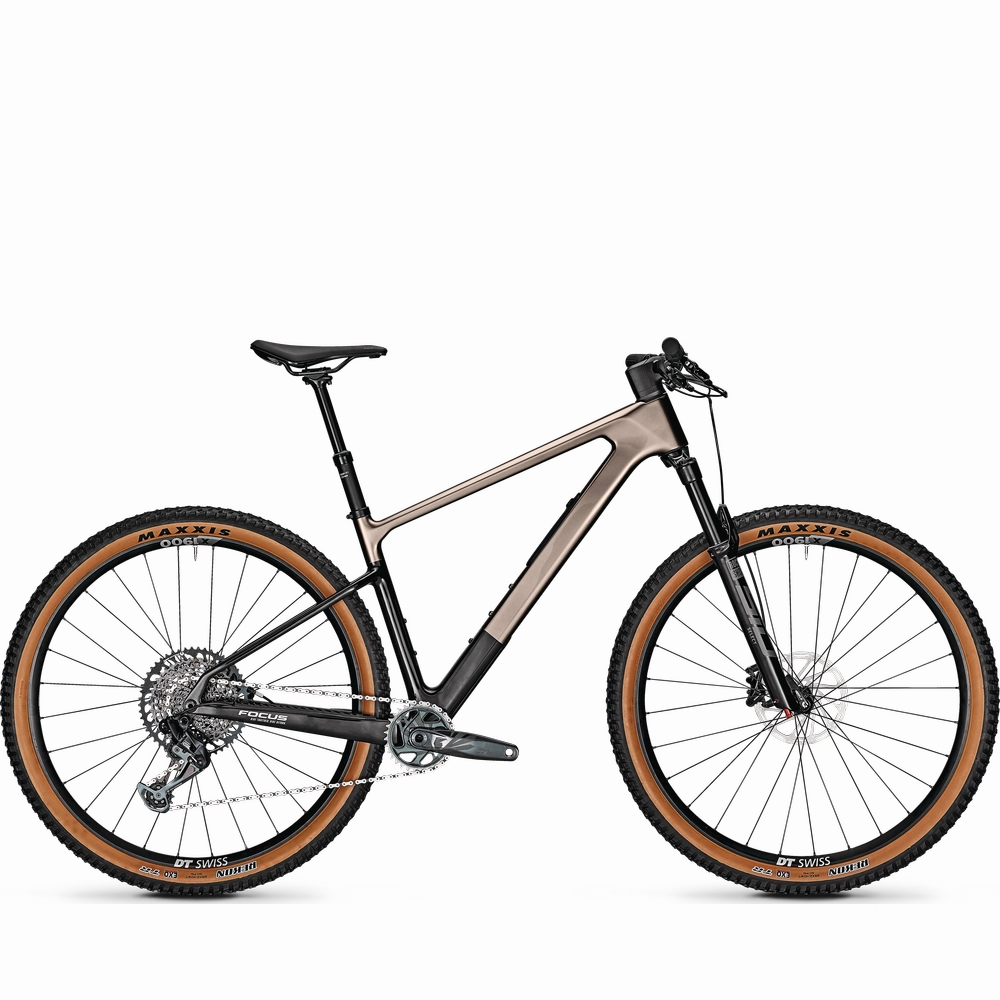

Focus Raven 8.9 Carbon Hardtail Mountain Bike

Now In Stock - Save $3000 - That's 50% Off!
We are Australia's largest Focus dealer. We buy bikes in bulk to save 100's of dollars and pass those savings onto you!

Experience the ultimate in hardtail performance with the Focus Raven 8.9 Carbon Mountain Bike. This high-performance machine features a super lightweight carbon frame, delivering exceptional responsiveness and efficiency on any trail. Effortless saddle height adjustments are at your fingertips thanks to the integrated dropper post.

Super lightweight carbon frame
Rock Shox SID Select with 120mm Travel
SRAM GX Eagle 12 Speed Gearing
SRAM Level TLM Brakes
Dropper Post for Easy Saddle Height Adjustments

Precise and reliable SRAM GX Eagle 12-speed gearing ensures you always have the perfect gear, while powerful SRAM Level TLM brakes provide confident stopping power, inspiring confidence on even the most demanding descents. The RockShox SID Select fork with 120mm travel delivers a plush and controlled ride, soaking up bumps and keeping you comfortable.

Specification

Frame	Carbon technology frame, BSA, 148x12 mm thru axle, internal cable routing, cockpit integration solution C.I.S., internal compartment Solution I.C.S., angle headset, Post Mount 160 mm
Fork	Rock Shox SID Select 29 3 Pos. Charger RL, 110x15 mm, 44mm rake
Travel of suspension fork	120mm
Shifter	SRAM GX Eagle, 12-speed
Rear derailleur	SRAM GX Eagle, 12-speed
Cassette	SRAM XG-1275, 12-speed
Chain	SRAM GX Eagle, 12-speed
Crankset	SRAM GX Eagle
Transmission of drive	Front: 32T Rear: 10-52T
Bottom bracket	BSA
Handlebar	Aluminium, 760 mm, flatbar, backsweep: 9, 31,8 mm
Grips	VP VPG-122A
Stem	FOCUS C.I.S. 2.0 MTB , 31.8 mm, aluminium
Headset	ACROS ZS56/ZS56 (ICR), FOCUS C.I.S. Integrated, 1.5/1.5" angle headset
Saddle	Selle Royal Groove SRX
Seatpost	Aluminium, 760 mm, flatbar, backsweep: 9, 31,8 mm
Brakes front / rear	SRAM Level TLM / SRAM Level TLM
Front brake disc	180 mm
Rear brake disc	160 mm
Wheelset	DT Swiss X1900, 25-622, 15x110 mm / 12x148 mm, 25 mm height
Wheel size	29"
Tyres front / rear	Maxxis Rekon, 61-622 / Maxxis Rekon, 61-622
Weight	11.6kg
Permissible system weight	110kg

Geometry

		S	M	L	XL
	Size in mm	400	440	480	520
	Handlebar width	760	760	760	760
	Stem length	50	50	50	50
	Crank length	172.5	172.5	175	175
	Seatpost length	390	390	440	480
A	Seat tube length	400	440	480	520
B	Top tube length	596	621	646	676
C	Head angle Steep ()	67.5	67.5	67.5	67.5
C	Head angle slack ()	66.5	66.5	66.5	66.5
D	Seat angle ()	74	74	74	74
E	Chainstay length	435	435	435	435
F	Bottom bracket drop	65	65	65	65
G	Head tube length	100	100	120	140
H	Fork length	531	531	531	531
I	Fork offset	44	44	44	44
J	Wheelbase	1123	1148	1176	1209
K	Stack	632	632	650	669
L	Reach	415	440	460	485
M	Standover height	804	820	846	871
