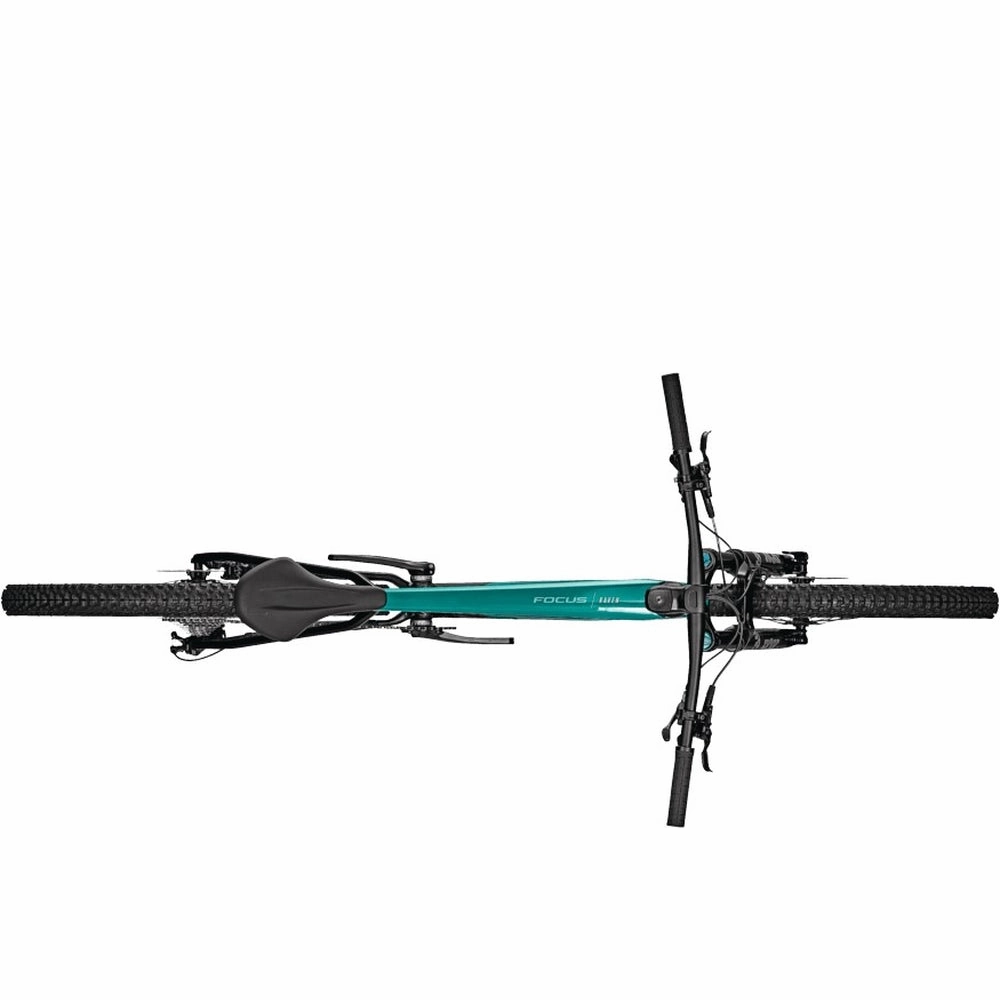

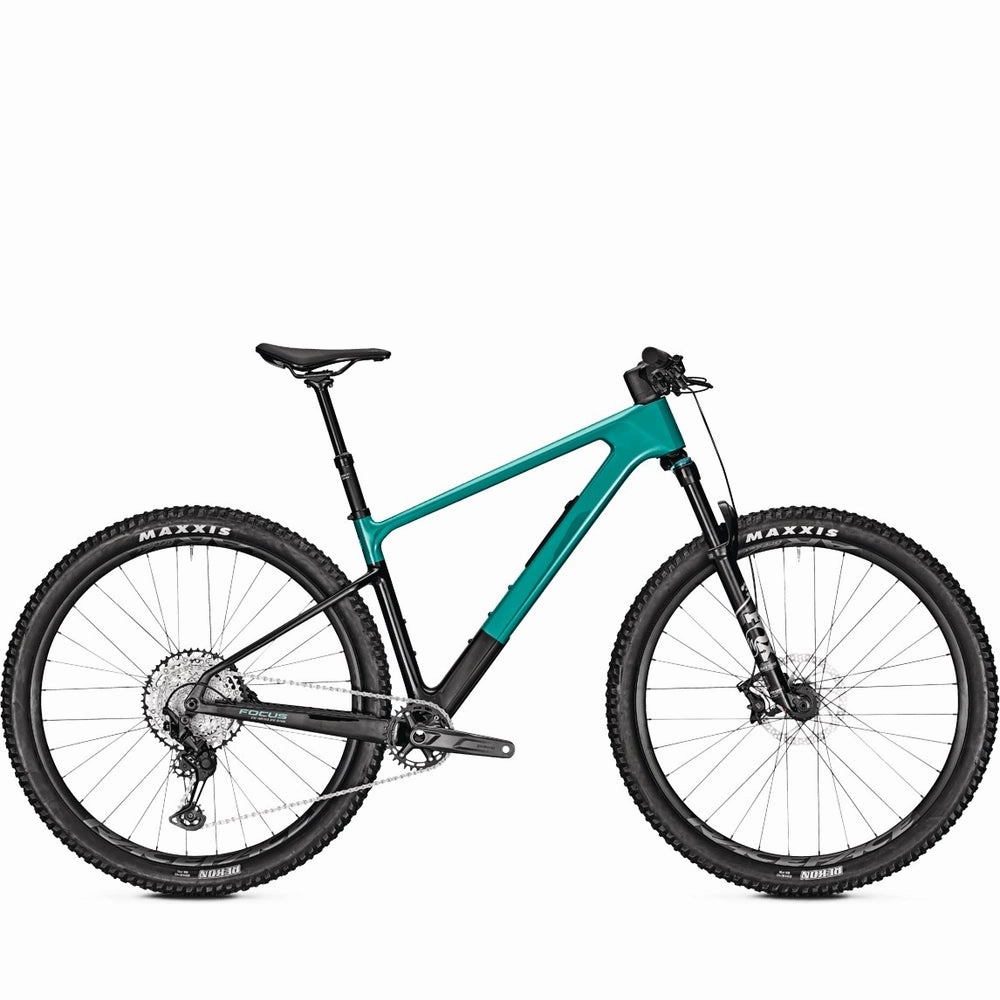

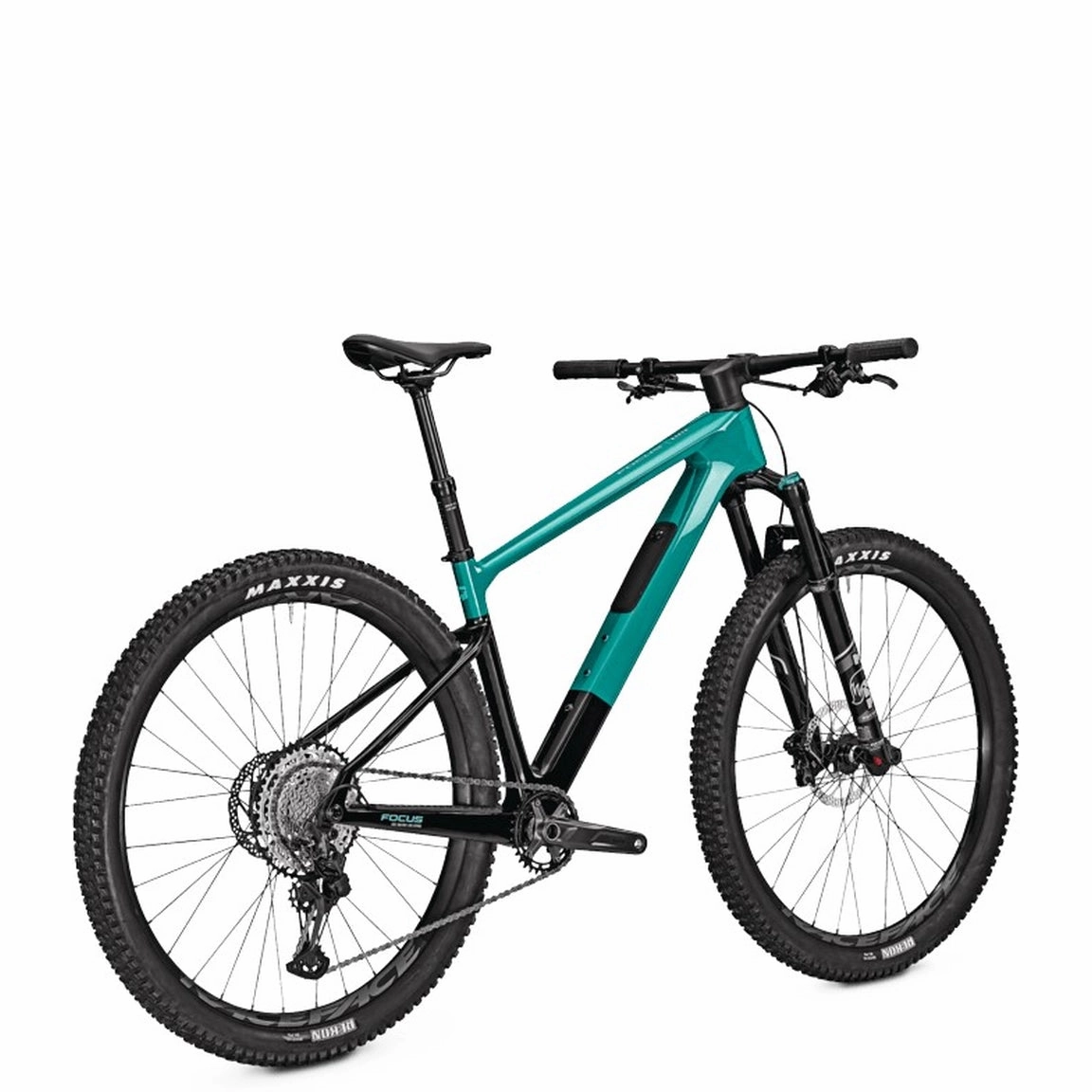

Name: Focus Raven 8.8 Carbon Hardtail Mountain Bike - Bluegreen/Carbon Raw - Save 51%
SKU: 287814

ONE OF AUSTRALIA'S BEST CARBON HARDTAIL DEALS!

Now In Stock - Save $2300 - That's 51% Off!
We are Australia's largest Focus dealer. We buy bikes in bulk to save 100's of dollars and pass those savings onto you!

The Focus Raven 8.8 Carbon Hardtail Mountain Bike is a high-performance mountain bike that boasts a super lightweight carbon frame, delivering exceptional responsiveness and efficiency on the trails.

Super lightweight carbon frame
Post Moderne dropper post
Shimano XT 12 Speed Drivetrain
Shimano SLX Hydraulic Brakes
Fox 34 Float Rhythm with 120mm Travel

The Raven 8.8 is equipped with a high-quality Shimano XT 12-speed drivetrain for precise shifting and a wide gear range, ensuring you're always in the right gear. Powerful Shimano SLX hydraulic brakes provide confident stopping power, while the Fox 34 Float Rhythm fork with 120mm travel offers a plush and controlled ride, absorbing bumps and keeping you comfortable.

Upgrade your riding experience with the efficiency and control of the Raven 8.8, featuring a Post Moderne dropper post for effortless saddle adjustment on the fly.

Specification

Frameset
Frame	Carbon technology frame, BSA, 148x12 mm thru axle, internal cable routing, cockpit integration solution C.I.S., internal compartment Solution I.C.S., angle headset, Post Mount 160 mm
Fork	FOX 34 Float Rhythm 29, Grip, Sweep-Adj., 110x15 mm, 44 mm rake
Travel of suspension fork	120mm
Drivetrain
Shifter	Shimano Deore XT M8100, 12-Speed
Rear Derailleur	Shimano Deore XT M8100, 12-Speed
Cassette	Shimano SLX M7100, 12-Speed
Chain	Shimano Deore CN-M6100, 12-Speed
Crankset	Shimano FC-MT512
Transmission	Front: 30, Rear: 10-51
Chainring	Shimano SLX M7100, 12-Speed
Bottom bracket	BSA
Cockpit
Handlebar	Aluminium, 760 mm, flatbar, backsweep: 9, 31,8 mm
Grips	VP VPG-122A
Stem	FOCUS C.I.S. 2.0 MTB , 31.8 mm, aluminium
Headset	ACROS ZS56/ZS56 (ICR), FOCUS C.I.S. Integrated, 1.5/1.5" angle headset
Components
Saddle	Selle Royal Groove SRX
Seatpost	Post Moderne dropper post PM-MT171, 31.6 mm
Brakes
Brakes F/R	Shimano SLX M7100
Front Brake Disc	180 mm
Rear Brake Disc	160 mm
Wheels
Rims	RaceFace AR27, 622-27, 32H
Front Hub	Novatec D041, 15x110 mm
Rear Hub	Novatec D462, 12x148 mm
Wheel size	29"
Tyres F/R	Maxxis Rekon, 29 x 2.4"
Weight	12.9Kg
Permissible system weight	110kg

Geometry

		S	M	L	XL
	Size in mm	400	440	480	520
	Handlebar width	760	760	760	760
	Stem length	60	60	60	60
	Crank length	170	175	175	175
	Seatpost length	390	390	440	480
A	Seat tube length	400	440	480	520
B	Top tube length	596	621	646	676
C	Head Angle Steep ()	67.5	67.5	67.5	67.5
C	Head Angle Slack ()	66.5	66.5	66.5	66.5
D	Seat Angle ()	74	74	74	74
E	Chainstay Length	435	435	435	435
F	Bottom Bracket Drop	65	65	65	65
G	Head Tube Length	100	100	120	140
H	Fork Length	531	531	531	531
I	Fork Offset	44	44	44	44
J	Wheelbase	1123	1148	1176	1209
K	Stack	632	632	650	669
L	Reach	415	440	460	485
M	Standover Height	804	820	846	871

Why Focus?

Focus Vision is to make all people feel the happiness of a great ride. For a better tomorrow. Their Mission is to inspire all people to ride together. They create well-functioning yet exciting products for many and still care for the individual. With Focus, you'll never ride alone.

Theydevelop all our bikes in Stuttgart, Germany. At FOCUS every employee is a passionate bike rider first and foremost. Allprototypes are tested above and beyond industry standards and legal regulations. The final production is carried out with the latest technologies and finest methods available in the cycling industry. Afterwards,Focus assemble all our bikes in Emstek, Germany, to maintain these high standards.
