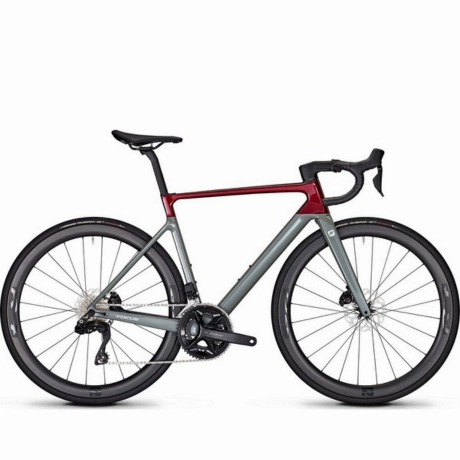

Name: Focus Izalco Max Disc 8.9 Road Bike - Mahagony Red & Slate Grey
SKU: 314522

IZALCO MAX MAKES YOU FASTER

The refined and wind tunnel-approved NACA-shapes (National Advisory Committee for Aeronautics) make our frame highly aerodynamic. At the same time, the frame only weighs 1050 g for frame size M with an additional 400 g for the fork. Our C.I.S. road stem hides the cables below the stem. It also comes with an integrated bike computer mount for both Wahoo and Garmin.

The IZALCO MAX is available in seven sizes. In combination with the stem, which we offer in six lengths from 70 to 120 mm, it really does have all the sizes for each and every one of you.

To enable you to get that extra power on the road, the bottom bracket is optimised for stiffness, and the fork for lateral stiffness. Together with a bold geometry for easier cornering, especially at high speeds, the IZALCO MAX is the road bike for all ambitions.

SPECIFICATION

Frame:

Carbon technology frame, disc, BB86, 142x12 mm thru axle, flat mount 160/140 mm, internal cable routing

Fork:

MAX technology carbon, integrated cable routing, disc, 100x12 mm, flat mount

Shifter:

SHIMANO 105 R7150 Di2, 12-speed

Front Derailleur:

Shimano R7150, Di2

Rear Derailleur:

Shimano R7150 Di2, 12-speed

Cassette:

Shimano 105 R7100, 12-speed

Chain:

Shimano Deore CN-M6100, 12-speed

Crankset:

Shimano 105 R7100

Bottom Bracket:

Shimano Pressfit Road BB86

Handlebar:

BBB Basic, aluminium, drop: 125 mm, reach: 70 mm

Grips:

FOCUS Bartape SL

Stem:

FOCUS C.I.S. 2.0 integrated, 31.8 mm, aluminium, with Garmin / Wahoo-Mount

Headset:

ACROS IS 52/286-IS52/40 (ICR), FOCUS integrated C.I.S.

Saddle:

Selle Royal Groove SRX

Seatpost:

FOCUS Aero Carbon, D-shape, 350 mm, set-back: 15 mm

Brake:

Shimano 105 R7170, Di2

Front Brake Disc

160 mm

Rear Brake Disc

160 mm

Wheelset:

Novatec R4, carbon, 21-622, front: 12x100 mm, rear: 12x142 mm, height: 45 mm

Front Tyre:

Vittoria Rubino TLR, 700 x 28c Folding

Rear Tyre:

Vittoria Rubino TLR, 700 x 28c Folding

Weight

8.2kg (Medium/54)

PERMISSIBLE SYSTEM WEIGHT

110kg

* Subject to technical modification without notice. Errors and omissions excepted.** Weight in size M, of standard specification and without pedals.

GEOMETRY

		XXS	XS	S	M	L	XL	XXL
	SIZE IN MM	470	500	520	540	560	580	610
	HANDLEBAR WIDTH	400	400	400	420	420	420	440
	STEM LENGTH	80	90	100	110	110	120	120
	CRANK LENGTH	165	165	170	172.5	172.5	175	175
A	SEAT TUBE LENGTH	455	475	495	515	535	555	585
B	TOP TUBE LENGTH	505	517	530	543	568	582	607
C	HEAD ANGLE ()	70	71	72	72.5	72.5	73	73
D	SEAT ANGLE ()	75	74.5	74	73.5	73.5	73	73
E	CHAINSTAY LENGTH	410	410	410	410	410	410	410
F	BOTTOM BRACKET DROP	72	72	72	72	72	72	72
G	HEAD TUBE LENGTH	90	100	115	135	155	175	195
H	FORK LENGTH	371.5	371.5	371.5	371.5	371.5	371.5	371.5
I	FORK OFFSET	46	46	46	46	46	46	46
J	WHEELBASE	975	976	975	979	1004	1008	1033
K	STACK	500	513	531	552	571	592	611
L	REACH	370	375	378	380	399	401	420
M	STANDOVER HEIGHT	746	762	778	795	814	835	857
