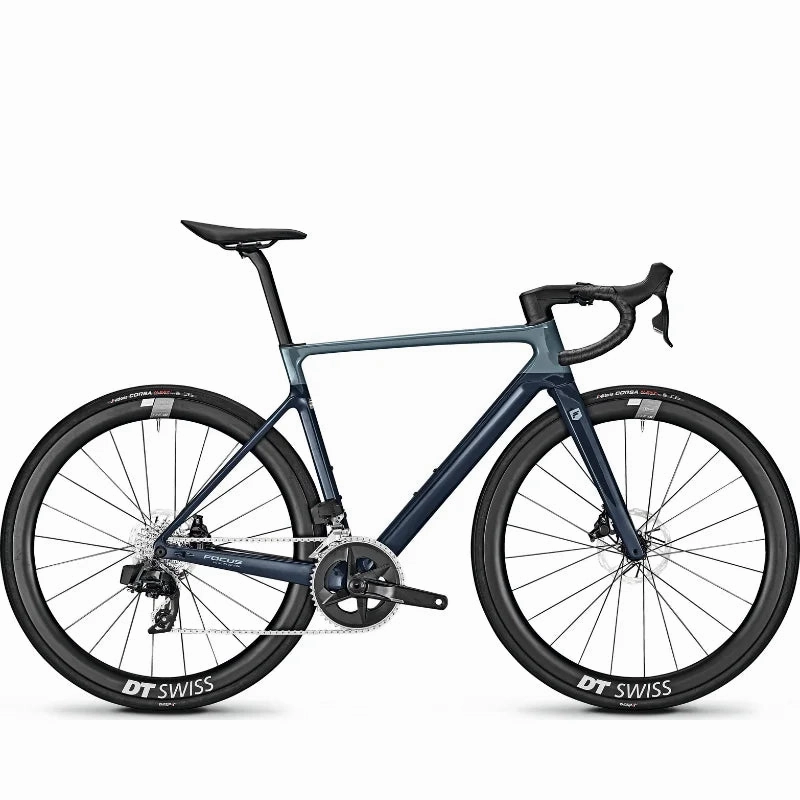

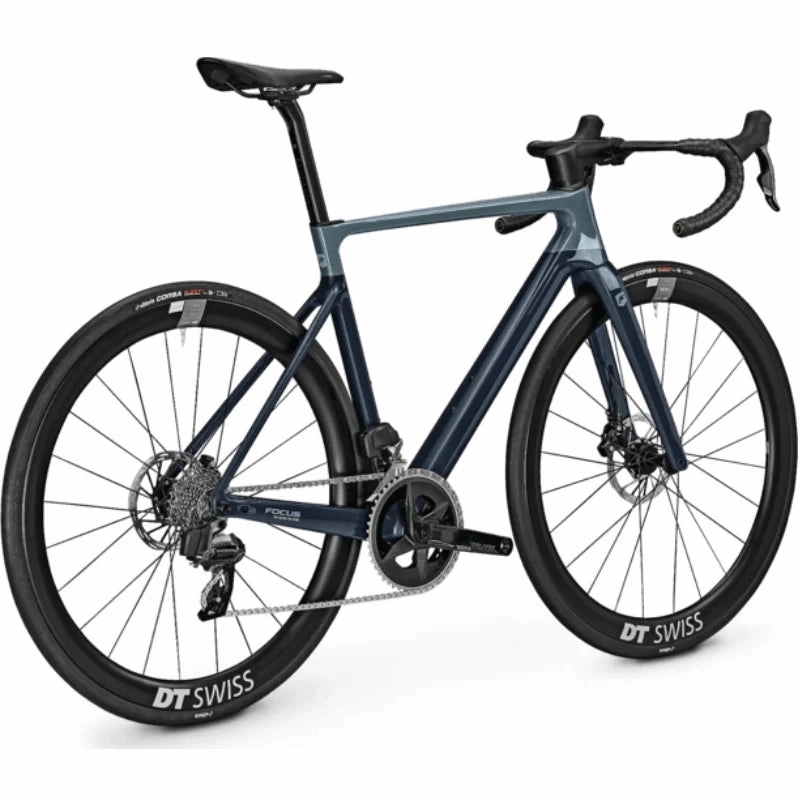

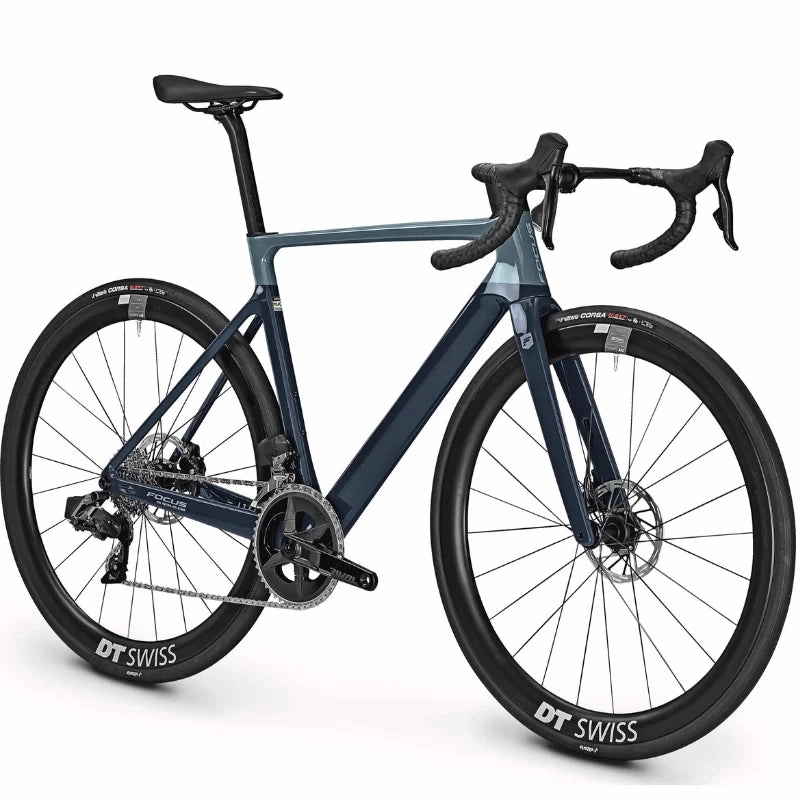

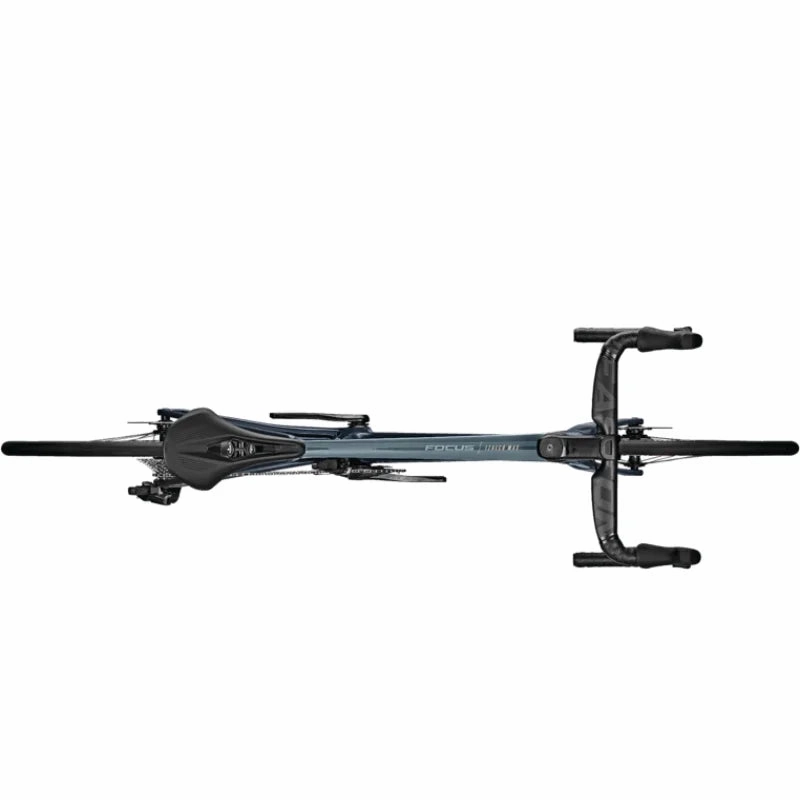

Experience top-tier cycling with the Focus Izalco Max 9.7, engineered for aerodynamics and speed. Its lightweight Max Aero carbon frame (885g), integrated with the precise SRAM Rival eTap AXS 2x12 electronic shifting and DT Swiss ERC1600 carbon wheels, an advances road performance to new heights.
Key Features:
- Aerodynamic Frame:Wind-tunnel-tested NACA design minimizes air resistance.
- Custom Fit:Seven frame sizes and stem lengths from 70 to 120 mm ensure an ideal fit.
- Enhanced Handling:Optimized stiffness in both the bottom bracket and fork allows for confident, precise cornering and efficient power transfer.
Why the Izalco Max 9.7?
- Peak Speed:Designed for agility, it excels in sprints and climbs, helping you surpass the competition.
- Versatile Performance:Ideal for competitive races and group rides, ensuring reliability and superiority on the pavement.
- Advanced Technology:Incorporates cutting-edge features like electronic shifting and an aerodynamic carbon structure for superior road biking.
Unlock your potential on the road with the Izalco Max 9.7- where speed, agility, and innovative design converge for ultimate performance.
Specification
| Frame | MAX technology carbon, disc, BB86, 142x12 mm thru axle, flat mount 160/140 mm, internal cable routing |
| Fork | MAX technology carbon, integrated cable routing, disc, 100x12 mm, flat mount |
| Shifter | SRAM Rival eTap AXS, 12-speed |
| Front Derailleur | SRAM Rival eTap AXS, 12-speed |
| Rear Derailleur | SRAM Rival eTap AXS, 12-speed |
| Cassette | SRAM XG1250, 12-speed |
| Chain | SRAM Rival AXS, 12-speed |
| Crankset | SRAM Rival AXS, 12-speed |
| Bottom Bracket | SRAM PF DUB 86 |
| Handlebar | Easton EC70 Aero, carbon, drop: 125 mm, reach: 80 mm |
| Grips | FOCUS Bartape SL |
| Stem | FOCUS C.I.S. 2.0 integrated, 31.8 mm, aluminium, with Garmin / Wahoo-Mount |
| Headset | ACROS IS 52/286-IS52/40 (ICR), FOCUS integrated C.I.S. |
| Saddle | fi'zi:k Vento Argo R5 |
| Seatpost | FOCUS Aero Carbon, D-shape, 350 mm, set-back: 15 mm |
| Brake | SRAM Rival eTap AXS, 12-speed |
| Front Brake Disc | 160 mm |
| Rear Brake Disc | 160 mm |
| Wheelset | DT Swiss ERC1600, carbon, 622-22, 12x100 mm / 12x142 mm, 45 mm height |
| Wheel Size | 28" |
| Rear Wheel Size | 28" |
| Front Tyre | Vittoria Corsa, Next TLR, 28-622, Folding |
| Rear Tyre | Vittoria Corsa, Next TLR, 28-622, Folding |
| Weight | 8.2 |
| Permissible System Weight | 110 |
Geometry
| XXS | XS | S | L | XL | XXL | ||
| Size in MM | 470 | 500 | 520 | 560 | 580 | 610 | |
| Handlebar Width | 400 | 400 | 400 | 420 | 420 | 440 | |
| Stem Length | 80 | 90 | 100 | 110 | 120 | 120 | |
| Crank Length | 165 | 165 | 170 | 172.5 | 175 | 175 | |
| A | Seat Tube Length | 455 | 475 | 495 | 535 | 555 | 585 |
| B | Top Tube Length | 505 | 517 | 530 | 568 | 582 | 607 |
| C | Head Angle () | 70 | 71 | 72 | 72.5 | 73 | 73 |
| D | Seat Angle () | 75 | 74.5 | 74 | 73.5 | 73 | 73 |
| E | Chainstay Length | 410 | 410 | 410 | 410 | 410 | 410 |
| F | Bottom Bracket Drop | 72 | 72 | 72 | 72 | 72 | 72 |
| G | Head Tube Length | 90 | 100 | 115 | 155 | 175 | 195 |
| H | Fork Length | 371.5 | 371.5 | 371.5 | 371.5 | 371.5 | 371.5 |
| I | Fork Offset | 46 | 46 | 46 | 46 | 46 | 46 |
| J | Wheelbase | 975 | 976 | 975 | 1004 | 1008 | 1033 |
| K | Stack | 500 | 513 | 531 | 571 | 592 | 611 |
| L | Reach | 370 | 375 | 378 | 399 | 401 | 420 |
| M | Standover Height | 746 | 762 | 778 | 814 | 835 | 857 |
