Description
Get more rides in and make the most of every minute of the lightweight Fluid VLT C2 140. Featuring the next-level Bosch Performance Line SX drive system, and 140mm of precision-tuned suspension, integrating mixed wheels across all 5 frame sizes for optimum weight balance & handling.
Specification
| FRAME | Fluid VLT Carbon Front Triangle, Alloy SS and CS, 27.5" Wheel, 140mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned |

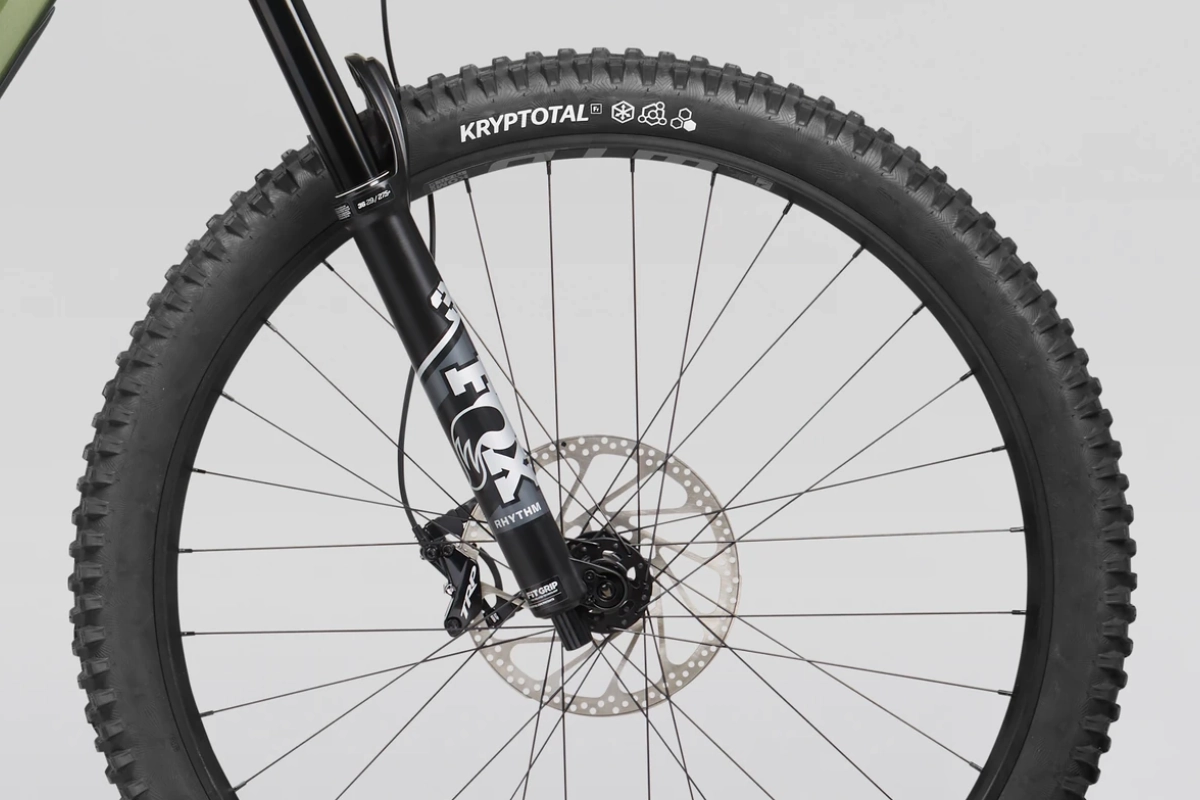

| FORK | RockShox Lyrik, 29, 150 mm Travel (Fox 36 Rhythm shown in photos) |
| REAR SHOCK | Fox FLOAT X2 Performance Elite, 185x55mm Trunnion |
| REAR SHIFTER | SRAM Pod Ultimate Controller |
| REAR DERAILLEUR | SRAM GX Eagle AXS T-Type |
| CRANKSET | Praxis Alloy HD eMTB, 165mm |
| CASSETTE | SRAM 1275 T-Type 10-52T |
| CHAIN | SRAM GX Eagle T-Type |
| FRONT BRAKE | TRP Trail Evo, 4 Piston |
| FRONT BRAKE ROTOR | TRP TR203, 203mm, 2.3mm Thick |
| REAR BRAKE | TRP Trail Evo, 4 Piston |
| REAR BRAKE ROTOR | TRP TR180, 180mm, 2.3mm Thick |
| BRAKE LEVERS | TRP Trail Evo |
| HANDLEBAR | 6061 DB Alloy, 800mm, 25mm Rise |
| STEM | Norco SL 6061 Alloy 40mm Length, 35mm Clamp |
| SEATPOST | TranzX YSI08FL RAD Travel Adjust Dropper, 125mm (S1), 150mm (S2), 170mm (S3), 200mm (S4, S5) |
| HEADSET | FSA No. 57 ZS, Carbon Top Cover |
| HEADSET SPACER | Carbon, 2x10mm, 1x5mm |
| SADDLE | Fizik Ridon |
| GRIPS | WTB Wavelength |
| FRONT HUB | Bear Pawls, 110x15mm Boost, 6-Bolt |
| REAR HUB | Bear Pawls, Impel 24T, 3-Bearing Steel Driver Body, 148x12mm Boost, 6-Bolt, XD |
| RIMS | WTB KOM Trail 32H, 27.5" Rear, 29" Front, 30mm ID |
| FRONT TIRE | Continental Kryptotal 29" x 2.4" Trail |
| REAR TIRE | Continental Xynotal 27.5" x 2.4" Trail |
| DRIVE UNIT | Bosch Performance Line SX |
| BATTERY | Bosch CPT 400Wh |
| WEIGHT | 19.9 kg (44.0 lbs) |
| WEIGHT SIZE | S3 |
| NOTE | Average of the two: green 43.88 lbs and purple 44.04 lbs |
Geometry
| 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|
| 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" |
| Travel (mm front/mm rear) | ||||
150/140 | ||||
| Reach | ||||
| 422.5 | 447.5 | 472.5 | 497.5 | 522.5 |
| Stack | ||||
| 610 | 619 | 628 | 637 | 646 |
| HTAHead Tube Angle | ||||
64.5 | ||||
| OSFork Offset | ||||
44 | ||||
| STSeat Tube Length | ||||
| 385 | 395 | 415 | 445 | 475 |
| STAEffective Seat Tube Angle | ||||
| 76.50 | 76.75 | 77.00 | 77.25 | 77.50 |
| RCRear Centre Length | ||||
| 432 | 432 | 436 | 440 | 444 |
| BBBottom Bracket Drop | ||||
28/8 | ||||
| BBHBottom Bracket Height | ||||
350 | ||||
| HTTHorizontal Top Tube | ||||
| 569 | 593 | 618 | 642 | 666 |
| WBWheelbase | ||||
| 1181 | 1210 | 1243 | 1277 | 1310 |
| SOHStandover | ||||
| 715 | 701 | 703 | 720 | 743 |
| HTHead Tube Length | ||||
| 100 | 110 | 120 | 130 | 140 |
| Trail | ||||
132 | ||||
| Recommended Seatpost Drop | ||||
| 125 | 150 | 170 | 200 | 200 |
| Maximum Post Insertion | ||||
| 240 | 250 | 270 | 300 | 330 |
| Stem Length | ||||
40 | ||||
| Crank Length | ||||
165 | ||||
| Tire Size | ||||
2.35" 2.6" | ||||
| Water Bottle Compatible | ||||
| 1 x 620 mL | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL |
