Description

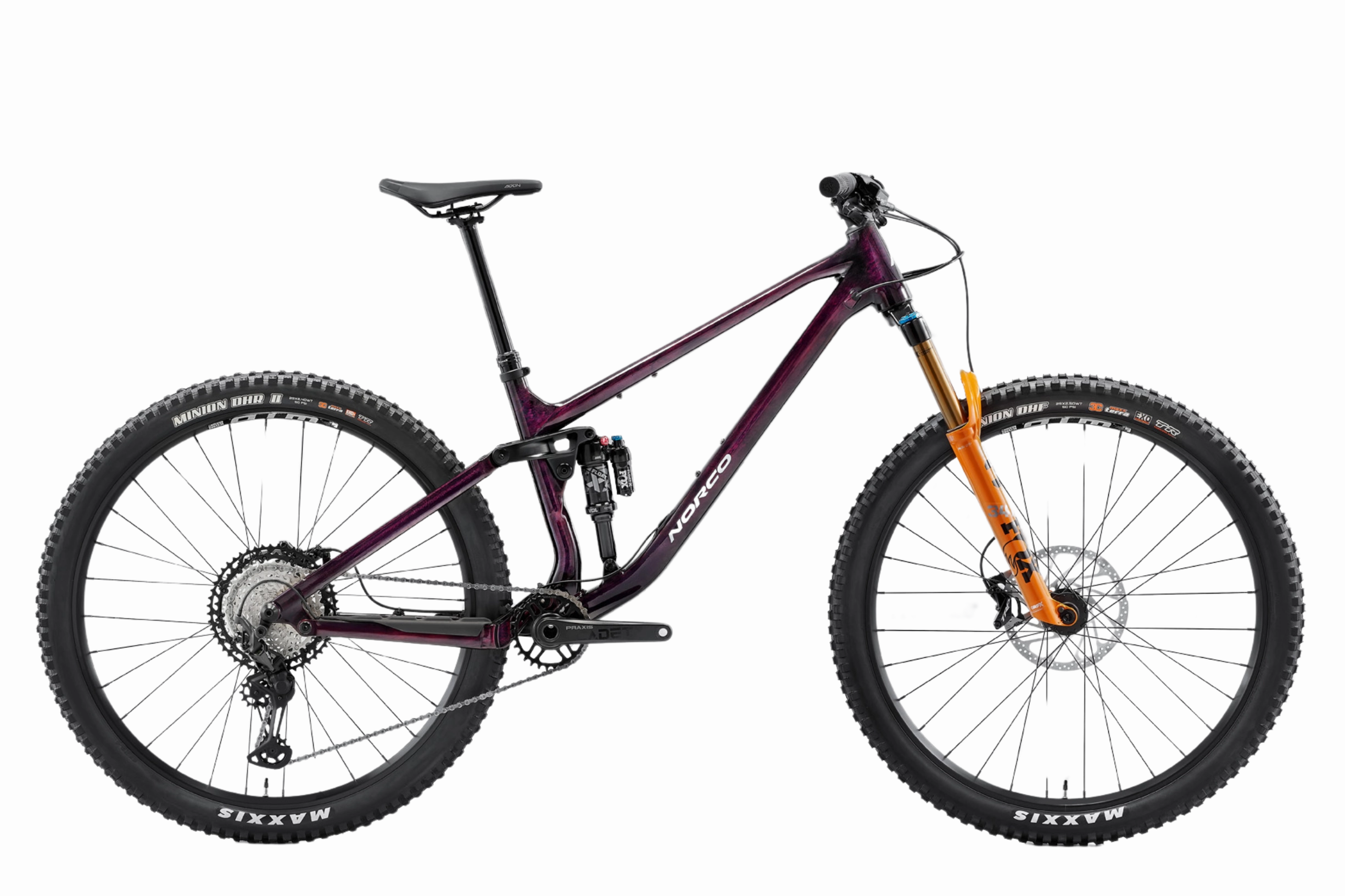

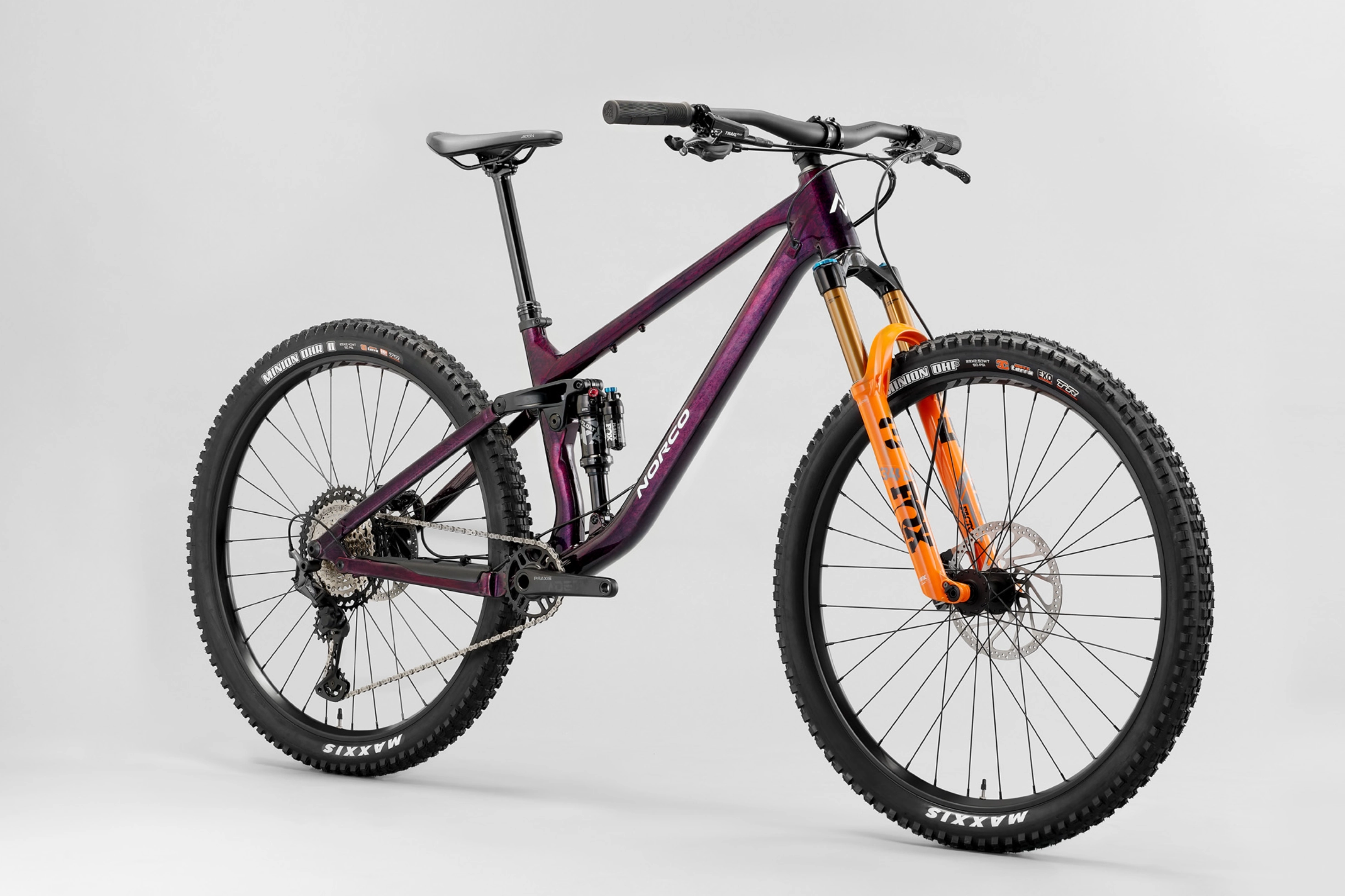

The Norco Fluid FS A1 is built to tackle whatever trail leads to becoming the rider you want to be. Named Pinkbikes Value Bike of the Year, Vital MTBs Bike of the Year, and most recently, Bicycling Magazines Best Value Trail Bike.
Specification
| Frame | 6061 Alloy, 130mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned |
| Fork | Fox 34 Factory GRIP2, 140mm Travel, 44mm Offset |
| Rear Shock | Fox FLOAT X Performance Elite, 2-pos, 210x50mm, Custom Tune |
Geometry
| S | M | L | XL | XXL |
|---|---|---|---|---|
| 29" | 29" | 29" | 29" | 29" |
| Travel (mm front/mm rear) | ||||
140/130 | ||||
| Reach | ||||
| 420 | 450 | 480 | 510 | 540 |
| Stack | ||||
| 617 | 626 | 635 | 644 | 653 |
| HTAHead Tube Angle | ||||
65 | ||||
| OSFork Offset | ||||
44 | ||||
| STSeat Tube Length | ||||
| 360 | 390 | 410 | 460 | 510 |
| STAEffective Seat Tube Angle | ||||
| 76 | 76.3 | 76.7 | 77 | 77.3 |
| RCRear Centre Length | ||||
| 425 | 430 | 435 | 440 | 445 |
| BBBottom Bracket Drop | ||||
30 | ||||
| BBHBottom Bracket Height | ||||
348 | ||||
| HTTHorizontal Top Tube | ||||
| 574 | 602 | 630 | 659 | 687 |
| WBWheelbase | ||||
| 1166 | 1205 | 1245 | 1284 | 1323 |
| SOHStandover | ||||
| 678 | 690 | 699 | 736 | 767 |
| HTHead Tube Length | ||||
| 110 | 120 | 130 | 140 | 150 |
| Trail | ||||
128 | ||||
| Recommended Seatpost Drop | ||||
| 150 | 170 | 200 | 200 | 200 |
| Maximum Post Insertion | ||||
| 250 | 270 | 300 | 300 | 300 |
| Stem Length | ||||
40 | ||||
| Crank Length | ||||
175 | ||||
| Tire Size | ||||
2.4" 2.6" | ||||
| Water Bottle Compatible | ||||
| 1 x 750 mL | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL and 1 x 620 mL |
