Description

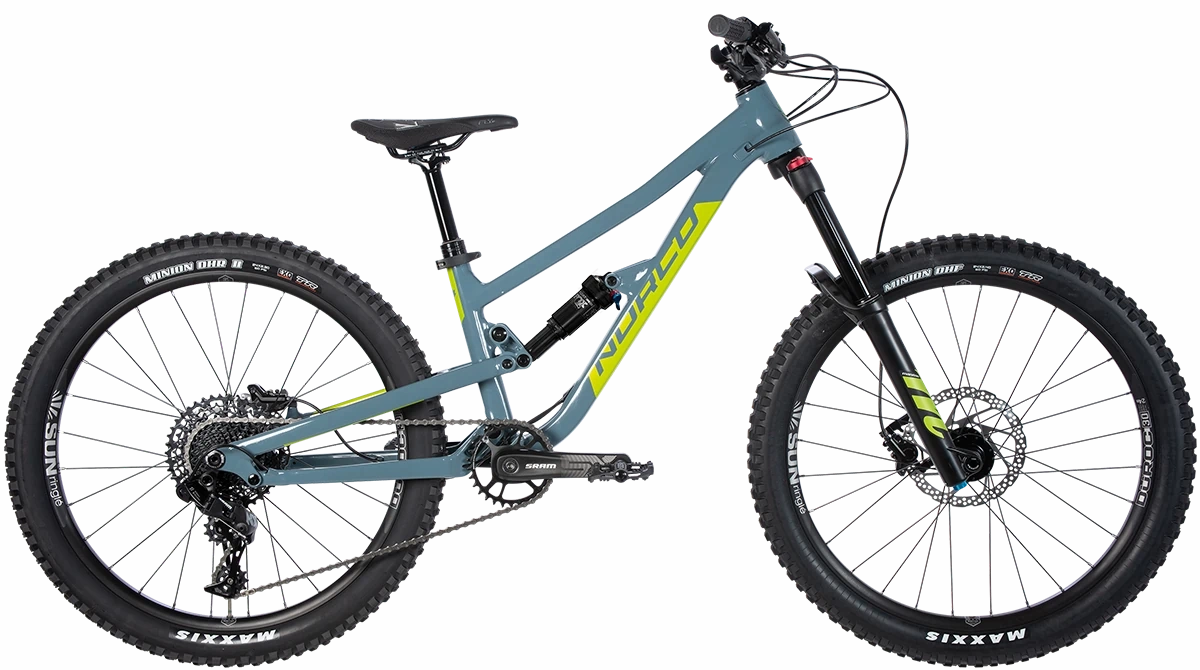

The Fluid FS 1 24 features progressive handling, low standover, youth-tuned suspension and a dropper that is optimized for 9-12 year old riders below 90 pounds.
The Fluid FS 1 24 is an aggressive trail bike designed to tackle demanding trails.
The quality and build reflect everything Norco put into their full-size bikes, so you know the new Fluid FS Youth is up for every trail they are, and its quality parts will keep it out of the shop.
Specifications
| FRAME | 6061 Alloy Frame, 120mm Travel, tapered headtube, boost axle spacing, ISCG05 mount |
| FORK | Manitou J-Unit 24", Expert Air, Alloy Steerer, 145mm Travel |
| REAR SHOCK | Fox Performance FLOAT 3-position, SV/EVOL, custom light tune |
| REAR SHIFTER | SRAM NX 11 speed |
| CRANKSET | SRAM SX Eagle 155mm, 30T |
| BOTTOM BRACKET | SRAM PowerSpline |
| CASSETTE | SRAM PG-1130 11-42T |
| CHAIN | SRAM PC-1110 |
| PEDALS | SDG Composite Jr Flat |
| FRONT BRAKE | Shimano BR-MT500 hydraulic, 180mm |
| REAR BRAKE | Shimano BR-MT500 hydraulic, 160mm |
| HANDLEBAR | SDG Kids Alloy, 640mm, 25mm rise, 31.8mm bore |
| STEM | 35mm reach MTB |
| SEATPOST | JD TransX Light Action Dropper, 100mm,1x lever |
| HEADSET | FSA #57 E |
| SADDLE | SDG Fly JR |
| GRIPS | SDG Jr |
| SEATPOST CLAMP | Norco Alloy QR |
| FRONT HUB | Sun Ringle Duroc 30 Kids wheelset, 15x110mm Boost |
| RIMS | Sun Ringle Duroc 30 Kids tubeless ready |
| FRONT TIRE | Maxxis Minion DHF Folding Bead EXO / TR 24x2.40 |
| REAR TIRE | Maxxis Minion DHR II Folding Bead EXO / TR 24x2.30 |
| REAR HUB SKEWER | Sun Ringle Duroc 30 Kids wheelset, 12x148mm Boost |
| REAR HUB SKEWER | 12mm TA |
| FRONT HUB SKEWER | Included with fork |
| SPOKES/NIPPLES | Sun Ringle Duroc 30 Kids wheelset |
Geometry
| Wheel Size | 24" |
| Travel (mm front/mm rear) | 145/120 |
| Reach | 350 |
| Stack | 531 |
| Head Tube Angle | 64.5 |
| Fork Offset | 40 |
| Seat Tube Length | 305 |
| Effective Seat Tube Angle | 75.0 |
| Rear Centre Length | 407 |
| Bottom Bracket Rise/Drop | -5 |
| Bottom Bracket Height | 305 |
| Horizontal Top Tube | 492 |
| Wheelbase | 1052 |
| Standover | 569 |
| Head Tube Length | 100 |
| Trail | 106 |
| Recommended Seatpost Drop | 100 |
| Maximum Post Insertion | 160 |
| Stem Length | 35 |
| Crank Length | 152 |
| Tire Size | 2.35" - 2.6" |
Size
