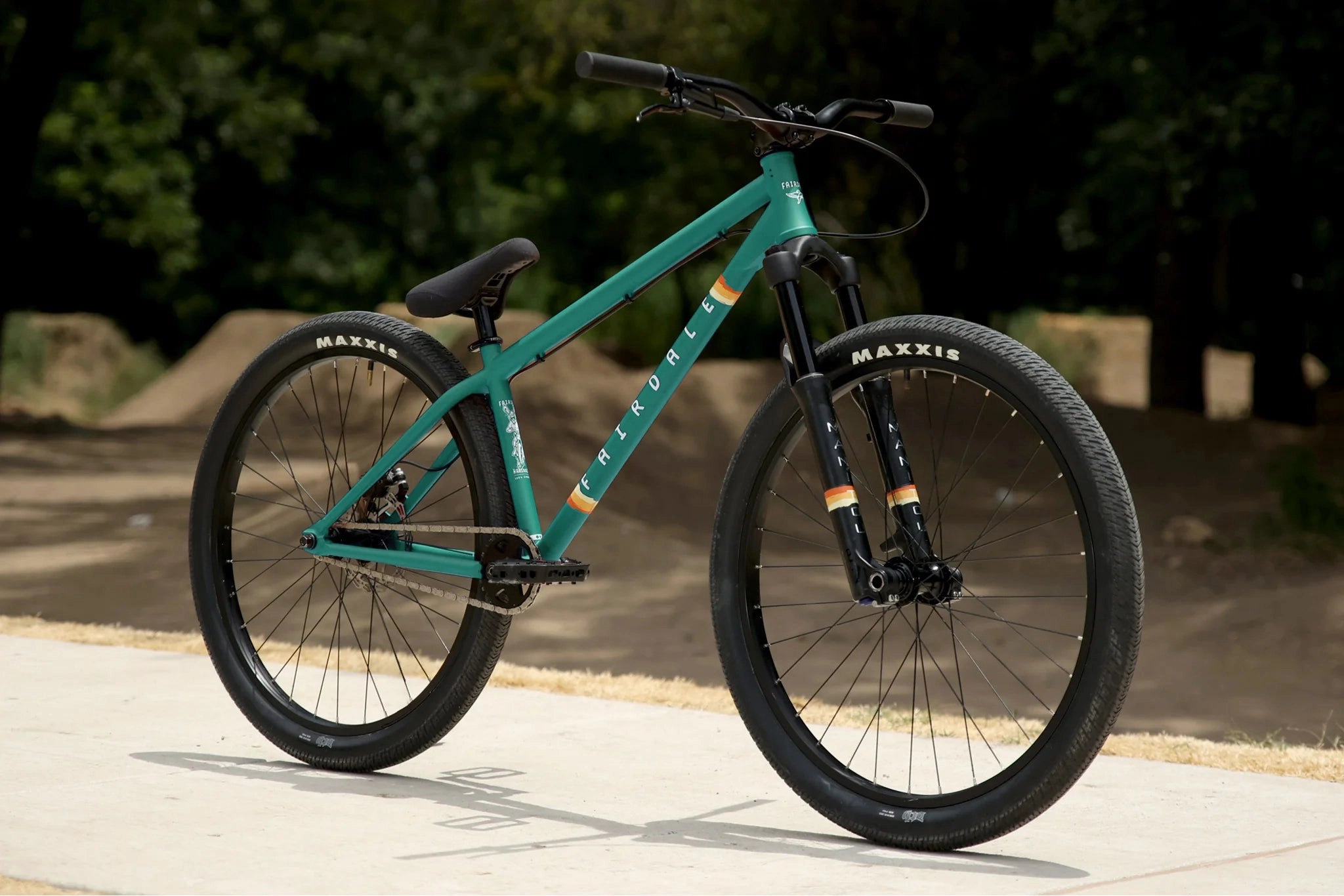

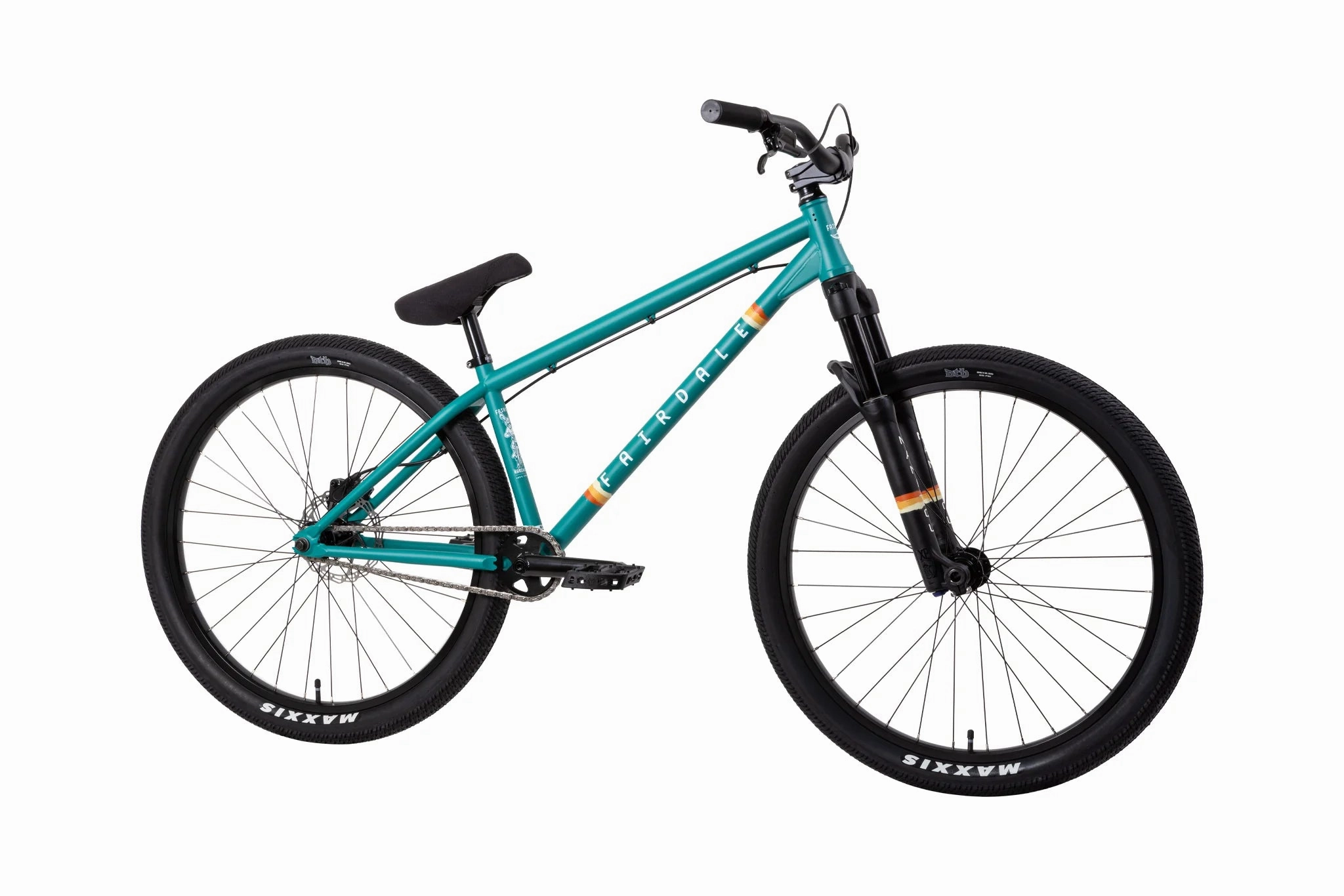

After successfully introducing the Hareraiser frame, we were asked many times for a complete bike. The frame continues to be a fully capable 26" DJ frame is made of 100% 4130 chromoly with a 3/8" axle slot, integrated chain tensioners, BSA 73mm threaded bottom bracket, ultra-short chainstays and a tapered 1-1/8 to 1-1/2 head tube with removable tabs for a traditional BMX-style Gyro.
The Hareraiser complete is available as both a rigid and a front suspension (FX) version.
The rigid version comes equipped with a Fairdale Hareraiser Chromoly fork with a 15mm through axle. Leaning into our BMX roots with a Fairdale MX-4 handlebar attached to a Sunday Freeze Front Load stem.
The Hareraiser FX will come stock with a Manitou Expert fork in Black with 100mm of travel and a 20mm through axle. Along with Odyssey brake lever, Odyssey Big Stitch seat, and Maxxis DTH 2.3" tires front and rear.
Designed from the ground up to make the transition between riding a MTB, DJ bike, and BMX as seamless as possible.
Features
- Frame: 100% 4130 chromoly DJ frame, 3/8" Dropout, Threaded 73mm BB, Disc Mount
- Fork: Manitou Circus Expert, 100mm, 20mm Thru-Axle
- Handlebar: 2" rise, 30" wide, 31.8mm bore, Aluminum
- Stem: 50mm
- Headset: FSA Orbit Sealed
- Brake Lever: Hydraulic
- Brakes: Hydraulic
- Grips: Lock-on
- Saddle: Odyssey Big Stitch, Pivotal
- Seat Post: Pivotal 27.2mm
- Seat Clamp: Fairdale 30mm
- Cranks: 19mm 48-Spline, 170mm
- Chainwheel: 28T
- BB Parts: Euro
- Pedals: Odyssey Twisted Pro PC
- Rims: 26" 32H
- Front Hub: Sealed 20mm Thru Axle
- Rear Hub: Sealed Cassette, 3/8" Axle, Disc
- Tires: Maxxis DTH 2.3"
- Chain: KMC Z1eHX
- Driver: 12T
Sizing
- Small/Medium: 5'4" height and up
- Medium/Large: 5'6" height and up
Geometry
| Build | S/M Suspension | M/L Suspension | S/M Rigid | M/L Rigid |
| Fork Travel | 100mm | 100mm | 100mm | N/A |
| Fork Axle to Crown | 482mm | 482mm | 455mm | 455mm |
| Fork Offset | 40mm | 40mm | 30mm | 30mm |
| Top Tube (Effective) | 625mm | 625mm | 625mm | 625mm |
| Seat Tube (BB Center to TT Center) | 340mm | 340mm | 340mm | 340mm |
| Seat Tube Angle | 72 | 72 | 73 | 73 |
| Head Tube Length | 120mm | 120mm | 120mm | 120mm |
| Head Tube Angle | 69.5 | 69.5 | 70.5 | 70.5 |
| Chain Stay Length | 379-389mm | 379-389mm | 379-389mm | 379-389mm |
| Standover | 690mm | 690mm | 681mm | 678mm |
| Stack | 570mm | 570mm | 562mm | 561mm |
| Reach | 415mm | 440mm | 427mm | 452mm |
| BB Drop | 20mm | 20mm | 28mm | 28mm |
| Rear Dropout Spacing | 10x135mm | 10x135mm | 10x135mm | 10x135mm |
| BB Type | 73mm threaded | 73mm threaded | 73mm threaded | 73mm threaded |
| Seat Post | 27.2mm | 27.2mm | 27.2mm | 27.2mm |
| Seat Clamp | 30mm | 30mm | 30mm | 30mm |
| Rear Tire Clearance | 2.3" | 2.3" | 2.3" | 2.3" |
| Wheel Size | 26" | 26" | 26" | 26" |
*Specs subject to change without notice.
