Description

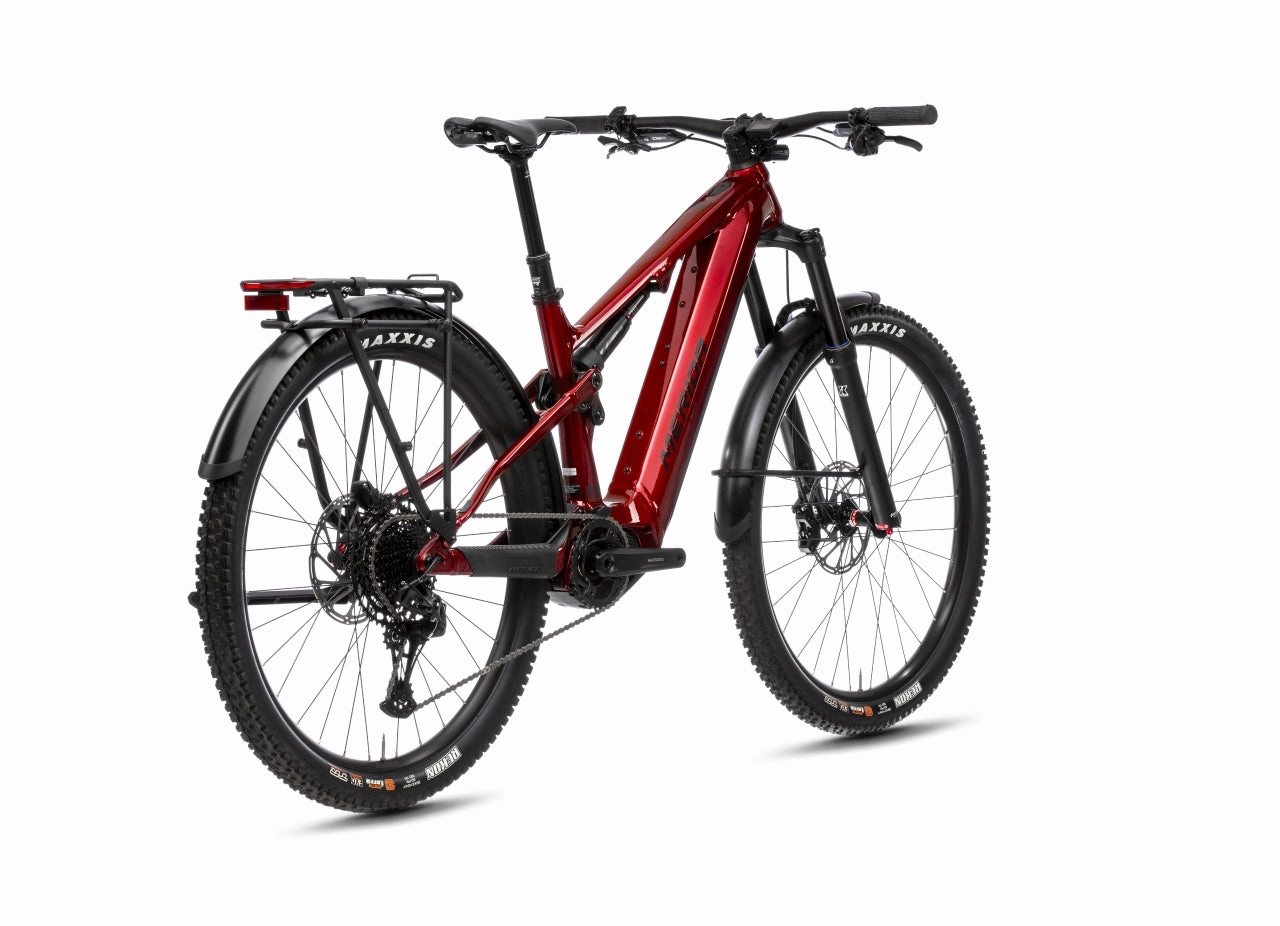

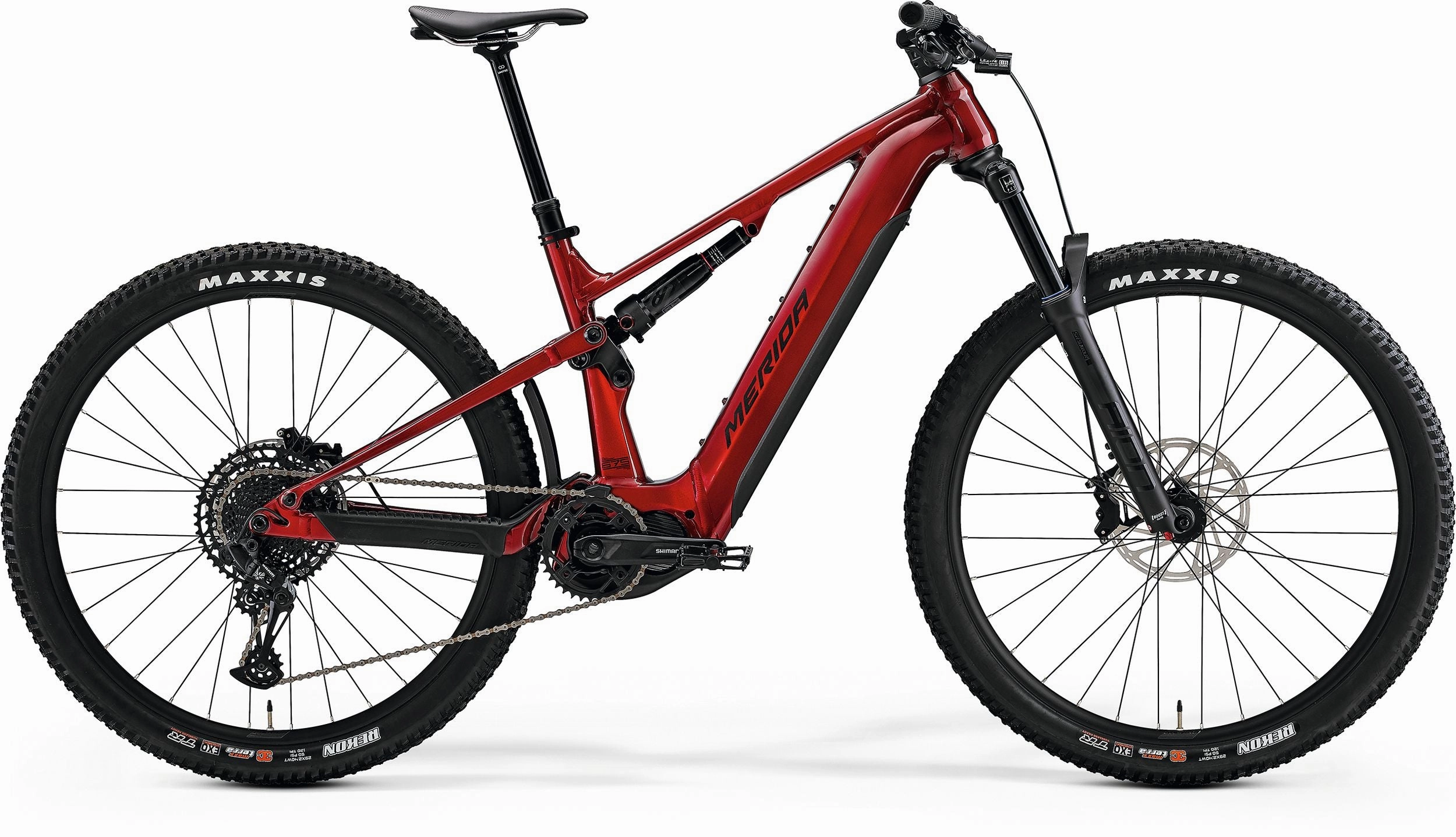

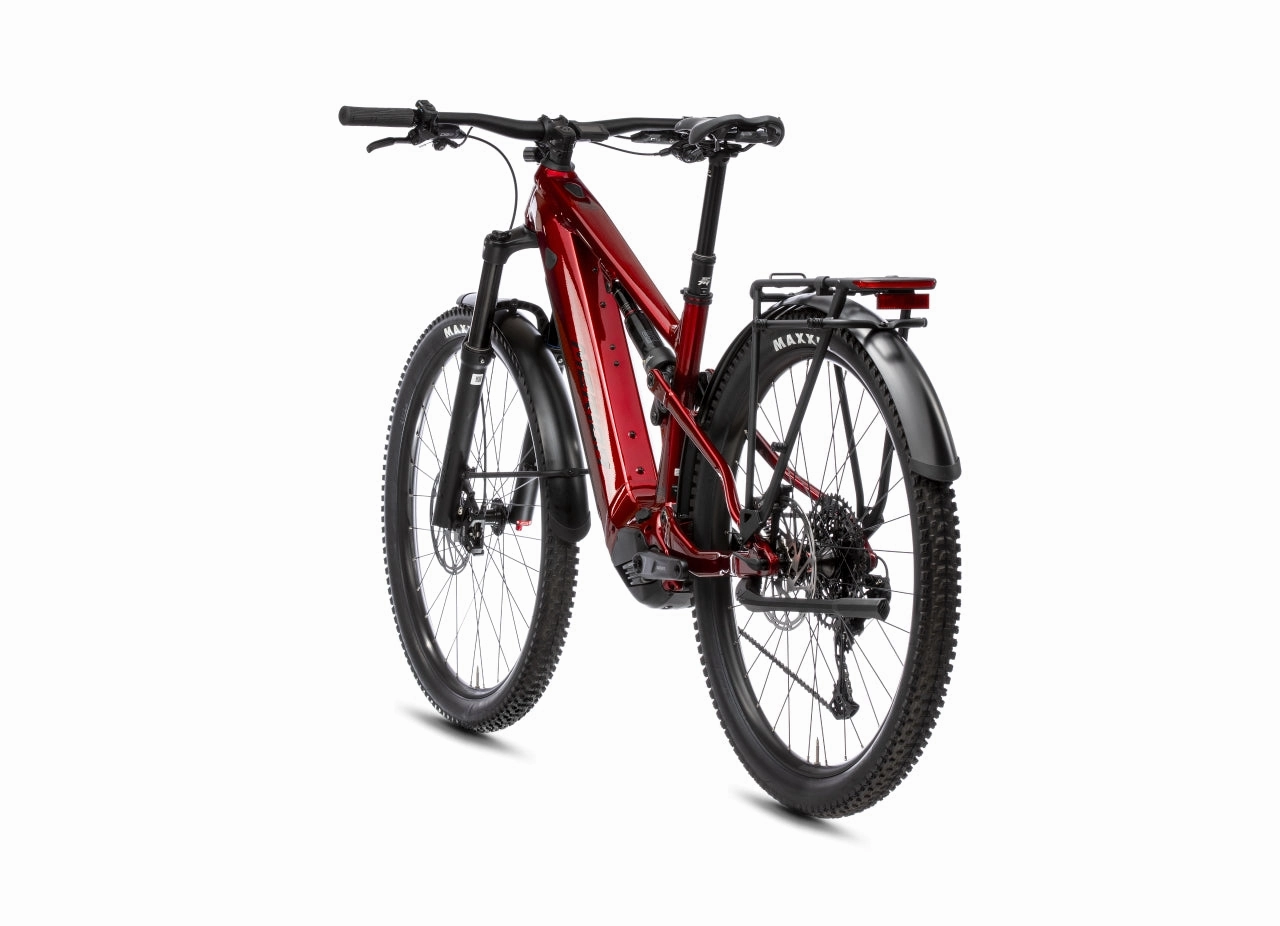

Our long-range trail machine. The eONE-FORTY 675 combines our tough aluminium frame with a 750 Wh user removable battery to give you a huge assisted range, which can be boosted further with our optional 360 Wh range extender. Thanks to the combination of our award-winning, low-maintenance suspension platform and the smooth Suntour Aion fork and RockShox rear shock, it's ready to slice through singletrack on repeat, while the 12-speed SRAM NX Eagle drivetrain and powerful drive unit can turn mountains into molehills.
The new eONE-FORTY has a big range. That's not just because of the 750 Wh battery that can be boosted with a 360 Wh range extender- it's because it's an incredibly versatile machine that can tackle rugged mountain bike trails one day and be your city-ready SUV partner the next. With a suspension platform and geometry derived from our award-winning trail and enduro bike range, it's got peerless off-road performance and handling that's confident and capable wherever you take it. With our proven suspension design giving 143 mm of rear wheel travel and 150 mm up front, it also features our simplified AGILOMETER sizing system that allows you to choose the handling you want thanks to super low standover heights. Go long for more off-road stability, go shorter for more agility. We also offer the eONE-FORTY in fully-equipped EQ models, which come with lights, mudguards and a rack as standard, making it the perfect rugged urban partner.range extender available separately, 630 Wh battery and no range extender on eONE-FORTY 400
Specification
Geometry
Frame Size | XShort | Short | Mid | Long | XLong |
Tyre Sizes | 29" | 29" | 29" | 29" | 29" |
ST seat tube [mm] | 400 | 410 | 425 | 445 | 465 |
TT top tube [mm] | 543 | 564 | 585 | 607 | 628 |
CS chain stay length [mm] | 449 | 449 | 449 | 449 | 449 |
HTA head tube angle [] | 66.5 | 66.5 | 66.5 | 66.5 | 66.5 |
STA seat tube angle [] | 79.7 | 79.7 | 79.6 | 79.5 | 79.5 |
BD bottom bracket drop [mm] | 35.5 | 35.5 | 35.5 | 35.5 | 35.5 |
HT head tube [mm] | 100 | 105 | 110 | 115 | 120 |
FL fork length [mm] | 557 | 557 | 557 | 557 | 557 |
R reach [mm] | 431 | 451 | 471 | 491 | 511 |
S stack [mm] | 616 | 620 | 624 | 628 | 633 |
WB wheel base [mm] | 1191 | 1213 | 1235 | 1257 | 1280 |
SH stand over height [mm] | 758 | 752 | 746 | 744 | 739 |
