Description

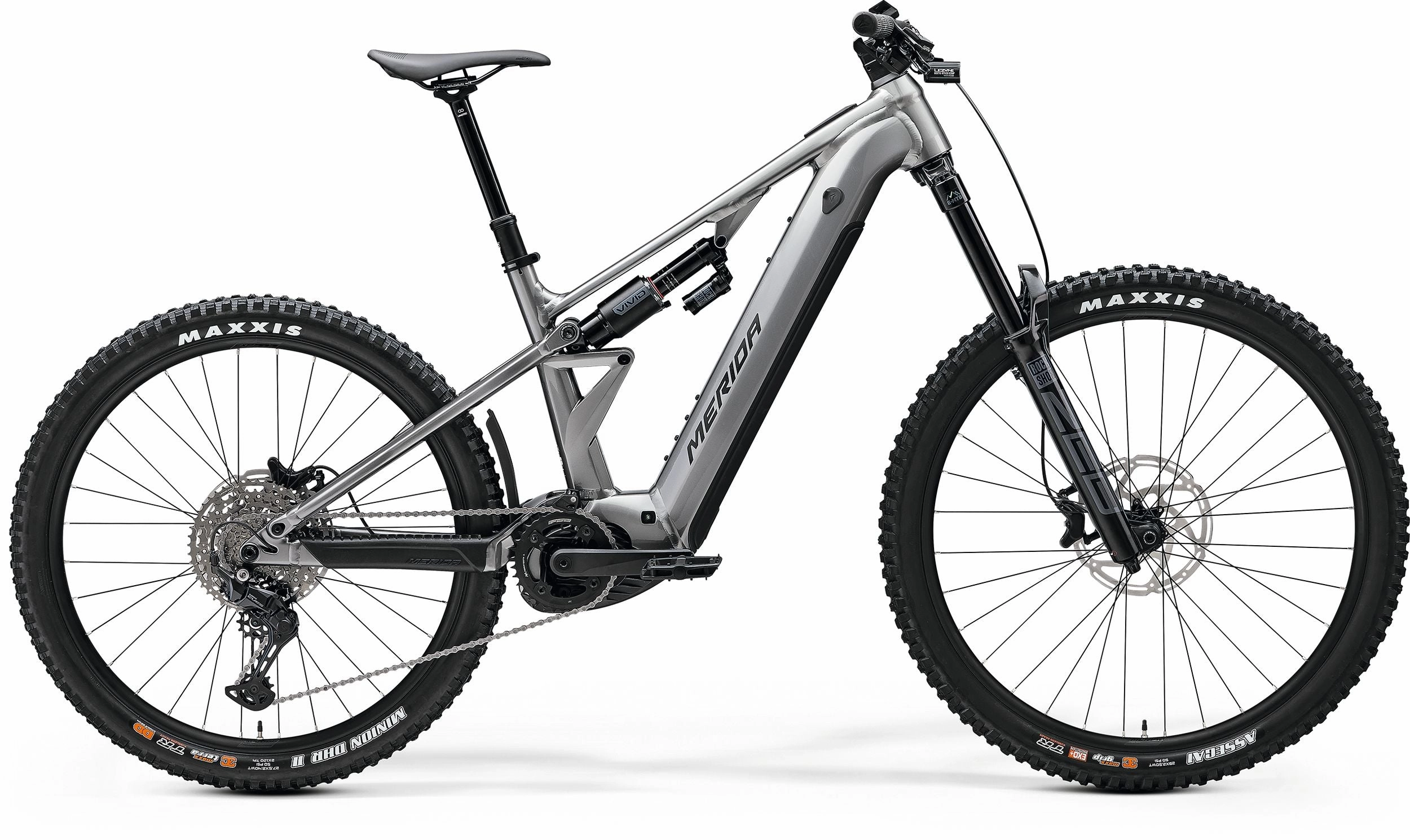

The eONE-EIGHTY 500 is built for taking on the gnarliest trails wherever you find them. With 180 mm of travel at either end from our robust aluminium frame, a RockShox Zeb Base fork and Vivid Base shock mean this bike is ready to eat up rock gardens for breakfast, drops for lunch and some gaps for dinner - or whatever you're hungry for. The Bosch CX drive unit and a huge 800 Wh battery mean you can repeat that for as long as you like too, while our mixed wheel size setup means this is a bruiser that can dance.
Calling all heavy hitters, bike park senders and big mountain brawlers, this ones for you. The new eONE-EIGHTY has landed, and its ready to ride the biggest lines and burliest tracks - and you can say goodbye to waiting in the uplift queue because it can rip and repeat all day long thanks to a big 800 Wh battery and Bosch CX power.Its our longest travel e-bike ever, with 180 mm of suspension at either end on a robust aluminium frame with a new suspension platform that builds on our award-winning FAST kinematic from the eONE-SIXTY and sends it to new heights. Add in coil shock compatibility, mixed-wheel size only setup, plus a whole host of other features and getting rowdy is where the eONE-EIGHTY starts, not finishes. Up or down, its ready to rock.Its also our first e-MTB to use the Bosch Performance Line CX drive unit, which offers powerful assistance and silent performance with 85 Nm on tap. Theres a serious amount of range on offer too, thanks to the new 800 or 600 Wh battery - plus the option of a 250 Wh range extender. You can easily remove the battery for off-bike charging or replacement on a really big ride, plus weve also got a new cover that protects from dirt, impacts and moisture - and it holds itself in place with the magic of Fidlock magnets.Its rated for Category 5 riding too, so you can get stuck into as many bike park laps or downhill tracks as you like without voiding the 5-year warranty.
Specification
Geometry
Frame Size | XShort | Short | Mid | Long | XLong |
Tyre Sizes | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" |
ST seat tube [mm] | 400 | 410 | 425 | 445 | 465 |
TT top tube [mm] | 556 | 577 | 604 | 630 | 652 |
CS chain stay length [mm] | 435 | 435 | 435 | 435 | 435 |
HTA head tube angle [] | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 |
STA seat tube angle [] | 78.5 | 78.5 | 78.5 | 78.5 | 78.5 |
BD bottom bracket drop [mm] | 12 | 12 | 12 | 12 | 12 |
HT head tube [mm] | 110 | 115 | 120 | 125 | 130 |
FL fork length [mm] | 600 | 600 | 600 | 600 | 600 |
R reach [mm] | 415 | 435 | 460 | 485 | 505 |
S stack [mm] | 652 | 657 | 661 | 666 | 670 |
WB wheel base [mm] | 1195 | 1218 | 1245 | 1272 | 1294 |
Str Stack To Reach Ratio Pc | 1.57 | 1.51 | 1.44 | 1.37 | 1.33 |
