Discover a little mischief and unknown territory with the trail-ready Liv Embolden, the perfect bike to get you onto the trails and singletrack.
Embolden is designed with womens-specific geometry and 130 mm front/120 mm rear suspension, on a single-pivot Flexpoint platform. This bike feels stable, fast and energetic even as the terrain gets technical, meeting the demands of trail riding. Using our 3F Design Philosophy, we developed a geometry that provides a low standover height, making dismounts and maneuvering your body around the frame effortless. The 27.5-inch wheel size ensures that bike handling is still nimble and playful, while carrying more speed in corners and through rocks, providing a stable, trustworthy feel.
Trail Confidence
130 mm front travel and 120 mm rear travel, plus confidence-inspiring geometry, and disc brakes.
Accessible Performance
Equipped with single-pivot Flexpoint suspension design, and tuned specifically for women, Embolden is a highly capable, trail-versed dual suspension bike.
Inspiring Comfort
LivRight Sizing and 3F Design Philosophy guarantee a design built truly for women and the perfect fit across all frame sizes.
Specifications
| Sizes | XS, S, M, L |
|---|---|

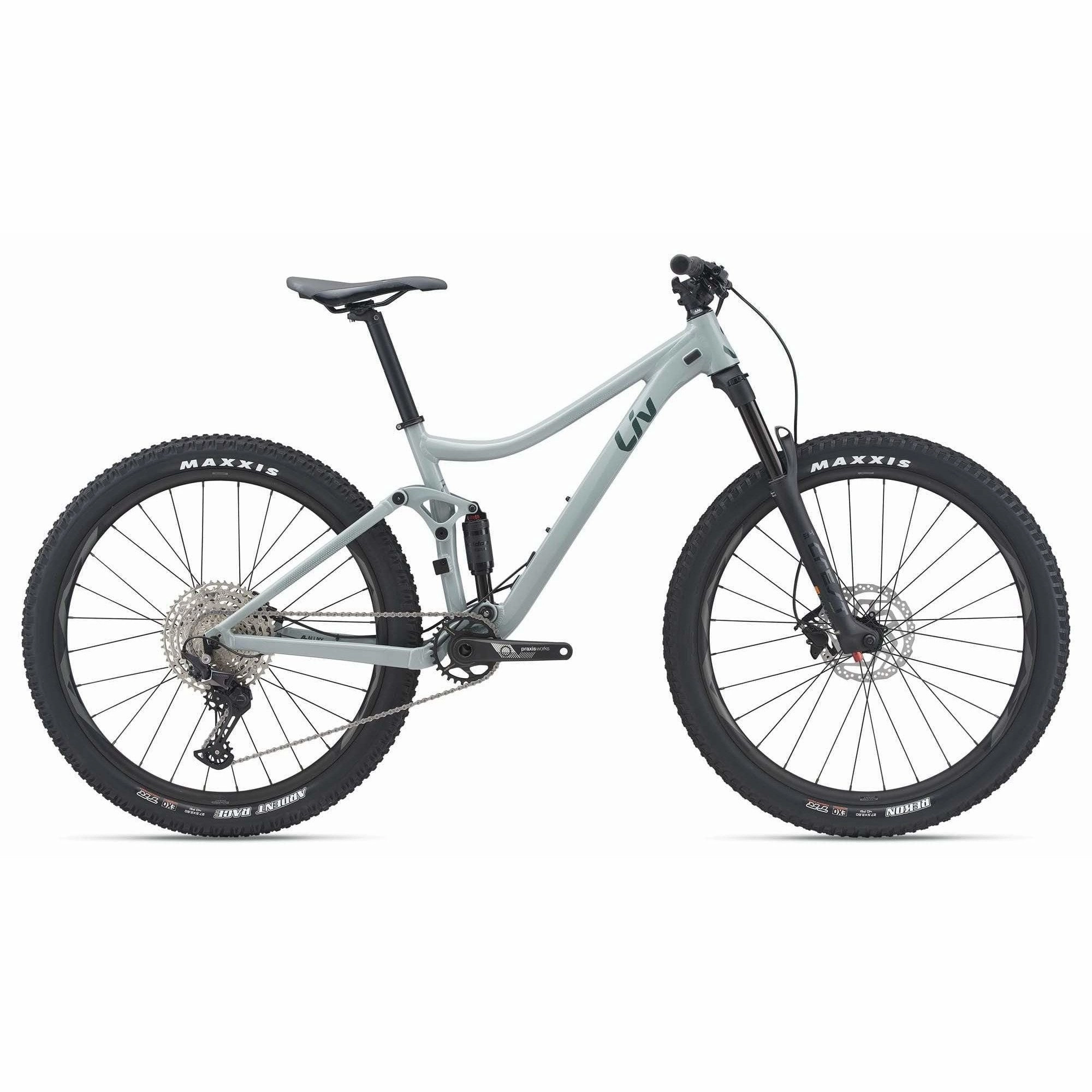

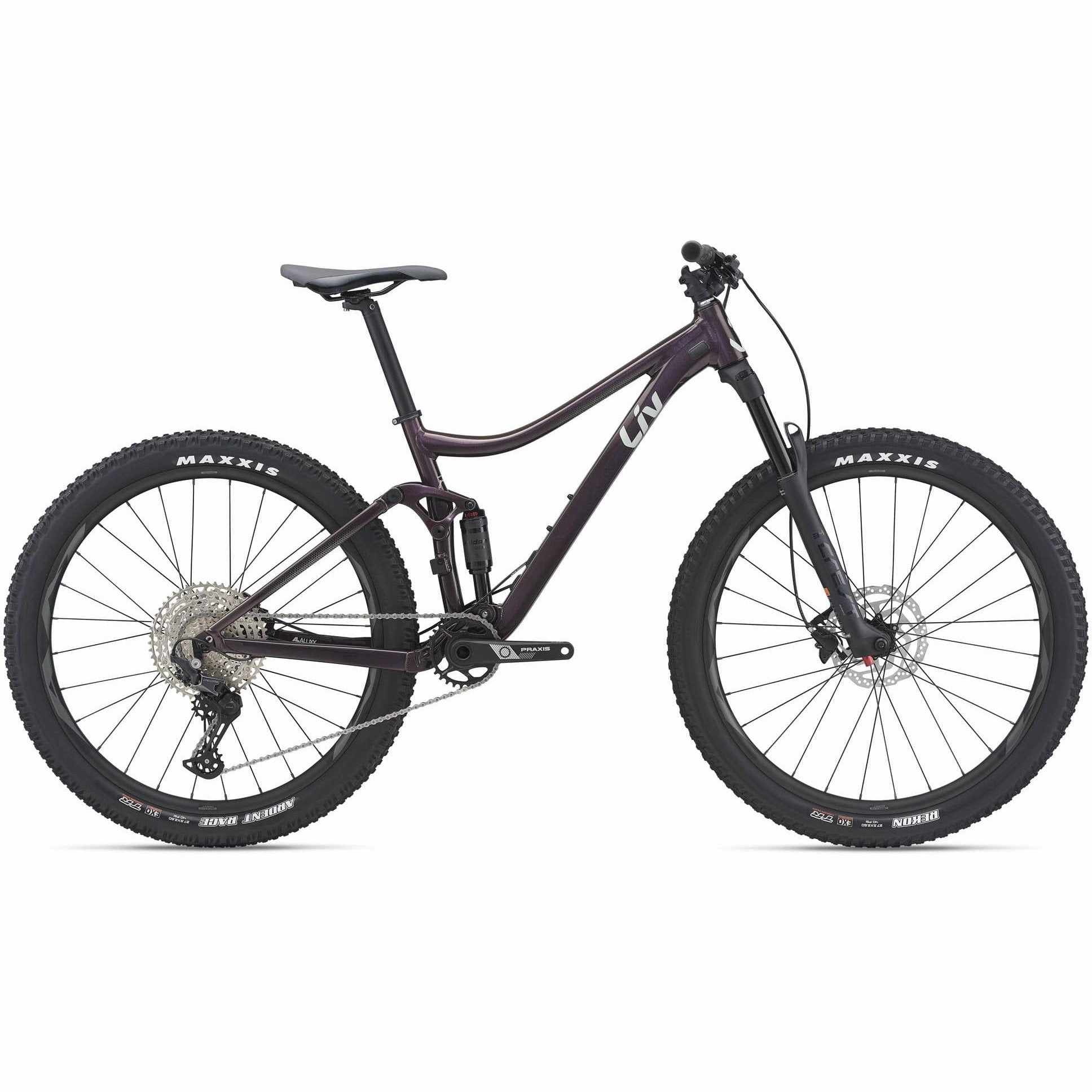

| Colors | Slate Gray / Trekking Green, Rosewood / Desert Sage |
| Frame | ALUXX-Grade Aluminum, 120mm FlexPoint Suspension |
| Fork | Giant Crest 34 RCL, 130mm, Boost 15x110, custom tuned for Giant |
| Shock | Suntour Raidon R, 184/44, custom tuned for Giant |
| Handlebar | Giant Connect Trail |
| Stem | Giant Contact |
| Seatpost | Giant Connect, 30.9 |
| Saddle | Liv Sylvia |
| Pedals | N/A |
| Shifters | Shimano Deore |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano Deore, Shadow |
| Brakes | Shimano MT200 hydraulic (F:180mm, R:160mm) |
| Brake Levers | Shimano BL-MT201 |
| Cassette | Shimano Deore, 12-speed, 10x51 |
| Chain | Shimano Deore |
| Crankset | Praxis Cadet Boost, 30t |
| Bottom Bracket | Praxis, press fit |
| Rims | Giant AM 27.5 wheelset, alloy, 30mm inner |
| Hubs | [F] Giant Performance Tracker, Boost 15x110, sealed bearing [R] Giant Sport Tracker, QR Boost 141, loose ball |
| Spokes | Sapim |
| Tires | [F] Maxxis Rekon 27.5x2.6 WT, EXO, TR, tubeless [R] Maxxis Ardent Race 27.5x2.6 WT, EXO, TR, tubeless |
| Extras | Tubeless prepared |
Geometry
| XS | S | M | L | |
|---|---|---|---|---|
| SEAT TUBE LENGTH(inch) | 15 | 16 | 17.5 | 19.3 |
| SEAT TUBE ANGLE | 74.0 | 74.0 | 74.0 | 74.0 |
| TOP TUBE LENGTH(inch) | 22.2 | 22.8 | 23.4 | 24 |
| HEAD TUBE LENGTH(inch) | 3.7 | 3.9 | 4.3 | 4.7 |
| HEAD TUBE ANGLE | 67.5 | 67.5 | 67.5 | 67.5 |
| FORK RAKE(inch) | 1.7 | 1.7 | 1.7 | 1.7 |
| TRAIL(inch) | 4.1 | 4.1 | 4.1 | 4.1 |
| WHEELBASE(inch) | 43.7 | 44.3 | 44.9 | 45.6 |
| CHAIN STAY LENGTH(inch) | 17.1 | 17.1 | 17.1 | 17.1 |
| BOTTOM BRACKET DROP(inch) | 0.8 | 0.8 | 0.8 | 0.8 |
| STACK(inch) | 22 | 22.2 | 22.6 | 23 |
| REACH(inch) | 15.9 | 16.5 | 16.9 | 17.4 |
| STAND OVER HEIGHT(inch) | 27.2 | 27.8 | 28.9 | 29.9 |
| HANDLEBAR WIDTH(inch) | 29.5 | 29.5 | 30.7 | 30.7 |
| STEM LENGTH(inch) | 1.6 | 1.6 | 2 | 2 |
| CRANK LENGTH(inch) | 6.5 | 6.7 | 6.7 | 6.9 |
| WHEEL SIZE | 27.5" | 27.5" | 27.5" | 27.5" |
