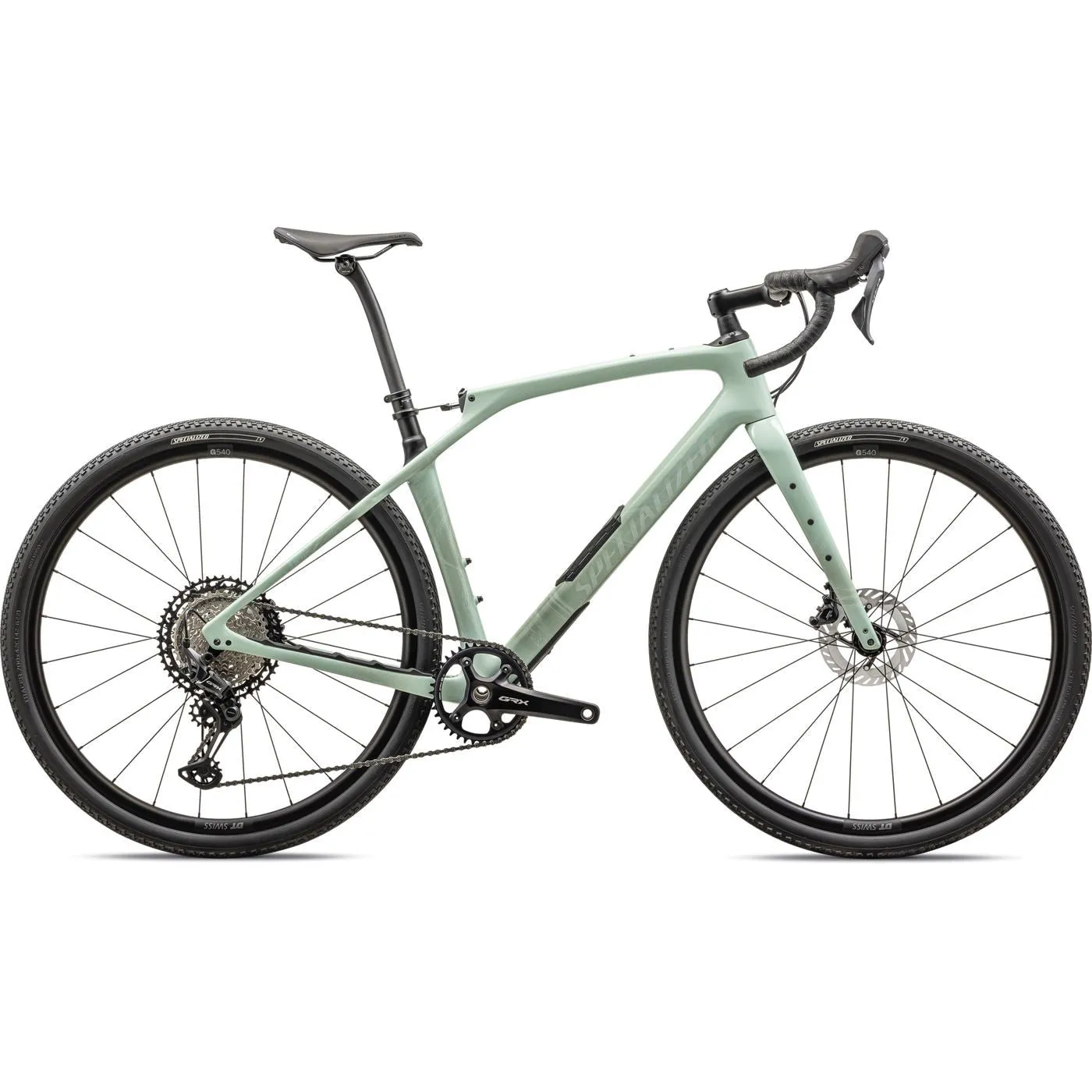

With Future Shock suspension front and rear, the new Diverge STR delivers compliance without compromise. By suspending the riderinstead of the bikeFuture Shock technology increases control and efficiency while decreasing fatigue, so youll be riding farther and faster over chunkier terrain than you believed possible.

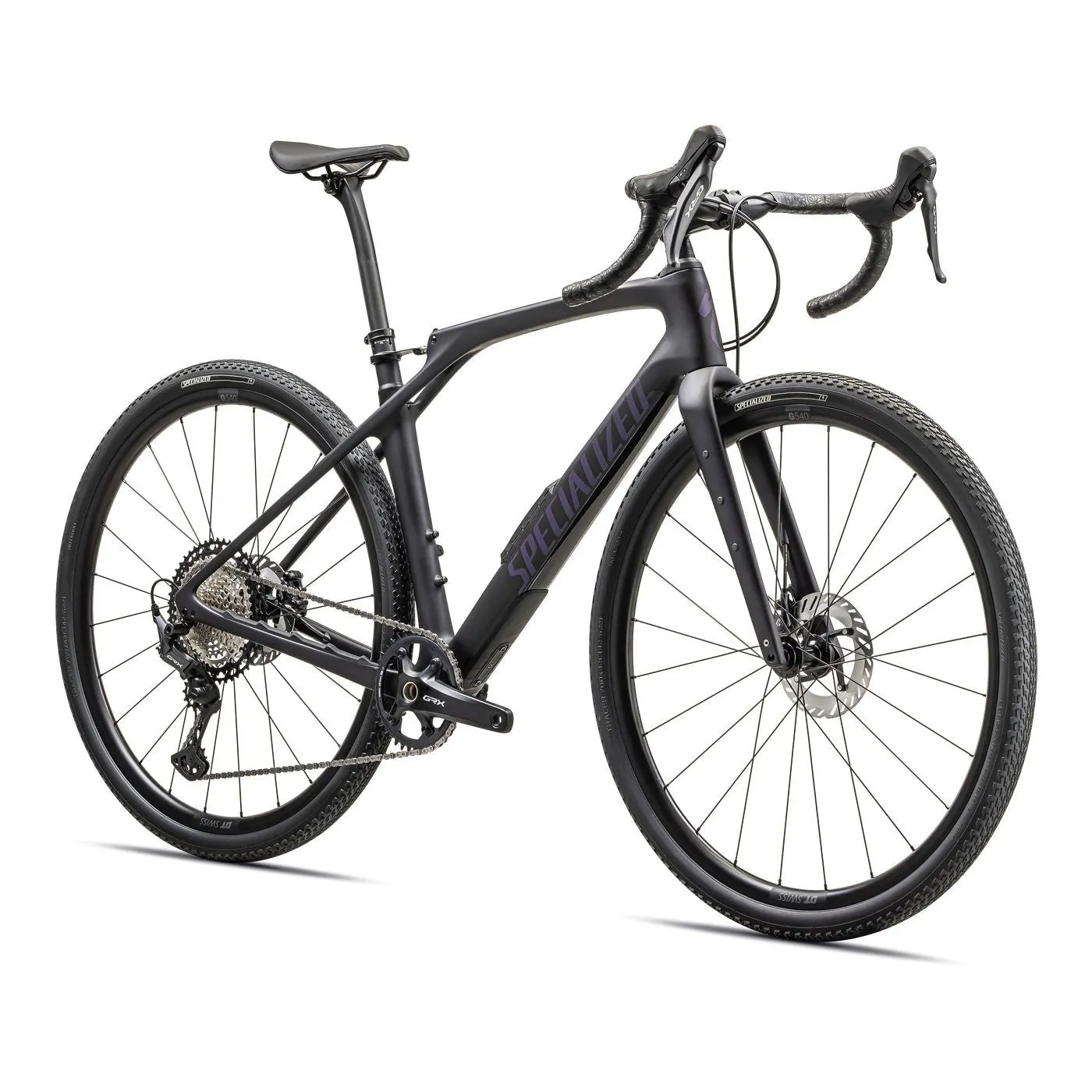

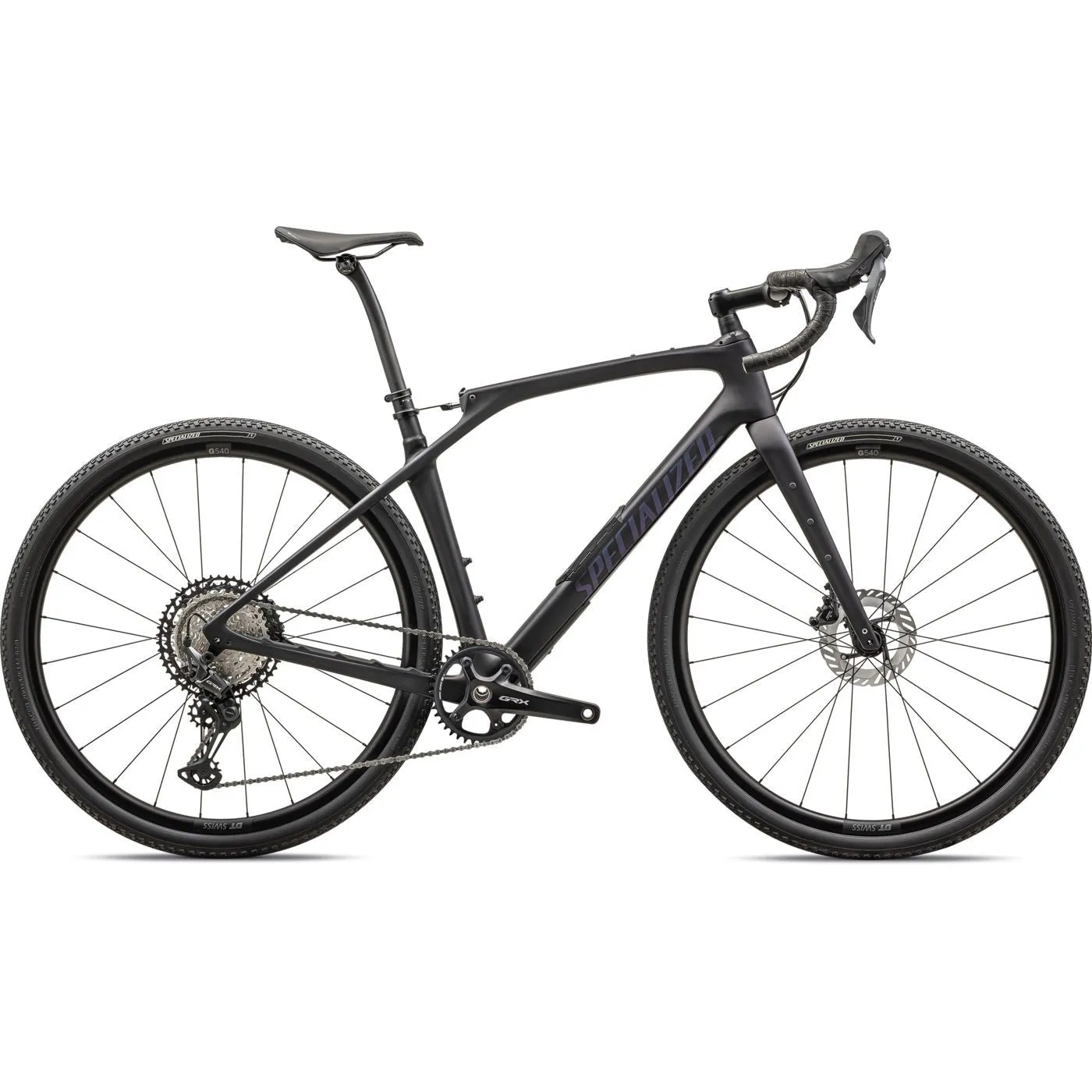

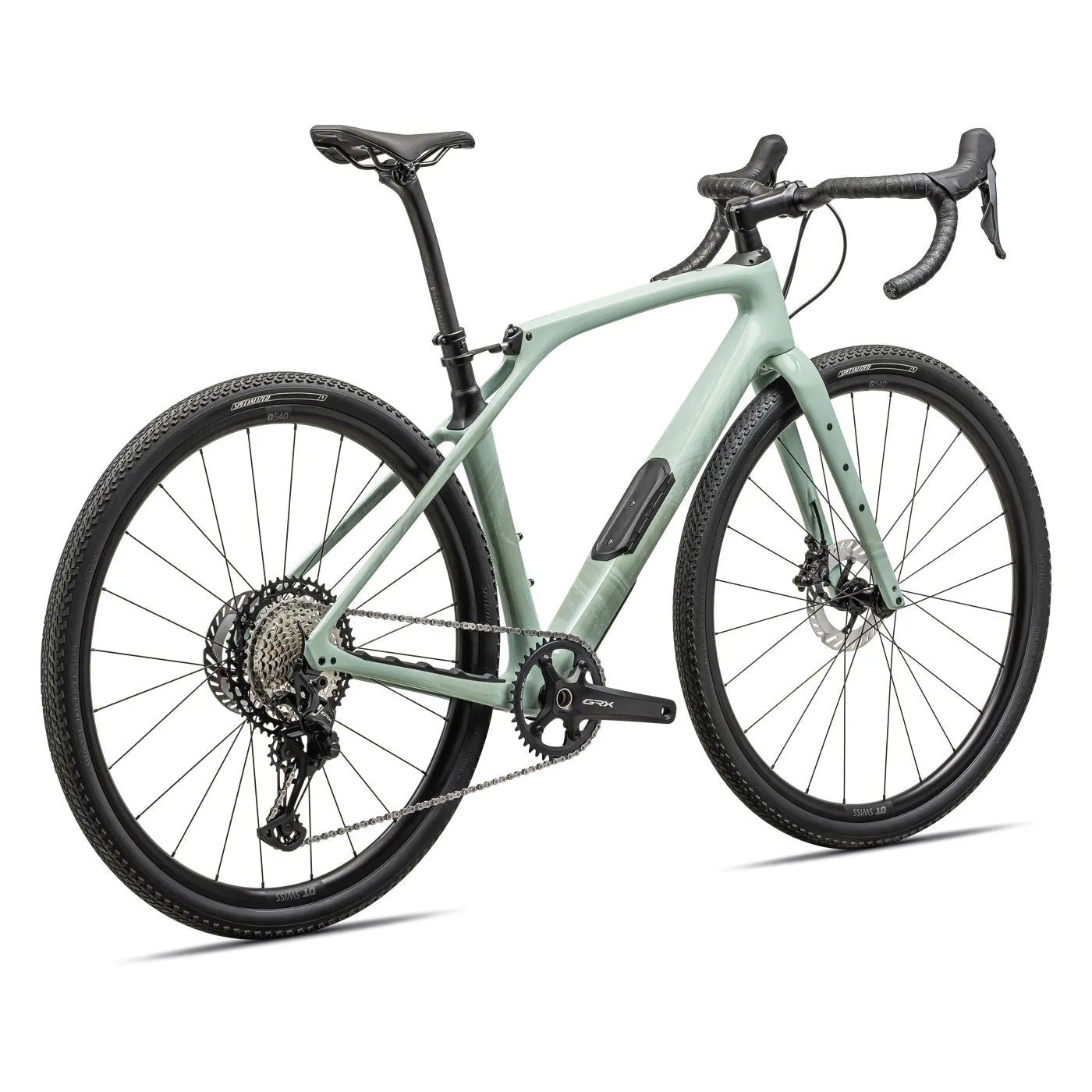

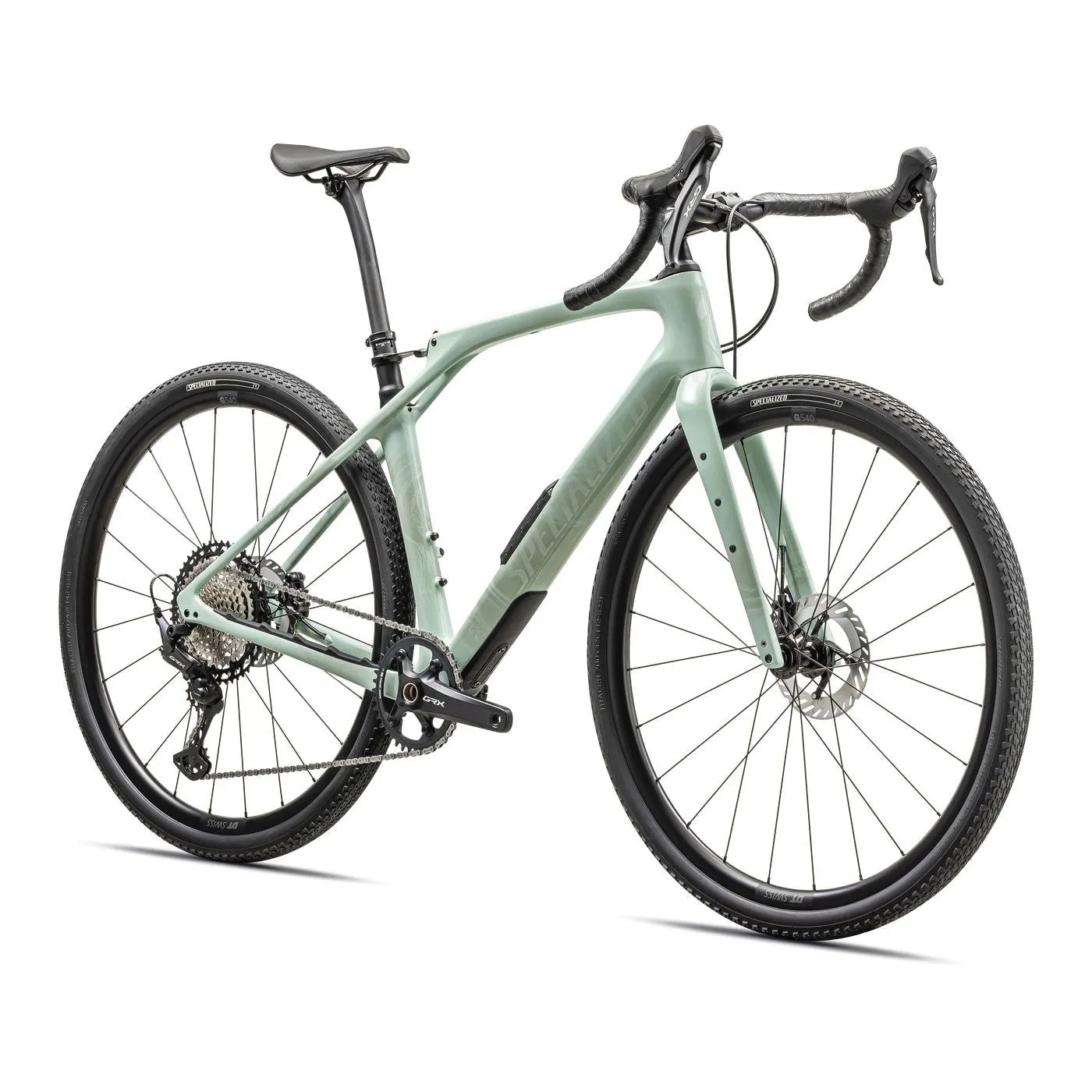

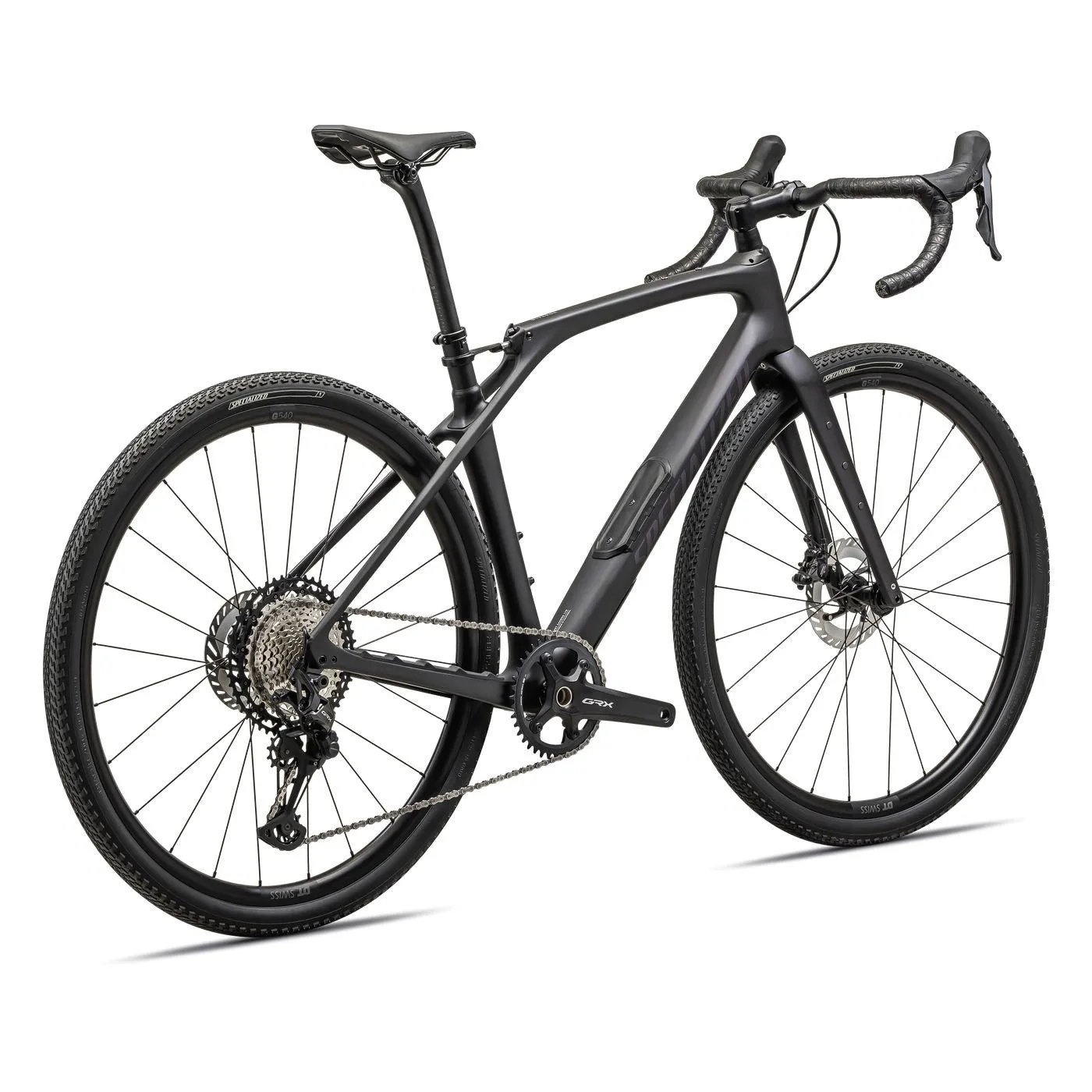

The Diverge STR does this without the weight, sluggish pedal response, and inefficiency of other suspension systems. The Diverge STR Comp starts with our FACT 11r carbon frameset with front and rear Future Shock suspension. Its built with Shimano's new GRX820 groupset for fast, efficient shifting with a 10-51 cassette to ensure you have the gearing to tackle any ride. The bike rolls on the DT G540 wheels with 42mm Tracer Pro tires. Adventure Gear alloy handlebars, an S-Works carbon seatpost, and Power Sport saddle complete the package making the Diverge STR the most capable Diverge ever.
FEATURES

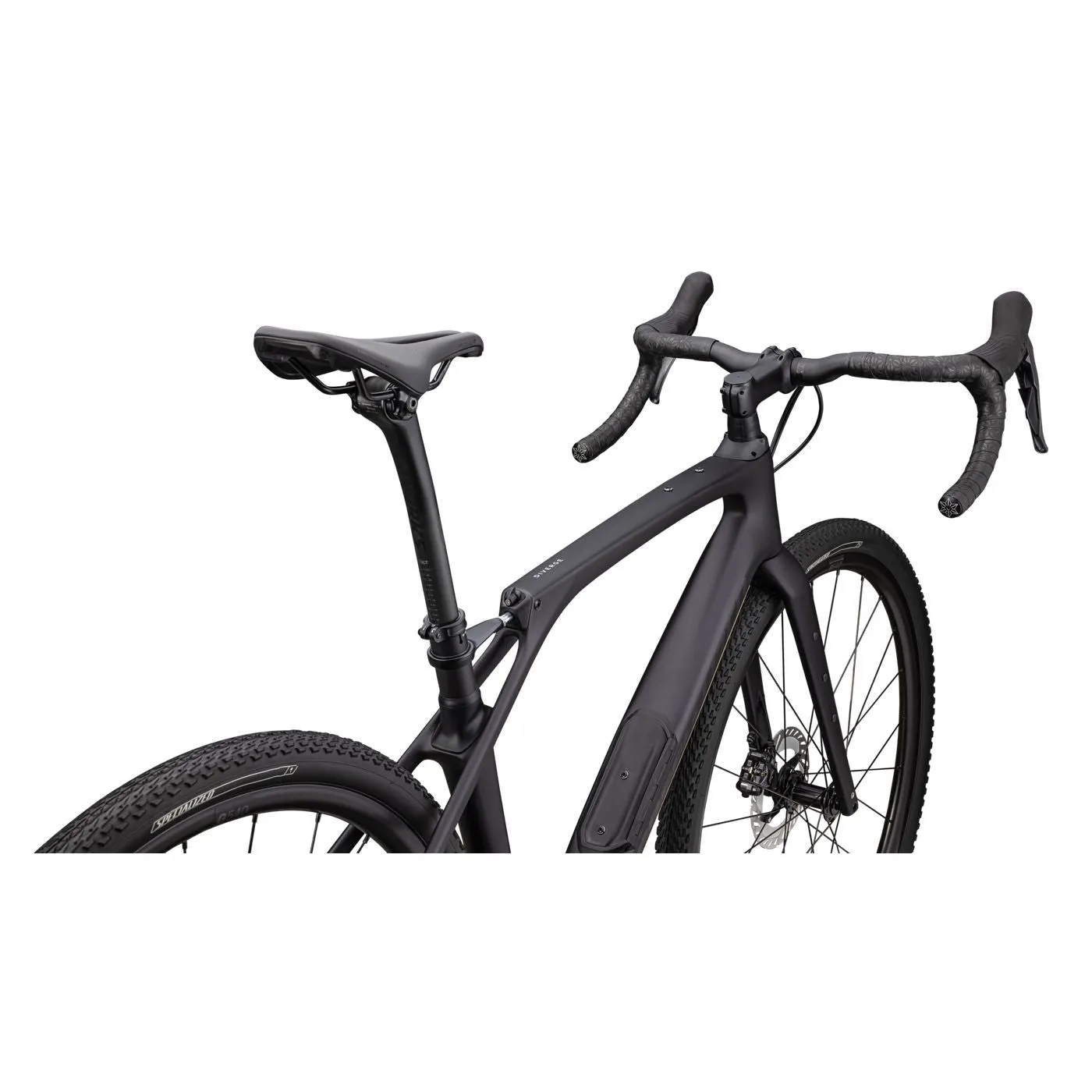

- The new Diverge doesnt just have gorgeous lines, it has perfect curves too. Future Shock Rear puts 30mm of rear travel in the ideal path to smooth out rough road. Its hydraulic damping controls travel to eliminate bobbing under power and ensure big hits never catapult you from the saddle, all without compromising fit or pedaling efficiency.
- By suspending the rider with damped, tunable travel20mm front/30mm rearFuture Shock Technology absorbs bump forces to boost your control and capability while retaining the efficiency and responsiveness of a rigid frame. Because as far as power transfer goes, it is a rigid frame. Power to the pedals makes the bike jump like a scared cat. Youre efficient, youre comfortable, youre in control. Your bike is light, nimble, and responsive.
- Born from decades of innovation and our Smoother is Faster philosophy, Future Shock was created to develop bikes that win on cobblestones, but its found its purest expression on gravel. Its 20mm of adjustable, damped front travel that keeps you in control and on target, all while protecting your hands, arms, and shoulders from the battering.
- More capability means more confidence, more confidence means more rides, more rides mean more fun, and it all starts at the contact patch. Nothing unlocks capability like tire clearance, and Specialized isfeeling generous. 47mm on a 700c wheel and 2.1 on 650B. Diverge STR is the most capable gravel bikeSpecialized has ever made, so its the most fun.They did the math.
| Frame | Diverge FACT 11r carbon frameset with front and rear Future Shock suspension, SWAT Door integration, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc |
| Fork | Future Shock 3.2 w/ Damper, Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount |
| Saddle | Body Geometry Power Sport, steel rails |
| Stem | Future Stem, Comp |
| SeatPost | S-Works FACT carbon 27.2mm, 20mm offset |
| Seat Binder | Specialized Alloy, 33.3mm |

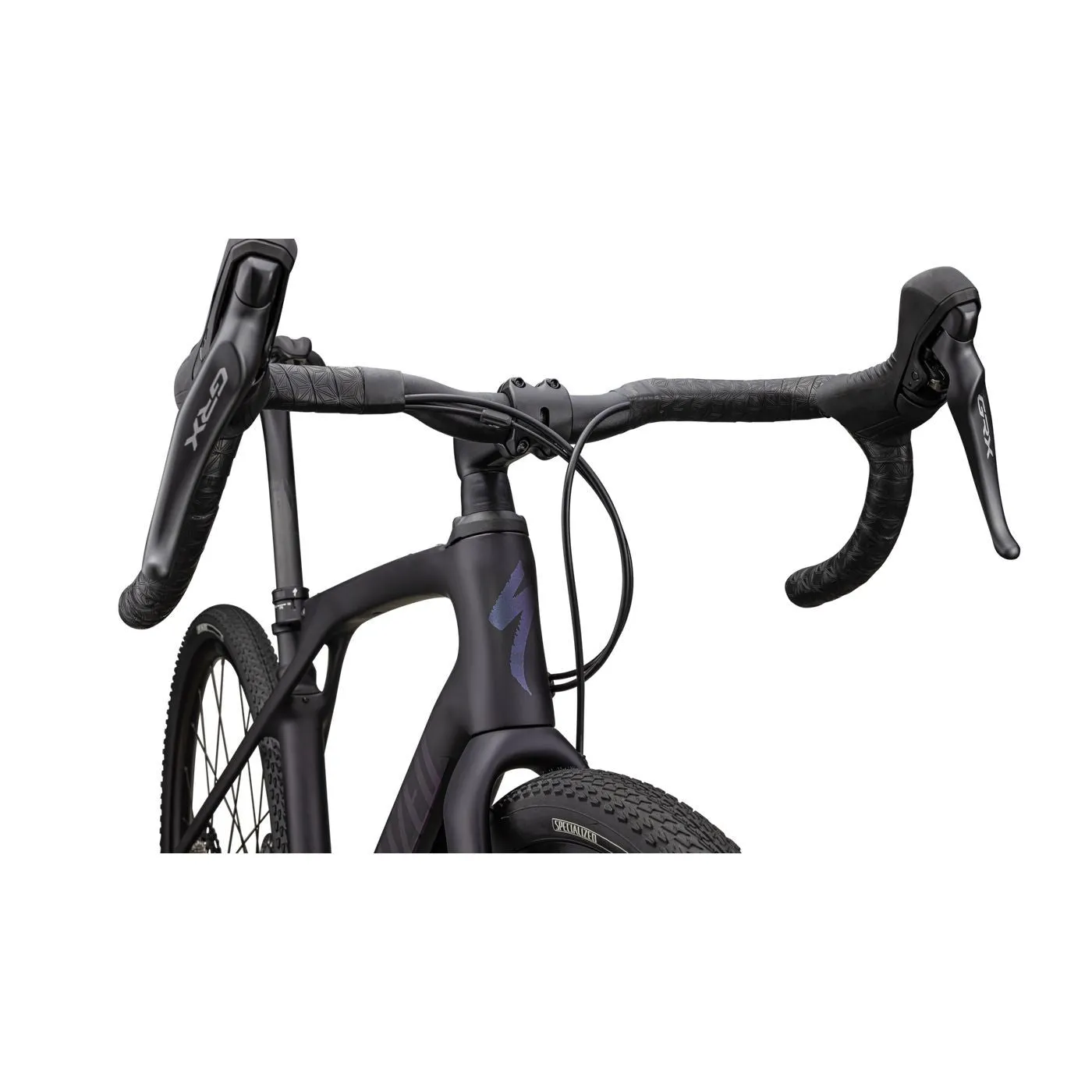

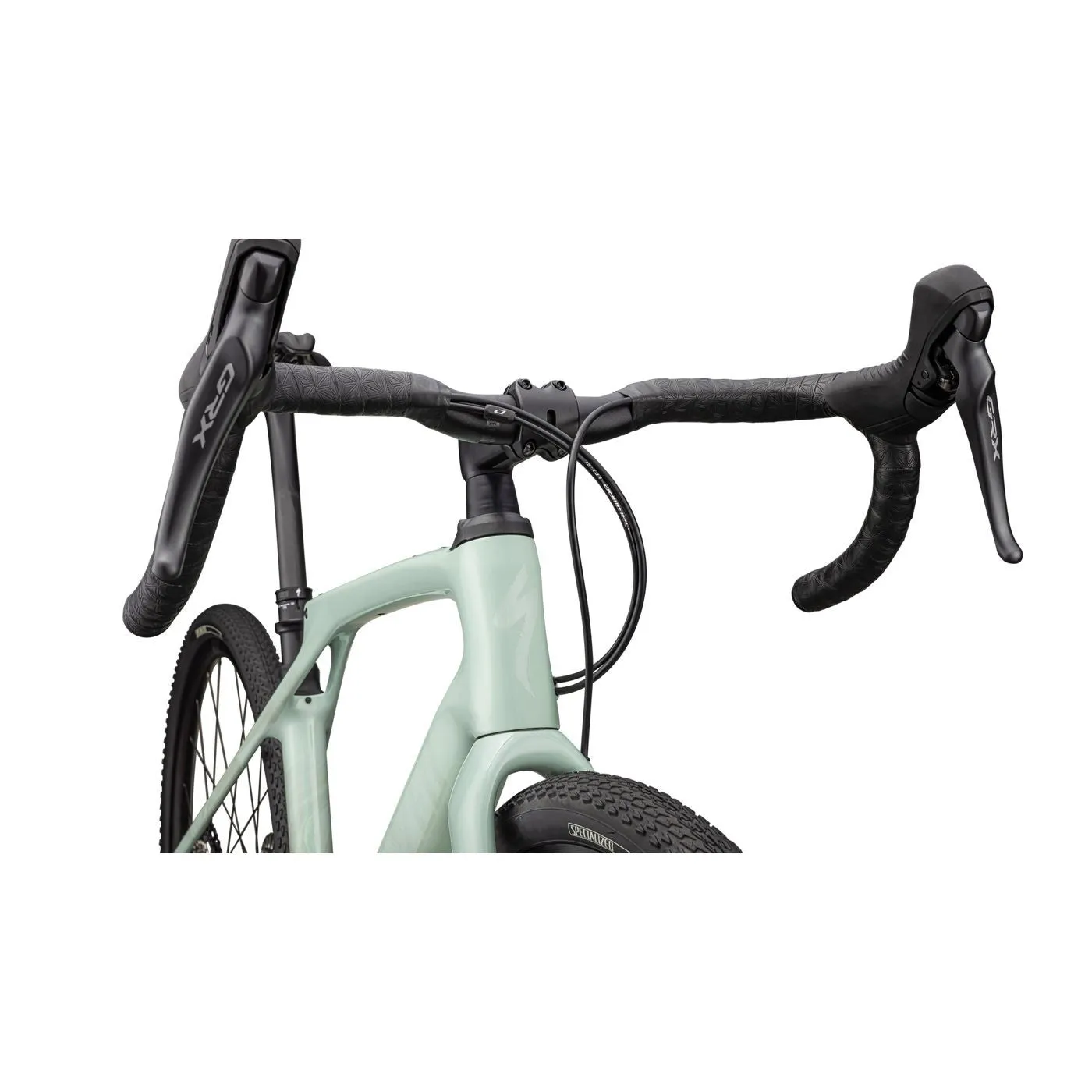

| Handlebars | Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12 flare |
| Tape | Supacaz Super Sticky Kush |
| Front Brake | Shimano GRX RX820 |
| Rear Brake | Shimano GRX RX820 |
| DRIVETRAIN | |
| Chainrings | 40T |
| Shift Levers | Shimano GRX RX820, 1x12-speed |
| Crankset | Shimano GRX RX820 |
| Rear Derailleur | Shimano GRX RX822-SGS, 12-speed |
| Cassette | Shimano XT, 12-speed, 10-51t |
| Bottom Bracket | Shimano Threaded BSA BB |
| Chain | Shimano XT M8100, 12-speed w/ quick link |
| Front Wheel | DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples |
| Rear Wheel | DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples |
| Inner Tubes | 700x28/38mm, 48mm Presta valve |
| Front Tire | Tracer Pro 2BR, 700x42 |
| Rear Tire | Tracer Pro 2BR, 700x42 |
| SWAT | Integrated SWAT door, internal storage system |
| Weight Size | 56 |
| Weight | 9.88kg (21 lb, 12.5 oz) |
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Handlebar Width | 380 | 400 | 420 | 420 | 440 | 440 |
| Stem Length | 60 | 70 | 80 | 90 | 100 | 100 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 350 | 350 | 350 | 350 | 350 | 350 |
| Stack | 569 | 576 | 593 | 609 | 633 | 659 |
| Reach | 365 | 374 | 383 | 392 | 401 | 410 |
| Head Tube Length | 100 | 100 | 115 | 130 | 155 | 182 |
| Head Tube Angle | 70 | 70.5 | 71.25 | 71.75 | 71.75 | 71.75 |
| BB Height | 270 | 265 | 265 | 265 | 265 | 265 |
| BB Drop | 80 | 85 | 85 | 85 | 85 | 85 |
| Trail | 69 | 66 | 61 | 57 | 57 | 57 |
| Fork Length, Full | 390 | 390 | 390 | 390 | 390 | 390 |
| Fork Rake/Offset | 55 | 55 | 55 | 55 | 55 | 55 |
| Front Center | 607 | 612 | 619 | 629 | 645 | 663 |
| Chainstay Length | 429 | 429 | 429 | 429 | 429 | 429 |
| Wheelbase | 1023 | 1027 | 1034 | 1044 | 1060 | 1078 |
| Top Tube Length, Horizontal | 527 | 540 | 556 | 570 | 586 | 602 |
| Bike Standover Height | 704 | 730 | 753 | 778 | 804 | 833 |
| Seat Tube Length | 390 | 430 | 470 | 500 | 530 | 560 |
| Seat Tube Angle | 74.5 | 74.25 | 74 | 74 | 74 | 74 |
