The new Diverge represents everything Specialized has learned over more than 40 years of riding road, gravel and dirt. The Diverge writes an entirely new chapter in the gravel bike category, so you can dream up entirely new rides. It's the ultimate getaway vehicle.
Whether your goal is to escape on gravel back roads, far from cars and crowds, or drop the hammer at the front of your favorite gravel race, no bike does it better than the new Diverge. It's quite simply the fastest, most capable - and just maybe the most fun - bike Specialized has ever made, delivering a ride that's quick and lively under power, but stable and confidence inspiring when the terrain gets rough. From Future Shock 1.5 and all-new gravel geometry, to category leading tire clearance.

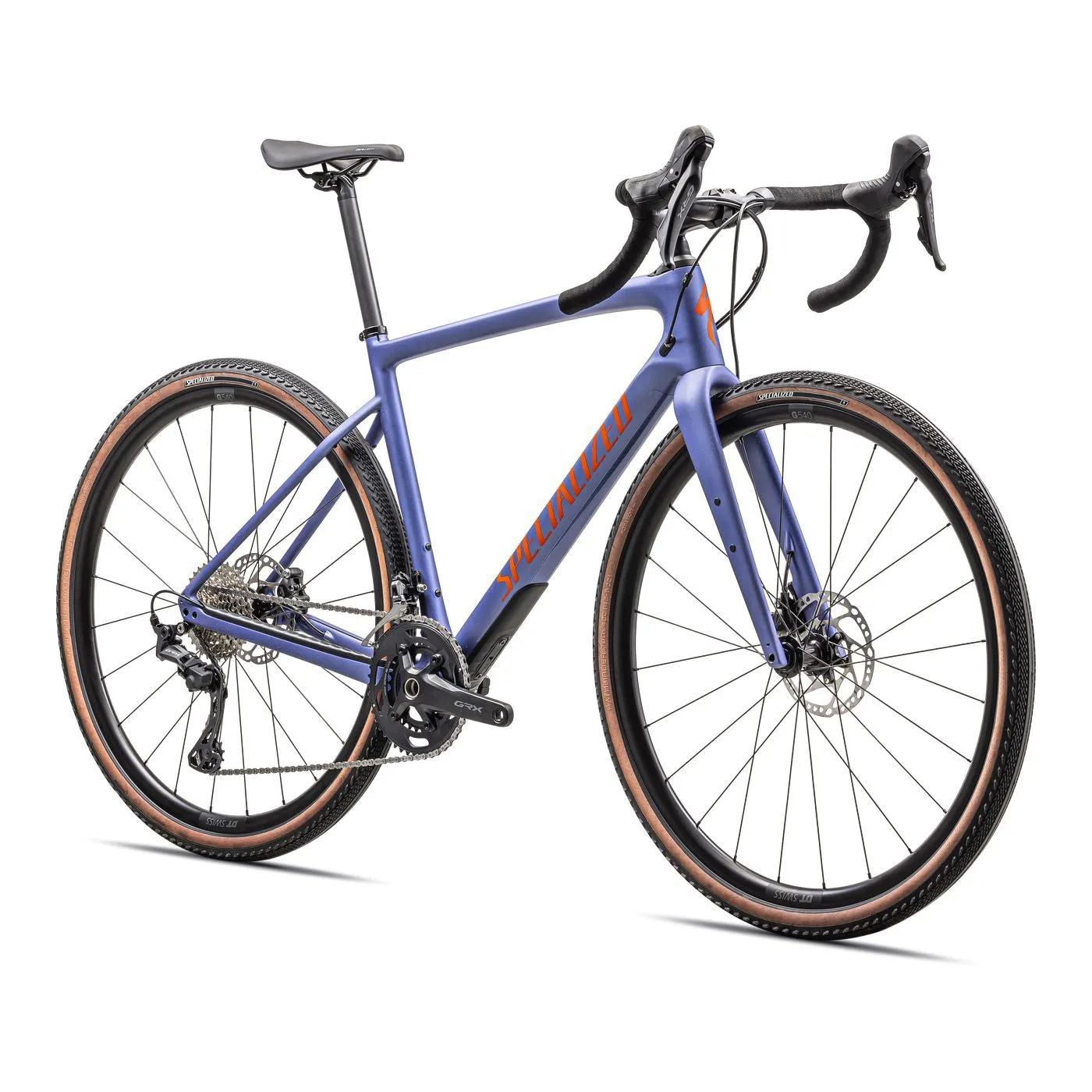

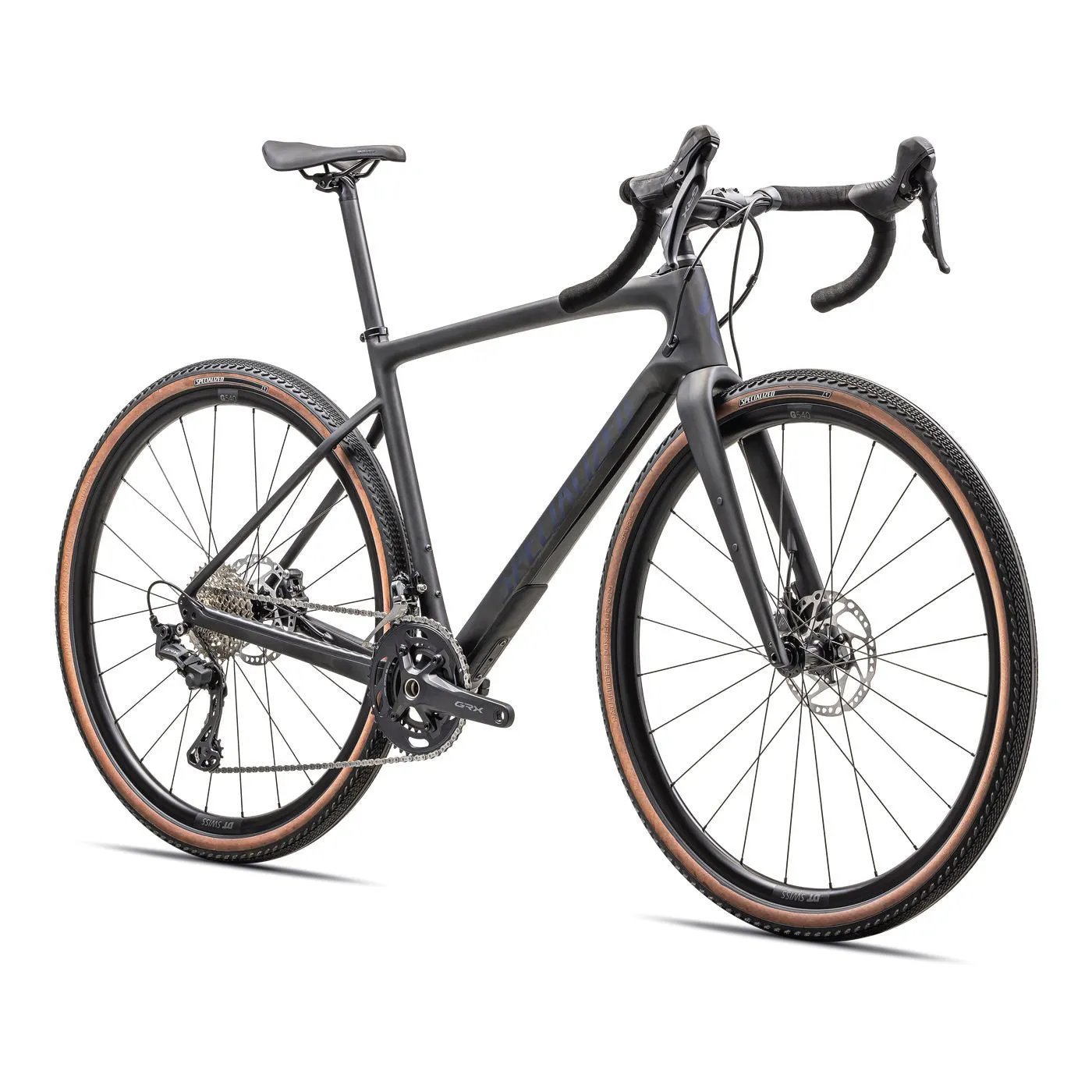

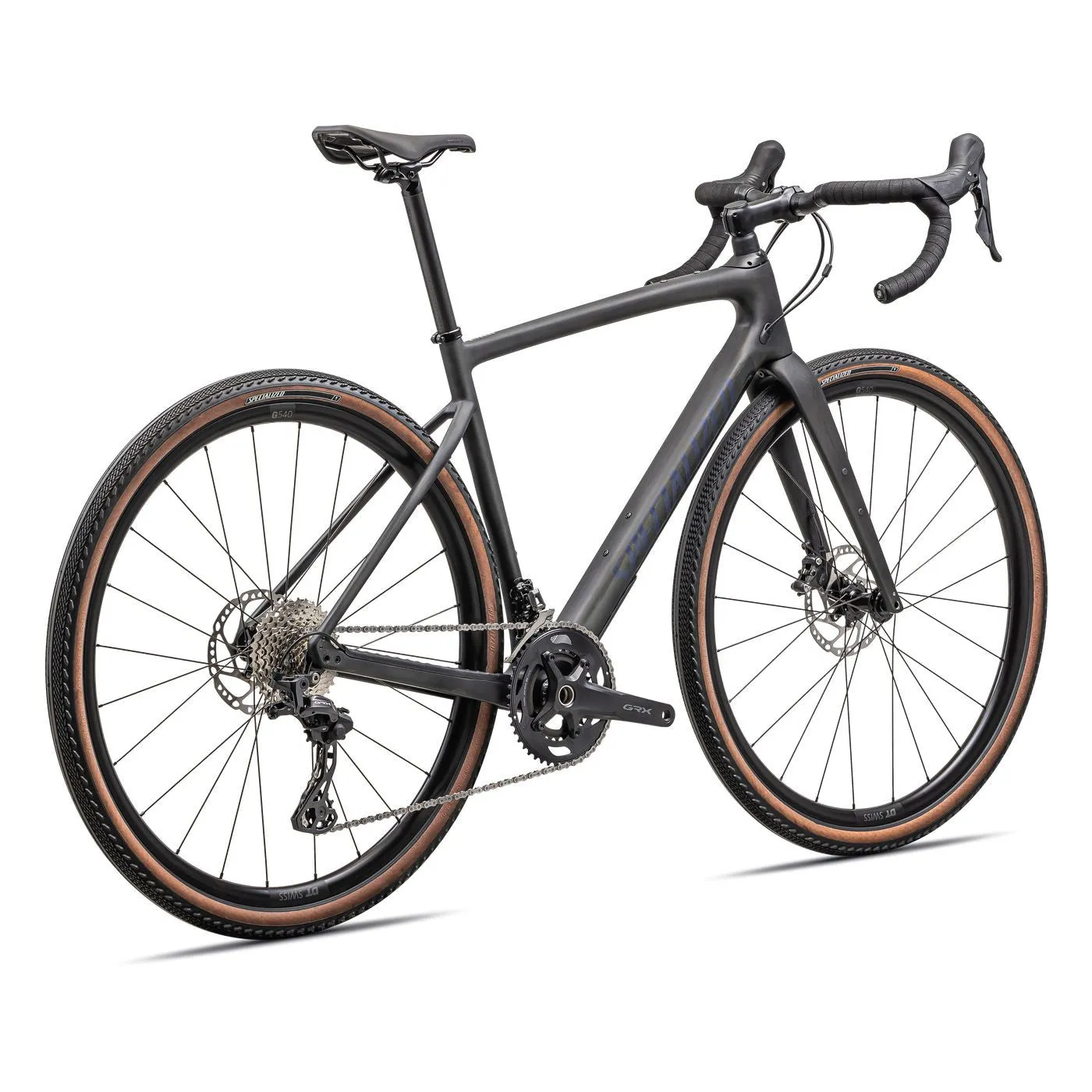

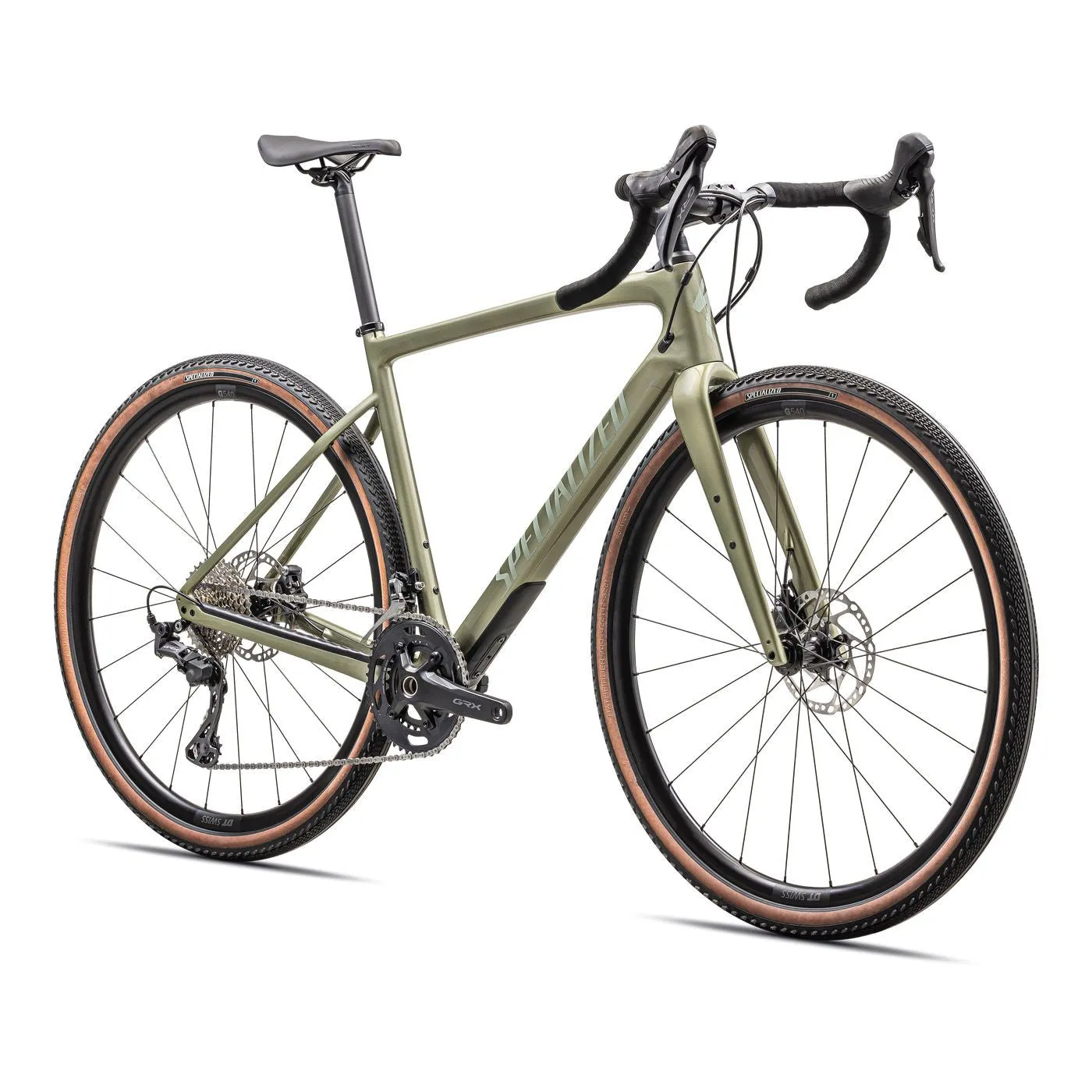

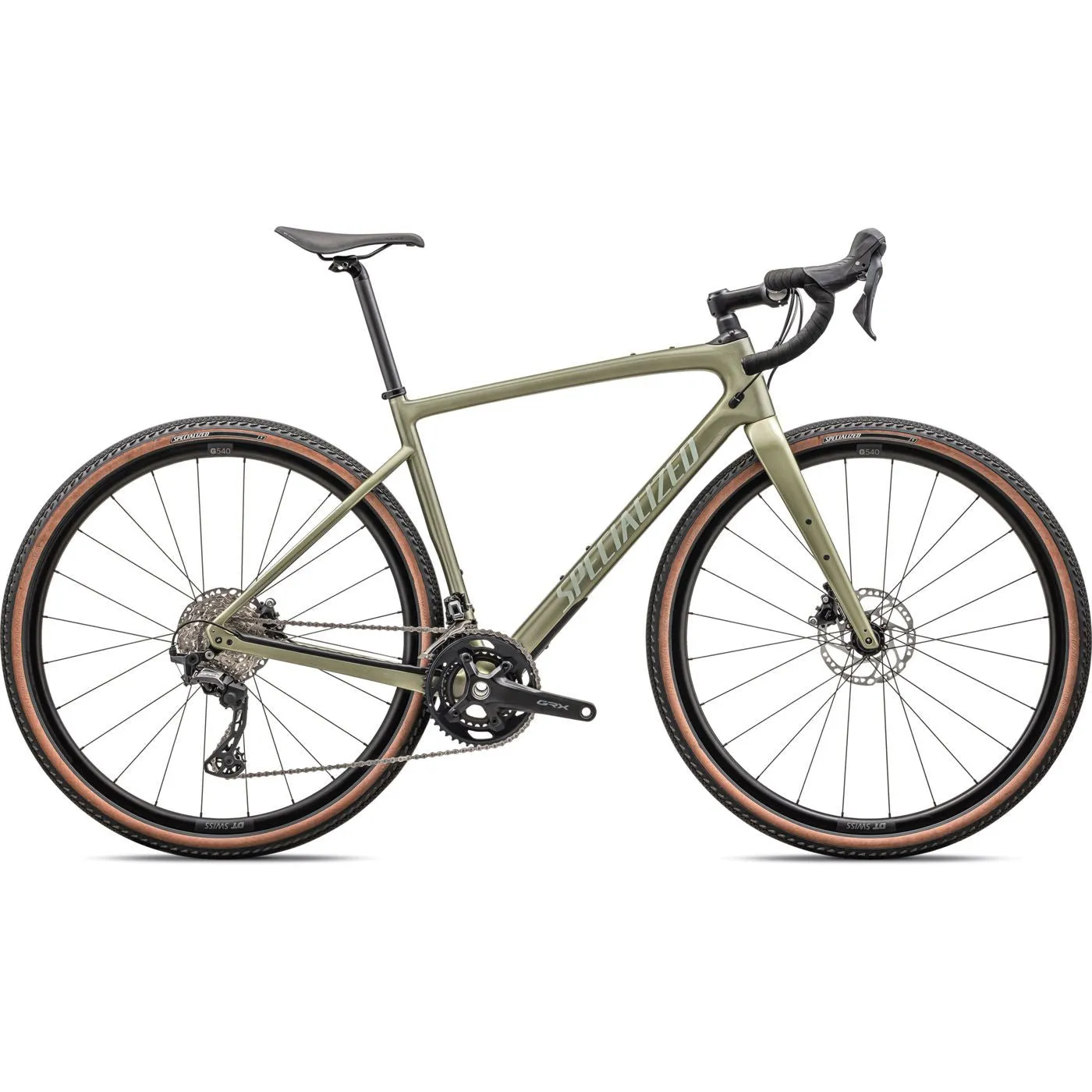

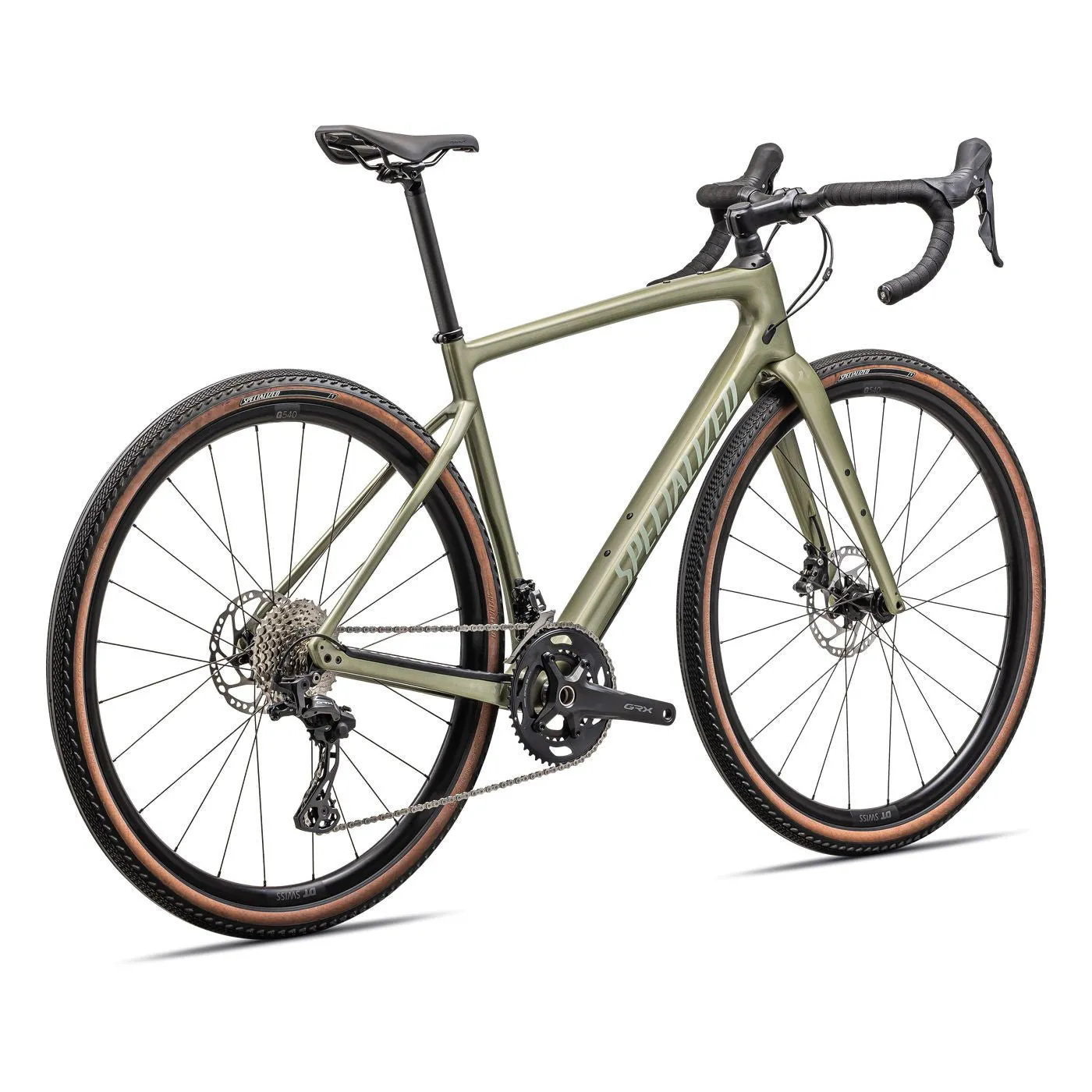

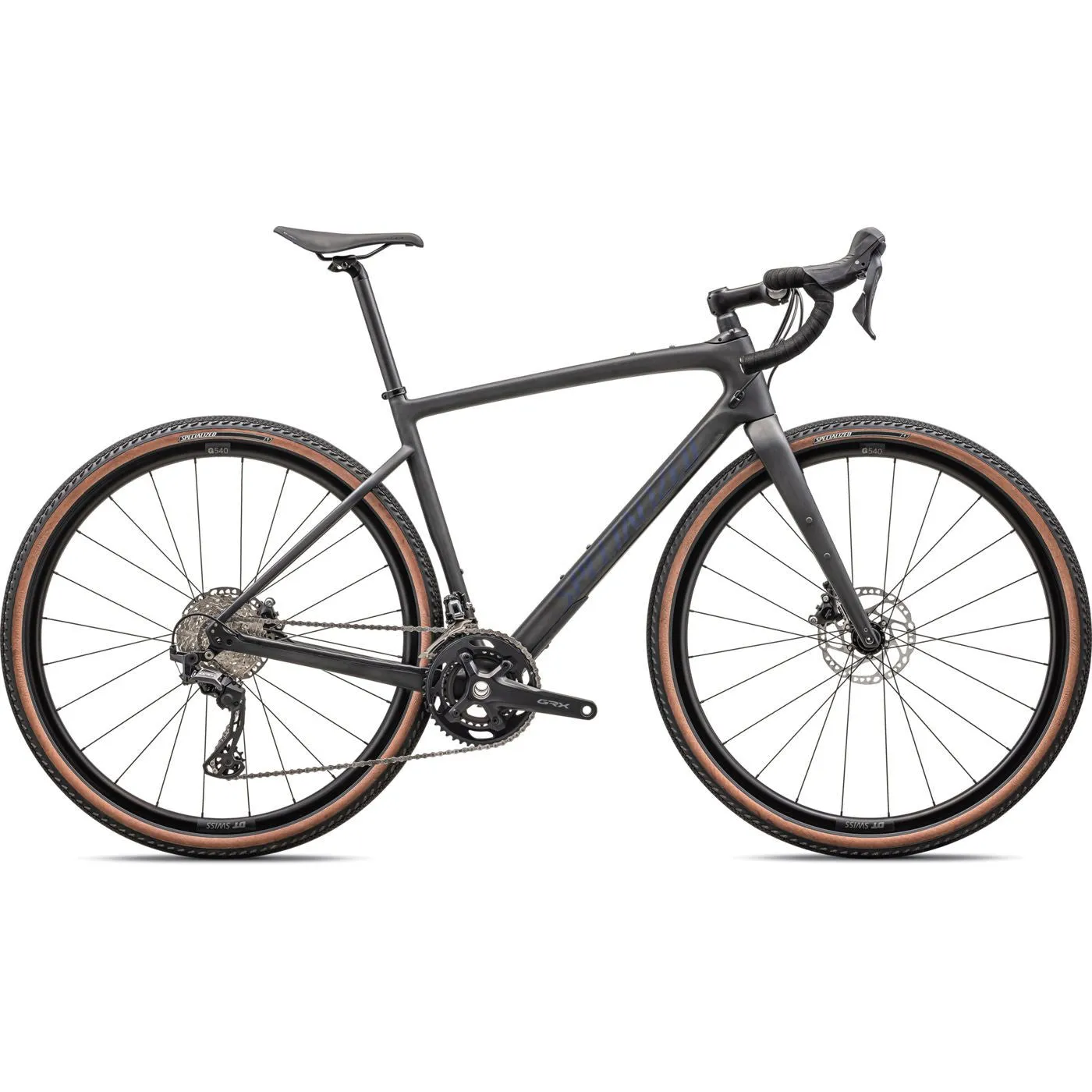

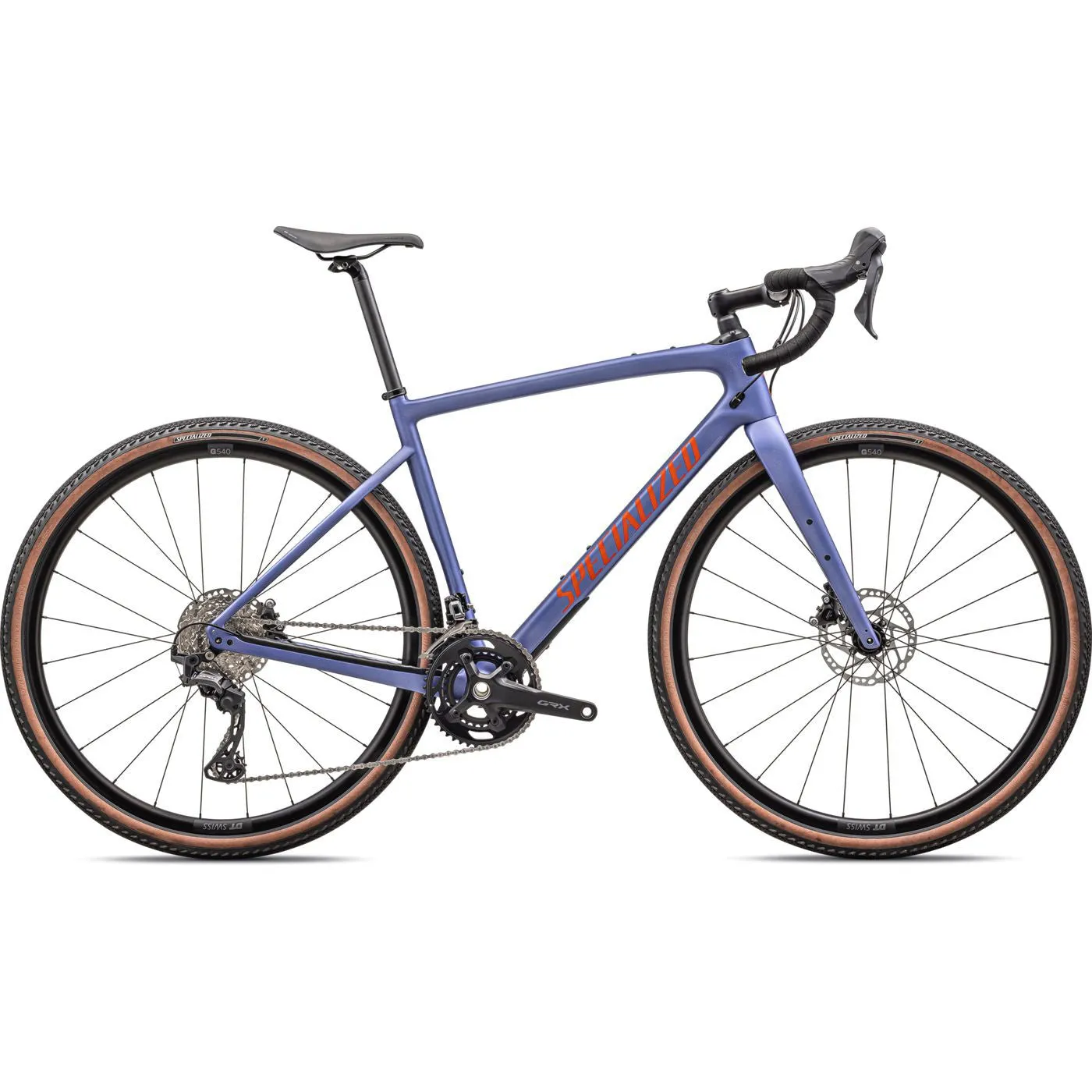

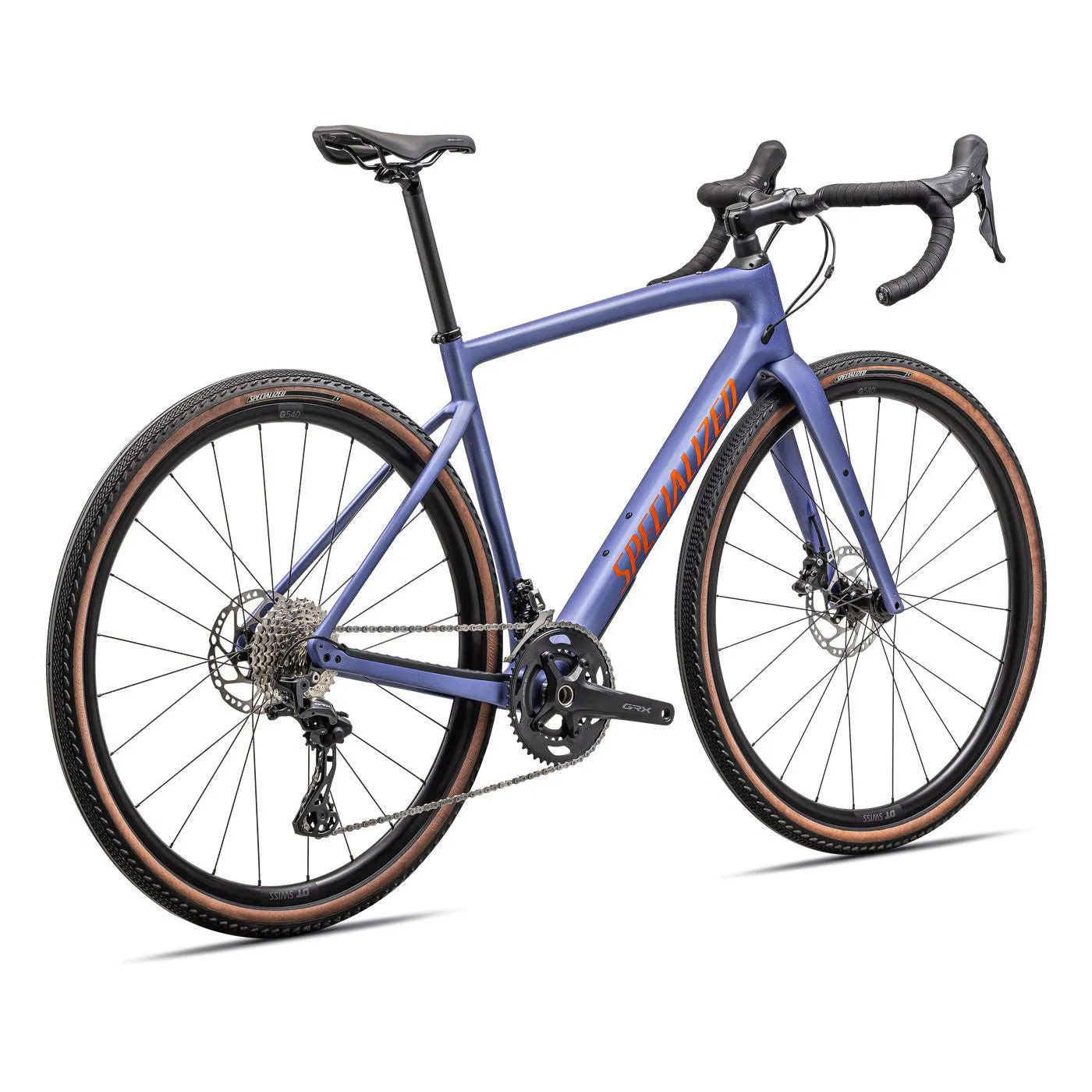

Gravel riding may be a "new" sport, butSpecialized's Diverge Sport Carbon has been developed thanks to over four decades of experience. Its got Specialized's Future Shock 1.5 and a FACT 8r carbon frame for a fast, confident and comfortable ride on road, in the dirt, and over thick gravel. With Unbound-winning Pathfinder Pro 42mm tires, the same rubber Specialized specs on the S-Works Diverge, youre ready to ride as fast and as far as you want.
- With a FACT 8r carbon frame, the Diverge Sport frame is incredible capable and race bike light. Pin it for your local dirt climb KOM, or grind up a giant back country peak, the light and lively Diverge will get you there faster.
- Speed, control and confidence - Future Shock 1.5 is ideal technology for the gravel rider. With 20mm of axial compliance, Future Shock 1.5 is progressively tuned specifically for gravel riding. This keeps you confident and in control, able to keep the power down and stay off the brakes over rough dirt roads and in thick loose gravel, all while keeping your hands, arms and neck fresh.
- Specialized tossed gravel geometry status-quo out the window. The new Diverge has the most progressive geometry weve ever created for a drop bar bike, giving riders a capable and stable bike in the dirt, that still feels responsive and nimble on the road. Weve increased the frames reach, introduced a slacker head tube and a longer offset fork. All this creates incredible confidence with a planted feeling in the dirt, while specing shorter stems keeps the overall cockpit length the same and the steering lively. Weve kept the bikes BB low to increase stability, but high enough to utilize with 650b wheels if thats your jam.
- Specializedve given the Diverge plenty of rack mounts, including fork and top tube mounts, to ensure you can take what you need, no matter how far you plan to go, or how long you plan to stay out.
- Nothing unlocks a bikes capability like tire clearance, so Specialized gave the new Diverge a whopping 47mm of tire clearance with a 700c wheel and 2.1 with a 650b wheel. Thanks to a drive side chain stay utilizing a solid beam of carbon behind the chain rings Specialized have created clearance without using a fragile dropped chain stay design or increasing chain stay length.
| Seat Binder | Specialized Alloy, 30.8mm |
| Frame | Specialized Diverge FACT 8r carbon, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc |
| Fork | Future Shock 1.5 w/Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount |
| Saddle | Body Geometry Power Sport, steel rails |
| SeatPost | Carbon, single-bolt, 27.2mm |
| Stem | Future Stem, Comp |
| Tape | Roubaix S-Wrap |
| Handlebars | Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12 flare |
| Front Brake | Shimano GRX RX400 |
| Rear Brake | Shimano GRX RX400 |
| Chainrings | 46/30T |
| Cassette | Shimano 105 12-speed 11-36 |
| Crankset | Shimano GRX RX610 |
| Front Derailleur | Shimano GRX RX820 |
| Rear Derailleur | Shimano GRX RX820, 12-speed |
| Bottom Bracket | Shimano Threaded BSA BB |
| Shift Levers | Shimano GRX RX610, 2x12-speed |
| Chain | Shimano SLX, M7100, 12-speed |
| Front Wheel | DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples |
| Rear Wheel | DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples |
| Inner Tubes | 700x28/38mm, 48mm Presta valve |
| Front Tire | Pathfinder Pro 2BR, Tan sidewall, 700x42 |
| Rear Tire | Pathfinder Pro 2BR, Tan sidewall, 700x42 |
| Weight Size | 56 |
| Weight | 10.05Kg (22 lb, 2.5 oz) |
| 44 | 49 | 52 | 54 | 56 | 58 | 61 | 64 | |
|---|---|---|---|---|---|---|---|---|
| Crank Length | 165 | 165 | 170 | 172.5 | 172.5 | 175 | 175 | 175 |
| Handlebar Width | 380 | 380 | 400 | 420 | 420 | 440 | 440 | 440 |
| Stem Length | 60 | 60 | 70 | 80 | 90 | 100 | 100 | 110 |
| Saddle Width | 155 | 155 | 155 | 143 | 143 | 143 | 143 | 143 |
| Seatpost Length | 350 | 350 | 350 | 400 | 400 | 400 | 400 | 400 |
| Stack | 568 | 571 | 577 | 592 | 610 | 634 | 659 | 684 |
| Reach | 357 | 365 | 374 | 383 | 392 | 401 | 410 | 419 |
| Head Tube Length | 99 | 99 | 104 | 116 | 133 | 159 | 185 | 209 |
| Head Tube Angle | 69.5 | 70 | 70.5 | 71.25 | 71.75 | 71.75 | 71.75 | 72.25 |
| BB Height | 270 | 270 | 270 | 270 | 270 | 270 | 270 | 270 |
| BB Drop | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| Trail | 66 | 61 | 57 | 57 | 57 | 54 | 72 | 69 |
| Fork Length, Full | 390 | 390 | 390 | 390 | 390 | 390 | 390 | 390 |
| Fork Rake/Offset | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Front Center | 604 | 607 | 614 | 620 | 630 | 647 | 664 | 675 |
| Chainstay Length | 425 | 425 | 425 | 425 | 425 | 425 | 425 | 425 |
| Wheelbase | 1016 | 1019 | 1026 | 1032 | 1042 | 1059 | 1076 | 1088 |
| Top Tube Length, Horizontal | 573 | 589 | 605 | 628 | 515 | 529 | 542 | 558 |
| Bike Standover Height | 683 | 700 | 725 | 754 | 779 | 805 | 832 | 859 |
| Seat Tube Length | 363 | 390 | 430 | 470 | 500 | 530 | 560 | 590 |
| Seat Tube Angle | 74.5 | 74 | 73.75 | 73.5 | 73.5 | 73.5 | 73.5 | 73 |
