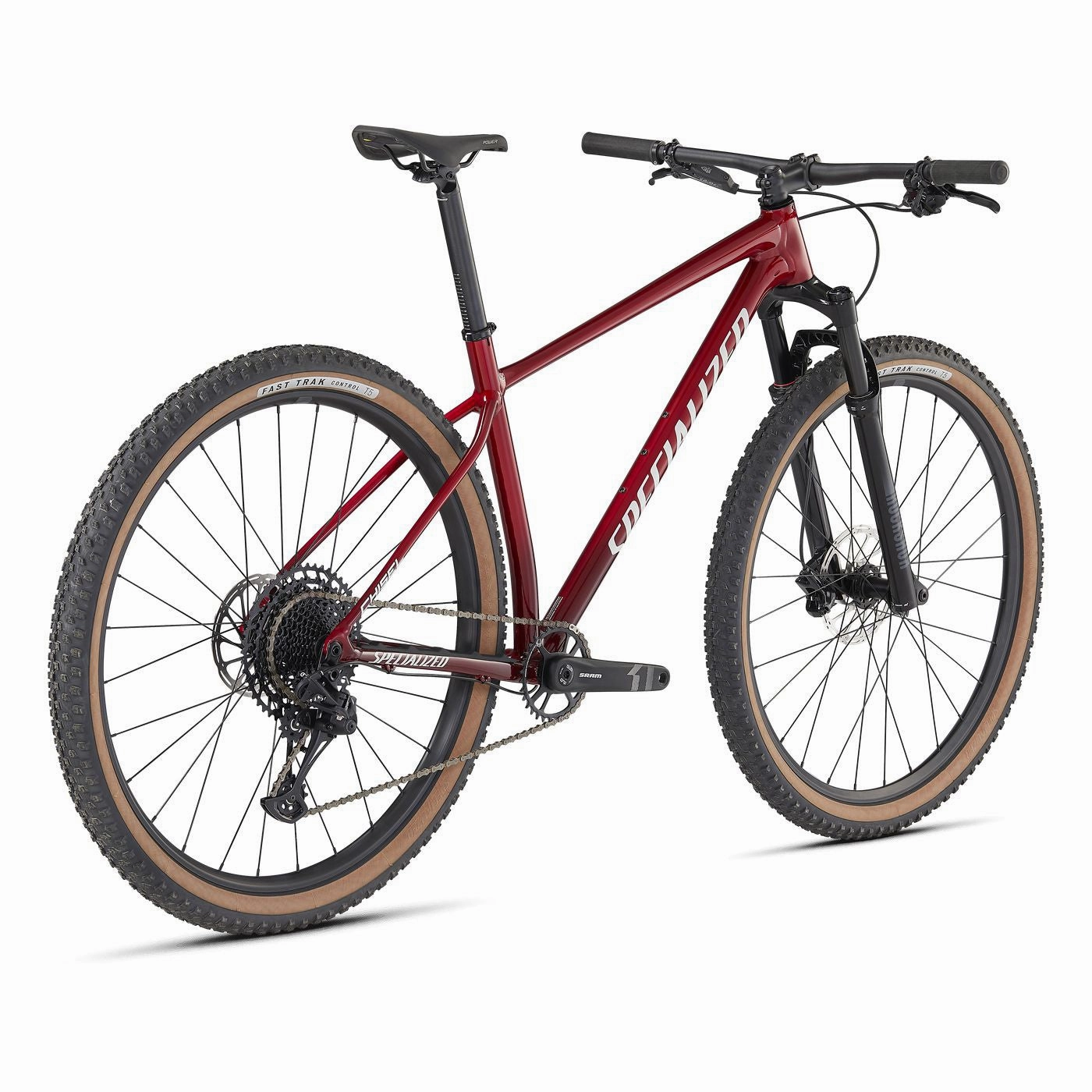

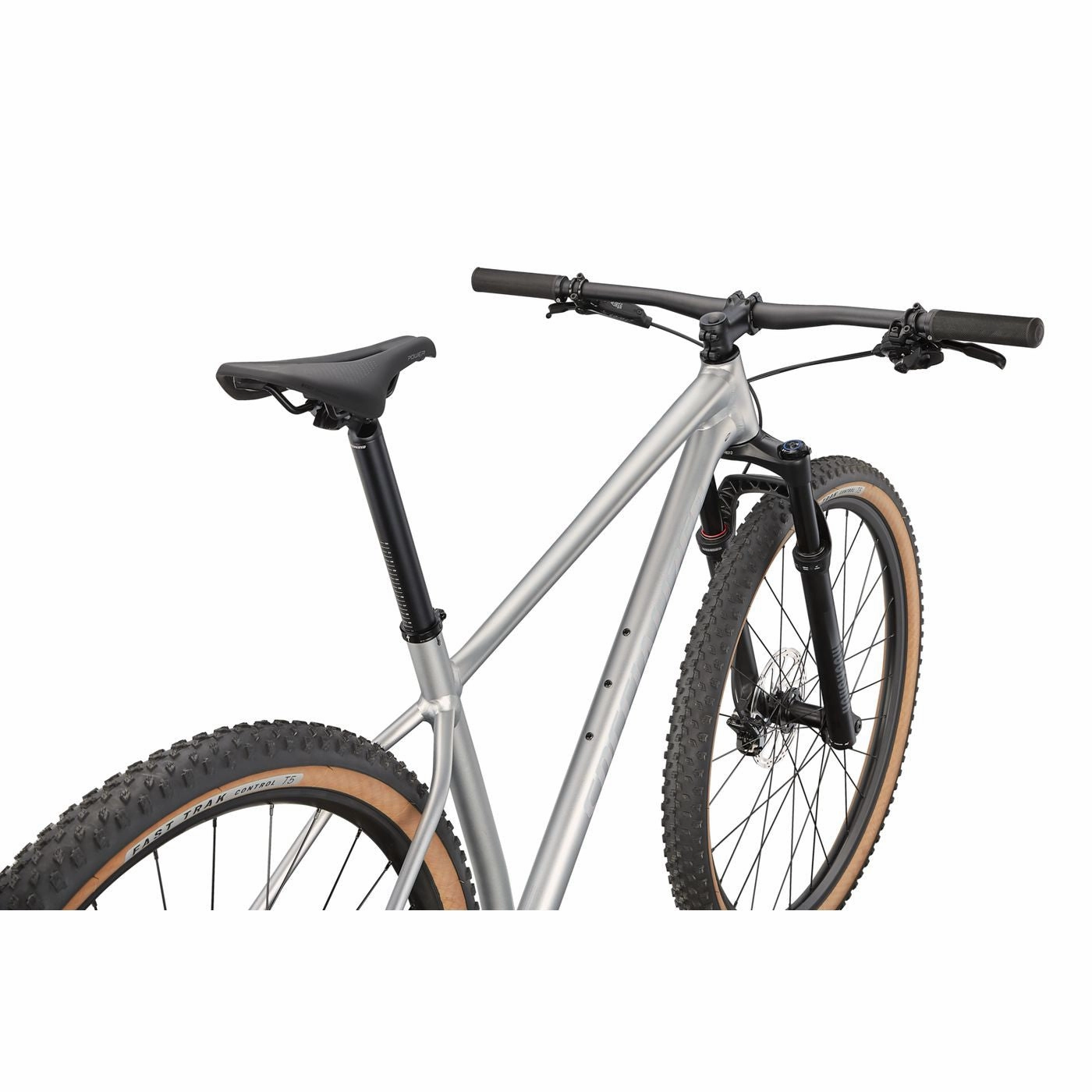

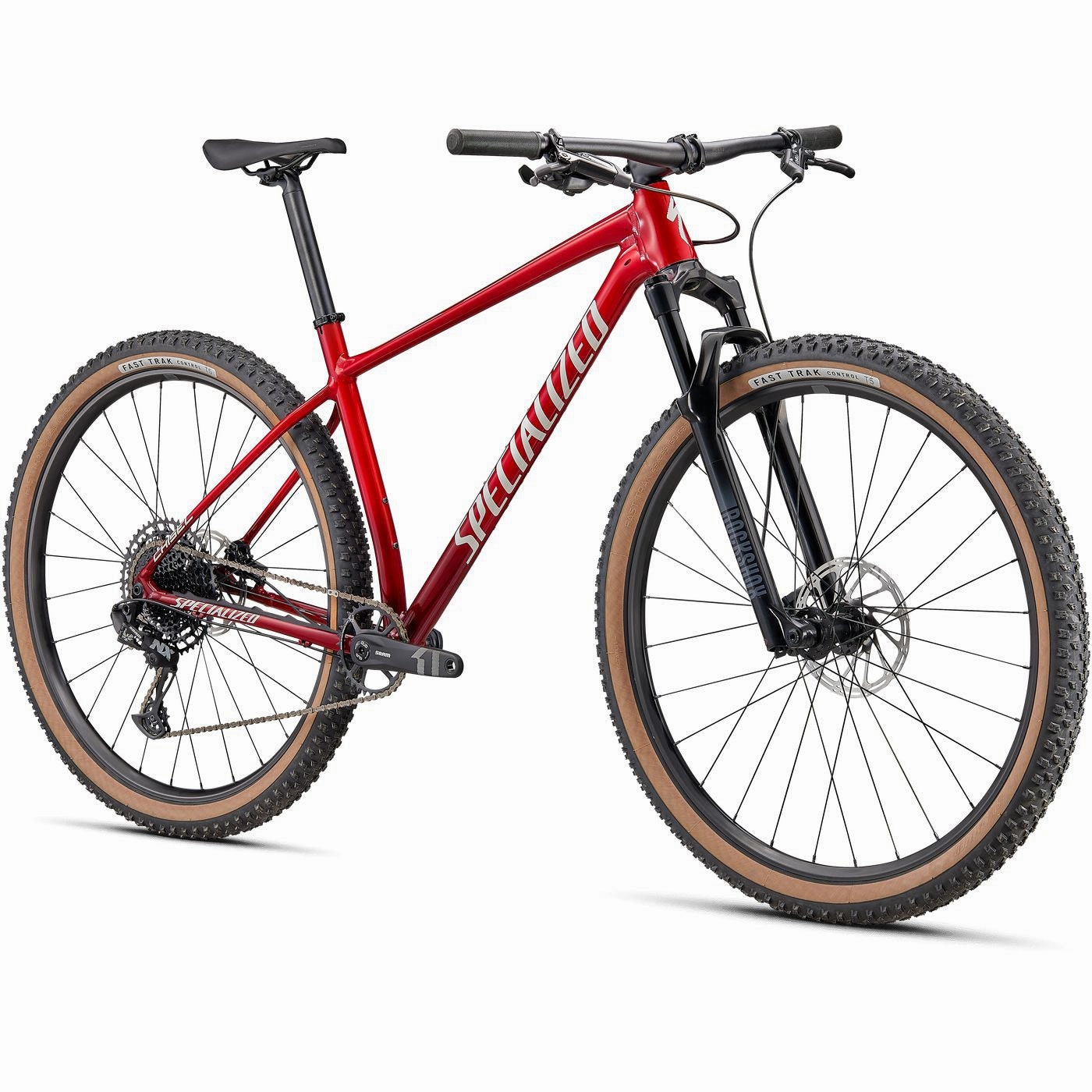

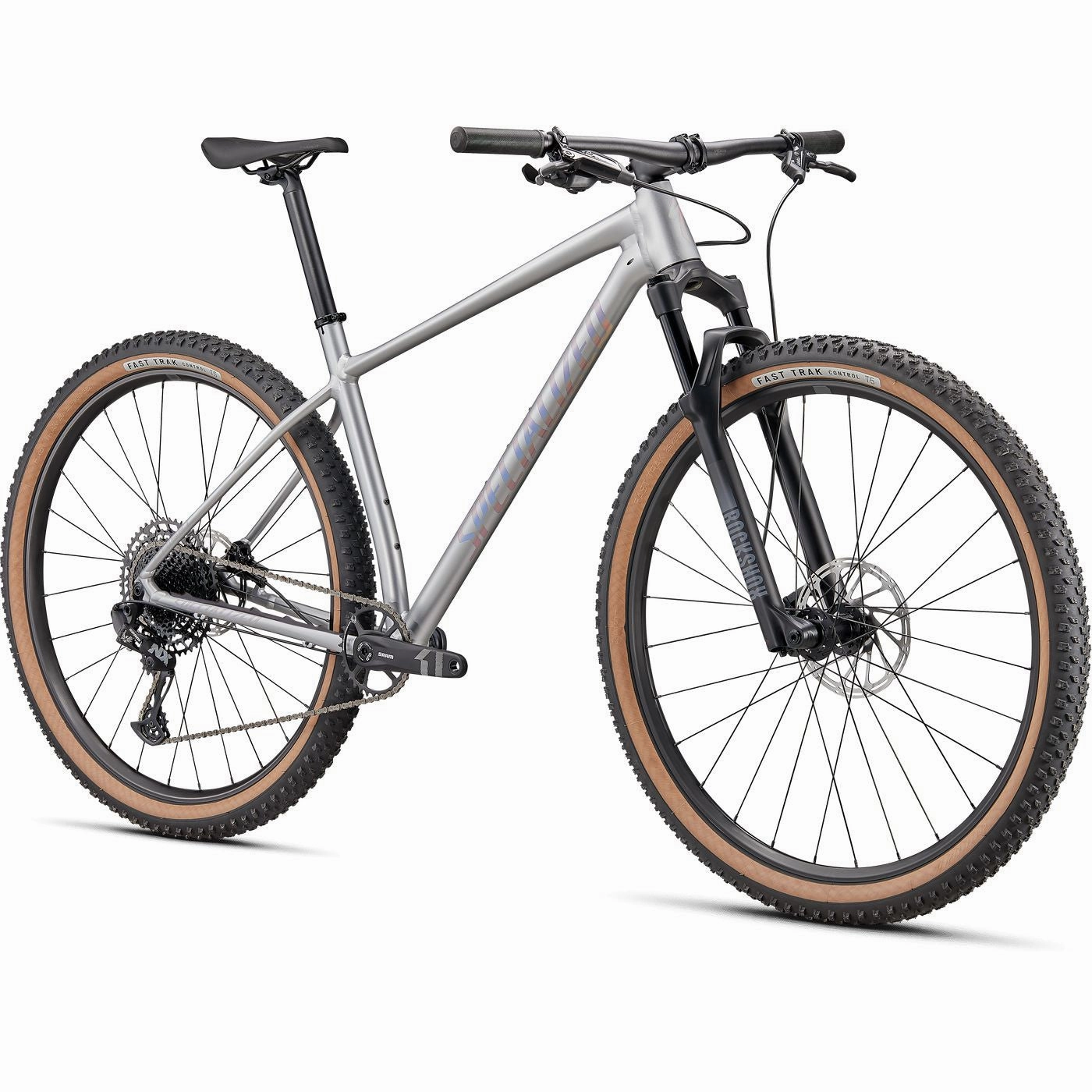

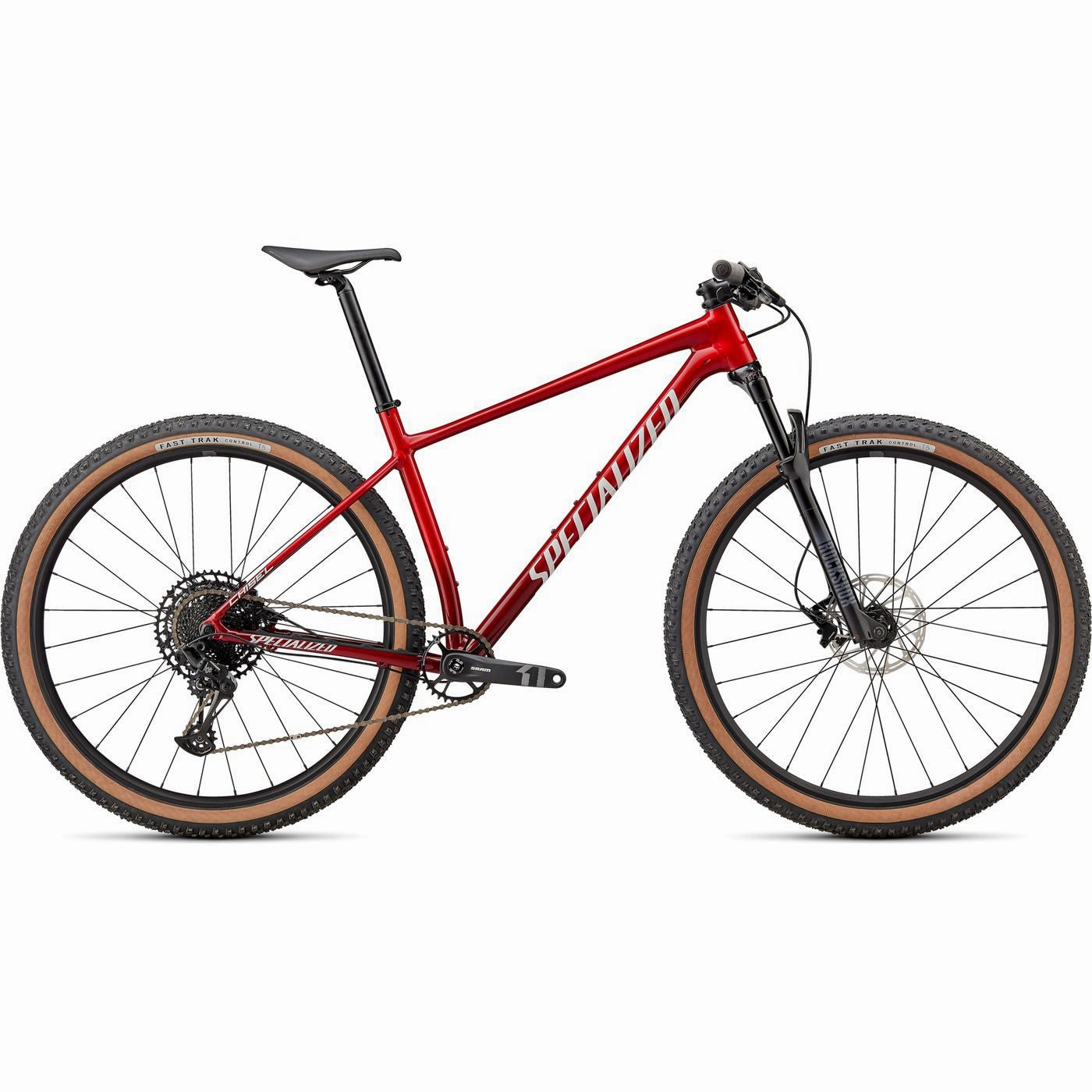

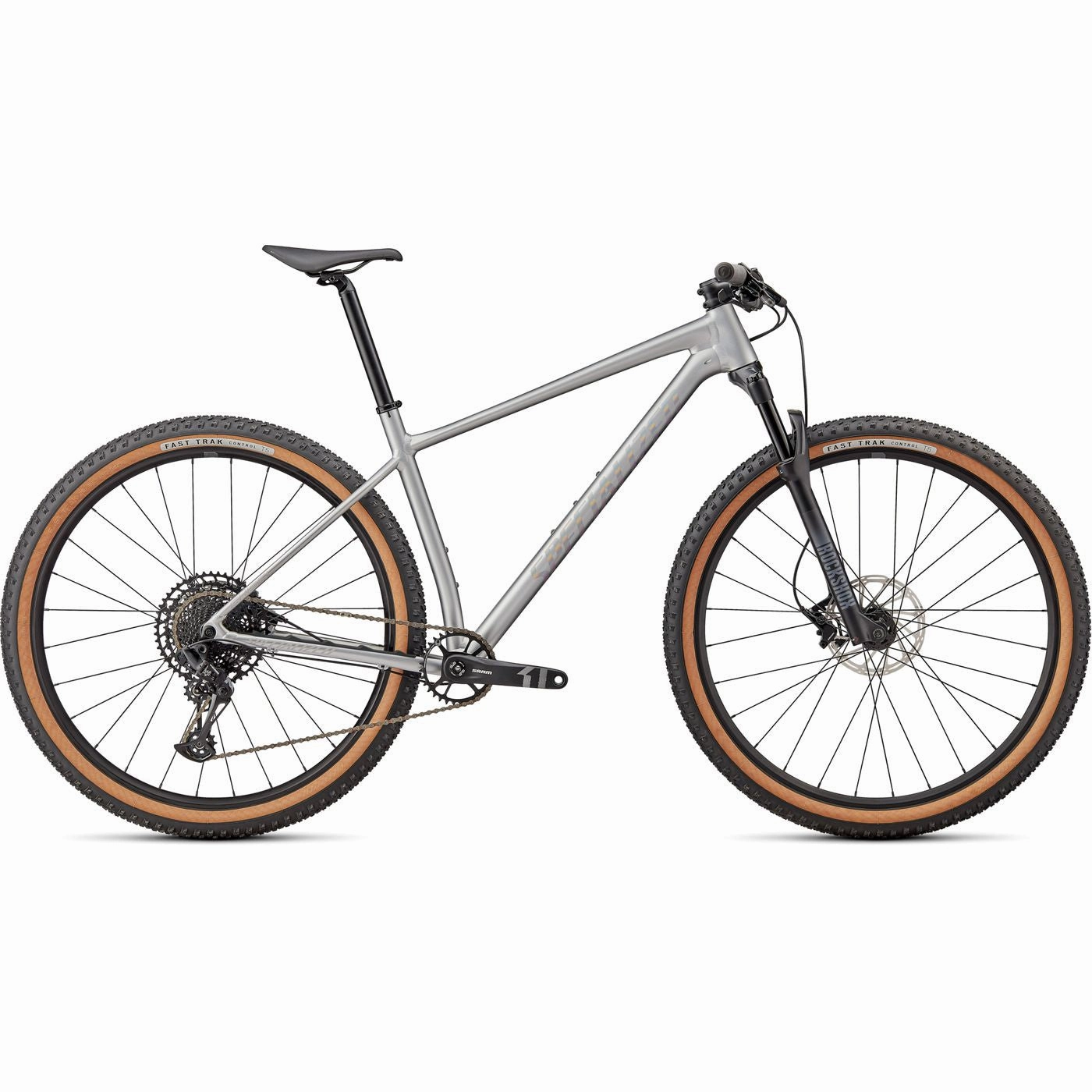

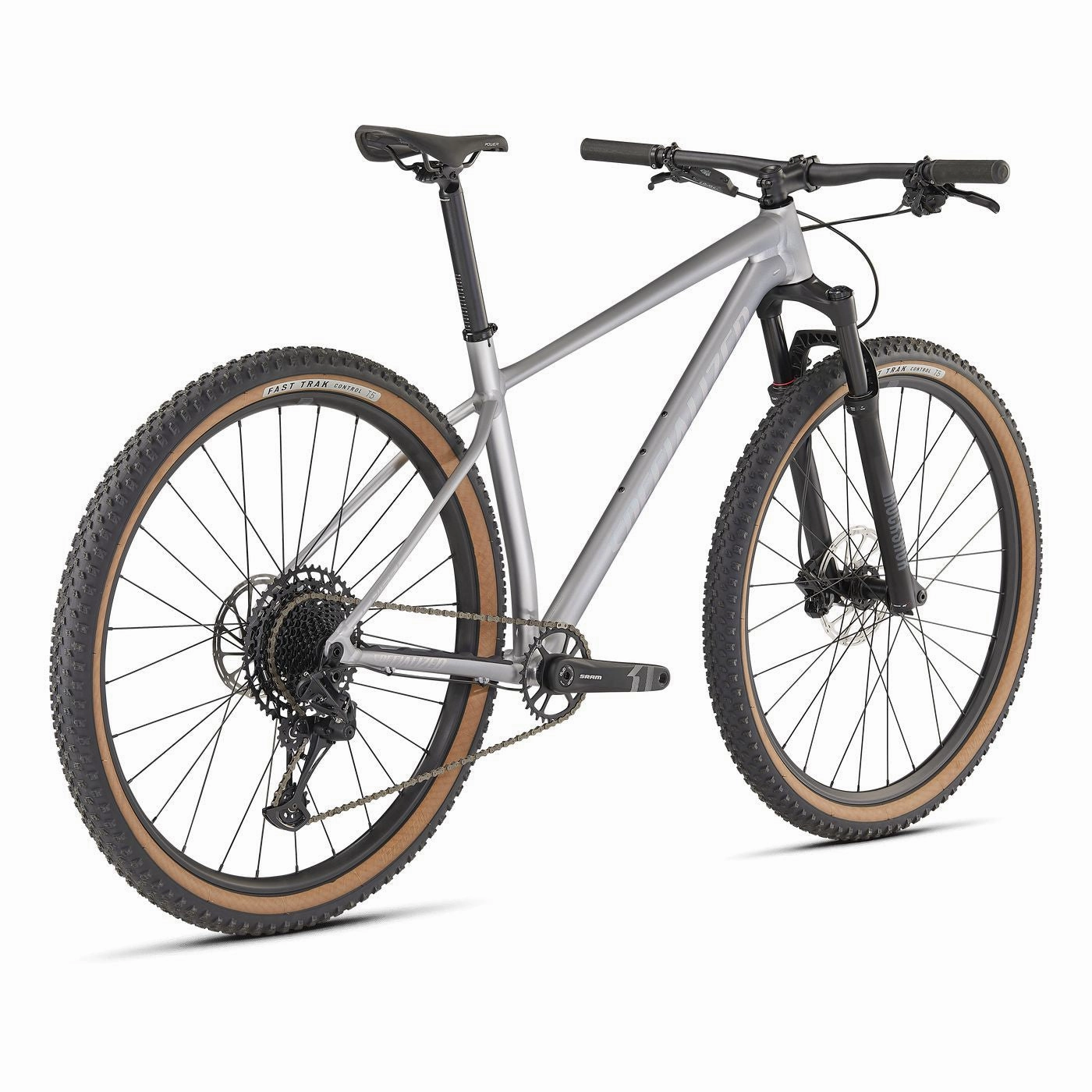

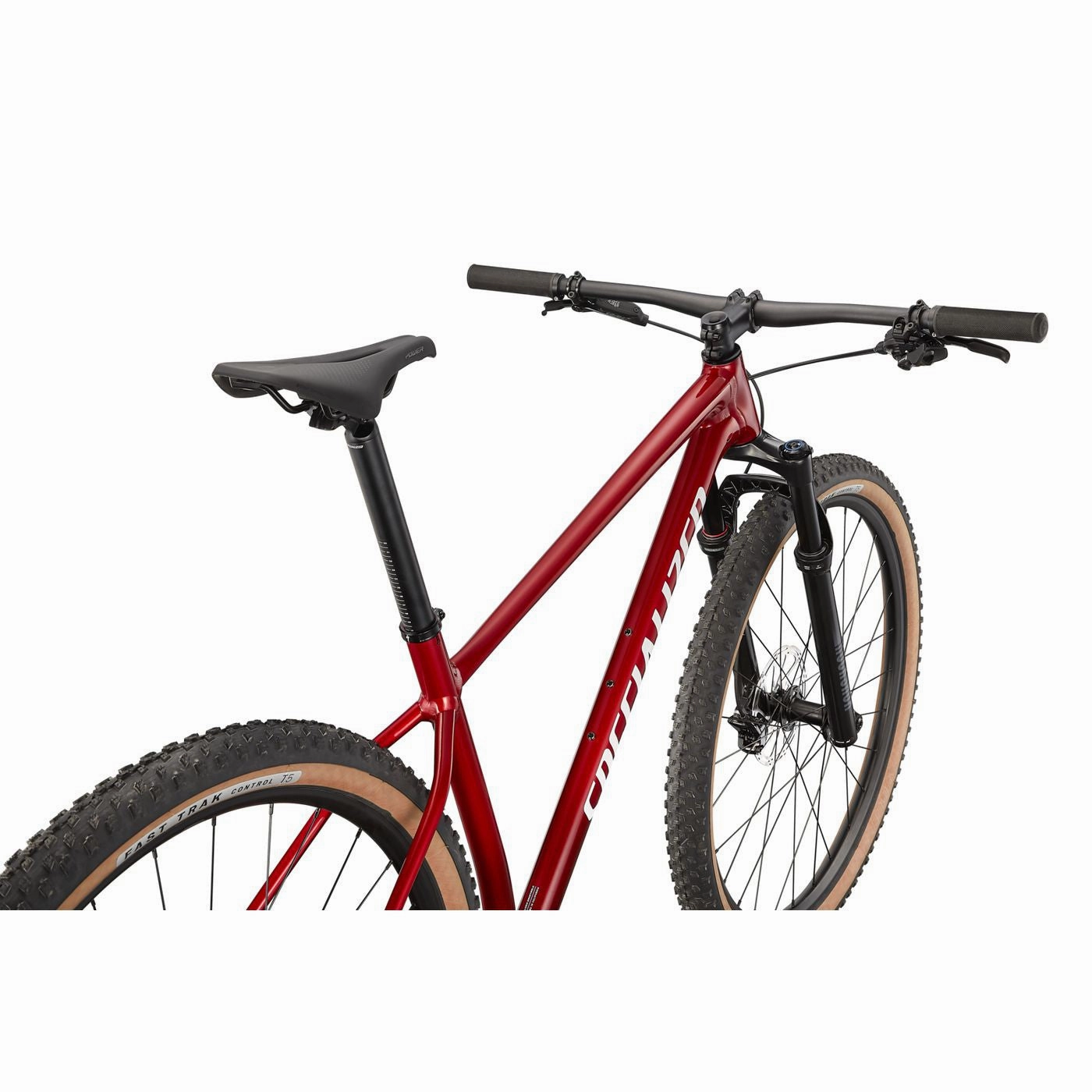

Chisel Comp 29" Mountain Bike

Chisel Comp 29" Mountain Bike

$ 58.58

$ 234.32

Unavailable
Chisel Comp 29" Mountain Bike

Chisel Comp 29" Mountain Bike

$ 58.58

$ 234.32

Color:
  • Red
  • Silver
Size:
  • X-Small
  • Small
  • Medium
  • Large
  • X-Large
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

The Specialized Chisel Comp 29" Mountain Bike - your ticket to the XC riding and racing world with a dash of expert fun!Specialized cooked up this beauty with the perfect blend of performance and affordability, leaving you with enough "jingle jangle" for those awesome race entries!

So, whether you're a seasoned pro looking for a new racing partner or a curious newbie ready to take on the trails, the all-new Chisel Comp is your ride to victory! Get ready to shred with confidence and flair, knowing you've got the perfect blend of performance and fun on two wheels. It's time to unleash your inner XC champ!

Features:

  • We asked ourselves, How do we bring pro-level performance down to a price more riders can afford? D'Aluisio Smartweld Technology, that's how. Smartweld allows us to create the most consistent, high-strength welds possible while taking full advantage of compliant, hydroformed alloy tubes. The result? One of the lightest alloy hardtail frames out there at 1,350g, which also features size-tuned stiffness.

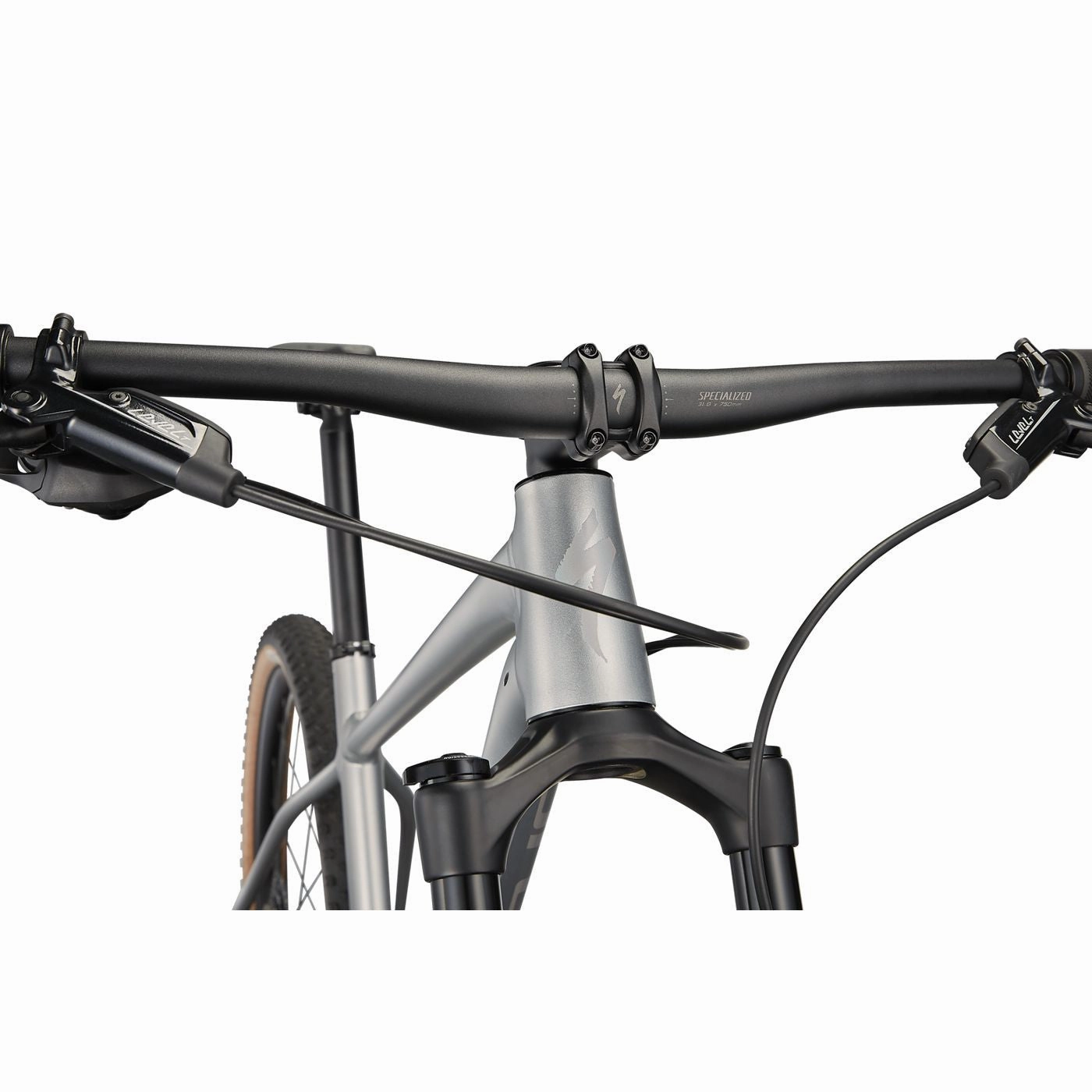

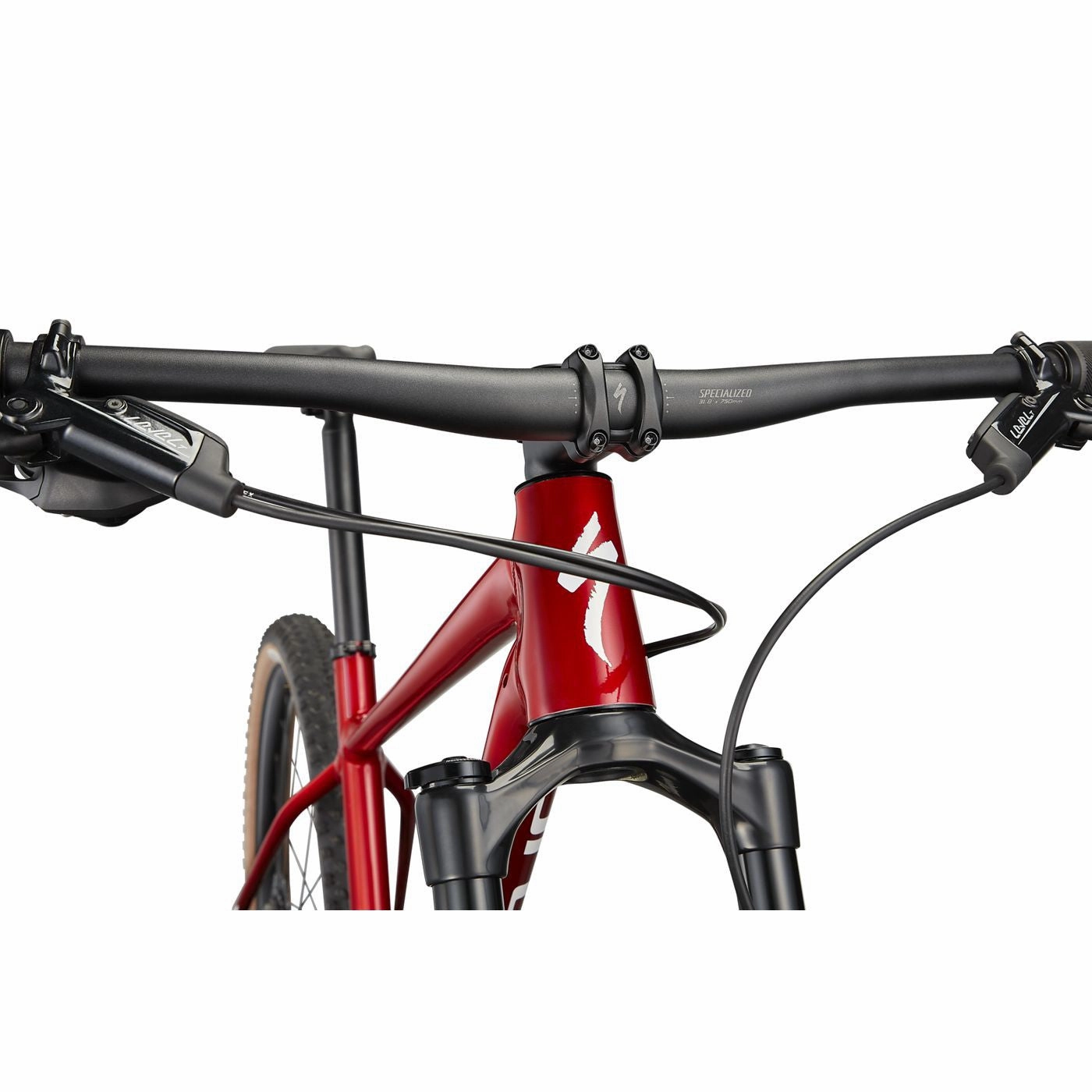

  • The new Chisel also houses all of the modern features that you expect from an XC bike, like Progressive XC Geometry with a 68-degree headtube angle and longer reach, internal cable routing, a threaded bottom bracket, boost spacing, 30.9mm dropper post compatibility, and 1x-only drivetrains.

Specifications

Frame

Specialized D'Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible

Seat Binder

Specialized Alloy, 34.9mm

Fork

RockShox Judy Gold, Motion Control damper, Solo Air, 42mm offset, 15x110mm thru-axle, 100mm of travel (XS - 80mm travel)

Stem

3D-forged alloy, 31.8mm, 7-degree rise

Handlebars

Specialized Alloy XC minirise, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm

Tape

Specialized Trail Grips

Saddle

Body Geometry Power Sport, steel rails

SeatPost

Specialized Alloy, Single Bolt, 30.9mm

Front Brake

SRAM Level T hydraulic disc, 2-Piston Caliper, Centerline Rotor, 160mm (XS/S/M), 180mm (L/XL)

Rear Brake

SRAM Level T, Post Mount, 160mm Centerline Rotor

Rear Derailleur

SRAM NX Eagle, 12-speed

Shift Levers

SRAM NX Eagle, trigger, 12-speed

Cassette

SRAM NX Eagle, 12-speed, 11-50t

Chain

SRAM, SX Eagle, 12-speed

Crankset

SRAM X1000 Eagle, DUB, 170/175mm 32T

Bottom Bracket

SRAM DUB, BSA 73mm, Threaded

Rims

Specialized Alloy, hookless, Tubeless ready, 25mm inner width

Front Hub

Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Rear Hub

Alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h

Spokes

Stainless, 14g

Front Tire

Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35

Rear Tire

Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35

Inner Tubes

Standard 40mm PV 29x1.75-2.4

Geometry


SmallMediumLargeXLargeXXLarge
Crank Length165mmm170mm175mm175mm175mm
Handlebar Width750mm750mm750mm750mm750mm
Stem Length60mm60mm70mm70mm70mm
Saddle Width155mm155mm143mm143mm143mm
Seatpost Length350mm400mm400mm400mm400mm
Stack591mm605mm605mm619mm633mm
Reach385mm405mm430mm455mm480mm
Head Tube Length95mm95mm95mm110mm125mm
Head Tube Angle6868686868
BB Height304mm309mm309mm309mm309mm
BB Drop68mm63mm63mm63mm63mm
Trail103mm103mm103mm103mm103mm
Fork Length, Full486mm506mm506mm506mm506mm
Fork Rake/Offset44mm44mm44mm44mm44mm
Front Center647mm674mm699mm730mm760mm
Chainstay Length432mm432mm432mm432mm432mm
Wheelbase1070mm1099mm1124mm1154mm1185mm
Top Tube Length, Horizontal555mm578mm603mm632mm661mm
Bike Standover Height732mm762mm792mm816mm847mm
Seat Tube Length367mm400mm430mm470mm520mm
Seat Tube Angle7474747474
