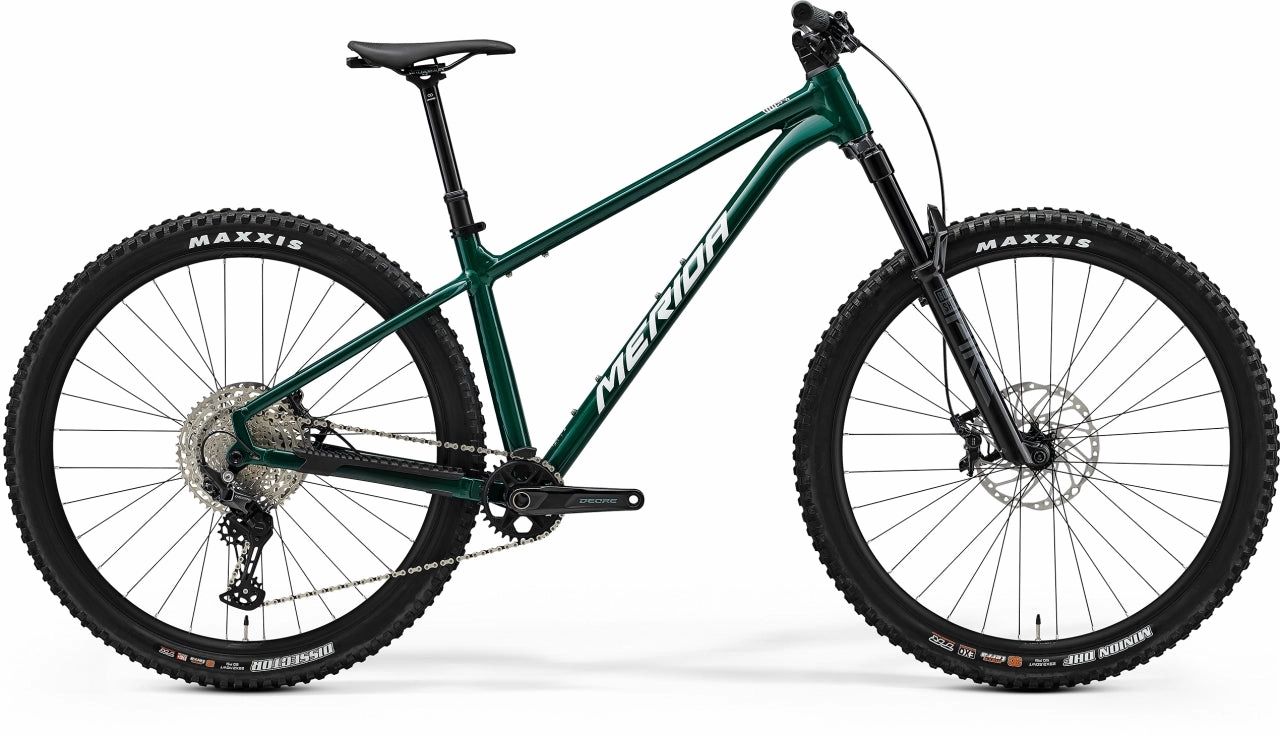

Big Trail 600 2025

Big Trail 600 2025

$ 52.00

$ 178.76

Unavailable
Big Trail 600 2025

Big Trail 600 2025

$ 52.00

$ 178.76

Size:
  • XS
  • SM
  • MD
  • LG
  • XL
  • 2XL
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

Description

The BIG.TRAIL 600 is the top dog of our progressive trail hardtail lineup. The third generation of our trail hardtail builds on an award-winning heritage - and it turns things up a notch. It's more capable and fun than ever, thanks to new geometry that boosts the descending ability to scary-fast levels and the climbing ability up to 'mountain goat'. We've also made sure the show is as good as the go, with sleeker and more refined looks, plus extra frame protection to keep it that way.

The BIG.TRAIL is back and better than ever!Hailedby the international mountain bike press as one of the best trail hardtails around, we've tweaked it so it goes up, down and along even faster - which obviously means more fun. With updated, progressive geometry, the new BIG.TRAIL builds on an incredibly successful heritage, with a slack head angle and extended reach helping tame the gnarliest trails and a steeper seat angle that makes climbing up to do it again a breeze. We've also given it a slicker and tricker look and improved the frame protection too, so it'll stay looking good for longer. Join the BIG.TRAIL family and enjoy hassle-free trail fun in spades. Available from XSmall to XLarge,perfectfor finding your preferred size and reach options.

Specification
FRAMEBIG.TRAIL TFS II; MAT aluminium; 29x2.5" max. WHS; 148x12 AST; BSA BBR
SHOCK
FORKRock Shox Pike; Air; 140 STR; tapered; platform; 44mm fork offset; 29x2.6 max. WHS
BRAKE-FShimano XT M8120; 4 piston
BRAKE-RShimano XT M8120; 4 piston
ROTOR-FShimano RT64 Centerline; 203mm
ROTOR-RShimano RT64 Centerline; 203mm
CHAINKMC X12
CHAINGUARDMERIDA EXPERT TR ISCG05
CRANKSETShimano Deore M6120; 32 ATC
CRANK LENGTH165mm XSHORT and SHORT; 170mm MID, LONG und XLONG
BOTTOM BRACKETShimano MT501; 24mm
DERAILLEUR-FRONT
DERAILLEUR-REARShimano Deore M6100; SGS
CASSETTEShimano Deore M6100; 10-51 ATC; 12 GER
GRIPSMERIDA COMP EC
HANDLEBARMERIDA EXPERT TR II; MAT aluminium; 780 WHB; 18 RHB
STEMMERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD
STEM SIZE40 mm
HEADSETAcros ICR MERIDA EXTERNAL neck; Upper and lower IPS sealing
HUB-FShimano TC500-B; 110x15 WHF; 32 SPH; Centerlock
HUB-RShimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock
AXLE-F
AXLE-RMERIDA EXPERT TR; including removeable lever, 6/4mm allen key
RIMMERIDA EXPERT TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); 29"
SADDLEMERIDA COMP SL; 25% recycled material; V-mount; incl. MERIDA minitool
SEAT CLAMPMERIDA EXPERT
SEATPOSTMERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 150 SPTS: 170 SPTM/L: 200 SPTXL: 230 SPT
SHIFTER-FRONT
SHIFTER-REARShimano Deore M6100
SPOKESDouble Butted Black stainless
TIRE-FMaxxis Minion DHF; 29x2.5"; fold; TR EXO 3C MaxxTerra
TIRE-RMaxxis Dissector; 29x2.4"; fold; TR EXO 3C MaxxTerra

Geometry

SMMDLGXL2XL
Tyre Sizes29"29"29"29"29"
ST seat tube [mm]380410430450470
TT top tube [mm]579600622645670
CS chain stay length [mm]435435435435435
HTA head tube angle []65.565.565.565.565.5
STA seat tube angle []75.575.575.575.575.5
BD bottom bracket drop [mm]66.566.566.566.566.5
HT head tube [mm]95100110120120
FL fork length [mm]550550550550550
R reach [mm]415435455475500
S stack [mm]636641650659659
WB wheel base [mm]11501172119612201245
SH stand over height [mm]716723725728730

Size
FRAME SIZEBODY HEIGHT
XS< 163 cm
S157 - 173 cm
M167 - 183 cm
L177 - 190 cm
XL187 - 196 cm
XXL> 192 cm
