Big Nine 20 2025

Big Nine 20 2025

$ 59.31

$ 180.32

Unavailable
Big Nine 20 2025

Big Nine 20 2025

$ 59.31

$ 180.32

Size:
  • SM
  • MD
  • LG
  • XL
  • 2XL
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

Description

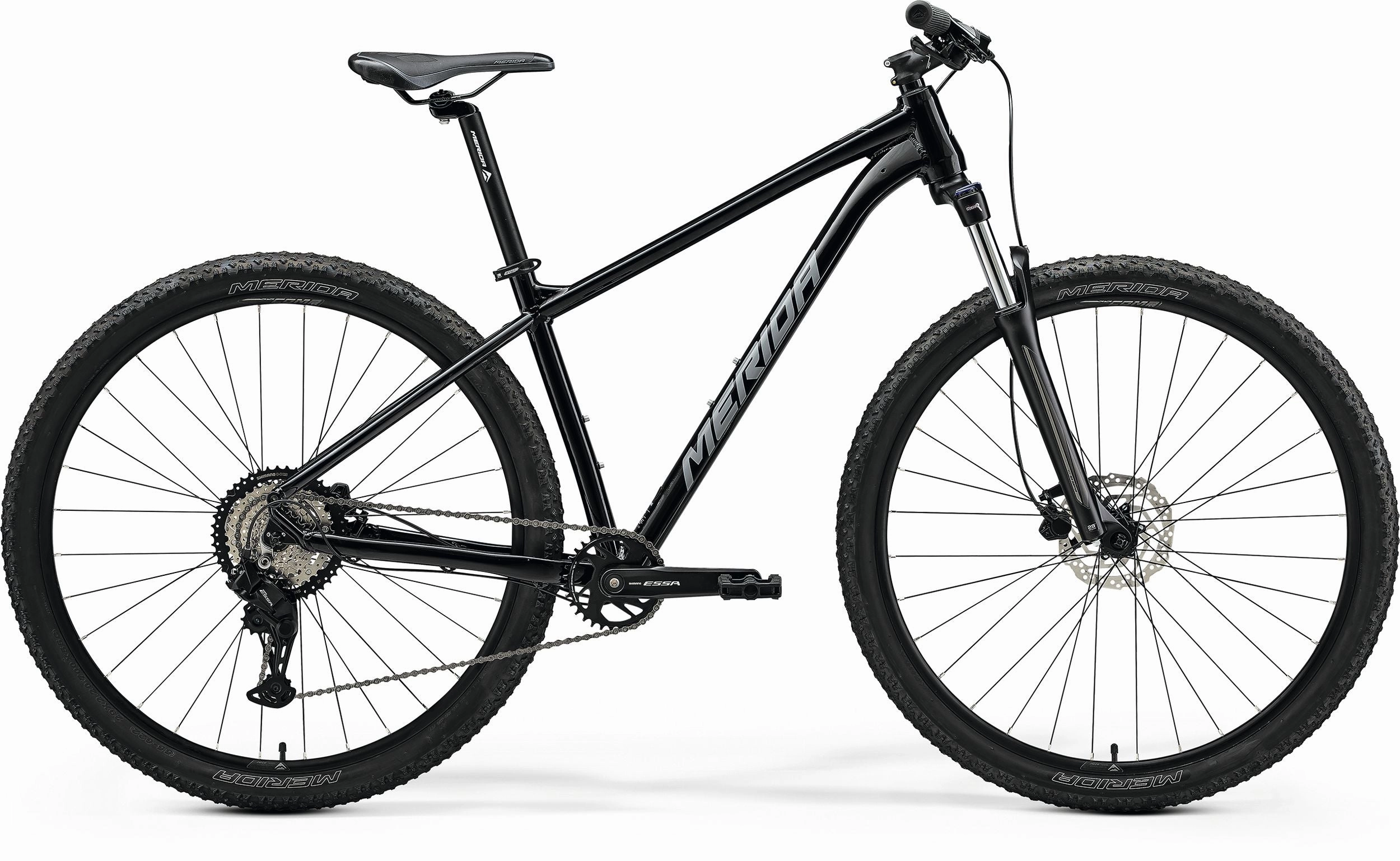

Single chainring equipped entry-level 29er aluminium hardtail featuring a more upright and, therefore, more comfortable riding position than our more race-focused hardtails. The riding position puts less strain on the lower back and also improves the visibility of what lies ahead. A 100 mm suspension fork from SR Suntour and hydraulic disc brakes improve comfort and control even further.

Mountain biking is one of the most varied cycling disciplines and probably the most demanding when it comes to equipment. While full suspension bikes offer amazing riding characteristics, the classic hardtail remains one of the purest tools for the job. Our 29er wheel equipped BIG.NINE range comes in carbon and aluminium and features multiple geometry options. The updated CF carbon and LITE aluminium framed BIG.NINE offer truly modern geometry with increased standover clearance and handling stability to better deal with the tough race tracks of today, with downcountry ready TR options that boost fork travel and add in aggressive tyres and dropper posts. The more relaxed geometry of the BIG.NINE TFS and SPEED offers a more comfortable, upright riding position. Our classic hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we could gain in over half a century of bike production and manufacturing. The BIG.NINE range represents the symbiosis between modern frame technology, attention to detail and craftsmanship 'Made in Taiwan' symbolises.

Specification
FRAMEBIG.NINE TFS IV; MAT aluminum; 29x2.25" max. WHS; 135x9 AST; BSA BBR
SHOCK
FORKSR Suntour XCT30 HLO; Coil; 100 STR; lockout; max. 29x2,25" WHS
BRAKE-FTektro HD-M275; hydraulic brake
BRAKE-RTektro HD-M275; hydraulic brake
ROTOR-FShimano RT10; 160 mm
ROTOR-RShimano RT10; 160 mm
CHAINKMC Z8.3
CHAINGUARD
CRANKSETShimano ESSA FC-U2001 32 ATC; MAT Aluminium
CRANK LENGTH170 mm-S, 175 mm-M up
BOTTOM BRACKETShimano BB-UN101 73-123
DERAILLEUR-FRONT
DERAILLEUR-REARShimano ESSA RD-U2000-8; GS
CASSETTEShimano CS-HG400-8; 11-45 ATC; 8 GER
GRIPSMERIDA EC
HANDLEBARMERIDA CC; MAT aluminium; 690 WHB; 15 RHB
STEMMERIDA CC; MAT aluminium; 31.8 DSH; 6 ASD
STEM SIZE70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL
HEADSETMERIDA M2345
HUB-FShimano TX505; 100x9 WHF; 32 SPH; Centerlock
HUB-RShimano TX505; 135x9 WHR; 32 SPH; Centerlock
AXLE-F
AXLE-R
RIMMERIDA CC; 17 IWR; MAT aluminium
SADDLEMERIDA Sport comfort
SEAT CLAMPMERIDA COMP QR
SEATPOSTMERIDA CC; 30.9 DSP; 15 SSB; MAT aluminium
SHIFTER-FRONT
SHIFTER-REARShimano ESSA SL-315-8R
SPOKESBlack steel
TIRE-FMERIDA K1080; 29x2.2"; wire
TIRE-RMERIDA K1080; 29x2.2"; wire




Geometry
Frame SizeSMLXLXXL
Tyre Sizes29"29"29"29"29"
ST seat tube [mm]370430470510560
TT top tube [mm]570590610630650
CS chain stay length [mm]440440440440440
HTA head tube angle []7070707070
STA seat tube angle []7373737373
BD bottom bracket drop [mm]6060606060
HT head tube [mm]100115130145160
FL fork length [mm]506506506506506
R reach [mm]382398414429445
S stack [mm]614628642656670
WB wheel base [mm]10691090111011311152
SH stand over height [mm]679727763800843
