Description

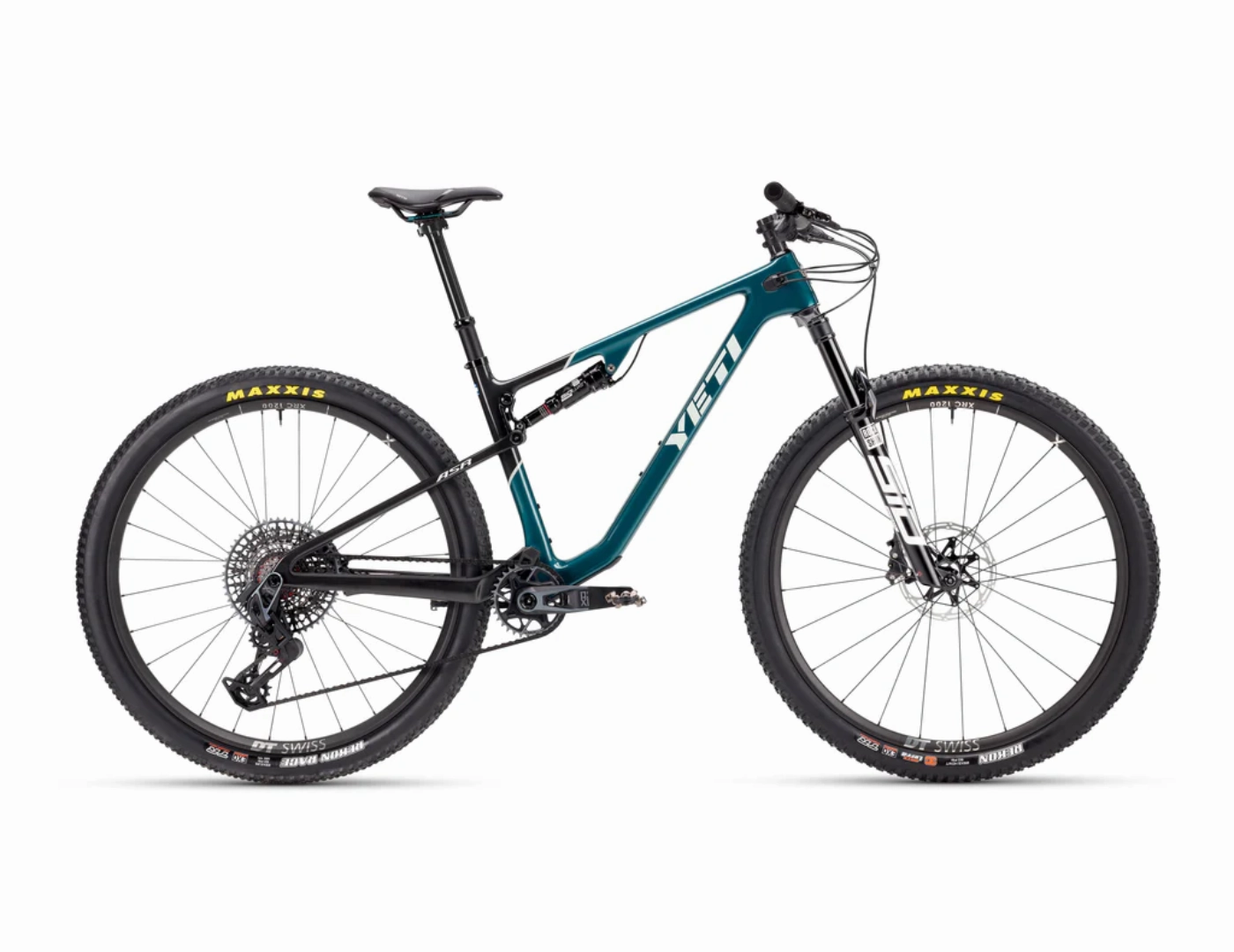

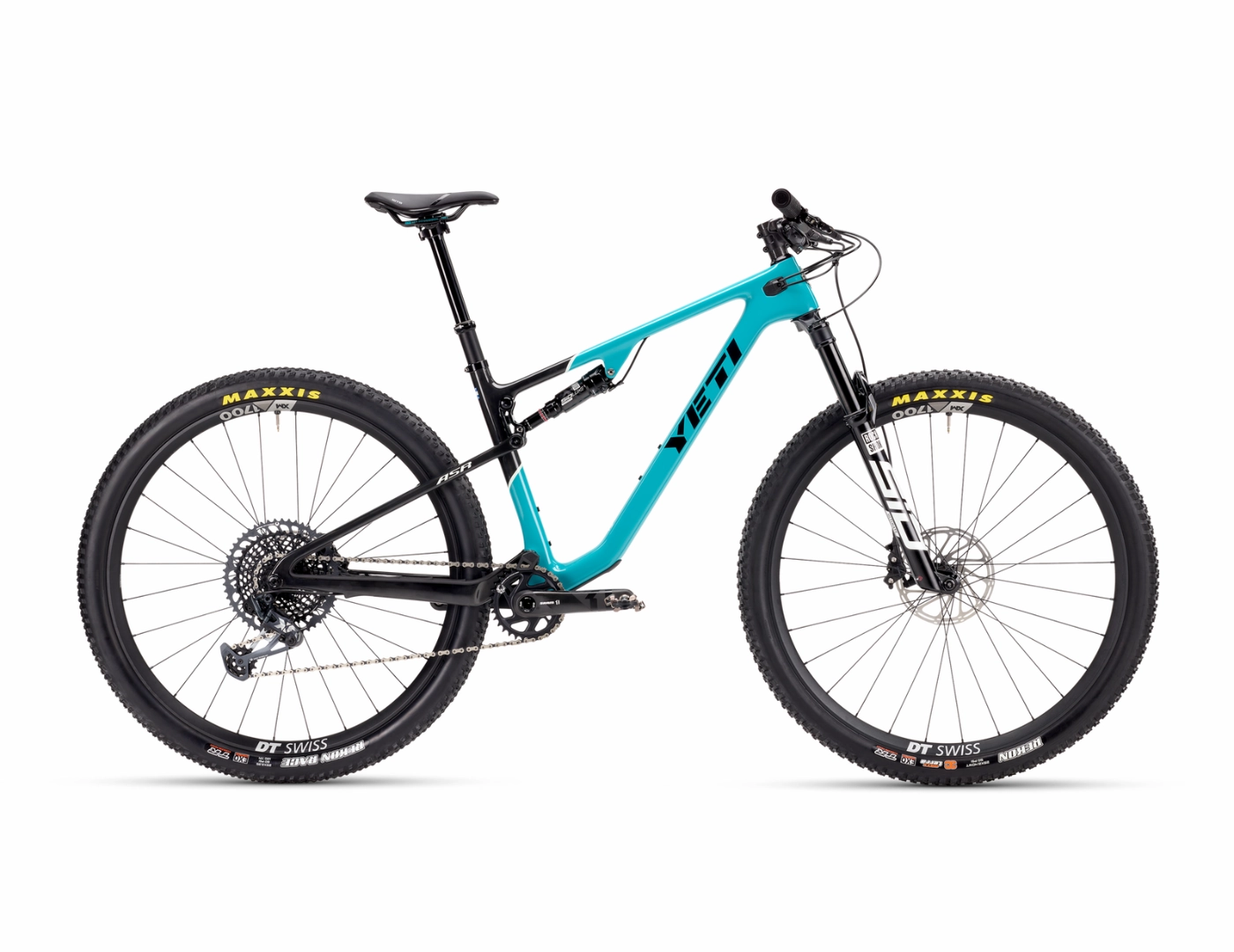

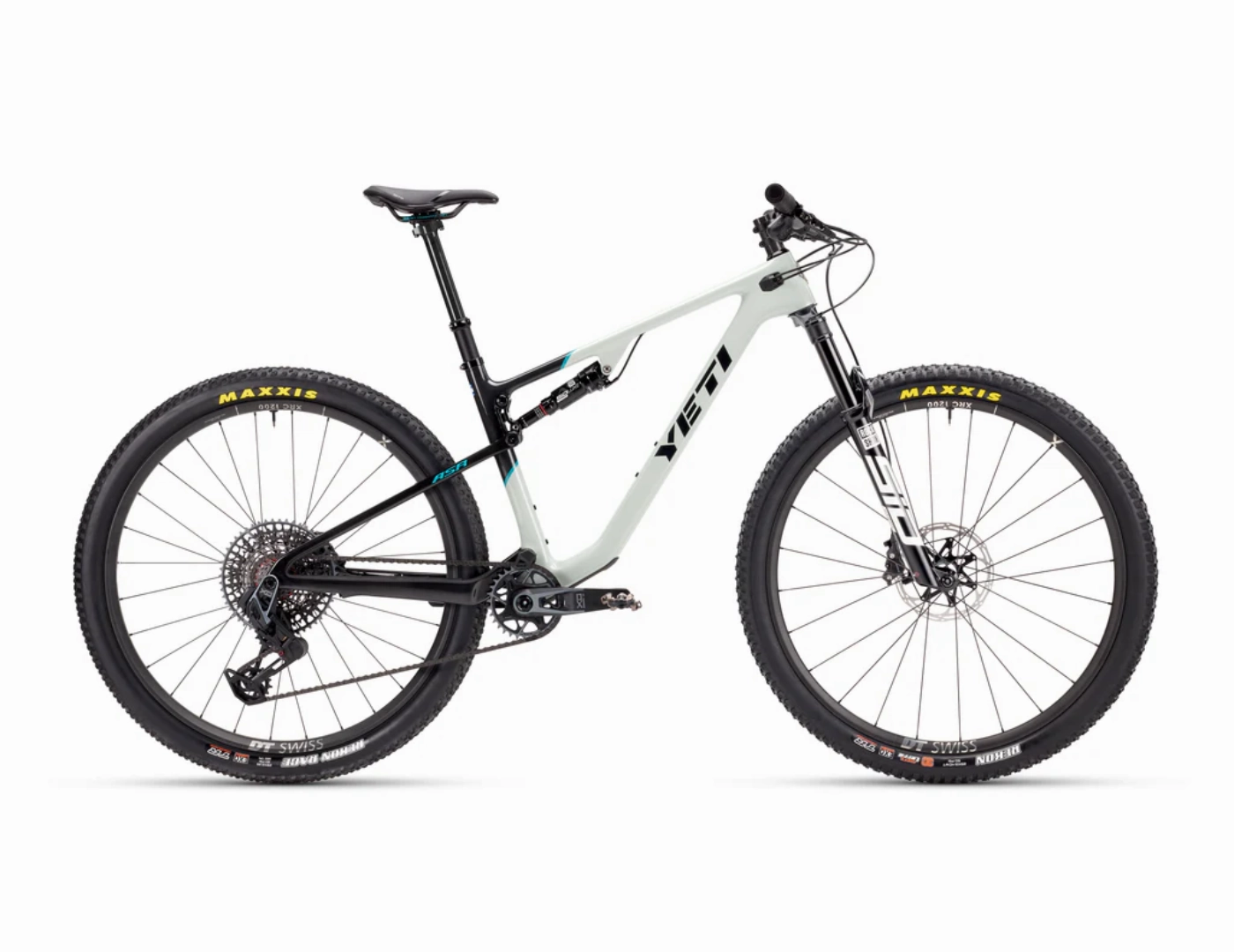

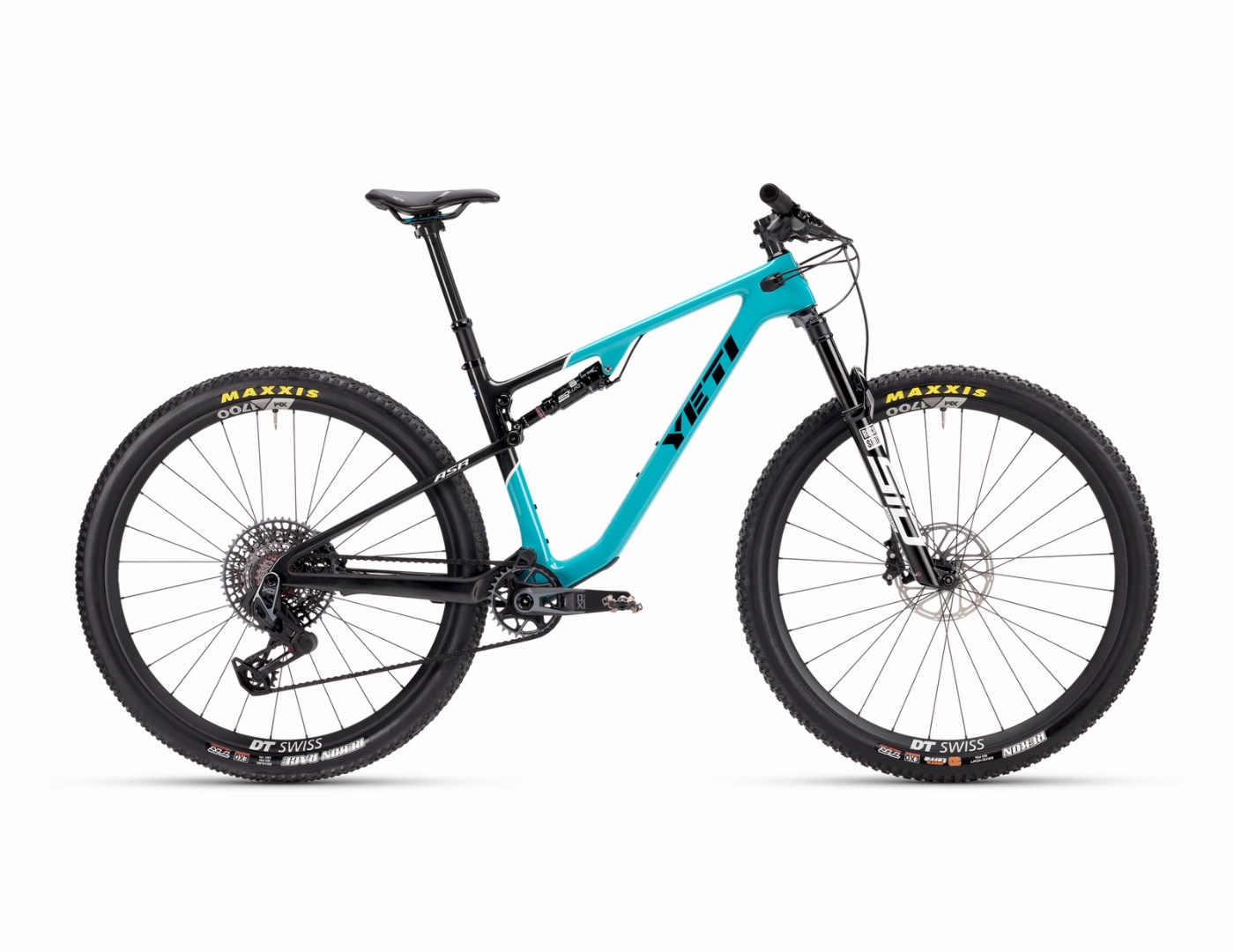

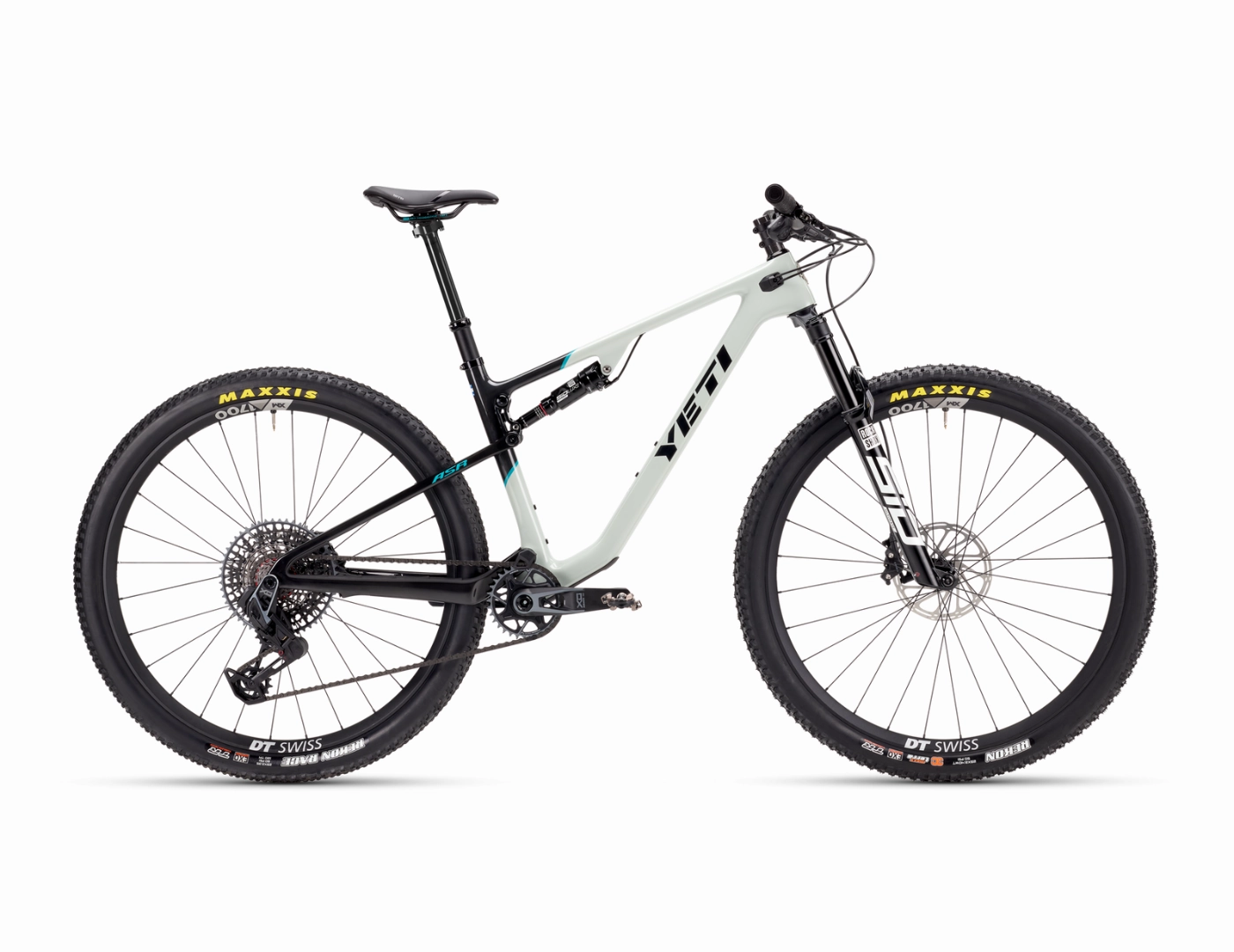

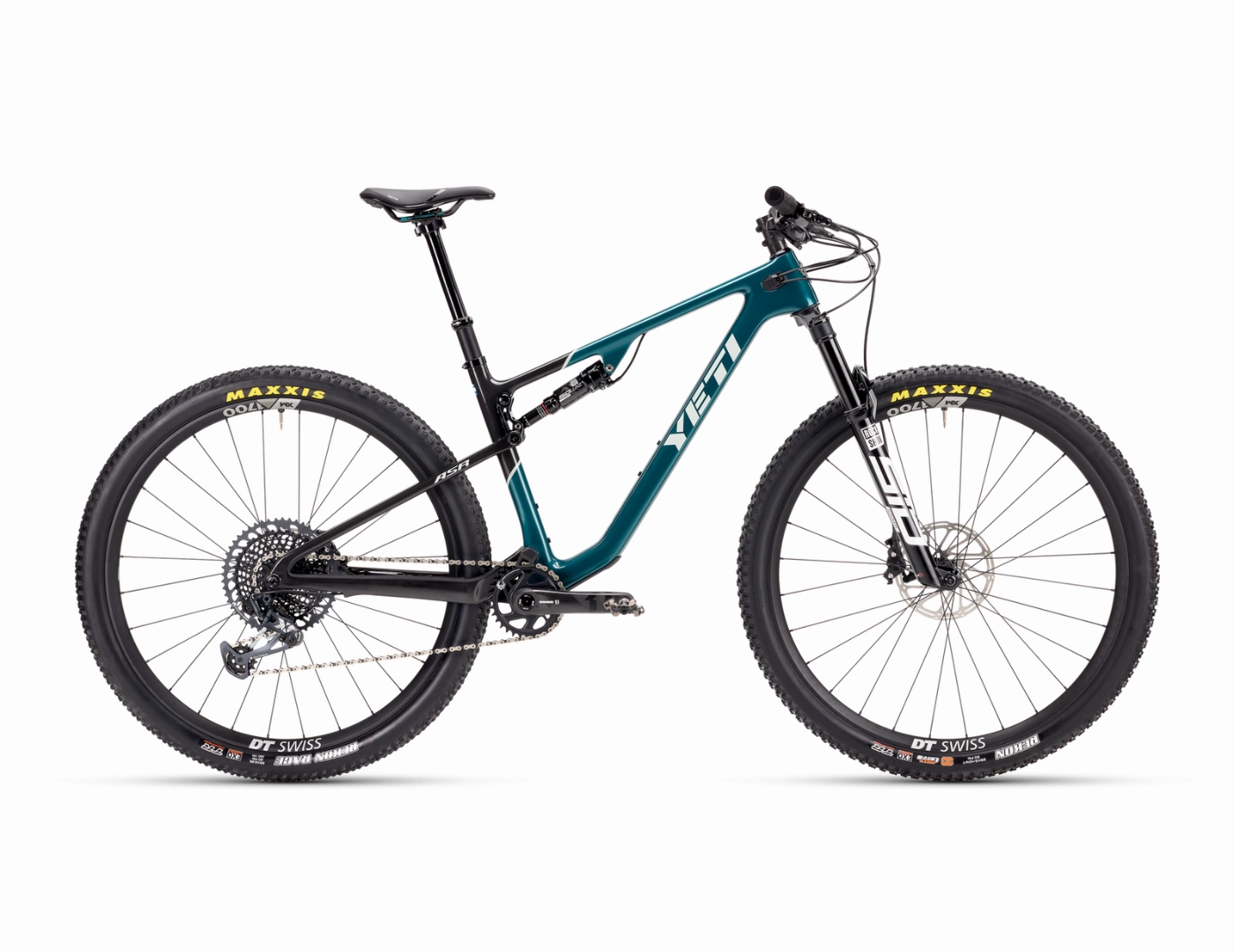

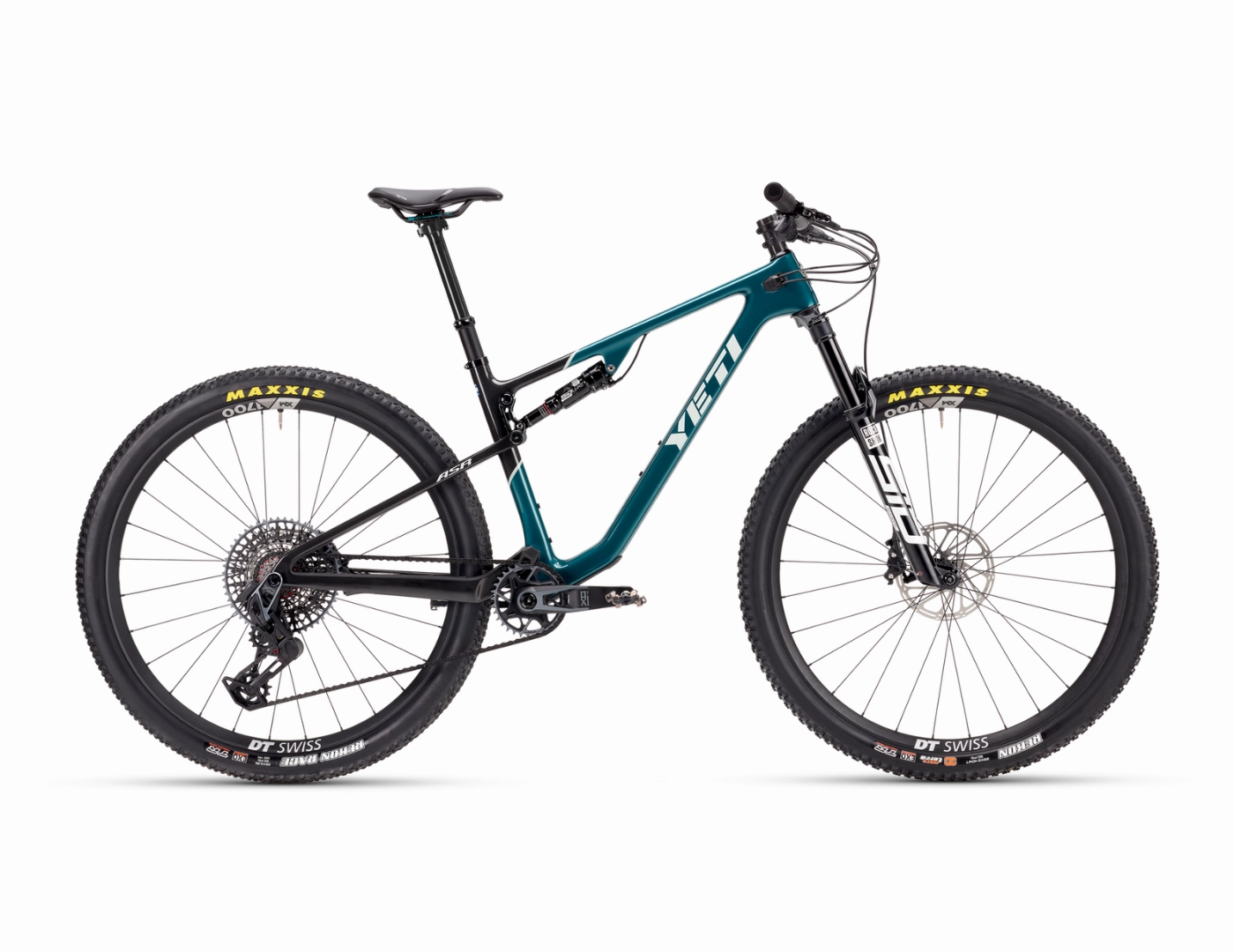

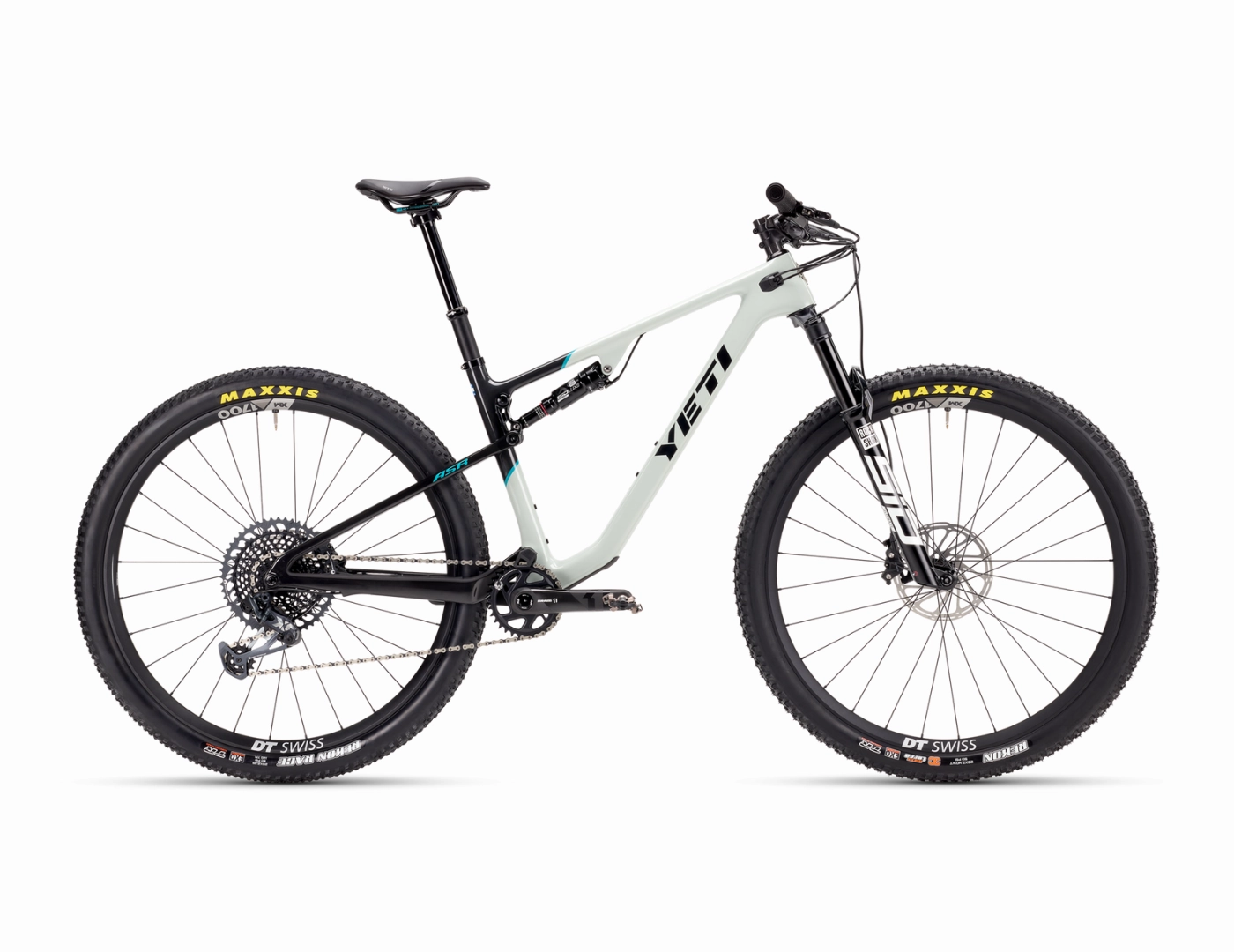

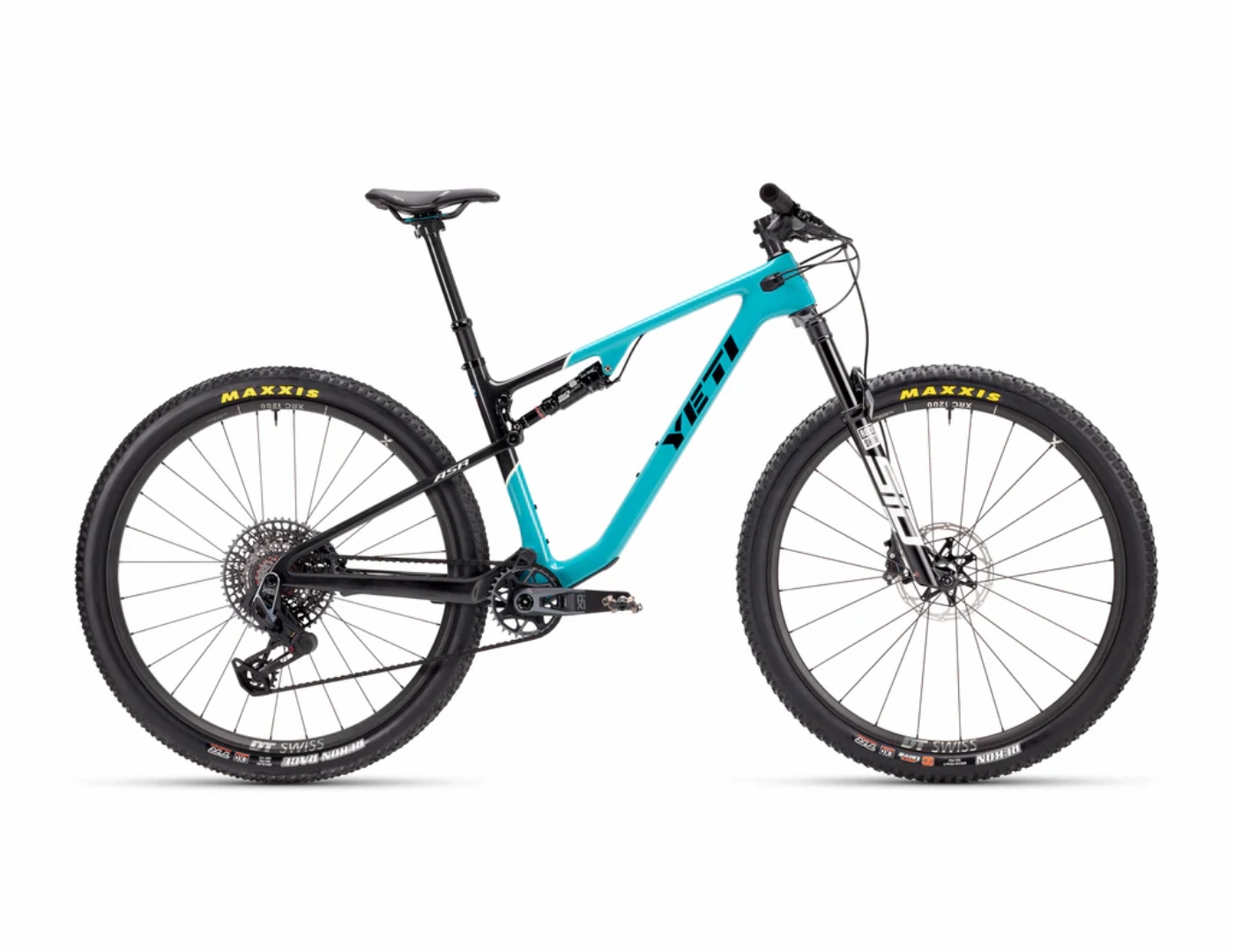

A decade ago Yeti peaced out of the lycra game. While they were busy getting down, XC got a lot more X, calling for the comeback of a legend. Flashing a crazy-light, zero - redundant carbon layup thats far beyond the previously possible. Featuring 115mm of flex stay suspension for 100% usable travel, and energy saving small-bump compliance. Helping todays racers be faster where they have to be. On first blush it may appear to have peers, but dont get it twisted. The reincarnated ASR is a lot like nothing else.
Specification
| T4 XX | T3 XO | T2 | |
| Details | KIT TURQ Carbon Frame, 120mm SID ULT 3P & SID LUXE ULT 3p with Twistloc ULT, SRAM X0 T-Type & LEVEL TLM Brakes | TURQCarbon Frame, 120mm SID ULT 3P and SIDLUXE ULT 3p with Twistloc ULT, SRAM X0 T-Type and LEVEL Silver Stealth 4P Brakes | TURQCarbon Frame, 120mm SID ULT 3P and SIDLUXE ULT 3p with Twistloc ULT, SRAM X01 Eagle and LEVEL Silver Stealth 4P Brakes |
| Frame | TURQSeries carbon fiber frame, threaded bottom bracket, configurable cable ports, 148mm x 12mm BOOST dropouts, integrated derailleur hanger and axle | TURQSeries carbon fiber frame, threaded bottom bracket, configurable cable ports, 148mm x 12mm BOOST dropouts, integrated derailleur hanger and axle | |
| Fork | ROCK SHOX SID ULTIMATE 3P REMOTE 120MM | ROCK SHOX SID ULTIMATE 3P REMOTE/120MM | ROCK SHOX SID ULTIMATE 3P REMOTE/120MM |
| Material | TURQSERIES | TURQSERIES | TURQSERIES |
| Weight | 24.33 | 24.06 | |
| Travel | 115MM (4.5") | 115MM (4.5") | 115MM (4.5") |
| Rear Shock | ROCK SHOX SIDLUXE ULTIMATE 3P REMOTE | ROCK SHOX SIDLUXE ULTIMATE 3P REMOTE | ROCK SHOX SIDLUXE ULTIMATE 3P REMOTE |
| Wheelset | DT SWISS XM1700 30MM | DT SWISS XM1700 30MMUpgradable | DT SWISS XM1700 30MMUpgradable |
| Rear Der | SRAM XX EAGLE AXS TRANSMISSION | SRAM X0 EAGLE AXS TRANSMISSION | SRAM X01 EAGLE |
| Shift | SRAM AXS POD CONTROLLER | SRAM AXS POD CONTROLLER | SRAM X01 EAGLE |
| Crank | SRAM XX EAGLE TRANSMISSION 30T 170MM | SRAM X0 EAGLE TRANSMISSION 32T 170MM | SRAM X1 EAGLE 32T 170MM |
| BB | SRAM DUB BSA 73 | SRAM DUB BSA 73 | SRAM DUB BSA 73 |
| Cassette | SRAM XX EAGLE TRANSMISSION 10-52 | SRAM X0 EAGLE TRANSMISSION 10-52 | SRAM X01 EAGLE 1295 10-52 |
| Chain | SRAM XX EAGLE TRANSMISSION FLATTOP | SRAM X0 EAGLE TRANSMISSION FLATTOP | SRAM GX EAGLE |
| Brakes | LEVEL SILVER STEALTH 4P | LEVEL SILVER STEALTH 4P | LEVEL SILVER STEALTH 4P |
| Rotors | F/R SRAM CENTERLINE 180/SRAM CENTERLINE 160 | SRAM CENTERLINE 180/SRAM CENTERLINE 160 | SRAM CENTERLINE 180/SRAM CENTERLINE 160 |
| Post | FOX TRANSFER SL FACTORY 31.6MM / XS: 100MM, SM: 125MM, MD-XL: 150MM | FOX TRANSFER SL PERFORMANCE ELITE 31.6MM / XS: 100MM, SM: 125MM, MD-XL: 150MM | FOX TRANSFER SL PERFORMANCE ELITE 31.6MM / XS-SM: 125MM, MD-XL: 150MM |
| Front Tire | MAXXIS REKON 2.4 EXO | MAXXIS REKON 2.4 EXO | MAXXIS REKON 2.4 EXO |
| Rear Tire | MAXXIS REKON RACE 2.4 EXO | MAXXIS REKON RACE 2.4 EXO | MAXXIS REKON RACE 2.4 EXO |
| Headset | CANE CREEK 70 HELLBENDER LITE | CANE CREEK 70 HELLBENDER LITE | CANE CREEK 70 HELLBENDER LITE |
| Bar | RACE FACE NEXT SL 35X740 | RACE FACE NEXT SL 35X740 | RACE FACE NEXT SL 35X740 |
| Stem | BIKE YOKE BARKEEPER 55MM | BIKE YOKE BARKEEPER 55MM | BIKE YOKE BARKEEPER 55MM |
| Grips | SRAM TWISTLOC ULT 3P | SRAM TWISTLOC ULT 3P | SRAM TWISTLOC ULT 3P |
| Seat | SOLANO CHROMOLY | SOLANO CHROMOLY | SOLANO CHROMOLY |
Geometry
| XS | SM | MD | LG | XL | ||
| A | SEAT TUBE LENGTH | 15.7 | 16.1 | 16.9 | 17.3 | 19.5 |
| B | EFFECTIVE TOPTUBE LENGTH | 21.8 | 22.6 | 23.6 | 24.5 | 25.7 |
| C | HEADTUBE ANGLE | 66.5 | 66.5 | 66.5 | 66.5 | 66.5 |
| D | EFF. SEAT TUBE ANGLE | 75.5 | 75.5 | 75.5 | 75.5 | 75.5 |
| E | ACTUAL SEAT TUBE ANGLE | 70.4 | 70.8 | 71.2 | 71.6 | 72.1 |
| F | CHAINSTAY LENGTH | 17.0 | 17.1 | 17.2 | 17.3 | 17.4 |
| G | WHEELBASE | 44.2 | 45.0 | 46.2 | 47.3 | 48.7 |
| H | ESTIMATED BB HEIGHT | 13.2 | 13.2 | 13.2 | 13.2 | 13.2 |
| I | STANDOVER | 30.2 | 30.2 | 30.4 | 30.4 | 30.6 |
| J | HEADTUBE LENGTH | 3.6 | 3.6 | 4.0 | 4.4 | 5.2 |
| K | AXLE TO CROWN | 20.9 | 20.9 | 20.9 | 20.9 | 20.9 |
| L | OFFSET | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 |
| M | STACK | 23.3 | 23.3 | 23.6 | 24.0 | 24.8 |
| N | REACH | 15.7 | 16.5 | 17.5 | 18.3 | 19.3 |
| O | FRONT CENTER | 27.1 | 27.9 | 29.0 | 30.0 | 31.3 |
| P | Vertical Fork Travel | 4.3 | 4.3 | 4.3 | 4.3 | 4.3 |
