Description

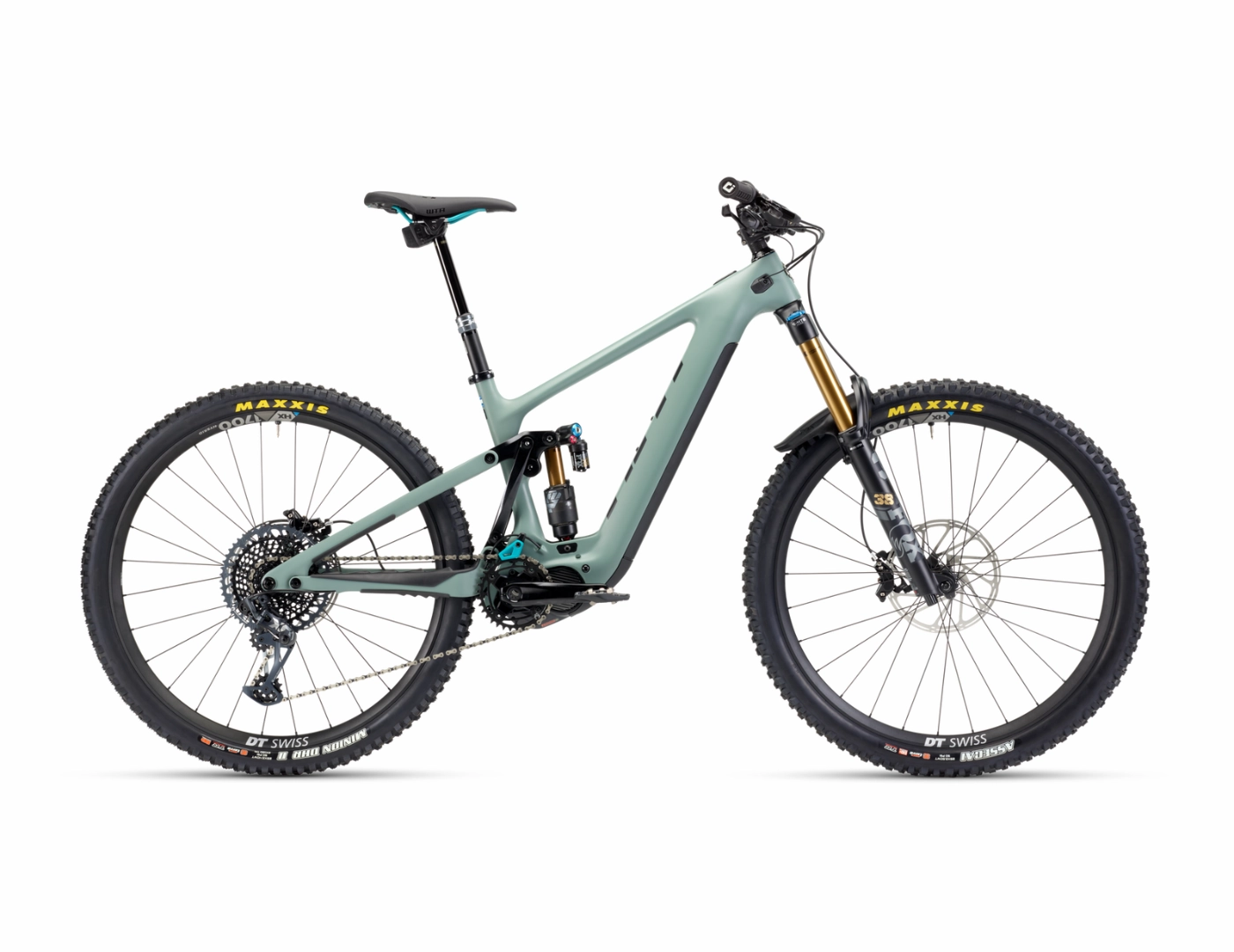

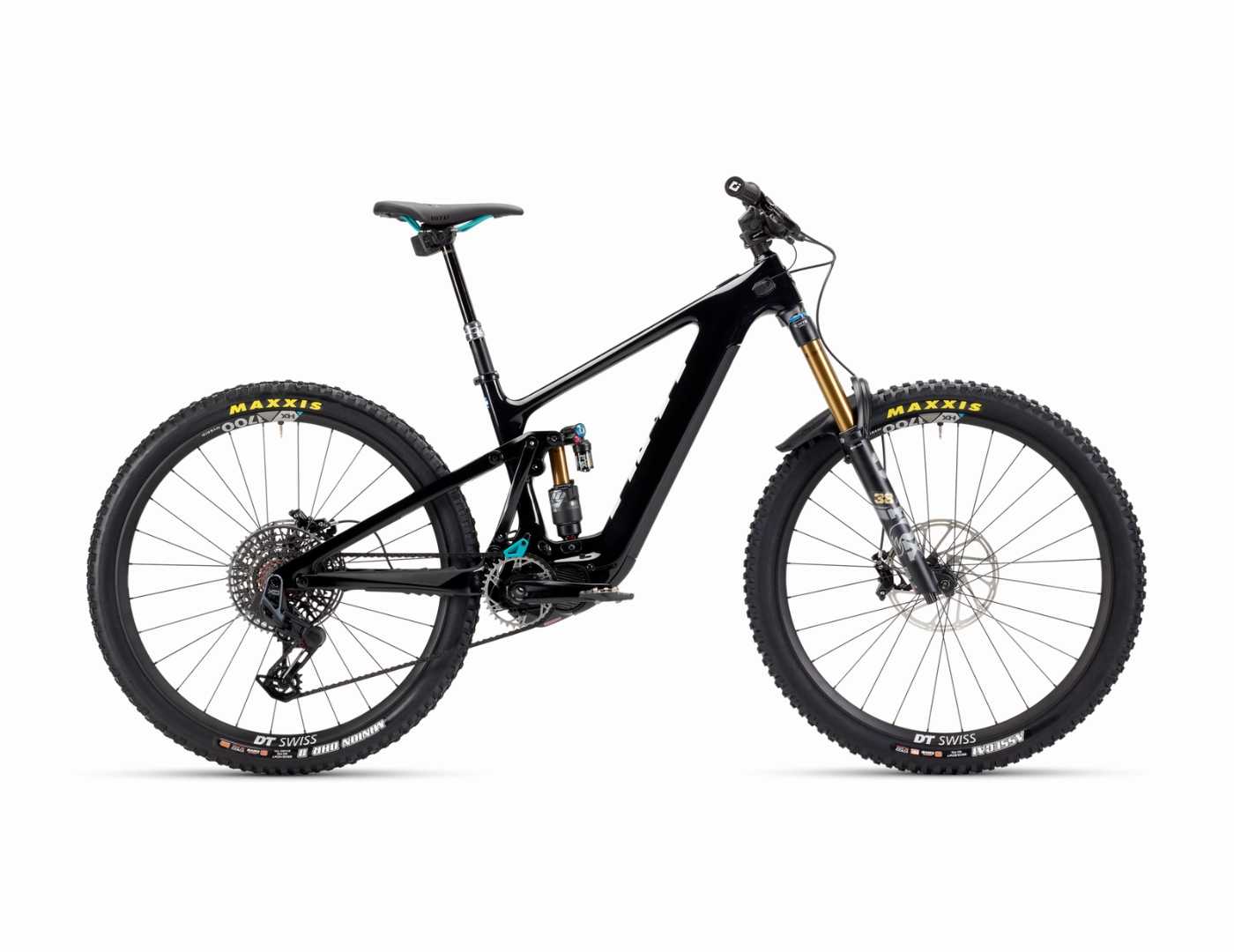

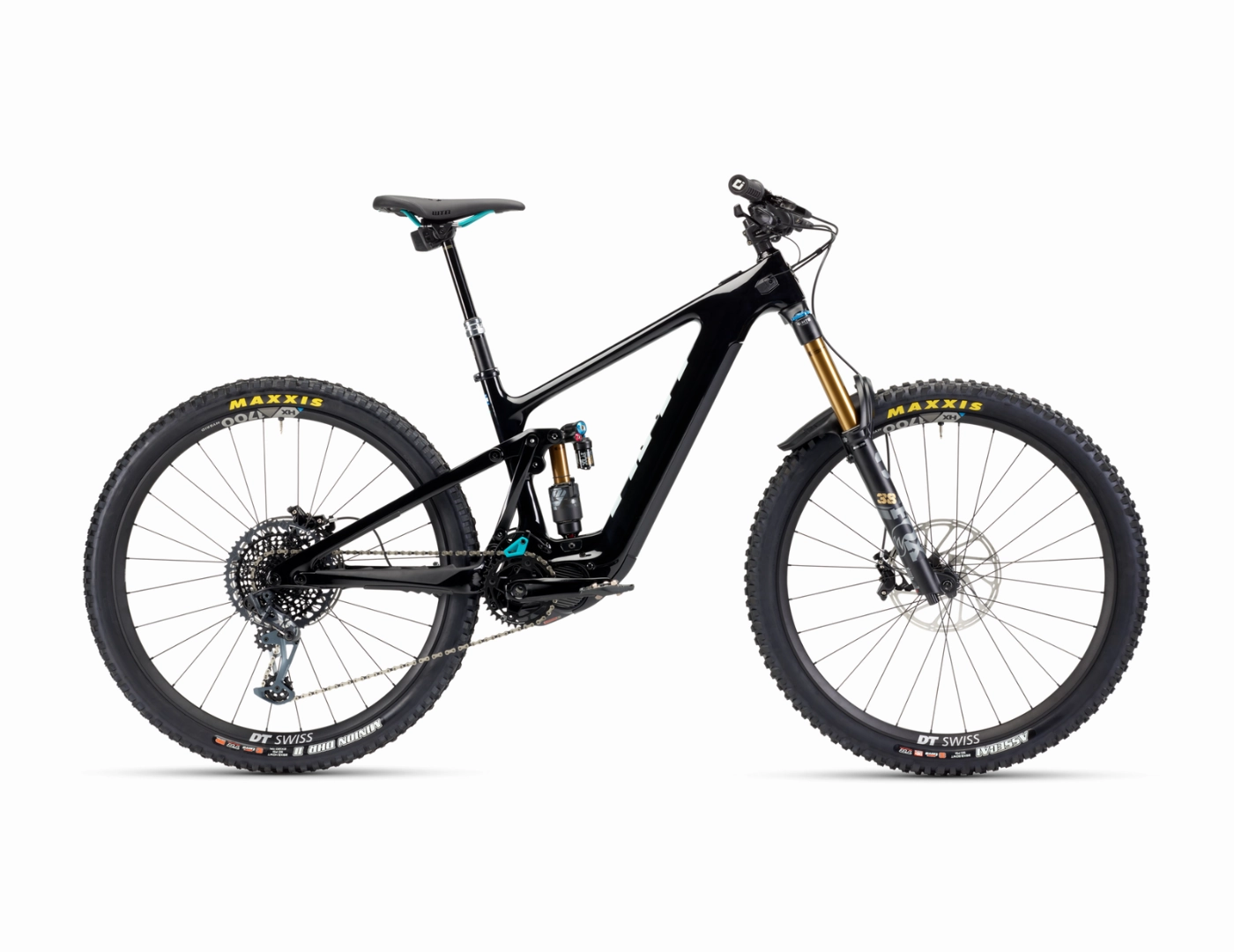

Why did it take Yeti so long to make the 160E? Because they thought it only wise that we heed the laws of physics. So Yeti took the time to explore and build the 160E on an all new suspension platform, they call sixfinity. A ground breaking design with infinite tunability, sixfinity also allows Yeti to address the added power, weight and unique demands of an e-bike. Sure it took them some time. From what Yeti have learned along the way, it'll save even more. The first e-bike built for racing. The 160E breaks new ground.
Specification
| T2 | T3 |
| TRAVEL 160mm (6.3") | TRAVEL 160mm (6.3") |
| MATERIAL TURQ SERIES | MATERIAL TURQ SERIES |
| FORK FOX FACTORY 38 GRIP2 | FORK FOX FACTORY 38 GRIP2 |
| SHOCK FOX FACTORY FLOAT X2 | SHOCK FOX FACTORY FLOAT X2 |
| WHEELSET DT SWISS HX1700 30MM | WHEELSET DT SWISS HX1700 30MM |
| REAR DER SRAM X01 EAGLE | REAR DER SRAM X0 EAGLE AXS TRANSMISSION |
| SHIFT SRAM X01 EAGLE | SHIFT SRAM AXS POD CONTROLLER |
| CRANK SHIMANO 34T | CRANK SRAM XX STEPS DM 34T T-TYPE CHAIN RING |
| BB N/A | BB N/A |
| CASSETTE SRAM X01 EAGLE 1295 10-52 | CASSETTE SRAM X0 EAGLE TRANSMISSION 10-52 |
| CHAIN SRAM GX EAGLE | CHAIN SRAM X0 EAGLE TRANSMISSION FLATTOP |
| BRAKES SRAM CODE RSC | BRAKES SRAM CODE RSC |
| ROTOR F/R SRAM HS2 220/SRAM HS2 220 | ROTOR F/R SRAM HS2 220/SRAM HS2 220 |
| POST SRAM REVERB AXS 31.6MM SM: 150MM, MD-XL: 170MM | POST SRAM REVERB AXS 31.6MM SM: 150MM, MD-XL: 170MM |
| TIRE (F) MAXXIS ASSEGAI 2.5 EXO | TIRE (F) MAXXIS ASSEGAI 2.5 EXO |
| TIRE (R) MAXXIS MINION DHR II 2.4 DD | TIRE (R) MAXXIS MINION DHR II 2.4 DD |
| HEADSET CANE CREEK 40 INTEGRATED | HEADSET CANE CREEK 110 INTEGRATED |
| BAR YETI CARBON 35X800MM | BAR YETI CARBON 35X800MM |
| STEM BURGTEC ENDURO MK3 35X50MM | STEM BURGTEC ENDURO MK3 CNC 35X50MM |
| GRIPS ODI ELITE PRO | GRIPS ODI ELITE PRO |
| SADDLE SILVERADO CUSTOM | SADDLE ERGON SM ENDURO SADDLE |
| BASH GUARD N/A | BASH GUARD N/A |
| BATTERY SHIMANO 630Wh INTERNAL BATTERY | BATTERY SHIMANO 630Wh INTERNAL BATTERY |
| DRIVE UNIT SHIMANO EP801 | DRIVE UNIT SHIMANO EP801 |
| DISPLAY SHIMANO EM800 | DISPLAY SHIMANO EM800 |
| ASSIST SWITCH SHIMANO EM800L | ASSIST SWITCH SHIMANO EM800L |
| CHARGER SHIMANO E6002 | CHARGER SHIMANO E6002 |
Geometry
| A | SEAT TUBE LENGTH | 15 | 16.1 | 17.7 | 19.5 |
| B | TOPTUBE LENGTH | 22.1 | 23.3 | 24.2 | 25.3 |
| C | HEADTUBE ANGLE | 64.5 | 64.5 | 64.5 | 64.5 |
| D | EFF. SEAT TUBE ANGLE | 78 | 78 | 78 | 78 |
| E | CHAINSTAY LENGTH | 17.6 | 17.6 | 17.6 | 17.6 |
| F | WHEELBASE | 47.6 | 48.8 | 49.7 | 50.9 |
| G | ESTIMATED BB HEIGHT | 13.8 | 13.8 | 13.8 | 13.8 |
| H | STANDOVER | 29.7 | 29.7 | 29.7 | 29.7 |
| I | HEADTUBE LENGTH | 3.7 | 3.9 | 4.1 | 4.5 |
| J | AXLE TO CROWN | 23 | 23 | 23 | 23 |
| K | OFFSET | 1.7 | 1.7 | 1.7 | 1.7 |
| L | STACK | 24.3 | 24.4 | 24.6 | 25 |
| M | REACH | 16.9 | 18.1 | 18.9 | 19.9 |
| N | FRONT CENTER | 30.0 | 31.2 | 32.1 | 33.3 |
